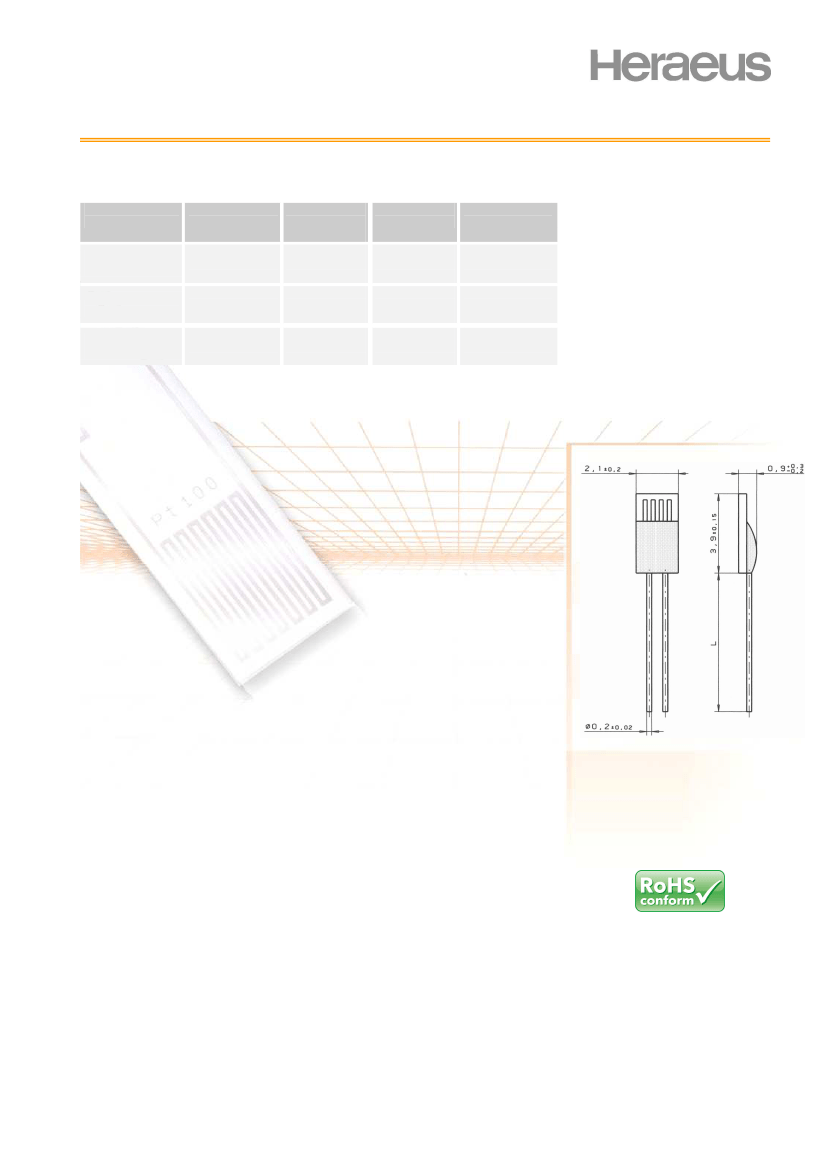

Platinum Resistance Temperature Detector
M 422
M series PRTDs are especially robust and are designed for large volume applications where long term stability,
interchangeability and accuracy over a large temperature range are vital. Typical applications are Automotive, White
Goods, HVAC, Energy Management, Medical and Industrial Equipment.
Nominal
Resistance R0
100 Ohm at 0°C
Tolerance
DIN EN 60751
1996-07
Class 1/3 B
Class A
Class B
Class 1/3 B
Class A
Class B
Class 1/3 B
Class A
Class B
Tolerance
DIN EN 60751
2009-05
F 0.1
F 0.15
F 0.3
F 0.1
F 0.15
F 0.3
F 0.1
F 0.15
F 0.3
O rder Number
Plastic Bag
32
32
32
32
32
32
32
32
32
208
208
208
208
208
208
208
208
208
500
498
392
502
501
414
537
503
499
Order Number
Blister reel
32
32
32
32
32
32
208 522
208 521
208 520
208 525
208 524
208 523
500 Ohm at 0°C
1000 Ohm at 0°C
32 208 527
32 208 526
The measuring point for the nominal resistance is defined at 8mm from the end of the sensor body.
Specification
Temperature range
DIN EN 60751 (according to IEC 751)
-70°C to +500°C (continuous operation)
(temporary use to 550°C possible)
Tolerance Class B:
-70°C to +500°C
Tolerance Class A:
-50°C to +300°C
Tolerance Class 1/3 B:
0°C to +150°C
TC = 3850 ppm/K ; 3750 ppm/K available
on request
Pt clad Ni- wire
Recommend connection technology:
Welding, Crimping and Brazing
10mm ±1mm
max. R
0
-drift 0.04% after 1000 h at 500 °C
at least 40g acceleration at 10 to 2000 Hz,
depends on installation
at least 100g acceleration with 8ms half sine
wave, depends on installation
unhoused for dry environments only
> 100 MΩ at 20°C; > 2 MΩ at 500°C
0.3 K/mW at 0°C
water current (v= 0.4m/s):
air stream (v= 2m/s):
t
0.5
= 0.07s
t
0.9
= 0.20s
t
0.5
= 3.2s
t
0.9
= 11s
Temperature coefficient
Leads
Lead lengths (L)
Longterm stability
Vibration resistance
Shock resistance
Environmental conditions
Insulation resistance
Self heating
Response time
Measuring current
100Ω: 0.3 to 1.0mA
500Ω: 0.1 to 0.7mA
1000Ω: 0.1 to 0.3mA
(self heating has to be considered)
Other tolerances, values of resistance and wire lengths are
available on request.
Note
We reserve the right to make alterations and technical data printed. All technical data serves as a guideline and does not guarantee
particular properties to any products.
Heraeus Sensor Technology USA
1901 Route 130
North Brunswick, NJ 08902
Phone 732-940-4400
Fax 732-940-4445
Email info.hst-us@heraeus.com
www.hst-us.com
Name of document: 30910021 Index B
Status: 10/2009
