GLOW WIRE
TEST COMPLIANT
ECONOMY POWER II
(EP II) CONNECTORS
AND TPA DEVICES
Introducing
APPLIANCES
// ECONOMY POWER II
/
Economy Power II
Connectors and TPA devices

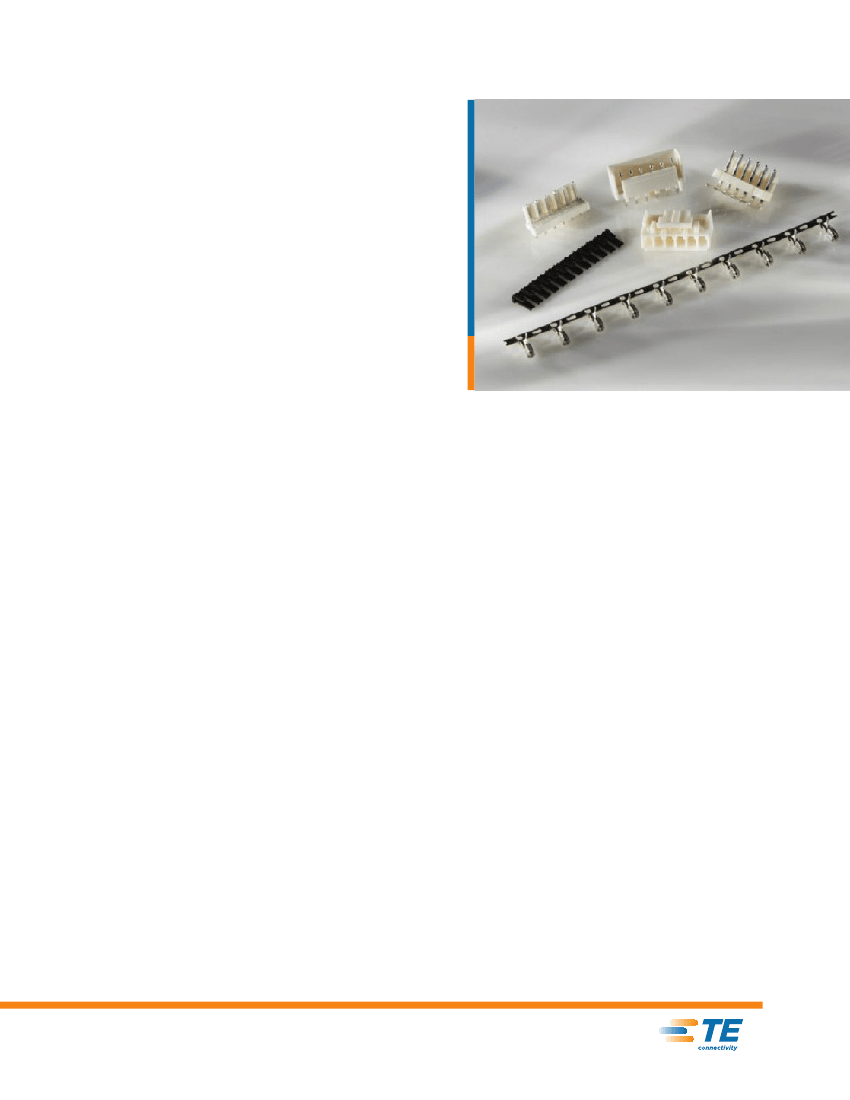

TE Connectivity (TE) offers Economy Power II (EP II) Glow Wire
connectors in many different styles and configurations to meet safety
and environmental requirements requested by the home appliances
industry.
Several connector housing and header styles and configurations are
available in Glow Wire compatible material that also meets UL 94 V-0
requirements. The use of Glow Wire test compliant components may
allow users to reduce the time and expense of end-product testing
associated with Glow Wire ignition and Glow Wire flammability index.
Key Features
•
.156” centerline (3.96mm)
•
Lance-less terminal
•
Wire size: 0.26 to 1.33 mm
2
22 to 16 AWG
•
Voltage up to 600 VAC
•
Current up to 11.5 A
•
Housing locking latch
•
Polarization tabs
•
Asymmetrical terminals
can only be loaded one
way
•
Breakaway style or
discrete Terminal Position
Assurance (TPA) devices
•
Probe tip windows for
continuity testing
•
Contact lubrication
•
Parts molded in various
colors are available upon
request
•
Glow Wire products
compliant to Glow Wire
test required by IEC/
EN 60335-1 5th Edition:
Household and Similar
Appliances - Safety and
UL 94 V-0
Electrical
•
Voltage rating: 600 VAC
•
Current rating: 11.5 A
Mechanical
•
Position: 2 to 12 single row wire-to-board
•
Wire size: 0.26 to 1.33 mm
2
(22 to 16 AWG)
•
Centerline: .156” (3.96 mm)
•
Operating temperature: -55 to 105°C
•
Selectively loaded headers available upon request
Materials
•
Glow Wire products Compliant to Glow Wire test required by IEC/EN
60335-1 5th Edition: Household and Similar Appliances - Safety and
UL 94 V-0
•
Comply with Glow Wire flammability index (GWFI) 850°C at least,
according to IEC 60335-1, Glow Wire flammability test for end-
products (GWEPT) 750°C No Flame, according to IEC 60335-1 and
UL 94 V-0
•
Contacts: Tin plated copper alloy
Standards
•
UL recognized E28476
•
Application specification number: 114-13265
Applications
•
Household appliances
•
HVAC
•
Industrial machinery (e.g. control boards)
•
Products can be used for global applications where compliance to
IEC 60335-1 and UL 94 V-0 is required.
APPLIANCES
// ECONOMY POWER II
/
PAGE 2
ECONOMY POWER II

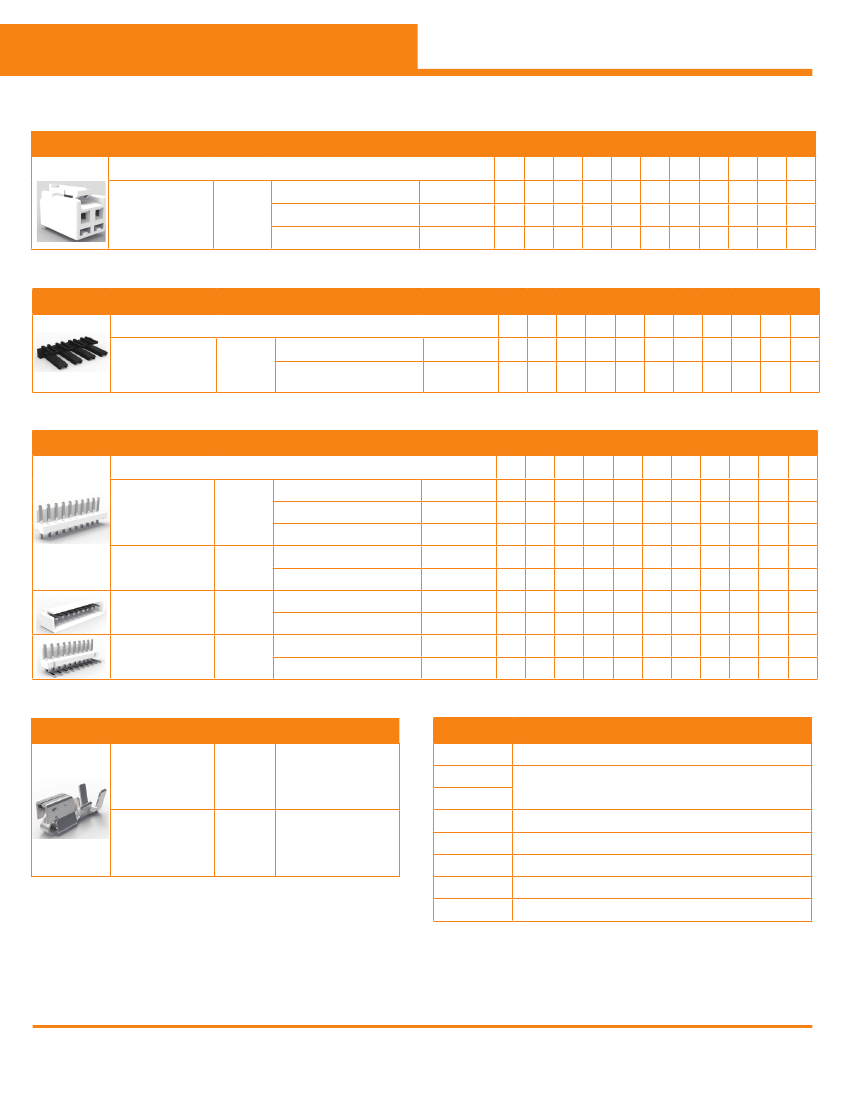

Product Offering
Housing
Product Image
Type
Style
Flammability
Position
2
-2
-3
-2
-3
-4
-4
3
4
UL 94 V-0
X-2132813-Y
X-2132781-Y
X-1744416-Y
Part Number
5
-5
-5
6
-6
-6
7
-7
-7
8
-8
-8
9
-9
-9
10
1--0
1--0
11
1--1
1--1
12
1--2
1--2
Receptacle
Housing
Single Row
UL 94 V-0
GWT acc. IEC 60335-1 and UL 94 V-0
*Colored housings are available upon request. For more information, contact TE sales representative.
Terminal Position Assurance (TPA) - Optional
Product Image
Type
Style
Contact
Locking
Plate
Flammability and TPA Type
Position
2
3
4
UL 94 V-0 Breakaway
UL 94 V-O Discrete
X-2132782-Y
X-1744544-Y
-2
-3
-4
Number of Positions
5
6
7
8
9
10
11
12
1--2
-5
-6
-7
-8
-9
1--0
1--1
Terminal Position
Assurance (TPA)
Header
Product Image
Type
Style
Flammability
Position
2
1--2
-2
-2
-2
-2
-2
-2
-2
3
4
UL 94 V-0
X-1123723-Y
X-647689-Y
X-1744489-Y
X-1744057-Y
X-1744429-Y
X-1877285-Y
X-1744427-Y
X-647676-Y
X-1744428-Y
-3
-3
-3
-3
-3
-3
-3
-4
-4
-4
-4
-4
-4
-4
Part Number
5
6
7
8
9
10
11
1--1
1--2
-5
-5
-5
-5
-5
-5
-5
-6
-6
-6
-6
-6
-6
-6
-7
-7
-7
-7
-7
-7
-7
-8
-8
-8
-8
-8
-8
-8
-9
-9
-9
-9
-9
-9
-9
1--0
1--0
1--0
1--0
1--0
1--0
1--0
1--1
1--1
1--1
1--1
1--1
1--1
1--1
1--2
1--2
1--2
1--2
1--2
1--2
1--2
12
1--3 1--4 1--5 1--6 1--7
1--8 1--9 1--0
Vertical Header
No orientation post
Vertical Header
With orientation post
Shrouded Header
Right Angle Header
Contact
Single Row
UL 94 V-0
GWT acc. IEC 60335-1 and UL 94 V-O
Single Row
Single Row
Single Row
UL 94 V-0
GWT acc. IEC 60335-1 and UL 94 V-O
UL 94 V-0
GWT acc. IEC 60335-1 and UL 94 V-2
UL-94 V-0
GWT acc. IEC 60335-1 and UL 94 V-0
Application Tooling
Product Image
Type
Phos Bronze
Pre-Tin Contact
18-22 AWG
(0.89-0.30mm2)
Phos Bronze
Pre-Tin Contact
16-20 AWG
(1.4-0.5mm2)
Style
Receptacle
Contact
Part Number
1744144-1
Part Number
90720-1
91337-1
2119118-1
354500-[]
Straight Action Hand Tool
PRO-CRIMPER III Hand Tool Assembly
AMP-O-LECTRIC Model “G” Terminating Machine
AMP 3/K-40 Press
Komax Gamma 333 PC
Side Feed HDM Applicator
Side
Receptacle
Contact
1744201-1
1725950-[]
528324-[]
1385286-[]
91579-1
Part Number Ordering: Example for X-1744416-Y Housing*
-2 thru -9
Substitute dash number listed for “Y”, therefore a -2 signifies PN 174416-2
1--0 thru 1--2
Substitute first number for “X” and second number listed for “Y”, therefore 1--2 signifes PN
1-1744416-2
*Follow same numbering scheme throughout for other part numbers listed
