DT15-12PB-G003 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> DT15-12PB-G003

DT15-12PB-G003: DescriptionDT RECP ASM; CategoryThe connector; File Size451KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

DT15-12PB-G003 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DT15-12PB-G003	-	-	View	Buy Now

DT15-12PB-G003 Overview

DT RECP ASM

DT15-12PB-G003 Parametric

Parameter Name	Attribute value
Connector System	Wire to board, wire to device
Sealable	yes
Connectors and terminals terminate to	A printed circuit board
shield	no
mixing head	no
Number of Positions	12
Rows	2
Section number	2
Nominal Voltage Structure (V)	12, 24, 42, 48, 80, 90, 125, 240
Rated voltage (max) (VAC)	250
Operating voltage (VAC)	250
Operating voltage (VDC)	250
Rated voltage (max) (VDC)	12
color	grey
connector code	A
Pin diameter	1.5 mm [ .059 in ]
Contact surface plating	Gold(Au)
Termination method	Through Hole - Solder
PCB mounting fixation type	Solder tail
PCB installation and fixation	with
Panel mount features	with
Mounting holes	with
PCB mounting alignment	with
Installation direction	Vertical/180°
lock interface	with
Centerline (Pitch)	4.44 mm [ .175 in ]
width	59.2 mm [ 2.331 in ]
length	35.25 mm [ 1.388 in ]
Working group temperature range	-55 – 125 °C [ -67 – 257 °F ]
Operating temperature (max) (°C)	100, 105, 110, 120, 125, 65, 70, 75, 80, 85, 90
Operating Temperature (Max) (°F)	149, 158, 167, 176, 185, 194, 212, 221, 230, 248, 257
protection level	IP68
UL flammability rating	none
Package quantity	125
Package type	box

Preview

Download Datasheet

View All

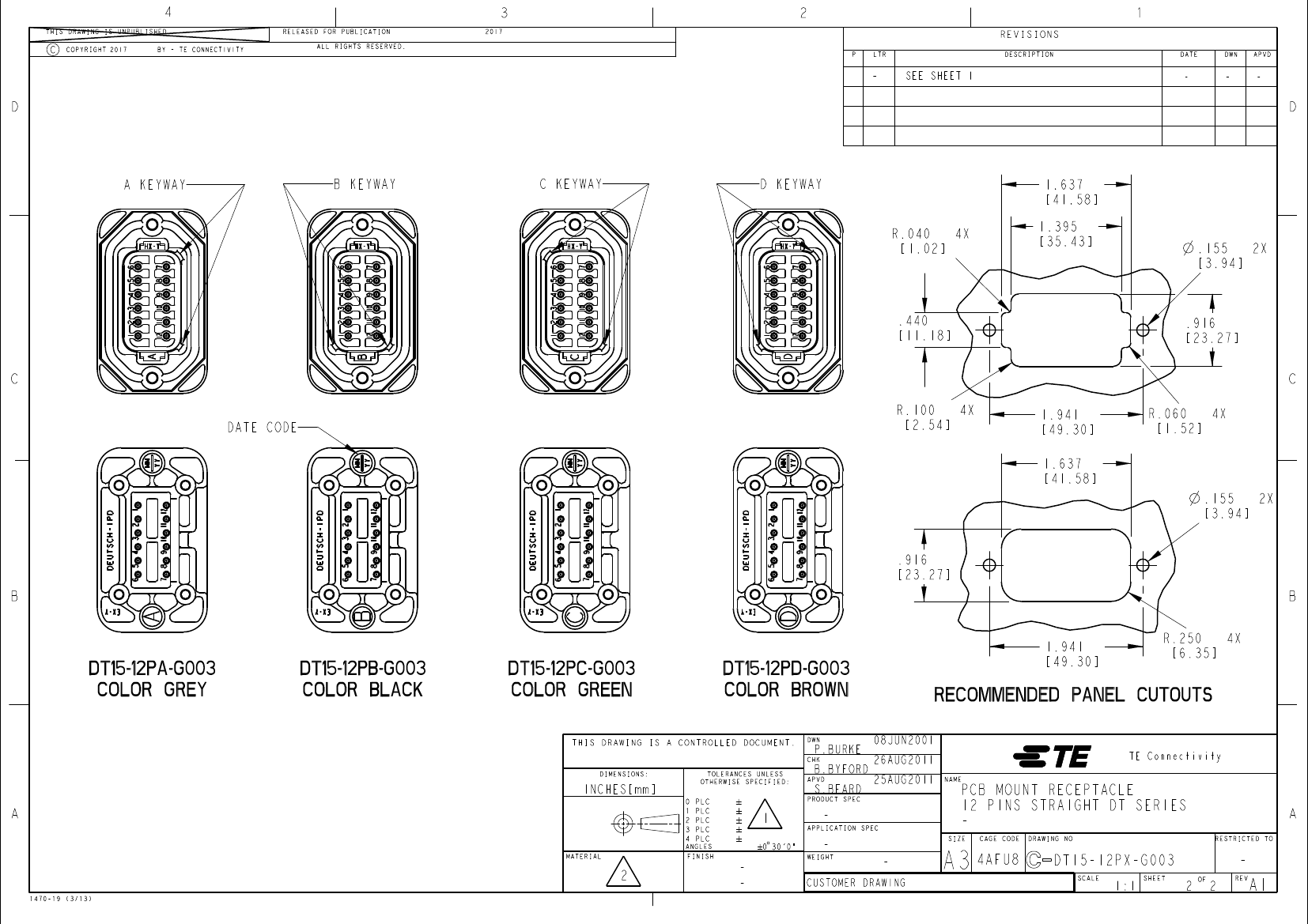

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

2017

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

BY - TE CONNECTIVITY

REVISED PER PCN E-17-005783

07APR2017

3D VIEW

1.186

[30.12 ]

.122

[3.10 ]

.840

[21.34 ]

.359

[9.12 ]

.175

[4.45 ]

2.331

[59.21 ]

1.597

[40.56 ]

.875

.525

[13.34 ] [22.23 ]

.062

[1.57 ]

1.381

[35.08 ]

.253

[6.43 ]

1.941

[49.30 ]

BLIND HOLE

#6-19 SCREW

6. RECOMMENDED TORQUE VALUES ARE AS FOLLOWS: #6-19 SCREWS:10-20 IN LB.

[1.13-2.26 N-M]. #4-20 SCREWS: 6-10 IN LB. [.68-1.13 N-M].

5. MOUNTING HOLES WILL ACCEPT CAMCAR PLASTITE SELF THREAD SCREWS

(NOT INCLUDED). EXAMPLE: #6-19, #4-20.

4. THIS RECEPTACLE MATES WITH DT06-12SX PLUG -XXXX-

ALL MODIFICATIONS.

3. CONTACT PLATING (G003) - MATING SIDE: GOLD; PCB SIDE: TIN.

MATERIALS:

SHELL: PA GF30 (GRAY)

SEAL: SILICONE (ORANGE-RED)

PIN CONTACTS: COPPER ALLOY

DIMENSION TOLERANCE: # .025 [.64]

PANEL CUTOUT: # .010 [.25]

PIN LOCATIONS: # .005 [.13]

MOUNTING HOLE LOCATIONS: # .010 [.13]

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

CHK

DIMENSIONS:

BLIND HOLE

.611

[15.52 ]

#4-20 SCREW

1.388

[35.26 ]

TE INTERNAL PN

DT15-12PA-G003

DT15-12PB-G003

DT15-12PC-G003

P.BURKE

B.BYFORD

08JUN2001

26AUG2011

25AUG2011

NAME

DT15-12PA-G003

DT15-12PB-G003

DT15-12PC-G003

DT15-12PD-G003

TE Connectivity

DEUTSCH PN

DT15-12PD-G003

INCHES[mm]

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

APVD

NOTES:

1470-19 (3/13)

MATERIAL

ANGLES

PLC

PRODUCT SPEC

S.BEARD

0 $ 30'0"

APPLICATION SPEC

FINISH

WEIGHT

CUSTOMER DRAWING

4AFU8

SIZE

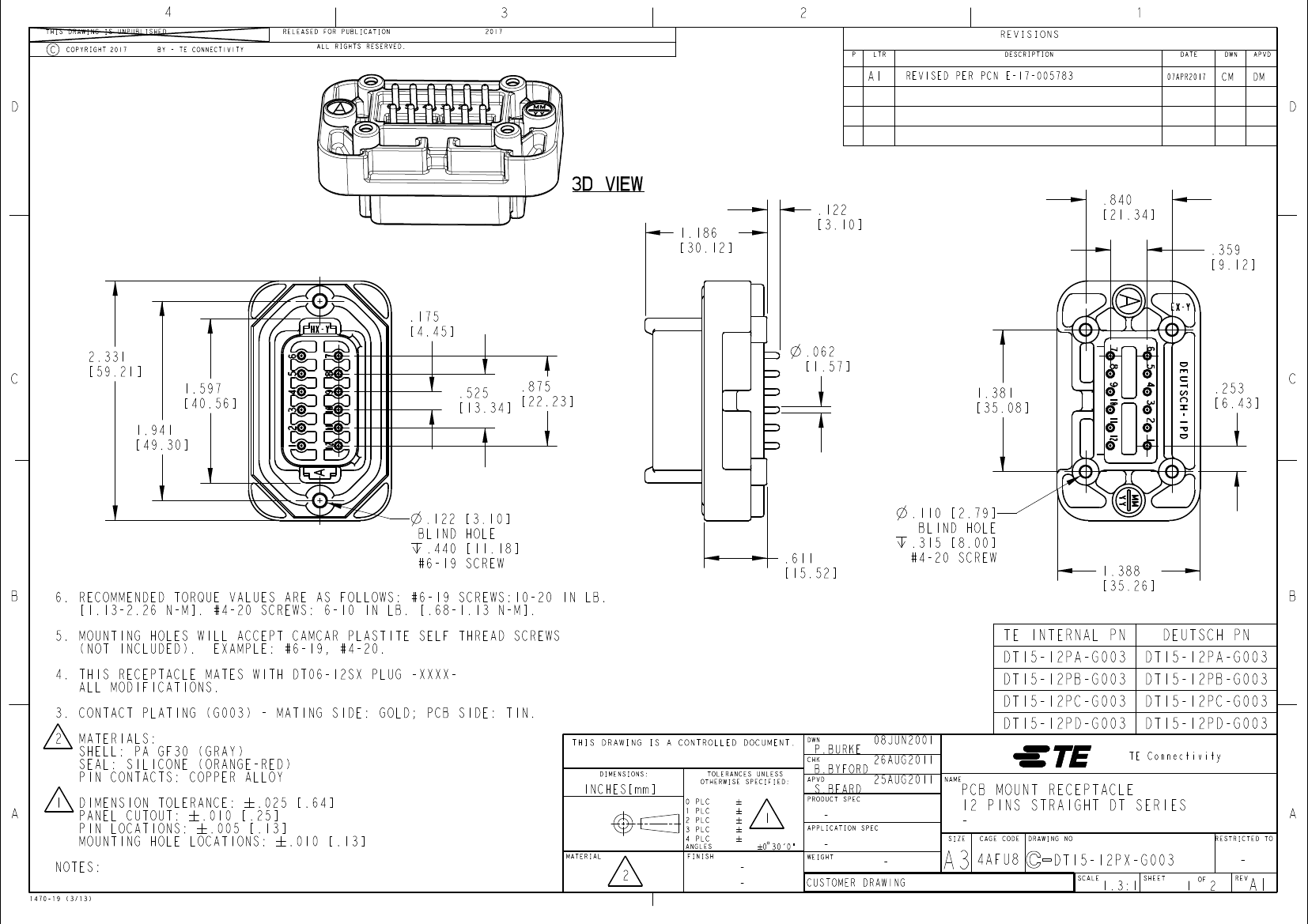

PCB MOUNT RECEPTACLE

12 PINS STRAIGHT DT SERIES

CAGE CODE

DRAWING NO

RESTRICTED TO

DT15-12PX-G003

SCALE

1.3:1

SHEET

REV
