QC2516.0000F12B12R datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> QC2516.0000F12B12R

QC2516.0000F12B12R: DescriptionParallel - Fundamental Quartz Crystal,; CategoryPassive components Crystal/resonator; File Size233KB，2 Pages; ManufacturerQANTEK Technology Corporation; Environmental Compliance

Download Datasheet Parametric View All

QC2516.0000F12B12R Overview

Parallel - Fundamental Quartz Crystal,

QC2516.0000F12B12R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	QANTEK Technology Corporation
package instruction	SMD, 4 PIN
Reach Compliance Code	unknown
Other features	AEC-Q200; AT-CUT
Ageing	3 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.002%
frequency tolerance	10 ppm
load capacitance	12 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	16 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	2.5mm X 2mm X 0.6mm
Series resistance	125 Ω
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

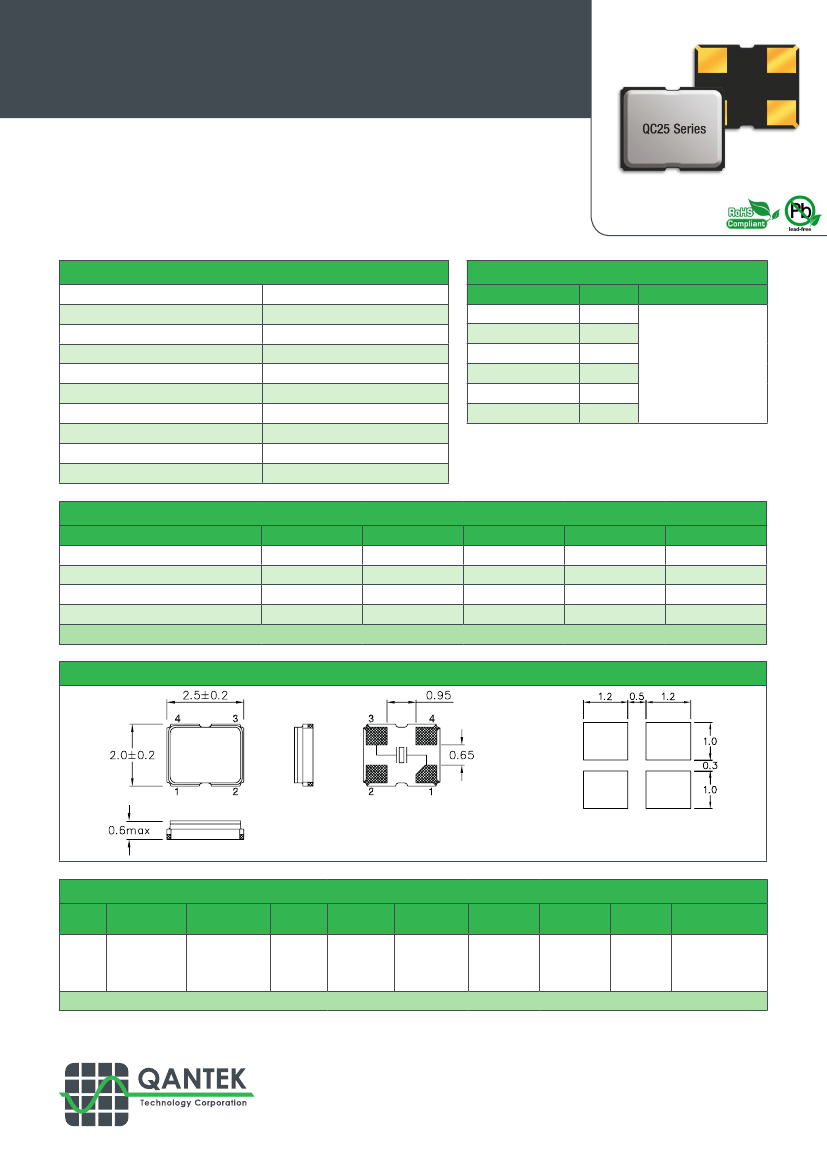

QC25 Series

2.0x2.5 4-Pad SMD Quartz Crystal Unit

Features

• Low in height, suitable for thin equipment

• Ceramic package and metal lid assures high

reliability

• Tight tolerance and stability available

Applications

• High density applications

• Modem, communication and test equipment

• PMCIA, wireless applications

• Automotive applications

General Specifications

Frequency Range

Frequency Tolerance at 25°C

Frequency Stability over Temperature Range

Storage Temperature

Aging per Year

Load Capacitance C

Shunt Capacitance C

Equivalent Series Resistance (ESR)

Drive Level

Insulation Resistance (MΩ)

12.000 to 60.000MHz (Fundamental)

±10 to ±50ppm (±30ppm standard)

See Stability vs. Temperature Table

-55 to +125°C

±3ppm max.

7 to 32pF and Series Resonance

5.0pF max.

See ESR Table

100μW typ.

500 at 100Vdc ±15Vdc

Equivalent Series Resistance (ESR)

Frequency Range - MHz

12.000 to 16.000

16.001 to 20.000

20.001 to 25.000

25.001 to 30.000

30.001 to 40.000

40.001 to 60.000

max.

125

Mode of Operation

Fundamental

Frequency Stability vs. Temperature

Operating Temperature

-20 to +70°C

-40 to +85°C

-40 to +105°C

-40 to +125°C

*Operating Temperature -30 to +80°C

±10ppm

±20ppm

±30ppm

±50ppm

±100ppm

standard

available

Mechanical Dimensions

Part Numbering Guide

Qantek

Code

Q = Qantek

Package

C25 = 2.0x2.5 4-Pad

SMD

Nominal Frequency

(in MHz)

7 digits including the

decimal point

(f.ie. 12.0000)

Vibration

Mode

F = AT-Fund

Load

Capacitance

S = Series

08 = 8pF

12 = 12pF

18 = 18pF

20 = 20pF etc.

Operating Tem-

perature Range

A = -20 to +70°C

B = -40 to +85°C

C = -40 to +105°C

D = -40 to +125°C

Frequency

Tolerance

1 = ±10ppm

2 = ±20ppm

3 = ±30ppm

5 = ±50ppm

0 = ±100ppm

Frequency

Stability

1 = ±10ppm

2 = ±20ppm

3 = ±30ppm

5 = ±50ppm

0 = ±100ppm

Automotive

Indicator

A = AEC-Q200

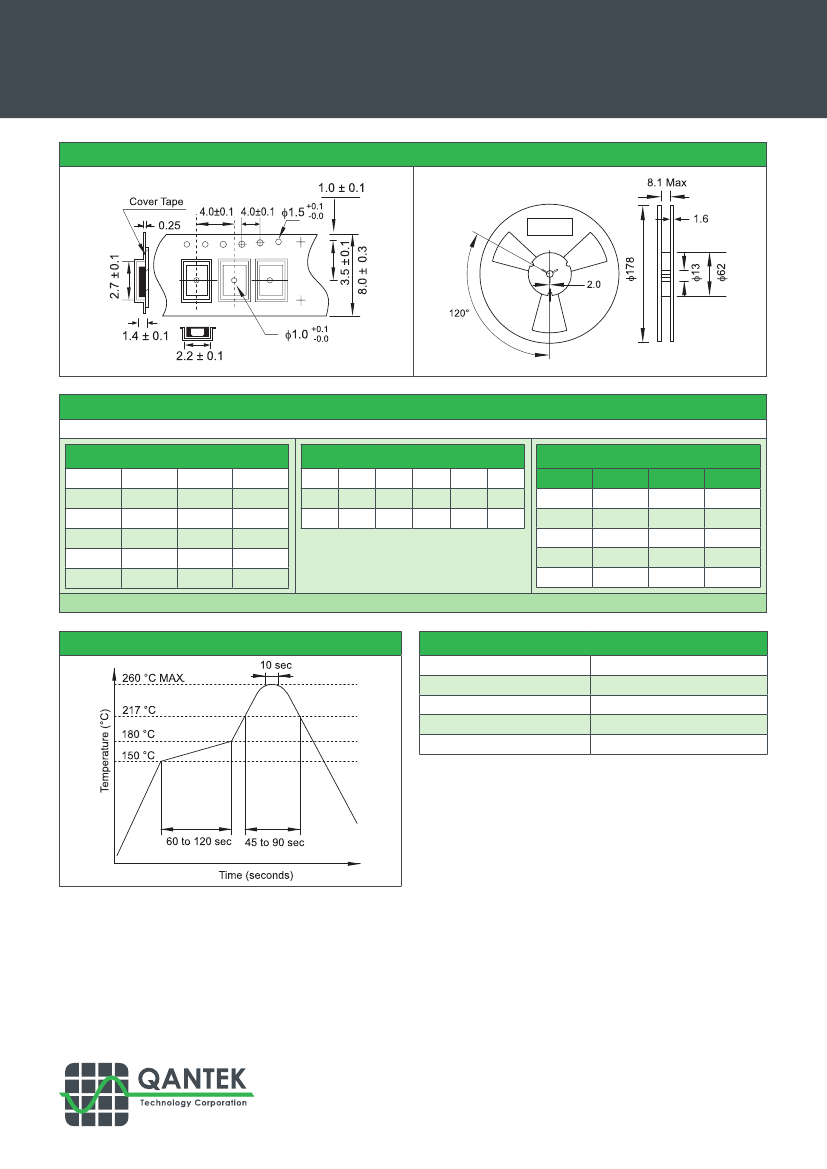

Packaging

M = 250pcs Tape&Reel

R = 1000pcs Tape&Reel

R3 = 3000pcs Tape&Reel

Example: QC2516.0000F12B33R

bold letters = recommended standard specification

QANTEK Technology Corporation

Phone: +1 877-227-0440 (tollfree)

Fax:

+1 877-227-0440 (tollfree)

www.qantek.com

info@qantek.com

QC25 Rev. 0.6
