FM25L512-DGTR: DescriptionMemory Circuit, 64KX8, CMOS, PDSO8, 5 X 6 MM, 1.27 MM PITCH, GREEN, TDFN-8; Categorystorage storage; File Size170KB，13 Pages; ManufacturerRamtron International Corporation (Cypress Semiconductor Corporation); Websitehttp://www.cypress.com/

Download Datasheet Parametric Compare View All

FM25L512-DGTR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FM25L512-DGTR	-	-	View	Buy Now

FM25L512-DGTR Overview

Memory Circuit, 64KX8, CMOS, PDSO8, 5 X 6 MM, 1.27 MM PITCH, GREEN, TDFN-8

FM25L512-DGTR Parametric

Parameter Name	Attribute value
Maker	Ramtron International Corporation (Cypress Semiconductor Corporation)
Parts packaging code	DFN
package instruction	VSOP,
Contacts	8
Reach Compliance Code	unknown
JESD-30 code	R-PDSO-G8
length	6 mm
memory density	524288 bit
Memory IC Type	MEMORY CIRCUIT
memory width	8
Number of functions	1
Number of terminals	8
word count	65536 words
character code	64000
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	64KX8
Package body material	PLASTIC/EPOXY
encapsulated code	VSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, VERY THIN PROFILE
Certification status	Not Qualified
Maximum seat height	0.8 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	5 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Pre-Production

FM25L512

512Kb F-RAM Serial 3V Memory

Features

512K bit Ferroelectric Nonvolatile RAM

•

Organized as 65,536 x 8 bits

•

Unlimited Read/Write Cycles

•

10 Year Data Retention

•

NoDelay™ Writes

•

Advanced High-Reliability Ferroelectric Process

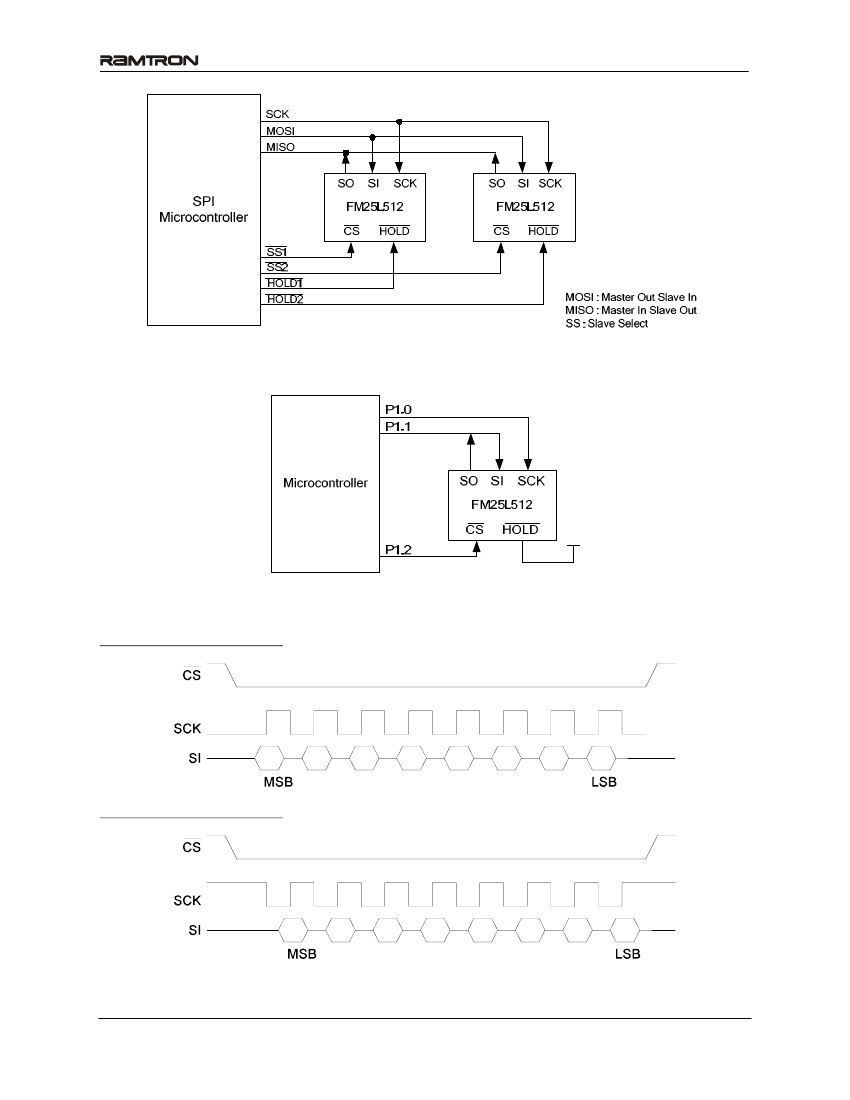

Very Fast Serial Peripheral Interface - SPI

•

Up to 20 MHz Frequency

•

Direct Hardware Replacement for EEPROM

•

SPI Mode 0 & 3 (CPOL, CPHA=0,0 & 1,1)

Write Protection Scheme

•

Hardware Protection

•

Software Protection

Low Power Consumption

•

Low Voltage Operation 3.0V – 3.6V

•

µA

Standby Current

Industry Standard Configurations

•

Industrial Temperature -40°C to +85°C

•

8-pin “Green”/RoHS TDFN Package

•

Footprint Compatible with SOIC-8 (see pg 12)

Description

The FM25L512 is a 512-kilobit nonvolatile memory

employing an advanced ferroelectric process. A

ferroelectric random access memory or F-RAM is

nonvolatile and performs reads and writes like a

RAM. It provides reliable data retention for 10 years

while eliminating the complexities, overhead, and

system level reliability problems caused by

EEPROM and other nonvolatile memories.

Unlike serial EEPROMs, the FM25L512 performs

write operations at bus speed. No write delays are

incurred. The next bus cycle may commence

immediately without the need for data polling. The

next bus cycle may start immediately. In addition, the

product offers virtually unlimited write endurance.

Also, F-RAM exhibits much lower power

consumption than EEPROM.

These capabilities make the FM25L512 ideal for

nonvolatile memory applications requiring frequent

or rapid writes or low power operation. Examples

range from data collection, where the number of

write cycles may be critical, to demanding industrial

controls where the long write time of EEPROM can

cause data loss.

The FM25L512 provides substantial benefits to users

of serial EEPROM as a hardware drop-in

replacement. The FM25L512 uses the high-speed SPI

bus, which enhances the high-speed write capability

of F-RAM technology. Device specifications are

guaranteed over an industrial temperature range of

-40°C to +85°C.

D S

N N

E G

M SI

M E

O D

E W

e: FM

R E

ti v

T N

rna

O R

lte

N O

Pin Configuration

Top View

/CS

VDD

SCK

/HOLD

/WP

VSS

Pin Name

/CS

/WP

/HOLD

SCK

VDD

VSS

Function

Chip Select

Write Protect

Hold

Serial Clock

Serial Data Input

Serial Data Output

Supply Voltage (3.0 to 3.6V)

Ground

Ordering Information

FM25L512-DG*

FM25L512-DGTR*

8-pin “Green”/RoHS TDFN

in Tape & Reel

* Last time buy Nov. 2009.

This is a product in the pre-production phase of development. Device

characterization is complete and Ramtron does not expect to change

the specifications. Ramtron will issue a Product Change Notice if any

specification changes are made.

Ramtron International Corporation

1850 Ramtron Drive, Colorado Springs, CO 80921

(800) 545-FRAM, (719) 481-7000

www.ramtron.com

Rev. 2.2

Oct. 2009

Page 1 of 13
