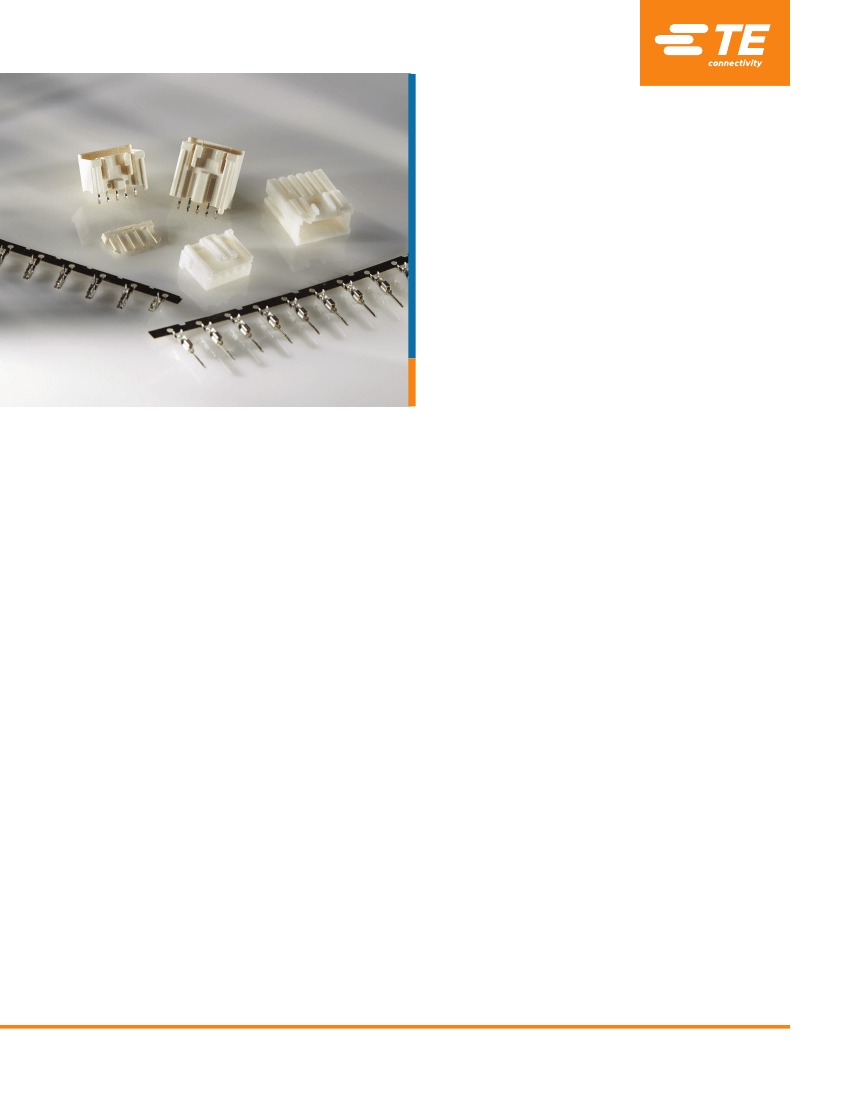

The 2.5 mm signal double lock (2.5 SDL) connectors are compact, single row
connectors available in both wire-to-wire and wire-to-board configurations. The signal
double lock connector system consists of plug and cap housings for wire termination,
optional double lock plates, crimp contacts and PC board pin headers in both standard
and high profile versions. The signal double lock accepts 26-20 AWG wire with
insulation diameters up to 1.8 mm and is rated up to 3 Amps per line. Signal double
lock connectors are now available in material meeting the Glow Wire test according to
IEC 60335-1 5th Edition: Household and Similar Appliances — Safety (750°C, no flame)
and UL 94 V-0.
FEATURES & BENEFITS
• Discrete wire interconnect available in
2-13 position wire-to-board and 2-10
position wire-to-wire
• Audible click when contact is fully
inserted into the housing
• Polarizing ribs on plug housing allows
proper mating
• Solder tail kink along with the
polarization peg (boss) feature, secures
the header on the board during the
solder process
• Board-mounted headers are
compatible with resin or conformal
coatings — no drain holes
• Multiple colors available for ease
of connector identification during
assembly and maintenance
• UL recognized, CSA certified and
TUV approved
• Choice of V-0 rated material or GWT
and V-0 rated material
PRODUCT APPLICATIONS
• Household appliances
• Gaming
• Vending
• Garage door openers
• Security systems
• Industrial controls
• HVAC system controls
• Fan modules
• Business equipment
APPLIANCES
/// 2.5 MM SIGNAL DOUBLE LOCK CONNECTORS
2.5 mm Signal Double Lock Connectors
Quick Reference Guide

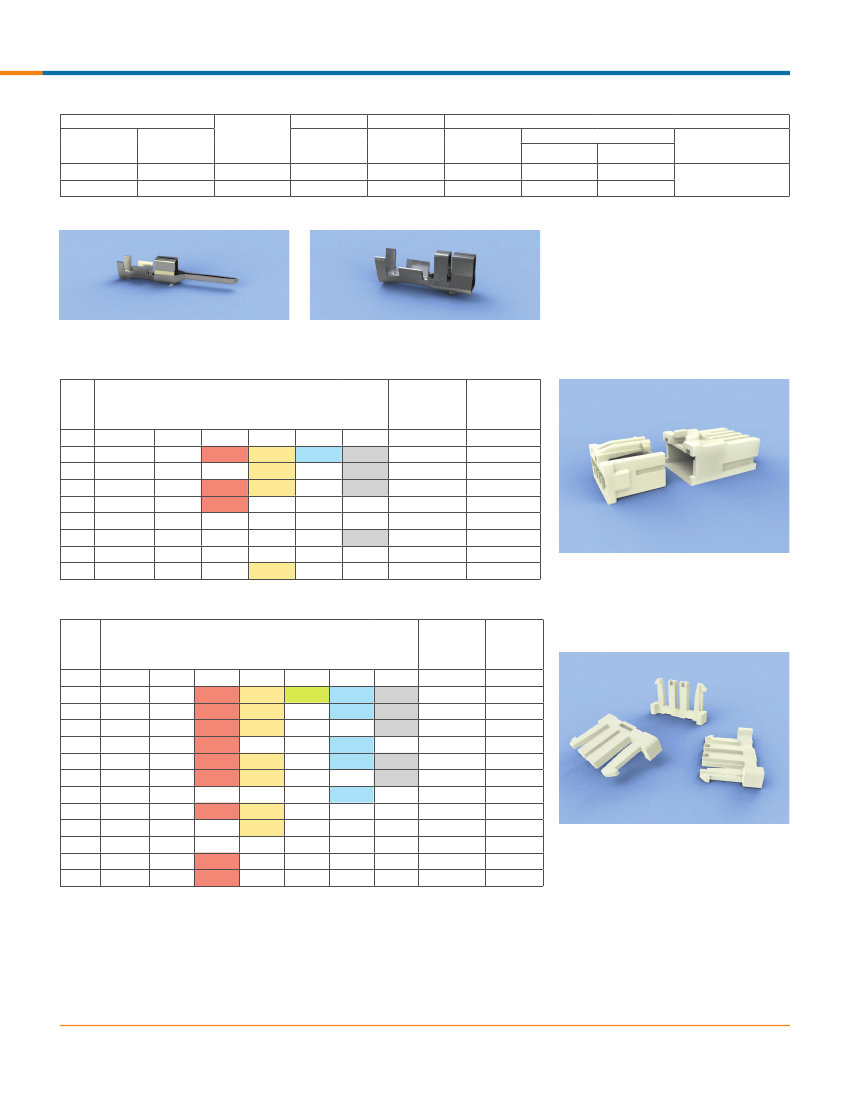

CONTACTS
Wire Range
AWG
26-22
22-20
mm
2
0.12-0.35
0.30-0.53
Wire
Insulation
Dia. mm
0.93-1.50
1.4-1.80
Tab
Strip Form
917765-1
917764-1
Receptacle
Strip Form
917684-1
917683-1
Automatic
680403-1
680404-1
Applicator Part Numbers
Semiautomatic
K press
680403-2
680404-2
K press
680403-3
680404-3
Extraction Tool
234605-1
For more information, see Application Specification 114-5203 & Instruction Sheet 411-5737
Tab
The signal double lock contacts are
phosphor bronze with pre-tin plating. The
receptacle contact gets loaded into the
plug housings and the tab contact gets
loaded into the cap housings.
Receptacle
CAP HOUSINGS
No.
of
Pos.
V-0 Material
Base Part No. & Available Colors
(Part No. Suffix)
1, 5
Natural
2
3
4
5
6
7
8
10
316086
316087
316088
316089
316090
316091
316092
316094
-1
-1
-1
-1
-1
-1
-1
-1
-4
-9
5-316092-1
5-316094-1
-2
-2
Red
-2
Yellow
-4
-4
-4
Blue
-6
Black
-9
-9
-9
GWT & V-0
Material
Part No.
Natural
5-316086-1
5-316087-1
5-316088-1
5-316089-1
5-316090-1
Double
Lock Plate
Part No.
Natural
917698-1
917699-1
917700-1
917701-1
917702-1
917703-1
917704-1
917706-1
PLUG HOUSINGS
No.
of
Pos.
V-0 Material
Base Part No. & Available Colors
(Part No. Suffix)
1, 5
Natural
2
3
4
5
6
7
8
9
10
11
12
13
917686
917687
917688
917689
917690
917691
917692
917693
917694
917695
917696
917697
-1
-1
-1
-1
-1
-1
-1
-1
-1
-1
-1
-1
-2
-2
-2
-4
-4
Red
-2
-2
-2
-2
-2
-2
-4
-4
-6
Yellow
-4
-4
-4
-6
-6
-9
-9
Green
-5
Blue
-6
-6
Black
-9
-9
-9
Double
GWT & V-0
Lock Plate
Material
Part No.
Part No.
Natural
5-917686-1
5-917687-1
5-917688-1
5-917689-1
5-917690-1
5-917691-1
5-917692-1
5-917693-1
5-917694-1
5-917695-1
5-917696-1
5-917697-1
Natural
917698-1
917699-1
917700-1
917701-1
917702-1
917703-1
917704-1
917705-1
917706-1
917707-1
917708-1
917709-1
The signal double lock’s latch on the plug
housing and innerlocking cavity on the
cap housings helps prevent unintentional
disengagement and offers a snag-free
connection.
A double lock plate is available for both
plug and cap housings to ensure positive
loading and to help prevent contact
back-out.
Notes:
1. When ordering all housings and headers, use base part number and desired color code as the suffix. Housings meeting Glow Wire Test and V-0 are only available in Natural.
2. When ordering loose piece headers, use the prefix 2- to indicate the option of no polarization peg (boss).
3. When ordering radial tape-mounted headers, use the prefix 3- to indicate the option with a polarization leg (boss).
Example: 2-917785-2 is a 7 position, red loose piece header with no polarization peg (boss).
4. Available in a natural color only.
5. Color Key Code: -1 Natural, -2 Red, -4 Yellow, -5 Green, -6 Blue, -9 Black
APPLIANCES
/// 2.5 MM SIGNAL DOUBLE LOCK CONNECTORS
PAGE 2
2.5 mm Signal Double Lock Connectors
Quick Reference Guide

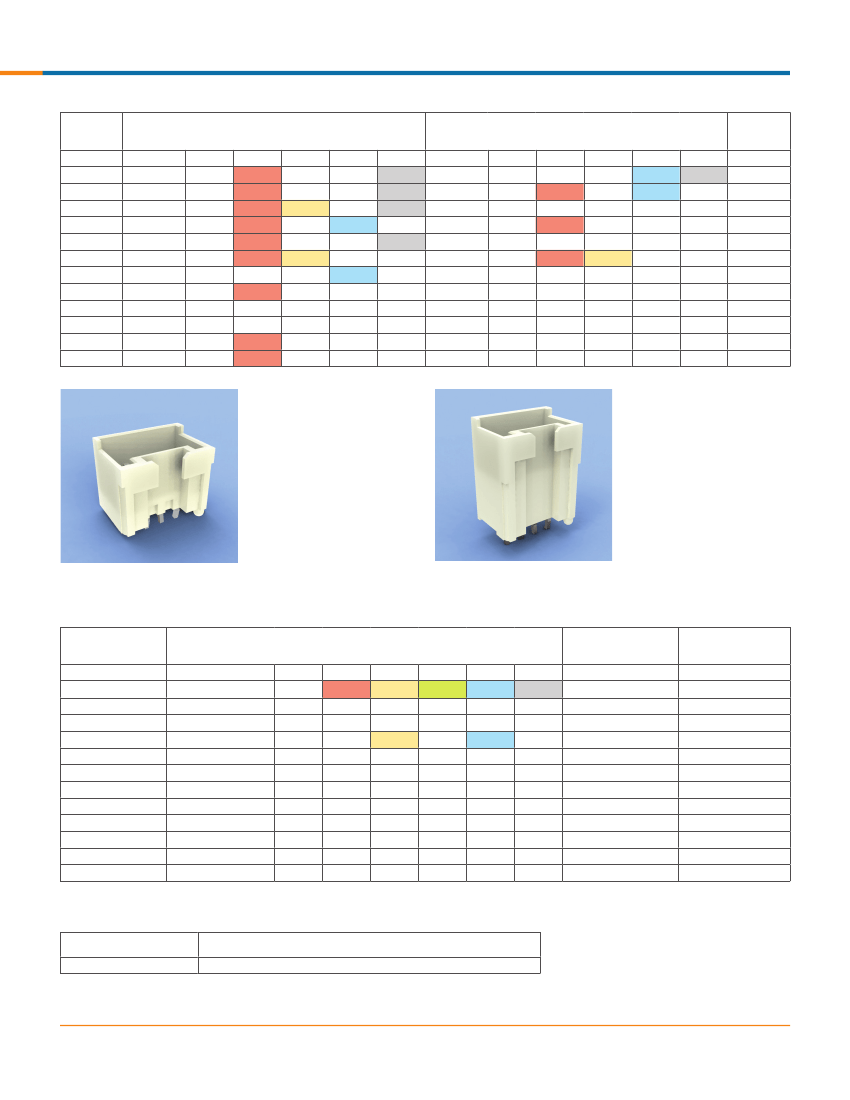

VERTICAL POST HEADERS: STANDARD PROFILE—GLOW WIRE TEST AND V-0 MATERIAL
No. of Pos
Loose Piece Base Part No. &
Available Colors (Part No. Suffix)
1, 2, 5
Natural
2
3
4
5
6
7
8
9
10
11
12
13
917780
917781
917782
917783
917784
917785
917786
917787
917788
917789
917790
917791
-1
-1
-1
-1
-1
-1
-1
-1
-1
-1
-1
-1
-2
-2
-2
Red
-2
-2
-2
-2
-2
-2
-4
-6
-4
-6
-9
Yellow
Blue
Black
-9
-9
-9
917894
917895
917896
917897
917898
917899
917800
Radial Tape Base Part No. &
Available Colors (Part No. Suffix)
1, 3, 5
Natural
-1
-1
-1
-1
-1
-1
-1
-2
-4
-2
-2
Red
Yellow
Blue
-6
-6
Black
-9
900
900
450
450
450
450
450
Pack Qty.
The solder tail of the loose-
piece pin header features
kinks to secure the connector
on the PC board until the
soldering process is complete.
The high profile type header
is designed specifically for
resin coated boards typically
used for waterproof protec-
tion in the manufacture of
home appliance PCBs. This
header is designed to mate
with the standard signal
double lock plug housings.
Signal double lock headers are available packaged on radial tape for use with radial mounting machines.
VERTICAL POST HEADERS: HIGH PROFILE — GLOW WIRE TEST AND V-0 MATERIAL
No. of Pos
Loose Piece Base Part No. &
Available Colors (Part No. Suffix)
1, 2, 5
Natural
2
3
4
5
6
7
8
9
10
11
12
13
917722
917723
917724
917725
917726
917727
917728
917729
917730
917731
917732
917733
-1
-1
-1
-1
-1
-1
-1
-1
-1
-1
-1
-1
-4
-6
Red
-2
Yellow
-4
Green
-5
Blue
-6
Black
-9
316221-1
316222-1
316223-1
316224-1
316225-1
316226-1
316227-1
900
900
450
450
450
450
450
Radial Tape
Part Number
3, 4
Pack Qty.
CONNECTOR KITS PROVIDED BY WALDOM ELECTRONICS
Kit Part Number
2110850-1
Description
Signal Double Lock Connector Kit
Note:
Design kits are designed and assembled by Waldom Electronics and are available for purchase through your
local distributor.
APPLIANCES
/// 2.5 MM SIGNAL DOUBLE LOCK CONNECTORS
PAGE 3
2.5 mm Signal Double Lock Connectors
Quick Reference Guide
Questions that will help you better select the product that you need:
What are the current and voltage requirements for your application?
The signal double lock connector system has a maximum current
rating of 3 Amps per line and is rated for 50 Volts AC/DC and
250 VAC.
What are the wire type and size requirements?
The signal double lock connector system is approved for use with
26-20 AWG wire with a wire insulation range between 0.93 mm
and 1.8 mm.
What are the number of positions and available space?
The signal double lock connector system is available in 2-13 position
wire-to-board and 2-10 position wire-to-wire configurations on a
2.5 mm pitch. The overall mated length of the free-hanging system
is 22.6 mm and the maximum height with the standard profile
header is 13.7 mm while the maximum height with the high-profile
header is 19.2 mm.
What are the flammability requirements for your application?
Signal double lock connectors are offered with various housings
rated UL 94 V-0, and meeting the Glow Wire Test according to IEC
60335-1 5th edition.
What are the operating temperature requirements?
The signal double lock connector system has a maximum operating
temperature of 105°C. For more information regarding operating
temperatures refer to Product Specification 108-5459.
Is contact back-out a concern? Do you need confirmation that the
contacts are seated?
The signal double lock connector system offers an optional double
lock plate. The purpose of the double lock plate is to allow the
contacts to be fully seated in the housing.
Do you need to differentiate this connector from other connectors
in the application?
The signal double lock connector system offers multiple options
of colored housings for ease of connector identification during
manufacturing and assembly.
What is the benefit of choosing high-profile over standard-profile
headers?
The signal double lock connector system offers high profile headers
for applications where there will be additional processing or resin
coating of the PCB’s during the manufacturing process.
What is the benefit of choosing headers with a polarization
peg (boss)?
The signal double lock connector system offers headers with or
without polarization pegs. The purpose of this feature is to polarize
the headers to the PCB so the header can not be placed on the PCB
in the wrong orientation. For more information regarding PCB layout
please refer to the header product drawing.
TE TECHNICAL SUPPORT CENTER
USA:
Canada:
Mexico:
Latin/S. America:
Germany:
UK:
France:
Netherlands:
China:
+1 (800) 522-6752
+1 (905) 475-6222
+52 (0) 55-1106-0800
+54 (0) 11-4733-2200
+49 (0) 6251-133-1999
+44 (0) 800-267666
+33 (0) 1-3420-8686
+31 (0) 73-6246-999
+86 (0) 400-820-6015
Part numbers in this brochure are RoHS Compliant*, unless marked otherwise.
*as defined www.te.com/leadfree
te.com
TE Connectivity, TE Connectivity (logo) and Every Connection Counts are trademarks. All other logos, products and/or company names referred to herein might be trademarks
of their respective owners.
The information given herein, including drawings, illustrations and schematics which are intended for illustration purposes only, is believed to be reliable. However, TE
Connectivity makes no warranties as to its accuracy or completeness and disclaims any liability in connection with its use. TE Connectivity‘s obligations shall only be as set forth
in TE Connectivity‘s Standard Terms and Conditions of Sale for this product and in no case will TE Connectivity be liable for any incidental, indirect or consequential damages
arising out of the sale, resale, use or misuse of the product. Users of TE Connectivity products should make their own evaluation to determine the suitability of each such
I remember talking about the method of using third-party software to download programs through the serial port. I used to think that using the JTAG port would be enough. Why bother? But now I want to ...
"Test-Driven Embedded C Development" introduces in depth how to apply test-driven development methods to embedded C development. The first part introduces two open source test frameworks and develops ...
I am using a S3C2410 board, and use GPIO to control DATA, CLK and KEY. When writing data, the BC7281B clock signal is normal, but the data pin is always high level, and the handshake cannot be establi...
The difference in the definitions of EMI, EMS and EMC: EMI stands for Electromagnetic Interference, which refers to the electromagnetic waves generated by electronic equipment during its own operation...
As shown in the figure, the yellow is the input signal, and the blue is the output signal amplified 100 times. [color=#ff0000]Why is the peak value of the output signal fluctuating? [/color] The op am...
EtherCAT (Ethernet for Control Automation Technology) is a real-time industrial fieldbus communication protocol based on an Ethernet-based development framework. EtherCAT is one of the fastest indu...[Details]
1. Project Overview
1.1 Introduction
Currently, most music files are saved in MP3 format, a lossy audio compression format that cannot perfectly reproduce the original music. With the exp...[Details]
Long ago, the lifespan of cars in my country was 15 years. Once a car reached 15 years old, it was forced to be scrapped. However, the policy was later changed. As long as the car does not exceed 6...[Details]
Definition of interactive projection system:
Interactive projection systems, also known as multimedia interactive projection, are available in floor, wall, and tabletop interactive projection....[Details]
According to foreign media reports, secondary battery materials company POSCO Future M announced that it has successfully developed two experimental (prototype) positive electrode materials for the...[Details]
This paper proposes a temperature real-time transmission and display solution based on LED optical data transmission, with Jingwei Yager low-power FPGA HR (Yellow River) series as the main controll...[Details]
Electric vehicles are becoming increasingly popular, with increasingly longer ranges. There are two ways to charge electric vehicles: slow charging and fast charging. Which is the most suitable? Sl...[Details]
Recently, Joyson Electronics has made positive progress in the core technology research and development of the robot's "brain and brain" and key components, and launched the industry's first integr...[Details]
Magna's integrated in-cabin perception system fuses vision and millimeter-wave radar data to detect the presence of passengers, identify stranded children, monitor driver fatigue and vital signs, a...[Details]
With the increasing popularity of automated equipment, linear modules, a common auxiliary device for automated equipment, have also seen a bright future. In particular, in recent years, many small ...[Details]
Consumer demand for premium listening experiences has driven rapid evolution in the wireless headphone market in recent years. Hybrid designs, which utilize two drivers per earbud to enhance sound ...[Details]
0 Introduction
Portable terminals integrate a computer and display screen into a single device. Due to limited space in portable devices, previous designs often used a single-chip microcompute...[Details]
Cadence and NVIDIA Collaborate to Revolutionize Power Analysis Technology, Accelerating Development of Billion-Gate AI Designs
Cadence's new Palladium Dynamic Power Analysis applicat...[Details]
The drive shaft is a high-speed, low-support rotating body, so its dynamic balance is crucial. Generally, drive shafts undergo dynamic balancing tests and adjustments on a balancing machine before ...[Details]
The power transmission system between a car's engine and drive wheels is called its drivetrain. It ensures the necessary traction and speed under various driving conditions, and coordinates these t...[Details]
Embedded System
京公网安备 11010802033920号
EEWORLD
