1-1456426-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 1-1456426-2

1-1456426-2: Description4POS, MCON 1.2 CB REC 2p TL SEALED; CategoryThe connector; File Size1017KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

1-1456426-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-1456426-2	-	-	View	Buy Now

1-1456426-2 Overview

4POS, MCON 1.2 CB REC 2p TL SEALED

1-1456426-2 Parametric

Parameter Name	Attribute value
Connector type	Female terminal housing
Connector System	Wire to board, wire to wire, wire to device
Sealable	yes
Hybrid connector	no
Main locking features	Housing integration
strain relief	no
Number of Positions	4
Rows	1
color	black
Main material	PA GF
Width of docking male end	1.2 mm [ .047 in ]
Installation features	Without
Terminal position guarantee	yes
polarization	yes
Centerline (Pitch)	4 mm [ .157 in ]
width	26.5 mm [ 1.043 in ]
high	17.5 mm [ 0.689 in ]
length	24.7 mm [ .972 in ]
Working group temperature range	-40 – 150 °C [ -40 – 302 °F ]
Circuit Application	Signal
protection level	IP67
Encapsulation method	Package
Package quantity	1
Able to ensure connector position	no
Repairable	yes

Preview

Download Datasheet

View All

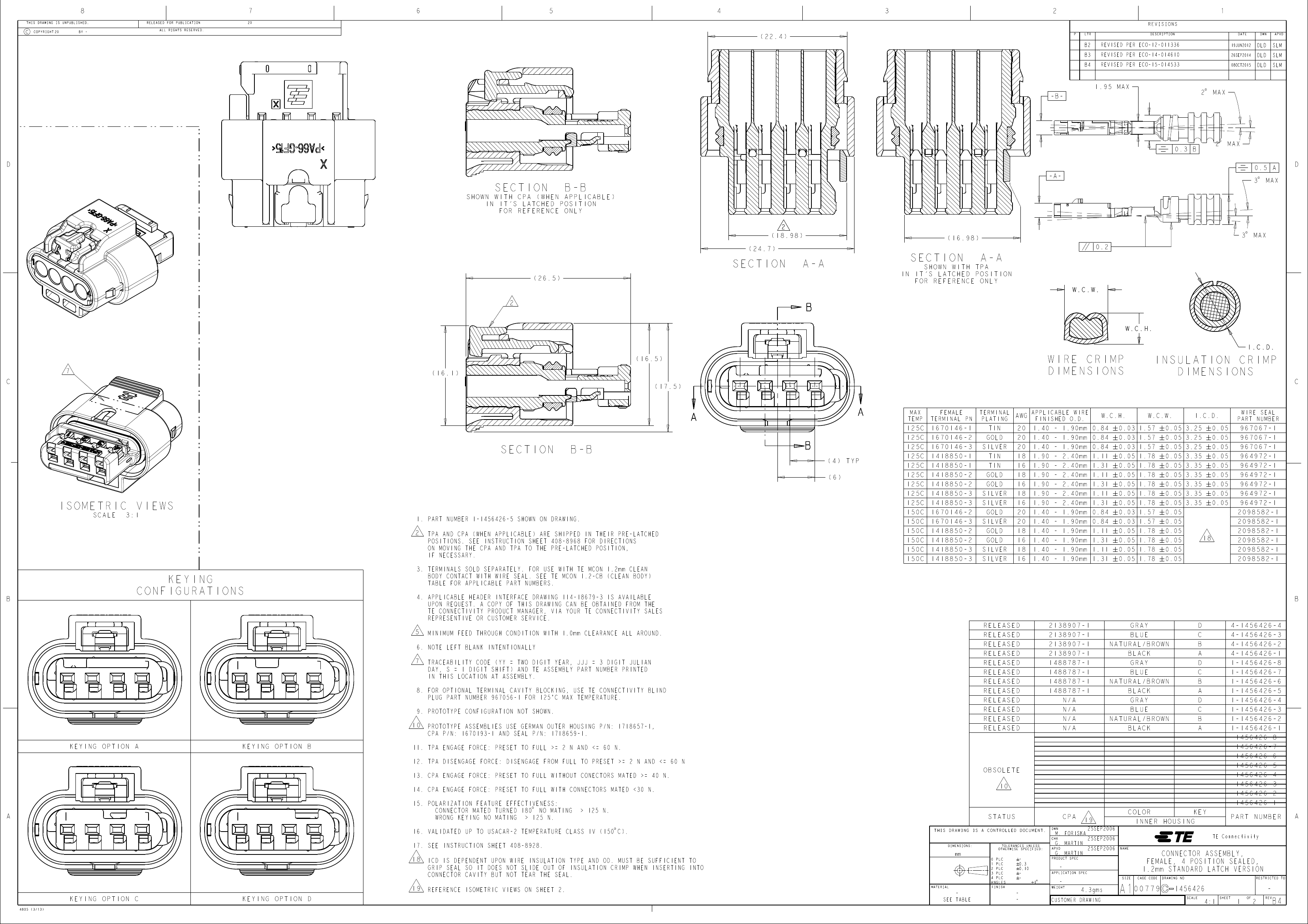

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

( 22.4 )

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

REVISED PER ECO-12-011336

REVISED PER ECO-14-014610

REVISED PER ECO-15-014533

19JUN2012

26SEP2014

08OCT2015

DLD

SLM

-B-

1.95 MAX

2 $ MAX

0.3

2 $ MAX

0.5

SHOWN WITH CPA (WHEN APPLICABLE)

IN IT'S LATCHED POSITION

FOR REFERENCE ONLY

( 18.98 )

( 24.7 )

3 $ MAX

SECTION

B-B

-A-

3 $ MAX

( 16.98 )

( 26.5 )

SECTION

A-A

SHOWN WITH TPA

IN IT'S LATCHED POSITION

FOR REFERENCE ONLY

SECTION

A-A

W.C.W.

W.C.H.

I.C.D.

( 16.5 )

( 16.1 )

( 17.5 )

WIRE CRIMP

DIMENSIONS

INSULATION CRIMP

DIMENSIONS

125C

MAX

TEMP

FEMALE

TERMINAL PN

SECTION

B-B

125C

( 4 ) TYP

(6)

125C

150C

1670146-1

1670146-2

1670146-3

1418850-1

1418850-2

1418850-3

1670146-2

1670146-3

1418850-2

1418850-3

TERMINAL

PLATING

AWG

SILVER

TIN

GOLD

TIN

APPLICABLE WIRE

FINISHED O.D.

W.C.H.

0.84

1.11

1.31

1.11

1.31

1.11

1.31

0.84

1.11

1.31

1.11

1.31

# 0.03

# 0.05

# 0.03

# 0.05

W.C.W.

1.57

1.78

1.57

1.78

# 0.05

I.C.D.

3.25

3.35

# 0.05

1.40 - 1.90mm

1.90 - 2.40mm

1.40 - 1.90mm

WIRE SEAL

PART NUMBER

967067-1

964972-1

GOLD

SILVER

GOLD

ISOMETRIC VIEWS

SCALE

3:1

1. PART NUMBER 1-1456426-5 SHOWN ON DRAWING.

TPA AND CPA (WHEN APPLICABLE) ARE SHIPPED IN THEIR PRE-LATCHED

POSITIONS. SEE INSTRUCTION SHEET 408-8968 FOR DIRECTIONS

ON MOVING THE CPA AND TPA TO THE PRE-LATCHED POSITION,

IF NECESSARY.

2098582-1

SILVER

KEYING

CONFIGURATIONS

3. TERMINALS SOLD SEPARATELY. FOR USE WITH TE MCON 1.2mm CLEAN

BODY CONTACT WITH WIRE SEAL. SEE TE MCON 1.2-CB (CLEAN BODY)

TABLE FOR APPLICABLE PART NUMBERS.

4. APPLICABLE HEADER INTERFACE DRAWING 114-18679-3 IS AVAILABLE

UPON REQUEST. A COPY OF THIS DRAWING CAN BE OBTAINED FROM THE

TE CONNECTIVITY PRODUCT MANAGER, VIA YOUR TE CONNECTIVITY SALES

REPRESENTIVE OR CUSTOMER SERVICE.

MINIMUM FEED THROUGH CONDITION WITH 1.0mm CLEARANCE ALL AROUND.

RELEASED

2138907-1

1488787-1

N/A

GRAY

NATURAL/BROWN

BLACK

GRAY

BLUE

4-1456426-4

4-1456426-3

4-1456426-2

4-1456426-1

1-1456426-8

1-1456426-7

1-1456426-6

1-1456426-5

1-1456426-4

1-1456426-3

1-1456426-2

1-1456426-1

1456426-8

1456426-7

1456426-6

OBSOLETE

1456426-5

1456426-4

1456426-3

1456426-2

CPA

DWN

CHK

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

6. NOTE LEFT BLANK INTENTIONALLY

TRACEABILITY CODE (YY = TWO DIGIT YEAR, JJJ = 3 DIGIT JULIAN

DAY, S = 1 DIGIT SHIFT) AND TE ASSEMBLY PART NUMBER PRINTED

IN THIS LOCATION AT ASSEMBLY.

8. FOR OPTIONAL TERMINAL CAVITY BLOCKING, USE TE CONNECTIVITY BLIND

PLUG PART NUMBER 967056-1 FOR 125°C MAX TEMPERATURE.

9. PROTOTYPE CONFIGURATION NOT SHOWN.

KEYING OPTION A

KEYING OPTION B

PROTOTYPE ASSEMBLIES USE GERMAN OUTER HOUSING P/N: 1718657-1,

CPA P/N: 1670193-1 AND SEAL P/N: 1718659-1.

NATURAL/BROWN

BLACK

GRAY

BLUE

NATURAL/BROWN

BLACK

11. TPA ENGAGE FORCE: PRESET TO FULL >= 2 N AND <= 60 N.

12. TPA DISENGAGE FORCE: DISENGAGE FROM FULL TO PRESET >= 2 N AND <= 60 N

13. CPA ENGAGE FORCE: PRESET TO FULL WITHOUT CONECTORS MATED >= 40 N.

14. CPA ENGAGE FORCE: PRESET TO FULL WITH CONNECTORS MATED <30 N.

15. POLARIZATION FEATURE EFFECTIVENESS:

CONNECTOR MATED TURNED 180 $ NO MATING > 125 N.

WRONG KEYING NO MATING > 125 N.

16. VALIDATED UP TO USACAR-2 TEMPERATURE CLASS IV (150 $ C).

17. SEE INSTRUCTION SHEET 408-8928.

ICD IS DEPENDENT UPON WIRE INSULATION TYPE AND OD. MUST BE SUFFICIENT TO

GRIP SEAL SO IT DOES NOT SLIDE OUT OF INSULATION CRIMP WHEN INSERTING INTO

CONNECTOR CAVITY BUT NOT TEAR THE SEAL.

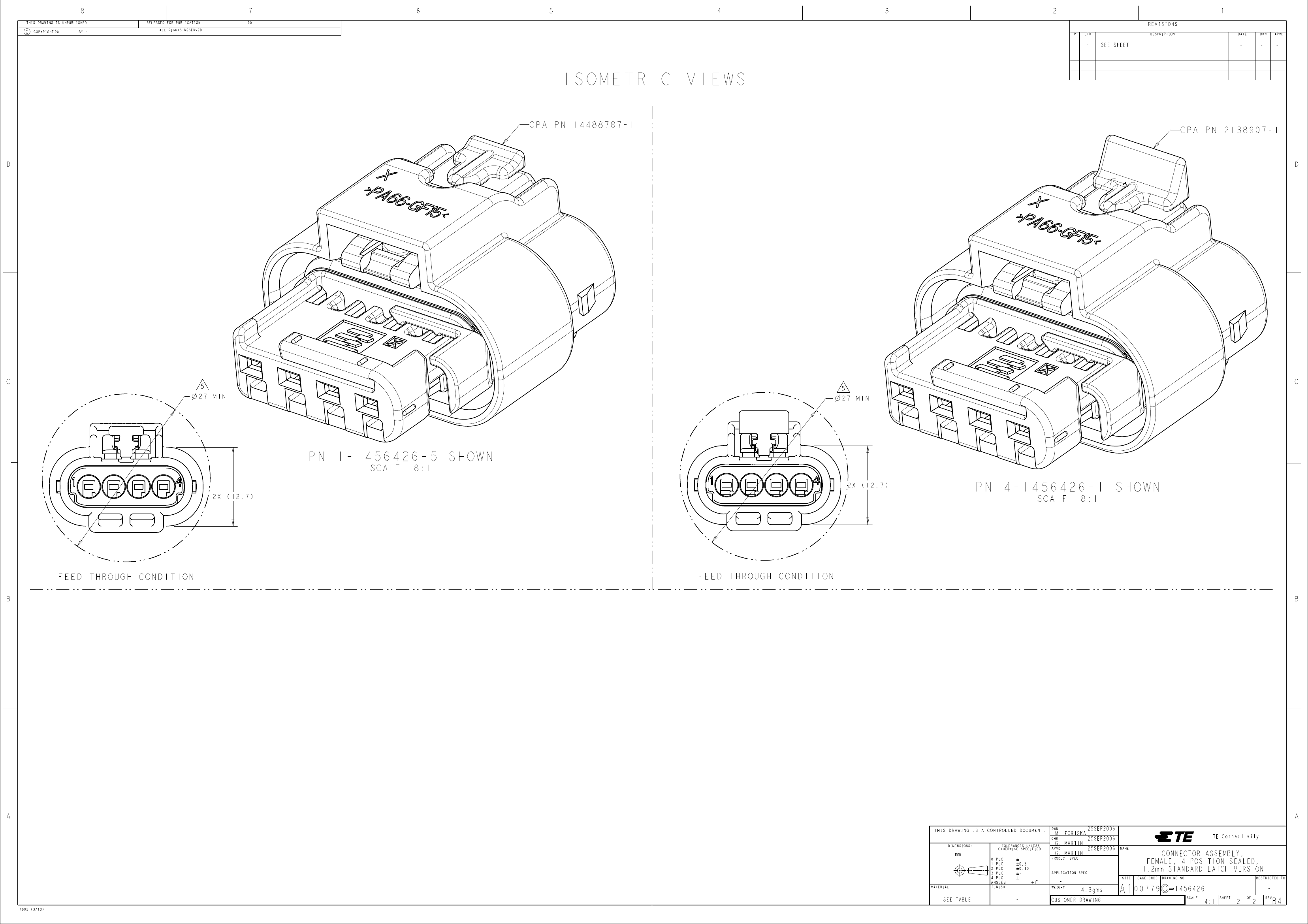

REFERENCE ISOMETRIC VIEWS ON SHEET 2.

MATERIAL

STATUS

THIS DRAWING IS A CONTROLLED DOCUMENT.

COLOR

M. FORISKA

G. MARTIN

25SEP2006

NAME

INNER HOUSING

KEY

1456426-1

PART NUMBER

TE Connectivity

APVD

KEYING OPTION C

4805 (3/13)

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.3

0.10

PRODUCT SPEC

APPLICATION SPEC

1 $

KEYING OPTION D

SEE TABLE

WEIGHT

4.3gms

CUSTOMER DRAWING

00779

SIZE

CAGE CODE

CONNECTOR ASSEMBLY,

FEMALE, 4 POSITION SEALED,

1.2mm STANDARD LATCH VERSION

DRAWING NO

RESTRICTED TO

1456426

SCALE

4:1

SHEET

REV
