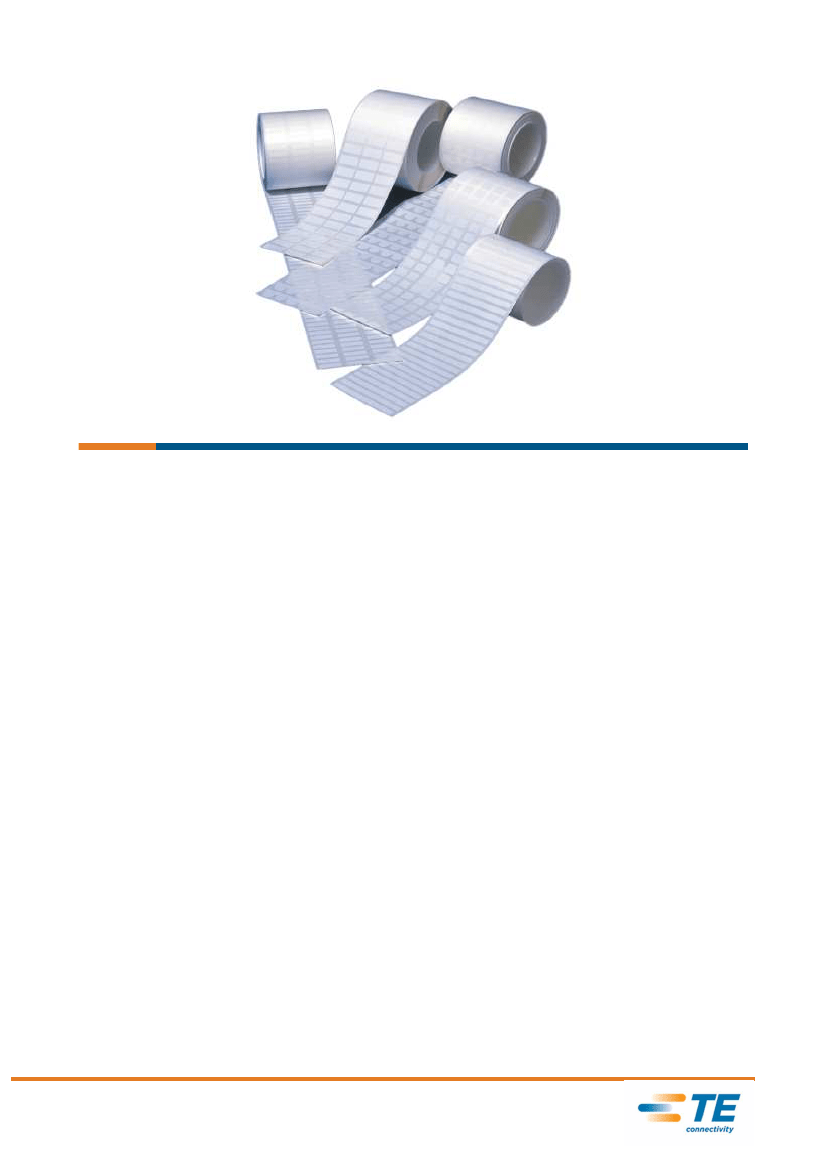

WP Gloss White
Polyester Labels
Technical Datasheet
TTDS-073 Revision 5
-
January 2016
WP is a thermal transfer printable white polyester label, which has been designed for
general purpose applications that require a high durability white label.
WP is supplied with a permanent acrylic adhesive and a glassine liner, and is ideal for bar coding,
PCB and component labelling. WP is resistant to a variety of industrial solvents while maintaining
excellent print quality. This product is UL listed. Print performance and durability can only be
guaranteed when printed using TE Connectivity printers ribbons and software, as shown in TE
Connectivity Printer Ribbon Matrix 411-121005.
WP labels are available as part of a complete identification system. The system comprises
specific printers, thermal transfer ribbons and WINTOTAL and Print Easy
software.
PAGE 1
INDUSTRIAL
/// TTDS-073
–
WP TECHNICAL DATA SHEET
WP GLOSS WHITE POLYESTER LABELS
Features
•
Thermal Transfer Printable
•
Specially designed ink receptive top coat to improve
mark permanence
Temperature Rating
•
Operating Temperature Range
–40°C
to 150°C (-40°F to 302°F)
•
Excellent chemical resistance
•
Permanent Acrylic adhesive
•
Suitable for a variety of surfaces
•
Colours available
•
Minimum Application Temperature 10°C (50°F)
Specifications / Approvals
Industry
UL MH17292 Group PGJI2 (WP1)
UL MH17292 Group PGJI8 (WP1)
Applications
•
Bar coding
•
PCB component labelling
•
Industrial and Commercial applications
•
General Purpose Labelling Applications
Design for Environment
•
Does not contain any declarable or prohibited sub-
stances from the UNIFE Railway Industry Substances
List
•
Further information and a downloadable declaration
covering RoHS and REACH compliance can be found
at the TE Product Compliance Support Centre:
http://www.te.com/usa-en/utilities/product-
compliance.html
Shelf Life
2 years when following good commercial storage practice detailed below
Storage
Product should be stored in the original packaging, with any plastic covers which were included during shipping.
Store out of direct sunlight in a clean, dry, dust free, environment. Product should not be stored outside of the de-
signed storage temperature, which is
-10°C
(14°F) to +40°C (104°F).
PAGE 2
INDUSTRIAL
/// TTDS-073
–
WP TECHNICAL DATA SHEET
WP
Gloss White Polyester Labels
Technical Performance
Requirement / Method
Print Permanence
Marking of Electrical Insulating Materials
Resistance to Solvents
TE industrial fluids
SAE AS 4952, 1Kg, 50 rubs
MIL STD 202 Method 215
Pass
Pass
Result
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Isopropyl alcohol
IRM 902
MIL PRF 23699
Skydrol LD4
MIL-H-83282
Diesel Fuel
Kilfrost DF plus
Tap water
5% Salt solution
Detergent (1% Teepol)
TE doc 109-121012, 24 hours im- Pass
mersion 23°C followed by 20 rubs, Pass
minimum print contrast 3*, legible. Pass
Pass
Pass
Pass
Pass
*Print contrast as defined in
TE doc.411-121002
FTM 1 (180°), 72 hour dwell
Pass
Pass
Pass
Adhesion
19 N/25 mm (69 oz/in)
19 N/25 mm (69 oz/in)
13 N/25 mm (46 oz/in)
12 N/25 mm (45 oz/in)
21 N/25 mm (75 oz/in)
Adhesion
Stainless steel
Glass
Aluminium
Polypropylene
Epoxy Painted Surface
Typical Label Thickness Details
•
Facestock:
•
Adhesive:
•
Liner:
0.05 mm / 0.0020 inch
0.022 mm / 0.0087 inch
0.056 mm / 0.0022 inch
Solder Immersion
After 10-second immersion at 250°C (480°F) in molten (lead free) solder: slight yellowing and print remains legible
Where possible, TE have tested product as a finished item, including the print. Operational tests are followed by an
assessment of mark adherence to validate fit form and function.
PAGE 3
INDUSTRIAL
/// TTDS-073
–
WP TECHNICAL DATA SHEET
WP
Gloss White Polyester Labels
Part Description
WP
-044
033
-10
-9
9
10
033
044
WP
Colour
Pack Size
Label Height (mm)
Label Width (mm)
Product Family
Specify product name, Label width (mm), Label Height (mm), Pack Size (in thousands), Colour (e.g.
–9
= White)
Ordering Information
Ordering Description
Pack Size
Labels
Across
20
12
8
5
5
7
5
5
4
Label Width A
(mm) (inches)
4.0
6.4
8.0
8.9
9.5
9.5
12.7
12.7
16.5
0.157
0.250
0.315
0.350
0.375
0.375
0.500
0.500
0.650
Label Height B
(mm) (inches)
4.0
6.4
8.0
4.7
8.0
9.5
11.1
12.7
5.1
0.157
0.250
0.315
0.185
0.315
0.375
0.437
0.500
0.200
Horizontal Repeat
C (mm) (inches)
4.0
6.4
9.9
11.4
12.2
11.1
16.8
15.9
17.8
0.157
0.250
0.390
0.450
0.480
0.437
0.662
0.625
0.700
Vertical repeat D
(mm) (inches)
7.2
9.5
13.3
7.9
12.7
12.7
14.3
15.9
8.3
0.281
0.375
0.525
0.313
0.500
0.500
0.563
0.625
0.325
Web Width E
(mm) (inches)
86.0
82.2
83.3
60.6
64.3
82.1
86.0
82.6
75.8
3.380
3.240
3.280
2.386
2.531
3.230
3.380
3.250
2.990
WP-040040-25-9
WP-064064-25-9
WP-080080-10-9
WP-089047-10-9
WP-095080-25-9
WP-095095-10-9
WP-127111-10-9
WP-127127-10-9
WP-165051-25-9
25.000
25.000
10.000
10.000
25.000
10.000
10.000
10.000
25.000
PAGE 4
INDUSTRIAL
/// TTDS-073
–
WP TECHNICAL DATA SHEET
WP
Gloss White Polyester Labels
Ordering Information
Ordering Description
Pack Size
Labels
Across
5
5
4
4
3
4
3
3
3
3
3
3
2
1
1
1
2
2
2
2
2
1
1
1
1
1
1
1
1
1
1
1
1
Label Width A
(mm) (inches)
16.5
17.1
17.8
19.1
19.1
20.3
22.9
25.4
25.4
25.4
25.4
25.4
30.5
31.8
31.8
38.1
38.1
38.1
38.1
38.1
40.6
44.5
44.5
44.5
47.8
50.8
50.8
50.8
50.8
50.8
50.8
52.3
61.0
0.650
0.674
0.700
0.750
0.750
0.800
0.900
1.000
1.000
1.000
1.000
1.000
1.200
1.250
1.250
1.500
1.500
1.500
1.500
1.500
1.600
1.750
1.750
1.750
1.880
2.000
2.000
2.000
2.000
2.000
2.000
2.060
2.400
Label Height B
(mm) (inches)
10.2
17.1
9.5
6.4
11.4
12.7
6.4
4.6
6.4
9.7
12.7
25.4
4.7
6.4
9,7
6.4
12.7
19.1
38.1
63.5
25.4
6.4
10.2
44.5
17.5
6.4
9.5
12.7
25.4
31.8
50.8
84.1
41.9
0.400
0.674
0.375
0.250
0.450
0.500
0.250
0.180
0.250
0.380
0.500
1.000
0.185
0.250
0.380
0.250
0.500
0.750
1,500
2.500
1.000
0.250
0.400
1.750
0.690
0.250
0.375
0.500
1.000
1.250
2.000
3.310
1.650
Horizontal Repeat
C (mm) (inches)
19.1
19.7
19.1
21.6
22.2
22.9
28.6
31.8
27.9
27.9
27.9
27.9
33.0
N/A
N/A
N/A
44.2
43.2
44.5
40.6
55.9
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
0.750
0.774
0.750
0.850
0.875
0.900
1.125
1.250
1.100
1.100
1.100
1.100
1.300
N/A
N/A
N/A
1.740
1.700
1.750
1.600
2.200
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
Vertical repeat D
(mm) (inches)
13.8
20.3
12.7
9.5
14.7
15.9
9.5
8.5
9.5
12.7
16.9
28.6
7.8
9.5
12.7
9.5
15.9
22.2
40.8
66.7
38.1
9.5
12.7
47.6
24.4
9.5
12.7
15.9
28.6
34.9
54.6
88.9
45.5
0.545
0.800
0.500
0.375
0.579
0.625
0.375
0.333
0.375
0.500
0.666
1.125
0.306
0.375
0.500
0.375
0.630
0.875
1.610
2.630
1.500
0.375
0.500
1.875
0.962
0.375
0.500
0.625
1.125
1.375
2.150
3.500
1.792
Web Width E
(mm) (inches)
99.1
101.8
80.9
89.9
69.5
94.6
86.0
95.3
87.3
87.4
87.4
87.4
69.5
37.9
37.8
44.5
88.2
87.6
88.9
84.7
102.9
50.4
50.4
50.4
66.0
56.9
57.2
56.9
57.2
56.9
54.0
58.2
67.3
3.900
4.006
3.190
3.540
2.736
3.730
3.390
3.750
3.436
3.440
3.440
3.440
2.736
1.490
1.488
1.750
3.470
3.450
3.500
3.340
4.050
1.986
1.986
1.986
2.600
2.240
2.250
2.240
2.250
2.240
2.130
2.290
2.650
WP-165102-10-9
WP-171171-10-9
WP-178095-10-9
WP-191064-10-9
WP-191114-15-9
WP-203127-10-9
WP-229064-10-9
WP-254045-10-9
WP-254064-10-9
WP-254097-10-9
WP-254127-10-9
WP-254254-10-9
WP-305047-10-9
WP-318064-10-9
WP-318097-10-9
WP-381064-10-9
WP-381127-5-9
WP-381191-5-9
WP-381381-2.5-9
WP-381635-5-9
WP-406254-1.5-9
WP-445064-10-9
WP-445102-5-9
WP-445445-2-9
WP-478175-5-9
WP-508064-10-9
WP-508095-5-9
WP-508127-5-9
WP-508254-5-9
WP-508318-2.5-9
WP-508508-3-9
WP-523841-1.5-9
WP-610419-2.5-9
10.000
10.000
10.000
10.000
15.000
10.000
10.000
10.000
10.000
10.000
10.000
10.000
10.000
10.000
10.000
10.000
5.000
5.000
2.500
5.000
1.500
10.000
5.000
2.000
5.000
10.000
5.000
5.000
5.000
2.500
3.000
1.500
2.500
PAGE 5
INDUSTRIAL
/// TTDS-073
–
WP TECHNICAL DATA SHEET
