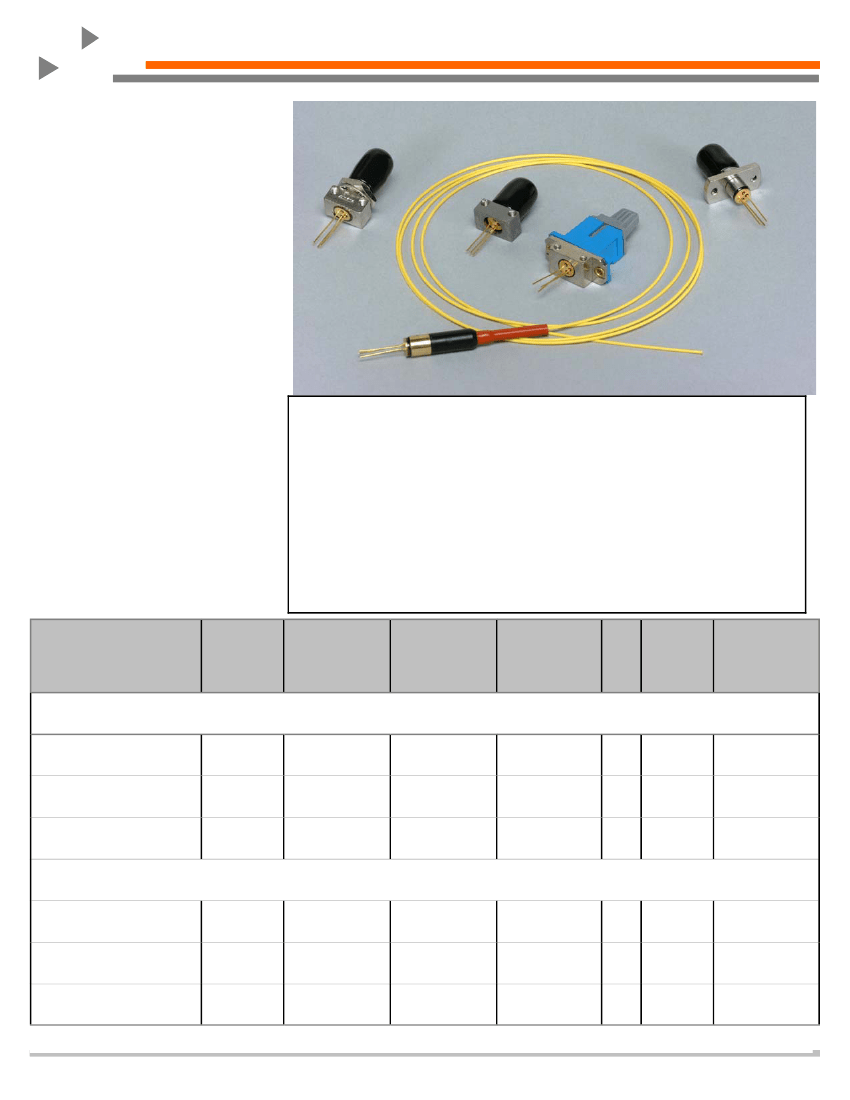

PD-LD Inc. offers a variety of
standard Surface Emitting LED’s
(SLEDs) in ready to use fiber coupled
packages. Packaging options include
Receptacle style housings such as ST,
FC and SC as well as fiber pigtailed co-
axial assemblies. SLEDs are typically
used with multi-mode optical fiber and
may be specified for coupling to 50um ,
62.5um or 100um core optical fibers.
Units built with fiber
pigtails are
available terminated with optical
connectors. Specialty fiber sizes may
be available upon request.
The SLED product offering
includes both 850nm and 1310nm
devices. These units produce broad
spectrum, incoherent light and have
wide spectral widths. Such SLED’s may
be modulated from DC to 150 MHz or
operated in continuous wave mode.
These devices may be operated in
both analog or digital applications. It is
typical to drive the SLED’s with up to
100mA forward current. Such devices
do not require internal monitor
photodiodes which simplifies drive
circuit designs. The robust nature of
these units allow for operation
PS Series 850 nm and 1300 nm Surface Emitting LEDs
Features 850nm SLEDs
•
High reliability GaAlAs Diode
•
Compact, robust receptacle & coax
•
5 to 30 uW into MMF
Features 1310nm SLEDs
•
InGaAs Diodes systems
•
Wide Spectral Width, 160nm
•
Ideal for Networking Applications
•
DC to 200MHz o
peration
Fiber Type
Core/Cladding
(um)
Fiber Coupled
Power (uW)
Min
Typ
fiber-coupled package
PD-LD Part Number
Wavelength Operating Cur-
Typ.
rent (mA)
(nm)
Typ.
Max
Pin-
Out
Spectral
Width
FWHM
(nm)
Rise/
Fall Time
Max.
(nsec)
850nm GaAlAs SLED (Iop=100mA @ 25C, 1.8V)
PS85K020SC22-Q-0
PS85K035300A-0-0-01
PS85K020ST72-Q-0
850
850
850
100
100
100
110
110
110
50/125
62.5/125
50/125
20
35
20
25
40
25
D
D
D
35
35
35
6.0
6.0
6.0
1310nm InGaAs SLED (Iop=100mA @25 C, 1.8V)
PS13L030300A-0-0-01
PS13L020SC22-Q-0
PS13T020ST72-Q-0
1
1310
1310
1310
100
100
100
110
110
110
62.5/125
50/125
50/125
30
20
20
35
25
25
D
D
D
160
160
160
3.0
3.0
3.0
Examples only; most device/packaging combinations available.
Changes to specifications may be made without notice.
9-08 PS Series.Rev B
30-B Pennington-Hopewell Rd., Pennington NJ 08534 FON: 609-564-7900 FAX: 609-564-7901 EMAIL: info@pd-ld.com www.pd-ld.com
PD
Inc
LD
SLED PIN-OUT
PS Series 850 nm and 1300 nm Surface Emitting LEDs
SLED
Pin-Out
“85K”,
“13L” , “13T”
SLED Anode
SLED Cathode
Case Ground
3
1
Pin #1
Pin #2
Pin #3
2
Ordering Information
Pigtailed Devices
Receptacle Devices
PXWWWPPPFCCB-0-V-LL
X = S for SLED
WWW=Wavelength and Pin-out
S85K = 850nm SLED
S13L, S13T= 1300nm SLED
PXWWWPPPRRRF-O-V
PPP = Fiber-Coupled Power
005
= 5uW
015
= 15uW
0.1=
0.1mW
008
= 8uW
020
= 20uW
0.5=
0.5mW
010
= 10uW
030
= 30uW
F=
1=
2=
3=
4=
9=
RRR=Receptacle Type
O=Orientation
FC1=FC Panel mount
0=N/A
FC2=FC Board mount
A=Bracket Shipped Loose (pigtailed unit
SC1=SC Panel mount only Specify orientation as required
SC2=SCPanel/board mount
ST7=ST low profile(7.9mm)
V=Version
ST8=ST high profile(10.4mm) 0=Standard
Unique Codes for specific requirements
LL = Length in meters
(01,02,0.5 ect.) (pigtailed devices only)
CC = Connector Type
(pigtailed devices only)
ST
= ST/PC
SC
= SCPC
SA=SC/APC
FC
= FC/PC
FA
= FC/APC
FU
= FC/UPC
OO
= No Connector
Fiber Type
9/125 SMF
50/125 MMF
62.5/125 MMF
100/140 MMF
Customer Supplied
B=
A
=
B
=
C
=
Bracket Type
None
Panel Mount
Board Mount
1
Examples only; most device/packaging combinations available.
Changes to specifications may be made without notice.
9-08 PS Series.Rev B
30-B Pennington-Hopewell Rd., Pennington NJ 08534 FON: 609-564-7900 FAX: 609-564-7901 EMAIL: info@pd-ld.com www.pd-ld.com
PD
Inc
LD
PS Series 850 nm and 1300 nm Surface Emitting LEDs

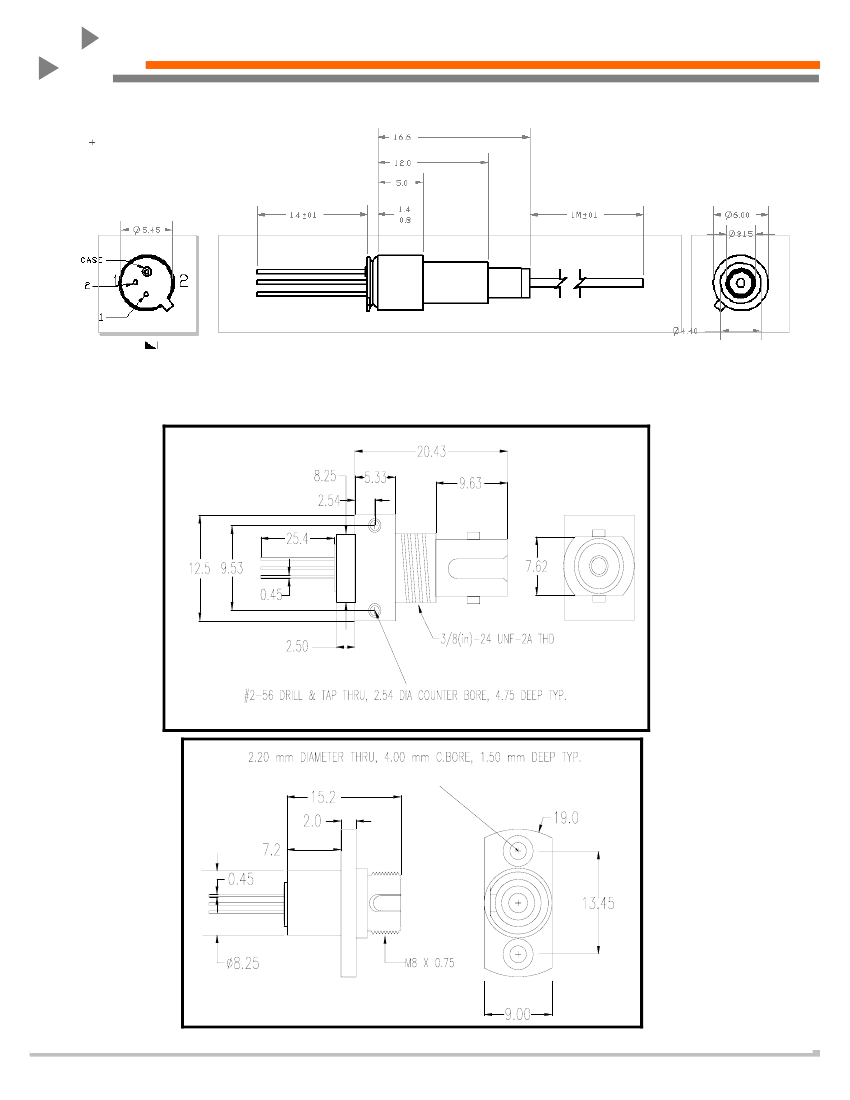

ST Board Mount Receptacle
Low Profile with “Q” Lead Orientation
1
Examples only; most device/packaging combinations available.
Changes to specifications may be made without notice.
9-08 PS Series.Rev B
30-B Pennington-Hopewell Rd., Pennington NJ 08534 FON: 609-564-7900 FAX: 609-564-7901 EMAIL: info@pd-ld.com www.pd-ld.com
