Basic information of CA3078E amplifier:
CA3078E is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are DIP, DIP8,.3
CA3078E amplifier core information:
The minimum operating temperature of the CA3078E is and the maximum operating temperature is 70 °C. Maximum bias current at 25°C: 0.17 µA
The maximum slew rate of the CA3078E given by the manufacturer is 0.15 mA.
The power supply range is: +-0.75/+-6 V. The input offset voltage of the CA3078E is 5000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of CA3078E:
CA3078E has 8 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm.
CA3078E amplifier additional information:
CA3078E adopts the VOLTAGE-FEEDBACK architecture. It does not belong to the low offset class of amplifiers. The frequency compensation status of CA3078E is: NO. Its temperature grade is: COMMERCIAL. CA3078E does not comply with Rohs certification.
The corresponding JESD-30 code is: R-PDIP-T8. The corresponding JESD-609 code is: e0. The packaging code of CA3078E is: DIP. CA3078E packaging materials are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR.
The form of CA3078E package pins is: IN-LINE. Its terminal form is: THROUGH-HOLE.
Basic information of CA3078E amplifier:
CA3078E is an OPERATIONAL AMPLIFIER. Commonly used packaging methods are DIP, DIP8,.3
CA3078E amplifier core information:
The minimum operating temperature of the CA3078E is and the maximum operating temperature is 70 °C. Maximum bias current at 25°C: 0.17 µA
The maximum slew rate of the CA3078E given by the manufacturer is 0.15 mA.
The power supply range is: +-0.75/+-6 V. The input offset voltage of the CA3078E is 5000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of CA3078E:
CA3078E has 8 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm.
CA3078E amplifier additional information:
CA3078E adopts the VOLTAGE-FEEDBACK architecture. It does not belong to the low offset class of amplifiers. The frequency compensation status of CA3078E is: NO. Its temperature grade is: COMMERCIAL. CA3078E does not comply with Rohs certification.
The corresponding JESD-30 code is: R-PDIP-T8. The corresponding JESD-609 code is: e0. The packaging code of CA3078E is: DIP. CA3078E packaging materials are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR.
The form of CA3078E package pins is: IN-LINE. Its terminal form is: THROUGH-HOLE.

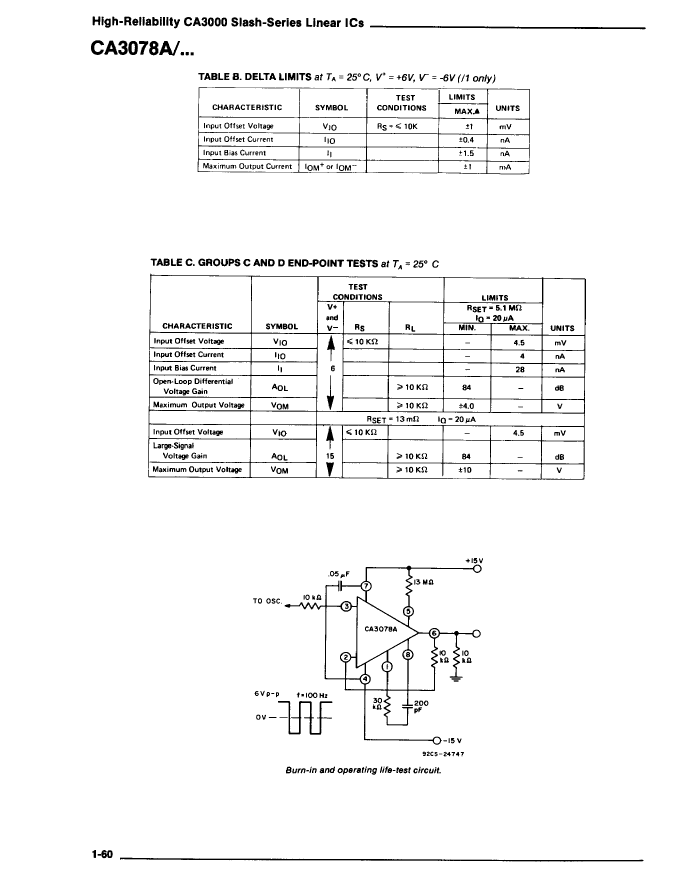

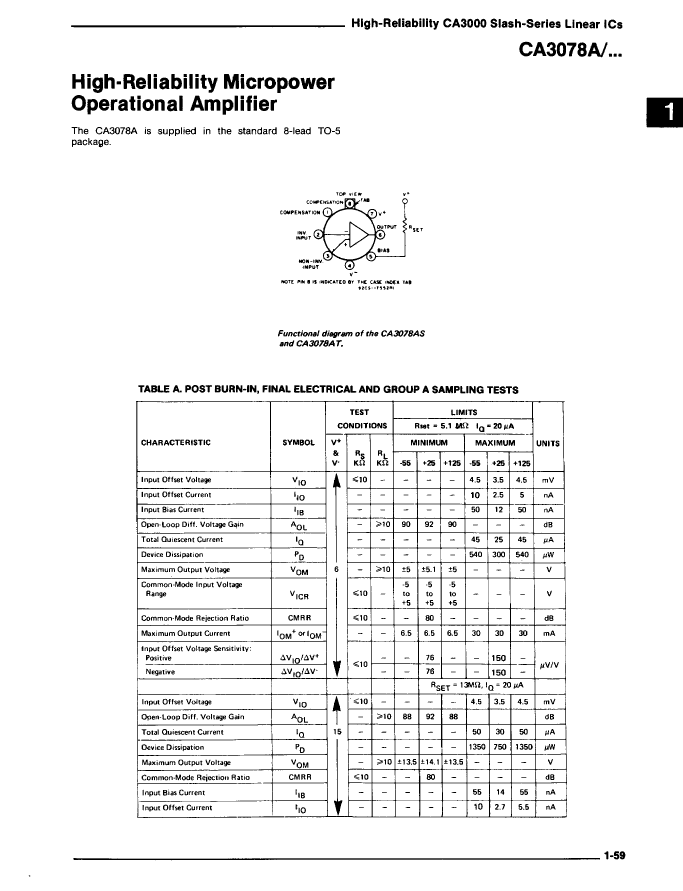

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | RCA |
| package instruction | DIP, DIP8,.3 |
| Reach Compliance Code | unknown |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Maximum bias current (IIB) at 25C | 0.17 µA |
| frequency compensation | NO |
| Maximum input offset voltage | 5000 µV |
| JESD-30 code | R-PDIP-T8 |
| JESD-609 code | e0 |
| low-dissonance | NO |
| Number of functions | 1 |
| Number of terminals | 8 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP8,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| power supply | +-0.75/+-6 V |
| Certification status | Not Qualified |
| Maximum slew rate | 0.15 mA |
| Supply voltage upper limit | 7 V |
| surface mount | NO |
| technology | BIPOLAR |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Base Number Matches | 1 |
| CA3078E | CA3078AM96 | CA3078S/3W | CA3078S/3 | CA3078AT/3 | CA3078AT/1 | CA3078T/3 | CA3078T/4 | |
|---|---|---|---|---|---|---|---|---|
| Description | Operational Amplifier, 1 Func, 5000uV Offset-Max, BIPolar, PDIP8, | Operational Amplifier, 1 Func, 4500uV Offset-Max, BIPolar, PDSO8, | Operational Amplifier, 1 Func, 5000uV Offset-Max, BIPolar | Operational Amplifier, 1 Func, 5000uV Offset-Max, BIPolar | Operational Amplifier, 1 Func, 4500uV Offset-Max, BIPolar, MBCY8 | Operational Amplifier, 1 Func, 4500uV Offset-Max, BIPolar, MBCY8 | Operational Amplifier, 1 Func, 5000uV Offset-Max, BIPolar, MBCY8 | Operational Amplifier, 1 Func, 5000uV Offset-Max, BIPolar, MBCY8 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| package instruction | DIP, DIP8,.3 | SOP, SOP8,.25 | , TO-5,8PIN,DIL | , TO-5,8PIN,DIL | , CAN8,.2 | , CAN8,.2 | , CAN8,.2 | , CAN8,.2 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| Amplifier type | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK | VOLTAGE-FEEDBACK |
| Maximum bias current (IIB) at 25C | 0.17 µA | 0.012 µA | 0.17 µA | 0.17 µA | 0.012 µA | 0.012 µA | 0.17 µA | 0.17 µA |
| frequency compensation | NO | NO | NO | NO | NO | NO | NO | NO |
| Maximum input offset voltage | 5000 µV | 4500 µV | 5000 µV | 5000 µV | 4500 µV | 4500 µV | 5000 µV | 5000 µV |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 |
| low-dissonance | NO | NO | NO | NO | NO | NO | NO | NO |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Maximum operating temperature | 70 °C | 125 °C | 70 °C | 70 °C | 125 °C | 125 °C | 70 °C | 70 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | METAL | METAL | METAL | METAL | METAL | METAL |
| Encapsulate equivalent code | DIP8,.3 | SOP8,.25 | TO-5,8PIN,DIL | TO-5,8PIN,DIL | CAN8,.2 | CAN8,.2 | CAN8,.2 | CAN8,.2 |
| power supply | +-0.75/+-6 V | +-0.75/+-15 V | +-0.75/+-6 V | +-0.75/+-6 V | +-0.75/+-15 V | +-0.75/+-15 V | +-0.75/+-6 V | +-0.75/+-6 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum slew rate | 0.15 mA | 0.05 mA | 0.15 mA | 0.15 mA | 0.05 mA | 0.05 mA | 0.15 mA | 0.15 mA |
| Supply voltage upper limit | 7 V | 18 V | 7 V | 7 V | 18 V | 18 V | 7 V | 7 V |
| technology | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR |
| Temperature level | COMMERCIAL | MILITARY | COMMERCIAL | COMMERCIAL | MILITARY | MILITARY | COMMERCIAL | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Maker | RCA | RCA | RCA | RCA | RCA | RCA | - | - |
| JESD-30 code | R-PDIP-T8 | R-PDSO-G8 | - | - | O-MBCY-W8 | O-MBCY-W8 | O-MBCY-W8 | O-MBCY-W8 |
| Package shape | RECTANGULAR | RECTANGULAR | - | - | ROUND | ROUND | ROUND | ROUND |
| Package form | IN-LINE | SMALL OUTLINE | - | - | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL |
| Terminal form | THROUGH-HOLE | GULL WING | - | - | WIRE | WIRE | WIRE | WIRE |
| Terminal location | DUAL | DUAL | - | - | BOTTOM | BOTTOM | BOTTOM | BOTTOM |
| Filter level | - | - | MIL-STD-883 Class B (Modified) | MIL-STD-883 Class B (Modified) | MIL-STD-883 Class B (Modified) | MIL-STD-883 Class S (Modified) | MIL-STD-883 Class B (Modified) | MIL-STD-883 Class C |
