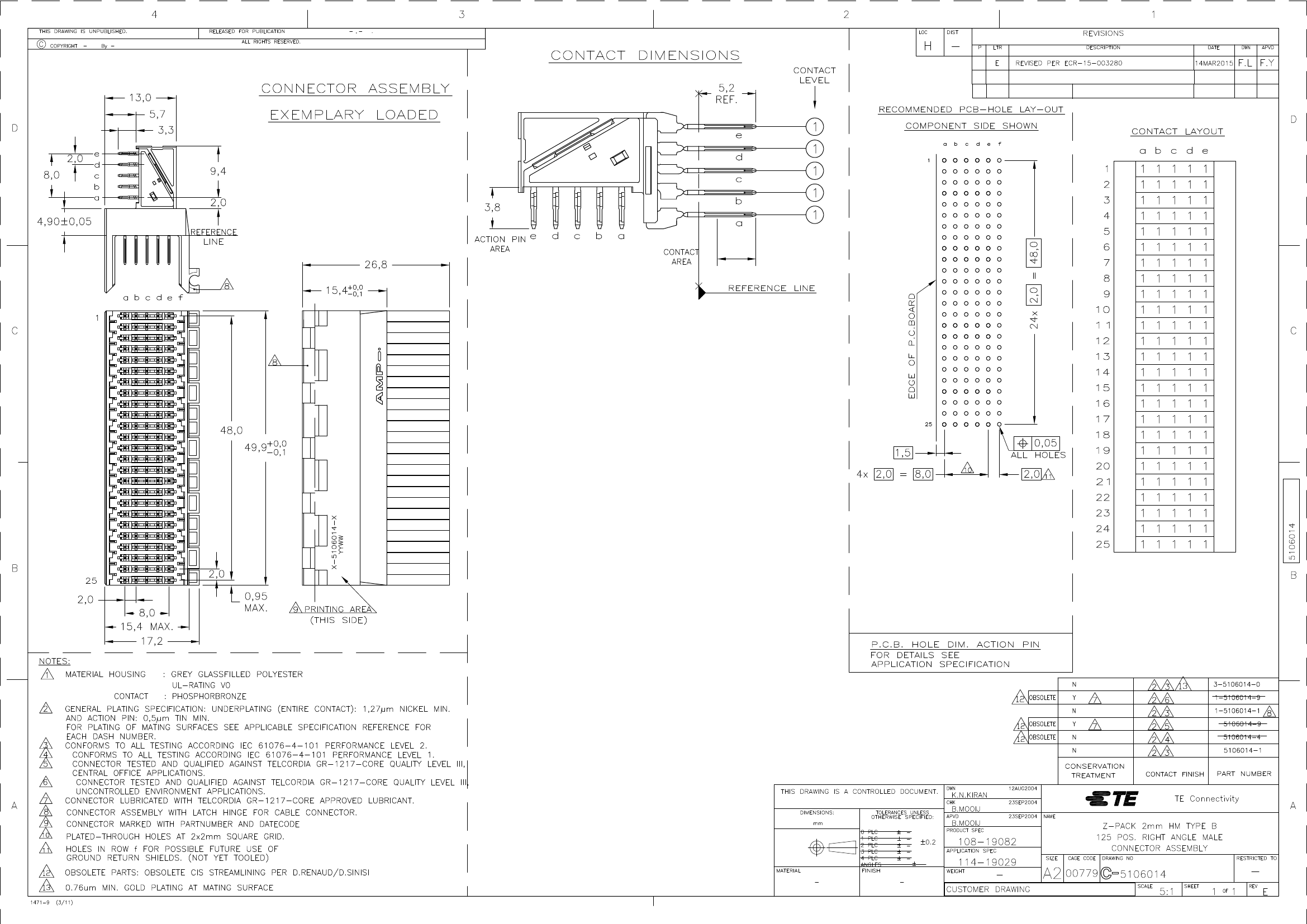

1-5106014-1 datasheet, PDF - EEWORLD Datasheet

1-5106014-1: DescriptionZ-PACK/B RAMH.125P; CategoryThe connector; File Size150KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

1-5106014-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-5106014-1	-	-	View	Buy Now

Z-PACK/B RAMH.125P

Parameter Name	Attribute value
Connector System	Board to Board
Sealable	no
Connectors and terminals terminate to	A printed circuit board
Make first/break last	no
shield	no
Connector type	plug
Connector type	Connector components
Number of columns	25
Rows	5
Architecture	mezzanine
Number of Positions	125
PCB mounting direction	right angle
Data rate (Gb/s)	≤1
crosstalk version	standard
Terminal base material	Phosphor bronze
Terminal configuration	ACTION PIN, signal
Ground terminal	Without
CompactPCI name	none
Terminal contact plating material	performance based
Terminal contact plating thickness (µm)	.76
Contact Current Rating (Max) (A)	1.5
Length of penetration cylinder (mm)	3.8
Terminal contact length (mm)	5.2
Interface Type	2mm HM
Terminal plating materials	Nickel base tin plating
Connector mounting type	board mounting
Centerline (Pitch)	2 mm [ .078 in ]
Shell color	grey
Shell material	Polyester-GF
Module length (mm)	50
Working group temperature range	-55 – 125 °C [ -67 – 257 °F ]
Circuit Application	Power and Signal
AdvancedTCA designated products	no
UL flammability rating	UL 94V-0
Encapsulation method	Tube
Package quantity	11
Comment	When used in card expander applications, these removable male connectors at the end of the board should not mate with removable female connectors at t
