660-049XMT21F6116 datasheet, PDF

Datasheet> All Categories > The connector> Connector bracket> 660-049XMT21F6116

660-049XMT21F6116: DescriptionConnector Accessory,; CategoryThe connector Connector bracket; File Size262KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/; Environmental Compliance

Download Datasheet Parametric View All

660-049XMT21F6116 Overview

Connector Accessory,

660-049XMT21F6116 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Glenair
Reach Compliance Code	compliant
Related Mil-Spec Back Cases	MIL-DTL-38999
Connector bracket type	CONNECTOR ACCESSORY
DIN compliance	NO
IEC compliance	NO
MIL compliance	YES
Military connector accessories name	COVER ITEM
Housing size	21
Base Number Matches	1

Preview

Download Datasheet

View All

SERIES 23

MIL-DTL-38999

Backshells and accessories

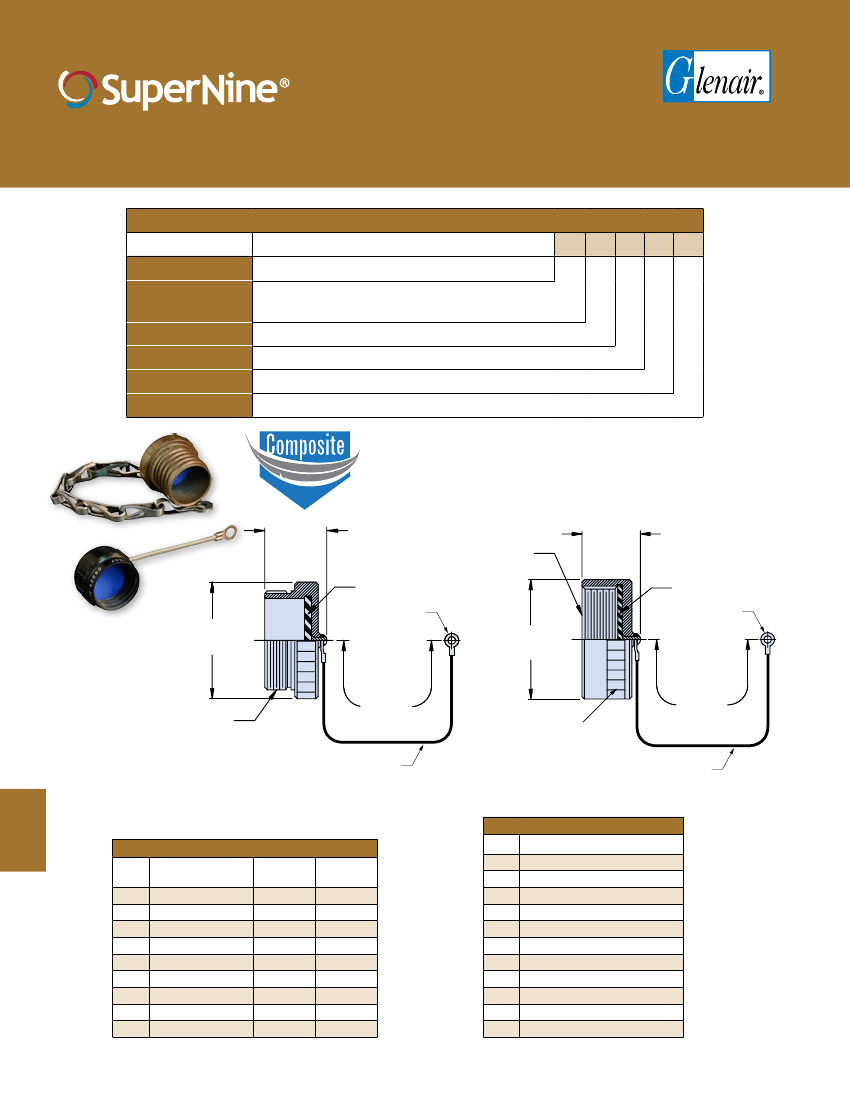

660-049 and -050 Composite protective covers

How To Order 660-049 and 660-050

Sample Part Number

Product Series-Basic No.

Finish

Connector Shell Size

Lanyard Type

Attachment Length

Ring Style Dash No.

660-049

= Plug Cover

660-049

660-050

= Receptacle Cover

= No plating, black

= Electroless Nickel

= No Plating, Desert Tan

XMT

= Nickel-PTFE

1000 Hour Gray

= Cadmium O/D over Electroless Nickel

09, 11, 13, 15, 15, 17, 19, 21, 23, 25;

See Dimensions Table

D, F, G, H, K, N, R, S, SK, T, U;

See Lanyard Code Table

In Inches

See

Tables I, II, III

1.18 (30.0)

Max

A Thread

Gasket

Attachment

.906

(23.0)

Max

Gasket

Attachment

ØF

ØG

A Thread

Length

(see note)

Knurl or Flutes

MFR Option, Typ.

Length

(see note)

Lanyard

-049 Plug Cover

MIL-DTL-38999/32 Type

-050 Receptacle Cover

MIL-DTL-38999/33 Type

Lanyard Code

Code

Description

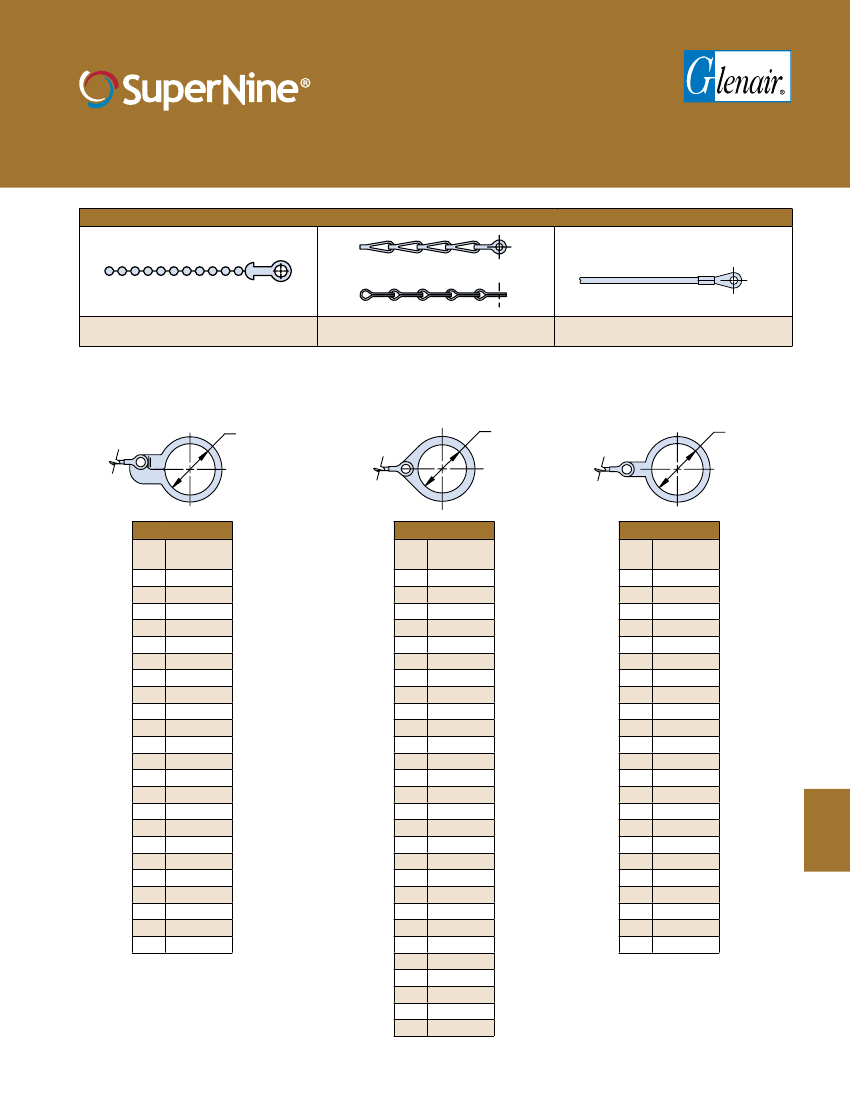

Bead Chain, CRES, Passivated

Wire Rope, Nylon Jacket

Nylon Rope, Black

Wire Rope, Fluoropolymer Jacket

Nylon Rope, Olive Drab

No Lanyard

Wire Rope, PVC Jacket

#8 Sash Chain, CRES, Passivated

Nylon Rope (Black) w/Slip Knot

Wire Rope, No Jacket

Wire Rope, Polyurethane Jacket

Shell

Size

H-20

Dimensions

Thread

.6250 - 0.1P-0.3L-TS

.7500 - 0.1P-0.3L-TS

.8750 - 0.1P-0.3L-TS

1.0000 - 0.1P-0.3L-TS

1.1875 - 0.1P-0.3L-TS

ØF

Max

0.906 (23.0)

1.024 (26.0)

1.220 (31.0)

1.300 (33.0)

1.457 (37.0)

ØG

Max

.906 (23.0)

1.102 (28.0)

1.220 (31.0)

1.260 (32.0)

1.457 (37.0)

1.2500 - 0.1P-0.3L-TS 1.575 (40.0) 1.535 (39.0)

1.3750 - 0.1P-0.3L-TS 1.732 (44.0) 1.654 (42.0)

1.5000 - 0.1P-0.3L-TS 1.811 (46.0) 1.772 (45.0)

1.6250 - 0.1P-0.3L-TS 1.969 (50.0) 1.929 (49.0)
