2007831-1: DescriptionBoard Connector, 192 Contact(s), 12 Row(s), Male, Straight, 0.075 inch Pitch, Press Fit Terminal, Guide Pin, Black Insulator; CategoryThe connector The connector; File Size411KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

2007831-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2007831-1	-	-	View	Buy Now

2007831-1 Overview

Board Connector, 192 Contact(s), 12 Row(s), Male, Straight, 0.075 inch Pitch, Press Fit Terminal, Guide Pin, Black Insulator

2007831-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1478955494
Reach Compliance Code	compliant
Samacsys Description	High Speed Backplane Connectors, 192 Position, Mating Alignment, Keyed Mating Alignment Type, 12 Row, 16 Column, PCB Mount Header, Vertical, IMPACT
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2023-05-17 06:25:35
YTEOL	7.75
Board mount options	COMPLIANT BOARDLOCK
body width	0.819 inch
subject depth	0.969 inch
body length	1.508 inch
Characteristic impedance	100 Ω
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT APPLICABLE
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
DIN compliance	NO
Electromagnetic interference shielding	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
maximum insertion force	.3336 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Power Connector Ratings	.75A
Plug contact pitch	0.075 inch
Match contact row spacing	0.053 inch
Mixed contacts	NO
Installation option 1	GUIDE PIN
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	12
Number of ports	1
Number of rows loaded	12
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.3462 mm
Panel mounting	NO
Plating thickness	29.92u inch
polarization key	POLARIZED
Rated current (signal)	0.75 A
Rated voltage	30 V
Guideline	UL
Terminal length	0.055 inch
Terminal pitch	1.9 mm
Termination type	PRESS FIT
Total number of contacts	192
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N

Preview

Download Datasheet

View All

8

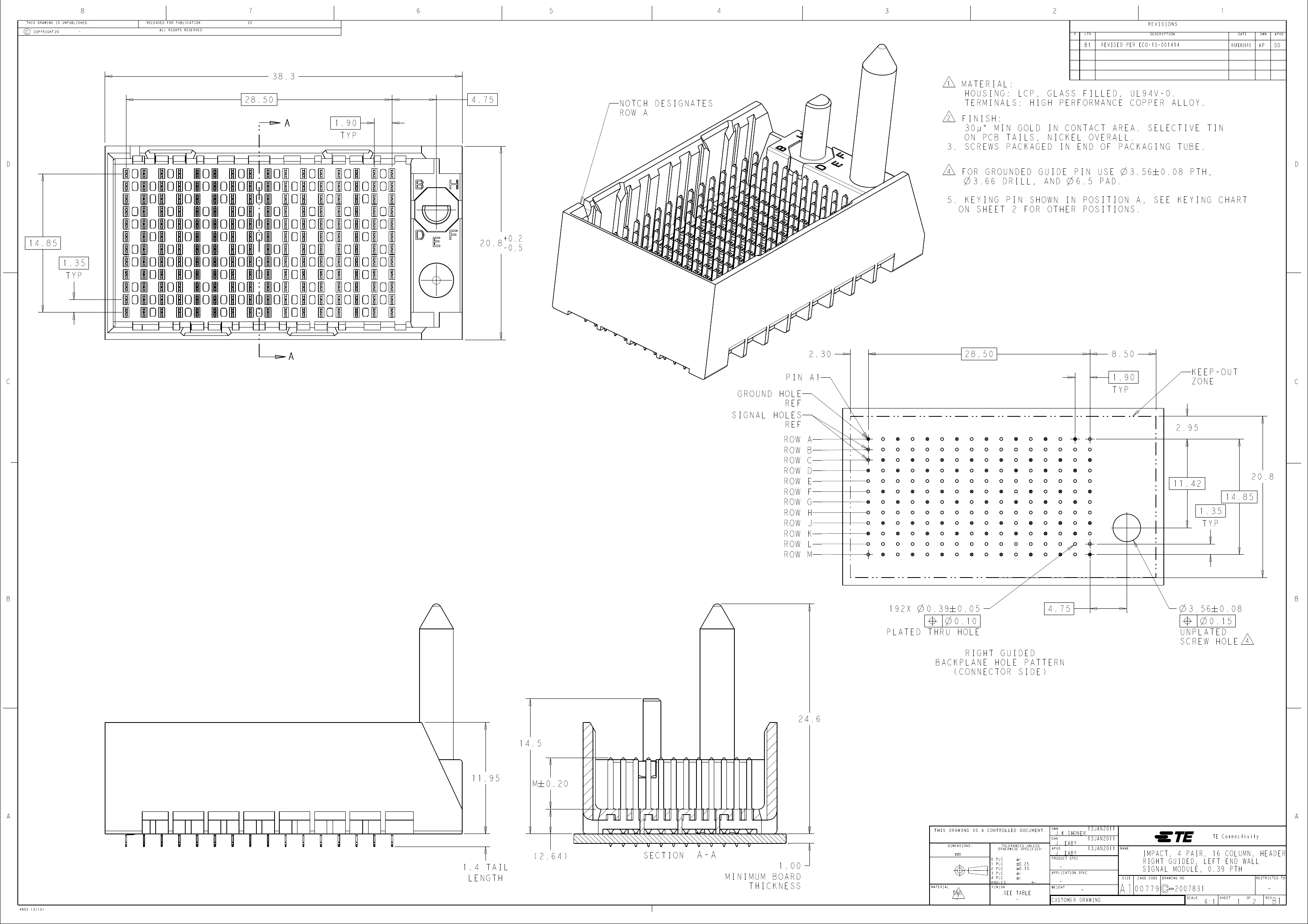

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

-

7

20

6

5

4

3

2

REVISIONS

P

LTR

DESCRIPTION

1

DATE

DWN

APVD

C

COPYRIGHT

20

B1

REVISED PER ECO-15-001494

05FEB2015

AP

DD

38.3

28.50

1.90

4.75

NOTCH DESIGNATES

ROW A

1

MATERIAL:

HOUSING: LCP, GLASS FILLED, UL94V-0.

TERMINALS: HIGH PERFORMANCE COPPER ALLOY.

TYP

FINISH:

30µ" MIN GOLD IN CONTACT AREA. SELECTIVE TIN

ON PCB TAILS, NICKEL OVERALL.

3. SCREWS PACKAGED IN END OF PACKAGING TUBE.

2

4

D

FOR GROUNDED GUIDE PIN USE n 3.56 # 0.08 PTH,

n 3.66 DRILL, AND n 6.5 PAD.

D

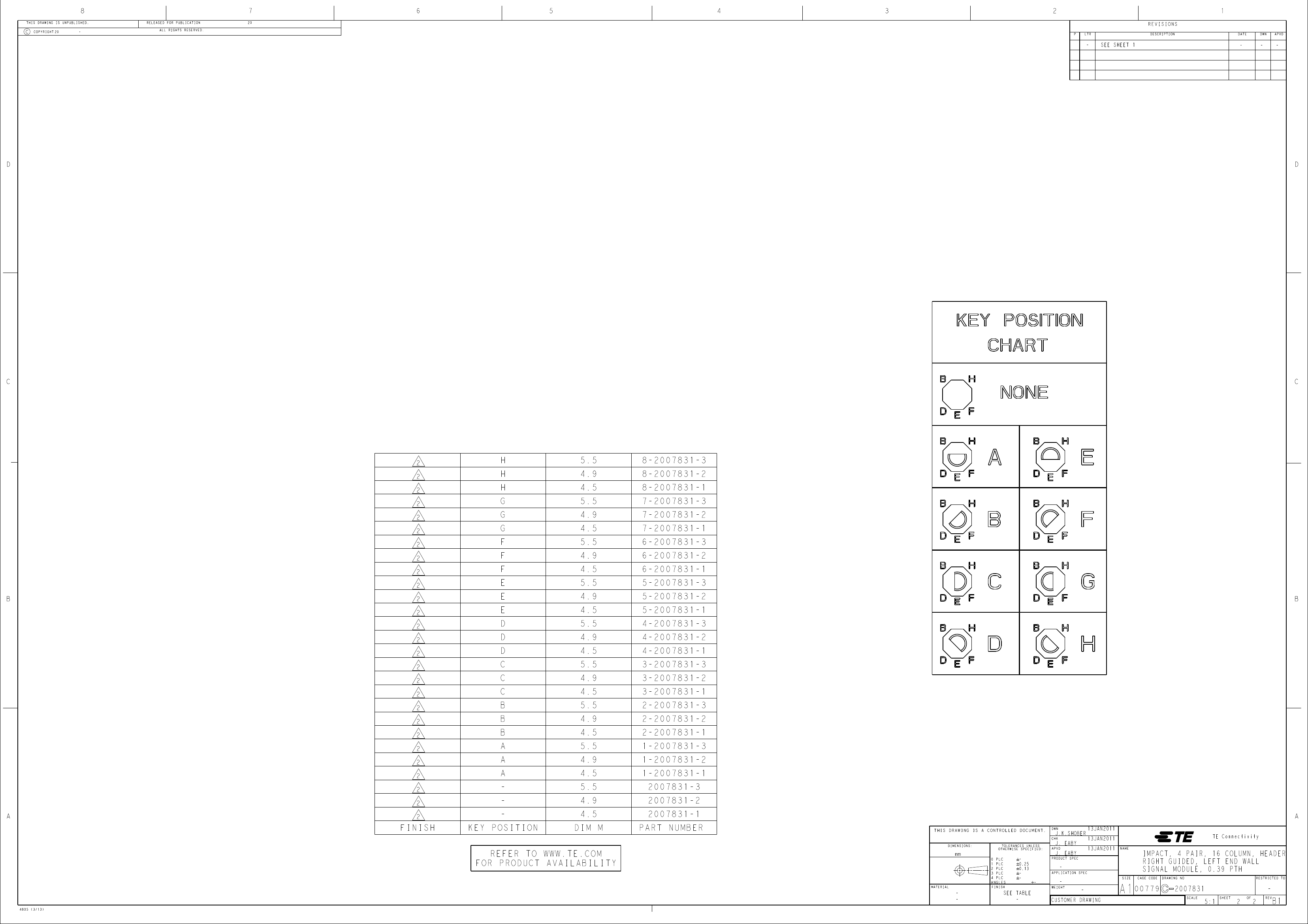

5. KEYING PIN SHOWN IN POSITION A, SEE KEYING CHART

ON SHEET 2 FOR OTHER POSITIONS.

14.85

1.35

TYP

20.8

+0.2

-0.5

2.30

C

28.50

8.50

1.90

TYP

KEEP-OUT

ZONE

C

PIN A1

GROUND HOLE

REF

SIGNAL HOLES

REF

ROW

A

B

C

D

E

F

G

H

J

K

L

M

2.95

11.42

1.35

TYP

20.8

14.85

B

192X

0.39

0.05

4.75

3.56

0.08

4

B

PLATED THRU HOLE

RIGHT GUIDED

BACKPLANE HOLE PATTERN

(CONNECTOR SIDE)

UNPLATED

SCREW HOLE

24.6

14.5

11.95

M # 0.20

A

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

A

J.K.SHOBER

J. EABY

-

13JAN2011

NAME

TE Connectivity

1.4 TAIL

LENGTH

( 2.64 )

SECTION

A-A

mm

APVD

1.00

MINIMUM BOARD

THICKNESS

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

0.25

0.13

-

PRODUCT SPEC

APPLICATION SPEC

-

TBD

1

-

SEE TABLE

-

WEIGHT

-

CUSTOMER DRAWING

A1

00779

SIZE

CAGE CODE

IMPACT, 4 PAIR, 16 COLUMN, HEADER

RIGHT GUIDED, LEFT END WALL

SIGNAL MODULE, 0.39 PTH

DRAWING NO

RESTRICTED TO

2007831

SCALE

4805 (3/13)

6:1

SHEET

1

OF

2

REV

-

B1
