GEL TAP SPLICE - 1000V (GTAP)
FAST, SIMPLE, EXCELLENT LONG LASTING SEAL
KEY FEATURES
• PowerGel sealant
filled splice for buried,
underground, and
overhead applications
• Fast and simple to install,
requires just a 5/16” Allen
wrench or a torque
wrench and a knife
• Range taking connector
reduces inventory
• Re-enterable: Silicone gel
easily peels away leaving
a clean connection
• UV resistant, qualified
for temperatures from
-40°C to 90°C
TE Connectivity’s (TE) Raychem GTAP gel tap splice kit provides a fast and
simple method for connecting, insulating, and environmentally sealing low-
voltage splices. The GTAP splice kit is designed for underground as well as
overhead environments. It is especially useful for street lighting applications.
The GTAP splice kit utilizes TE’s innovative PowerGel sealing gel to
protect the connection from moisture ingress, corrosion, and pollution.
PowerGel sealing gel also provides additional insulation and it is qualified for
temperatures from -40°C to 90°C.
The hinged closure allows for one-step installation. The GTAP splice cover
can be installed over the connector in seconds by simply snapping the cover
shut.
The GTAP splice kit’s range-taking mechanical connectors splice a wide
range of cables, including copper and aluminum. The connector’s four port
design allows maximum inventory flexibility.
Customers can count on consistent, high quality products, driven by TE’s
proven innovation and backed by our extraordinary customer support.
ENERGY
/// GEL TAP SPLICE - 1000V (GTAP)

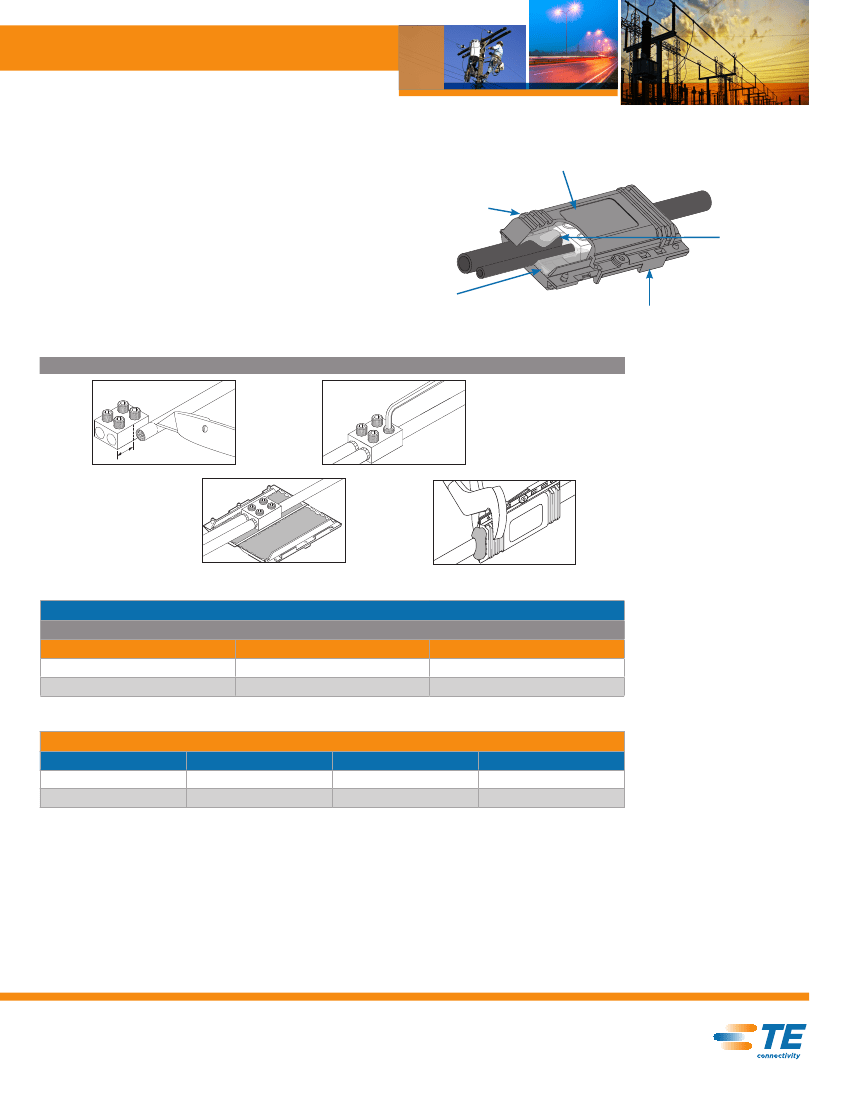

Gel Tap Splice - 1000V (GTAP)
TE’s PowerGel sealing gel is a combination
of crosslinked silicone rubber and silicone oil.
PowerGel sealing gel has been in use in other
applications for over 10 years. TE gels are ideal
for sealing electrical connections from moisture,
dirt and other contaminants.
Molded cover of UV stable, impact resistant
polypropylene provides rugged protection
for underground or overhead applications.
Frangible fingers provide
wide cable range.
Range-taking
mechanical
connector
made of
aluminum.
Accepts both
copper and
aluminum
conductors.
Snap-lock ensures that
cover remains closed.
Silicone gel is high dielectric insulation
and provides constant pressure on cable
and connector to provide waterseal.
PowerGel sealing gel is specially formulated
for high temperature environments.
INSTALLATION
1
2
1/2
3
4
PRODUCT SELECTION INFORMATION
Conductor Size (all outlets)
Description
GTAP-1
GTAP-2
AWG (mm
2
)
#14 - #2 (2 - 35)
#14 - #2/0 (2 - 70)
Standard Package
18 or 72
18 or 72
Selections are based on typical dimensions for low voltage, insulated cable.
INSTALLED DIMENSIONS: INCHES (mm)
Description
GTAP-1
GTAP-2
Length
2 - 3/4 (70)
4 - 1/4 (108)
Width
1 - 5/8 (41)
2 (51)
Height
1 - 1/16 (27)
1 - 3/16 (30)
For information on other connectors or applications, please contact your local TE representative.
FOR MORE INFORMATION: TE Technical Support Centers
te.com/energy
© 2005, 2007, 2012, 2014 TE Connectivity Ltd. family of companies. All Rights Reserved. 1309014 E154 10/2014
GTAP, PowerGel, Raychem, PowerGel, TE Connectivity and TE connectivity (logo) are trademarks. Other logos, product and/
or company names might be trademarks of their respective owners. While TE has made every reasonable effort to ensure
the accuracy of the information in this brochure, TE does not guarantee that it is error-free, nor does TE make any other
representation, warranty or guarantee that the information is accurate, correct, reliable or current. TE reserves the right to make
any adjustments to the information contained herein at any time without notice. TE expressly disclaims all implied warranties
regarding the information contained herein, including, but not limited to, any implied warranties of merchantability or fitness for
a particular purpose. The dimensions in this catalog are for reference purposes only and are subject to change without notice.
Specifications are subject to change without notice. Consult TE for the latest dimensions and design specifications.
