1N827AV datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1N827AV

1N827AV: Description6.2V, SILICON, VOLTAGE REFERENCE DIODE; CategoryDiscrete semiconductor diode; File Size42KB，2 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

1N827AV Overview

6.2V, SILICON, VOLTAGE REFERENCE DIODE

1N827AV Parametric

Parameter Name	Attribute value
package instruction	O-LALF-W2
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	TEMPERATURE COMPENSATED
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JESD-30 code	O-LALF-W2
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Maximum power dissipation	0.4 W
Certification status	Not Qualified
Nominal reference voltage	6.2 V
surface mount	NO
technology	ZENER
Terminal form	WIRE
Terminal location	AXIAL
Voltage temperatureCoeff-Max	0.062 mV/°C
Working test current	7.5 mA
Base Number Matches	1

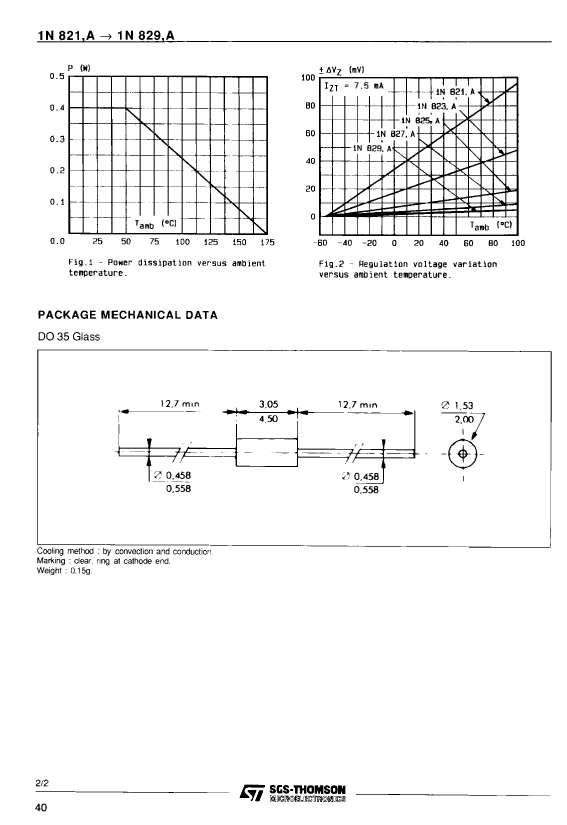

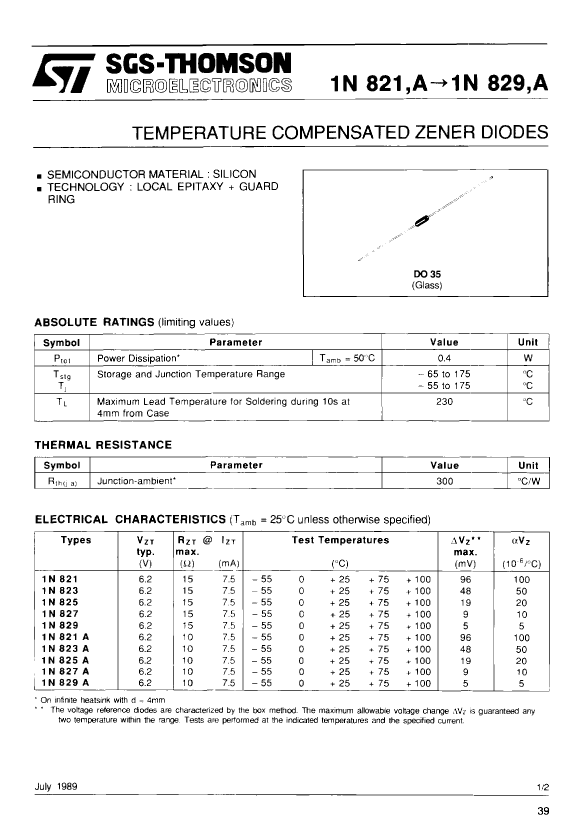

Preview

Download Datasheet

View All

1N827AV Related Products

	1N827AV	1N823AV	1N823V	1N827V	1N821AV	1N825AV	1N825V	1N829V	1N829AV	1N821V
Description	6.2V, SILICON, VOLTAGE REFERENCE DIODE	6.2V, SILICON, VOLTAGE REFERENCE DIODE	6.2V, SILICON, VOLTAGE REFERENCE DIODE	6.2V, SILICON, VOLTAGE REFERENCE DIODE	6.2V, SILICON, VOLTAGE REFERENCE DIODE	6.2V, SILICON, VOLTAGE REFERENCE DIODE	6.2V, SILICON, VOLTAGE REFERENCE DIODE	6.2V, SILICON, VOLTAGE REFERENCE DIODE	6.2V, SILICON, VOLTAGE REFERENCE DIODE	6.2V, SILICON, VOLTAGE REFERENCE DIODE
package instruction	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	TEMPERATURE COMPENSATED	TEMPERATURE COMPENSATED	TEMPERATURE COMPENSATED	TEMPERATURE COMPENSATED	TEMPERATURE COMPENSATED	TEMPERATURE COMPENSATED	TEMPERATURE COMPENSATED	TEMPERATURE COMPENSATED	TEMPERATURE COMPENSATED	TEMPERATURE COMPENSATED
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE
JESD-30 code	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2
Number of components	1	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Maximum power dissipation	0.4 W	0.4 W	0.4 W	0.4 W	0.4 W	0.4 W	0.4 W	0.4 W	0.4 W	0.4 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal reference voltage	6.2 V	6.2 V	6.2 V	6.2 V	6.2 V	6.2 V	6.2 V	6.2 V	6.2 V	6.2 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Voltage temperatureCoeff-Max	0.062 mV/°C	0.31 mV/°C	0.31 mV/°C	0.062 mV/°C	0.62 mV/°C	0.124 mV/°C	0.124 mV/°C	0.031 mV/°C	0.031 mV/°C	0.62 mV/°C
Working test current	7.5 mA	7.5 mA	7.5 mA	7.5 mA	7.5 mA	7.5 mA	7.5 mA	7.5 mA	7.5 mA	7.5 mA
Base Number Matches	1	1	1	1	1	1	1	1	1	1
