PPHF100-227DK datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> PPHF100-227DK

PPHF100-227DK: DescriptionCAPACITOR, FILM/FOIL; CategoryPassive components capacitor; File Size172KB，4 Pages; ManufacturerLeclanche Capacitors; Websitehttp://www.lcap.ch; Environmental Compliance

Download Datasheet Parametric View All

PPHF100-227DK Overview

CAPACITOR, FILM/FOIL

PPHF100-227DK Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Leclanche Capacitors
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	0.0000027 µF
Capacitor type	FILM CAPACITOR
diameter	21.3 mm
dielectric materials	POLYPROPYLENE
length	52 mm
Manufacturer's serial number	PPHF100
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
Package form	Axial
method of packing	Bulk
positive tolerance	10%
Rated (AC) voltage (URac)	700 V
Rated (DC) voltage (URdc)	10000 V
series	PPHF100
Base Number Matches	1

Preview

Download Datasheet

View All

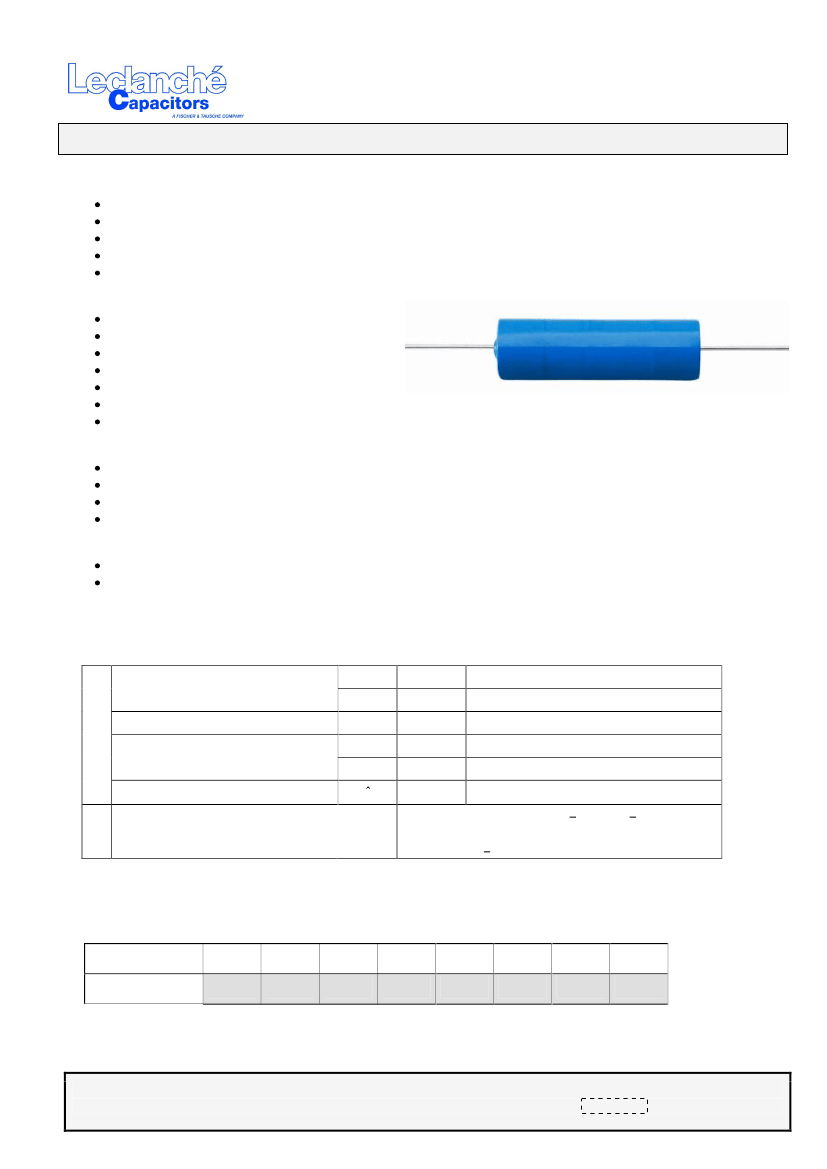

HIGH FREQUENCY / HIGH VOLTAGE CAPACITORS

Applications

High DC voltage filtering

PLCC systems, bypassing circuits

Voltage dividers & multipliers

HF signal coupling

Pulses / Fast discharges

Main characteristics

Compact size

2x U

Polypropylene dielectric

Lightweight

Climatic category 40/070/21

Low dielectric losses

Compliant with SF6 environmental conditions

Execution

Cylindrical, film-foil winding

Insulated protective sleeve

Axial connections with tinned copper wires

Epoxy-resin end seal

Mounting

Can be mounted in any position

Recommended fastening with collar/insulated wraps

Type PPHF 100

PPHF 100 Series

1.0 Rated values and operational data

Nominal voltage U

Acceptable HF voltage

Test voltage U

Surge voltage

Test description at 2 surges/min

[VDC]

[VAC]

[V]

[VDC]

[VAC]

[

]

10 k

700

< 1000

20 k

27 k

50/60 Hz permanent

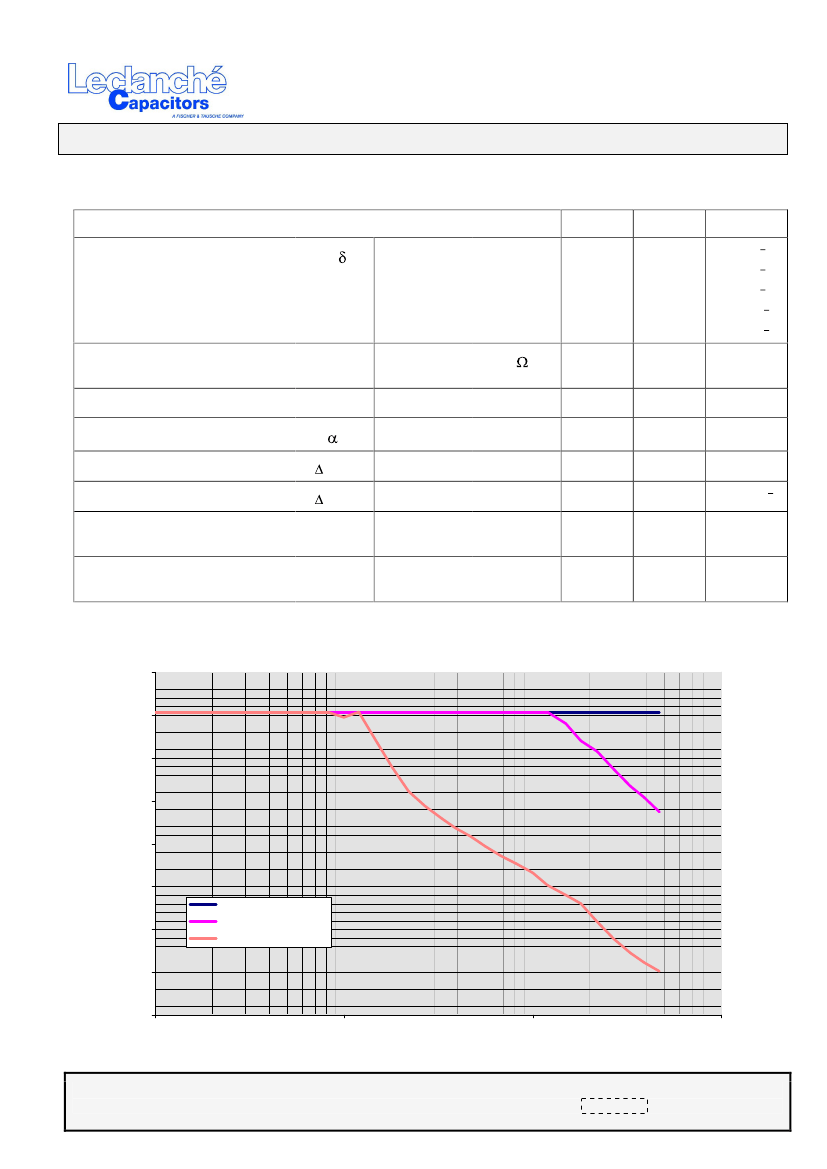

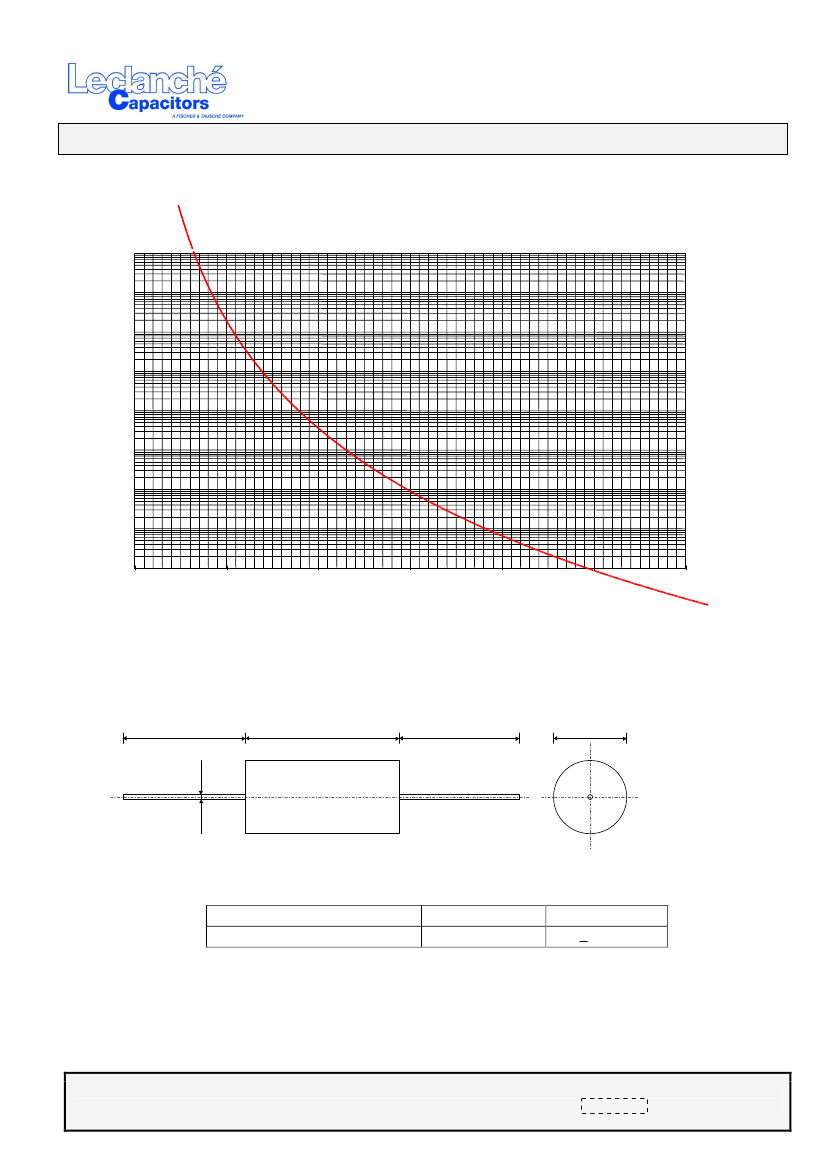

20 Hz ... 500 kHz lowering see graph

1 min, 23 °C

50 Hz, 10s

wave 1.2 / 50

1 x +20 kV, then 5 x + 25kV, 1 x 20 kV, 5 x 25 kV wave

1.2/50

5 x + 20 kV, 5 x 20 kV with interrupted wave

2.0 Capacitance range

100 pF

47 nF

Leclanché Capacitors for Critical Applications and Extreme Environments.

Tel. + 41 24 445 66 88 - Fax + 41 24 445 66 89 capinfo@Lcap.ch www.Lcap.ch
