5-147245-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5-147245-9

5-147245-9: Description(5-147245-9) 10 MTE HDR SRST LATCH W/HLDWN; CategoryThe connector The connector; File Size556KB，6 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5-147245-9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-147245-9	-	-	View	Buy Now

5-147245-9 Overview

(5-147245-9) 10 MTE HDR SRST LATCH W/HLDWN

5-147245-9 Parametric

Parameter Name	Attribute value
Brand Name	TE Connectivity
Is it Rohs certified?	conform to
Objectid	1877296906
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	9.1
Board mount options	SOLDERABLE RETENTION CLIPS
subject depth	0.537 inch
body length	1.1 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT APPLICABLE
Contact point gender	MALE
Contact material	NOT APPLICABLE
DIN compliance	NO
Electromagnetic interference shielding	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	POLYETHYLENE
MIL compliance	NO
Power Connector Ratings	3A
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of ports	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
Panel mounting	NO
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL
Terminal length	0.13 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	10
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

Quick Reference guide

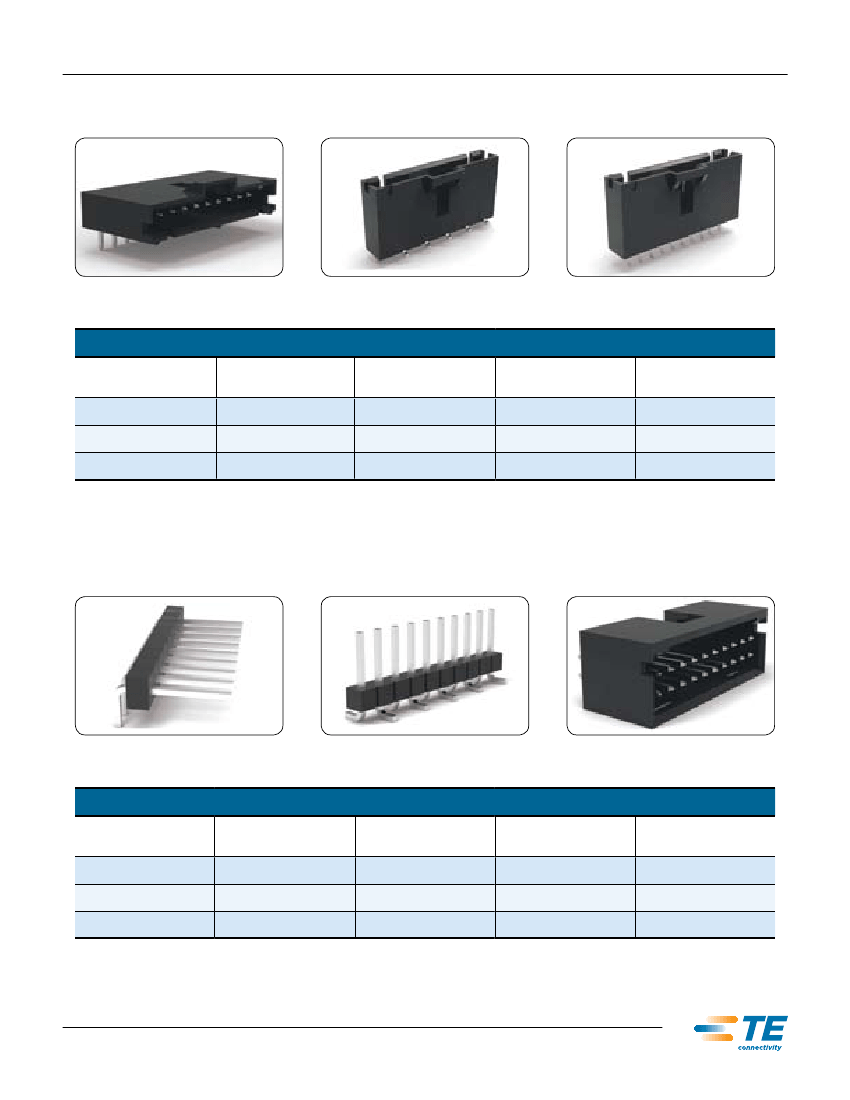

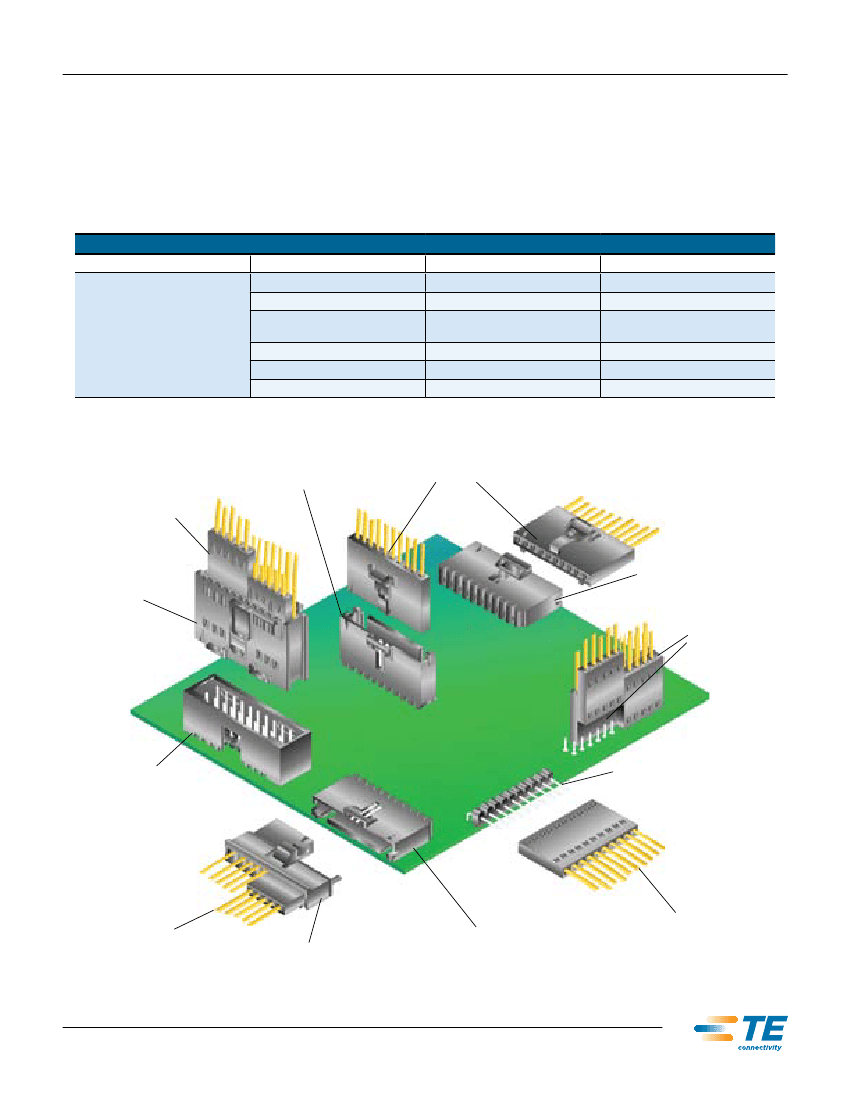

AMPMODU MTE Interconnect System

The TE Connectivity AMPMODU MTE interconnection system is utilized in wire-to-board and wire-to-wire

applications, and can be found in many types of electronic equipment including computers, copiers,

commercial printers, appliances, medical equipment, and automotive controls. The product implements

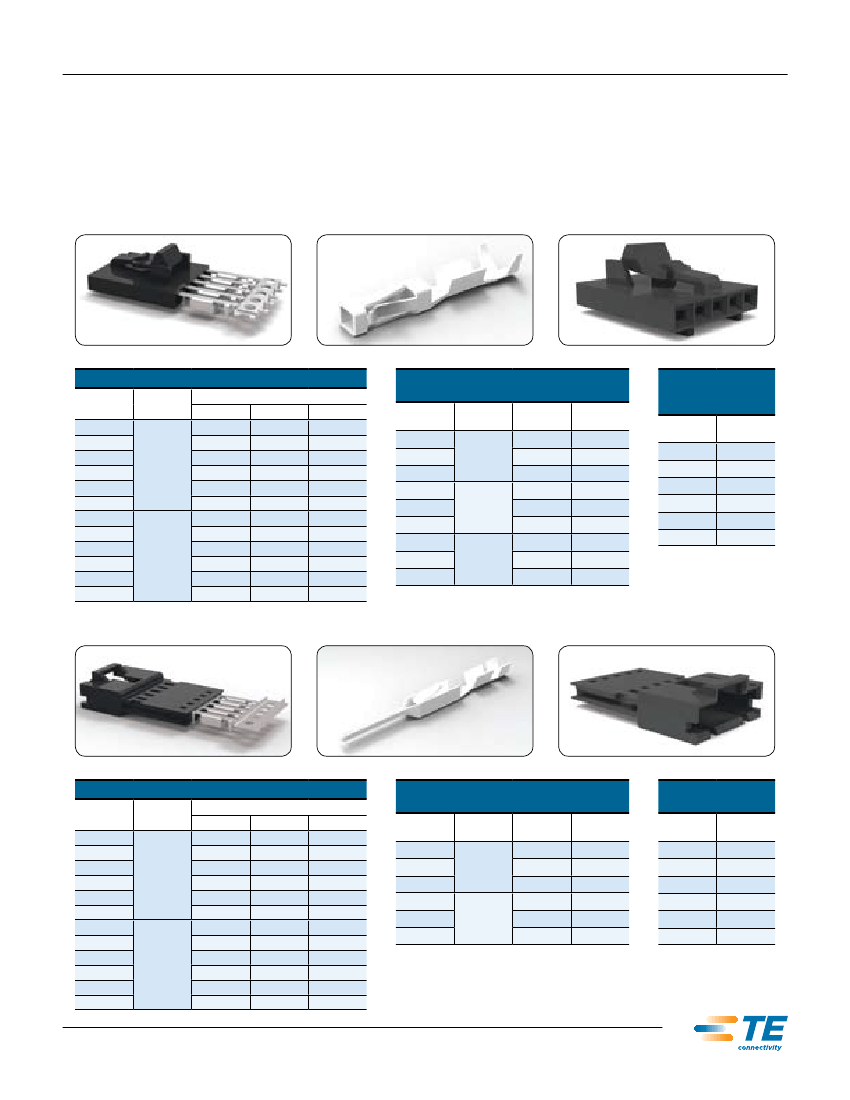

Insulation Displacement Contacts (IDC) or Crimp Snap-In contacts to suit customer’s needs.

FEATURES AnD BEnEFiTS

•

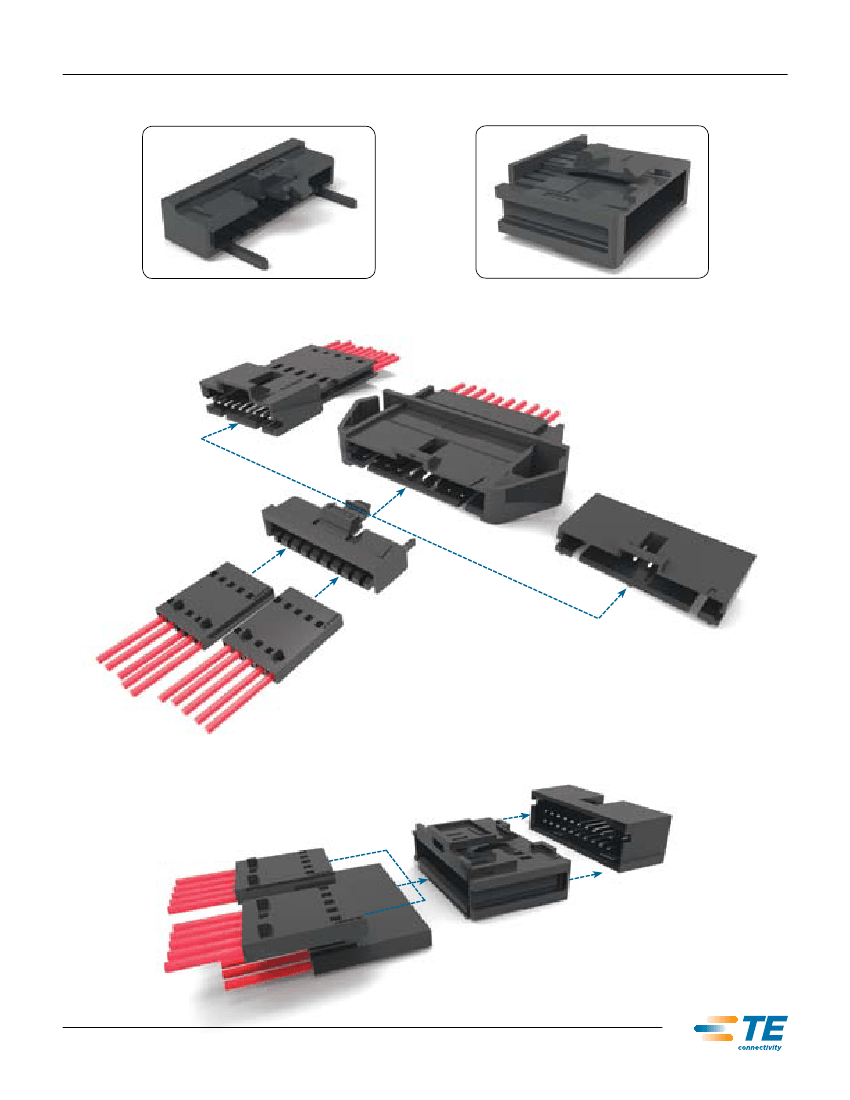

Assembly designs offer latching and polarization

•

Coupling shrouds permit ganging of smaller

receptacle and pin assemblies with guide ribs

to form larger single or double row latching

connectors

•

Available in three platings

•

Swage option on posts provides retention in

PC board

•

High temperature option is SMT compatible

•

Applicable Sizes 2-25

PRODUCT APPliCATiOnS

•

Medical Instruments

Automotive Controls

Copiers

Appliances

Commercial Printers

Vending

Computers

Instrumentation & Test Equipment

Telecommunications

Storage Equipment

te.com/products/ampmodumte

5-147245-9 Related Products

	5-147245-9	5-147245-7
Description	(5-147245-9) 10 MTE HDR SRST LATCH W/HLDWN	(5-147245-7) 08 MTE HDR SRST LATCH W/HLDWN
Brand Name	TE Connectivity	TE Connectivity
Is it Rohs certified?	conform to	conform to
Objectid	1877296906	1877296902
Reach Compliance Code	unknown	unknown
YTEOL	9.1	9.1
Board mount options	SOLDERABLE RETENTION CLIPS	SOLDERABLE RETENTION CLIPS
subject depth	0.537 inch	0.537 inch
body length	1.1 inch	0.9 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT APPLICABLE	NOT SPECIFIED
Contact point gender	MALE	MALE
Contact material	NOT APPLICABLE	NOT SPECIFIED
DIN compliance	NO	NO
Electromagnetic interference shielding	NO	NO
empty shell	YES	YES
Filter function	NO	NO
IEC compliance	NO	NO
Insulator color	BLACK	BLACK
insulator material	POLYETHYLENE	POLYETHYLENE
MIL compliance	NO	NO
Power Connector Ratings	3A	3A
Mixed contacts	NO	NO
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
Number of ports	1	1
Number of rows loaded	1	1
Maximum operating temperature	105 °C	105 °C
Minimum operating temperature	-65 °C	-65 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO
Plating thickness	30u inch	30u inch
Rated current (signal)	3 A	3 A
Guideline	UL	UL
Terminal length	0.13 inch	0.13 inch
Terminal pitch	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER
Total number of contacts	10	8
UL Flammability Code	94V-0	94V-0
