RF Coax Connectors
COAXICON Contacts

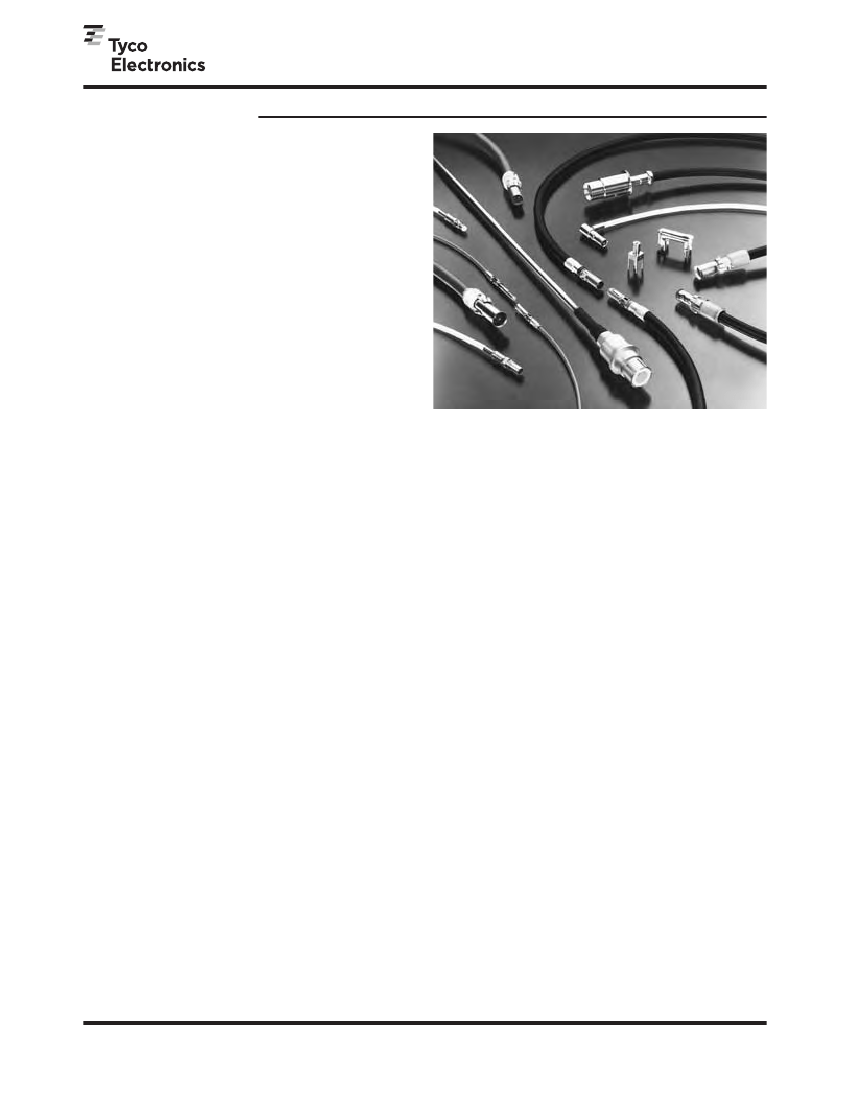

Product Facts
■
Tyco Electronics provides
a variety of contacts for
coaxial connectors
Contacts are available in
a range of sizes that may
be used with the various
types of coaxial cable on
the market
COAXICON contacts are of
the crimp, snap-in type and
are available in the follow-
ing designs: Miniature
Contacts, Subminiature
Contacts and Size 8 Contacts
■
Miniature Contacts
are
designed for high density
multiple circuit connector
applications. A wide range
of cable sizes is accommo-
dated by using three sizes
of outer shell termination
ends and three sizes of
contacts.
Subminiature Contacts
are used in high density
applications and are ideal
for mixing coaxial and other
styles of pin and socket
contacts in the same con-
nector housing.
Size 8 Contacts
are com-
patible with industry stan-
dard size 8 connectors
such as Subminiature D
and AMP-HDI connector
housings. Straight and
right-angle styles, as well
as pc board versions for
AMP-HDI connectors are
available.
■
244
Catalog 1307191
Revised 3-07
www.tycoelectronics.com
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
RF Coax Connectors
Miniature Contacts
Performance Characteristics
Insulation Resistance
— 5000
megohms min
Dielectric Withstanding Voltage
—
1,000 volts rms for 1 minute
Contact Resistance
— 2.0 milliohms
@ 1 ampere
Low-Level Conductivity
— 10 milli-
volts DC min.
VSWR
— 1.3 to 1.0 @ 1,000 MHz max.
Cable Retention
—
RG/U
Cable
58C
188A
180B
195A
Retention
lbs [N]
50 [222]
30 [133]
28 [125]
16 [71]
Temperature Range
— -55°C to
+125°C
Test Method for Electronic and
Electrical Component Parts
—
MIL-STD-202
Material
Outer Shell
— Brass per MIL-C-50
Center Conductor
— Brass per
QQ-B-626, or Beryllium copper
per QQ-C-533
Note:
A ferrule and retention spring
(201142-2) are required for each pin
and socket.
Extraction Tool No. 305183-8
Inner Dielectric
— Polypropylene,
nylon, or polymethylpentene, general
purpose
Retention Spring
— Stainless steel
per QQ-S-766
Ferrule
— Copper per QQ-C-576
Finish
Outer Shell, Center Conductor
—
0.00076 [.000030] gold over 0.00076
[.000030] nickel
Retention Spring
— Nickel per
QQ-N-290
Ferrule
— Bright tin per MIL-T-10727
Retention Springs
Part No. 201142-2
Ferrules
Durability
— 500 cycles @ 10 cycles
per minute max.
Vibration
— 2 hrs. per MIL-STD-202,
Method 201
Shock
— 50 G’s per MIL-Std-202,
Method 213, Cond. G
Temperature Cycling
— 5 cycles per
MIL-STD-202, Method 102, Cond C.
Pin
Socket
RG/U Cable
316, 188, 188A
174
179, 179A, 179B
161, 187, 187A
Belden 9221
188 Double Braid
316 Double Braid
122
180, 180A, 180B
195, 195A,
21-597
Belden 8218
58, 58A, 58B, 58C
141
55, 55A, 55B, 223
124, 140, 210
62, 62A, 62B
59, 59A, 59B
Twisted Pair
24-22 AWG [0.2-0.4 mm
2
]
(Stranded)
1
Shielded Wire
22, NAS-702, Class B
Brand Rex T5788A
26 AWG [0.12-0.155 mm
2
]
3
Ferrule
No.
328666-X
328666-X
221848-3
328664-X
328664-X
328664-X
328663-X
330478-X
329006-X
Integral Die
Hand Tool
—
—
58290-1
45639-2
45639-2
45639-2
45740-2
69248-4
—
PRO-CRIMPER
—
—
—
91912-3
91912-3
91912-3
—
—
—
Die Insert for Tools:
Hand Tool 69710-1
Pneu. 69365-2,
69365-3
2
69227-2
69227-2
69227-2
69222-2
69222-2
69222-2
69220-2
69315-4
69675-1
Part Numbers
Pin
Socket
201143-5
201143-1
201143-5
201145-1
201145-2
201145-2
201145-4
201145-4
201097-1*
201144-5
201144-1
201144-5
—
201146-2
201146-2
201146-4
201146-4
201098-1*
328666-X
328663-X
328664-X
91912-4
45740-2
45639-2
—
—
91912-3
69672-X
69220-2
69222-2
201143-5
201145-4
201145-2
201144-5
201146-4
201146-2
*These contacts are for use in the 4-position G Series connector modules only.
1
Maximum insulation diameter–2.92 [.115] (two wires combined).
2
Includes bench mount and foot control; requires Manual Take-Up Attachment No. 69689.
3
Dielectric O.D.–2.69 [.106] max.; Cable O.D.–4.06 [.160].
Note:
Part Numbers are RoHS compliant except:
Indicates non-RoHS compliant.
245
Catalog 1307191
Revised 3-07
www.tycoelectronics.com
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208

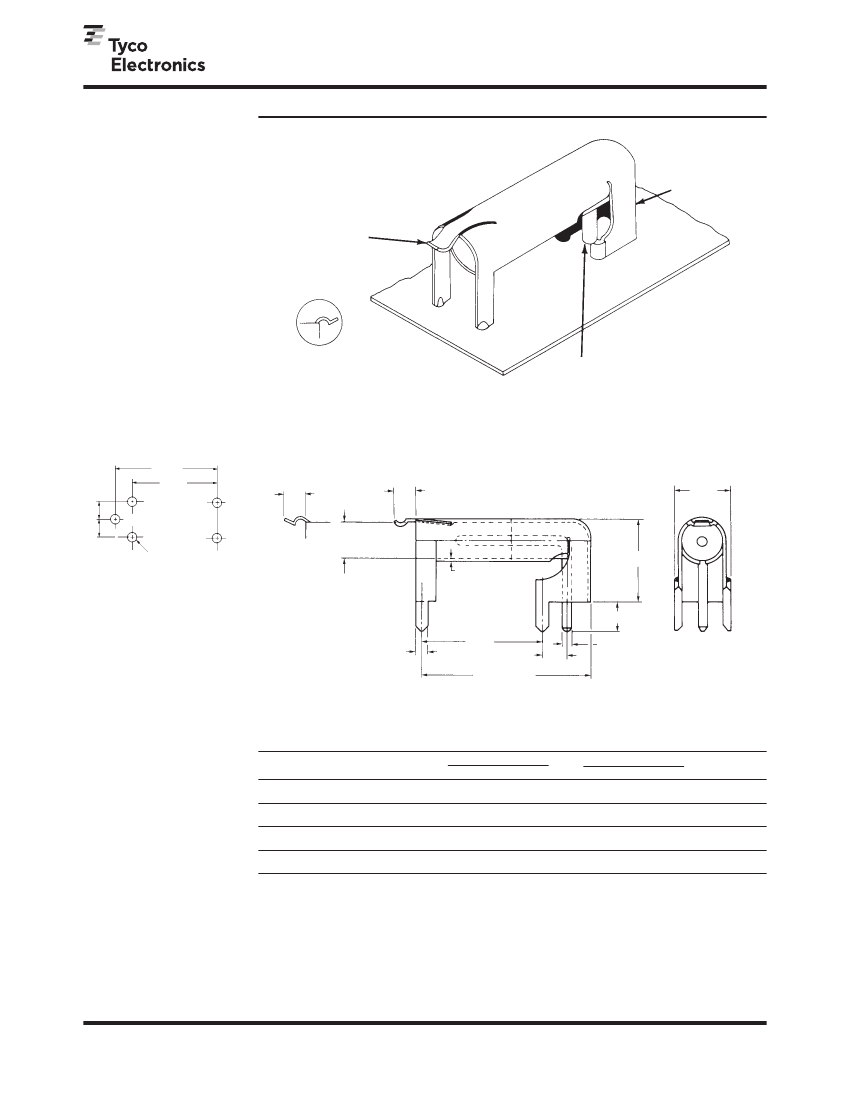

RF Coax Connectors
Miniature PC Board Sockets
Material
Shell and Center Contact
— Brass
per MIL-C-50 and QQ-B-626
Dielectric
— Polypropylene, or
Polymethylpentene, general purpose
Shell
Finish
Center Contact
— 0.00076 [.000030]
gold over copper
Shell
— Gold plated per MIL-G-45204
Spring Latch
Performance Characteristics
Dielectric Withstanding Voltage
—
1,000 volts, rms
Impedance
— Non-constant
Operating Temperature Range
—
-55°C to +85°C
Locking Latch
Center Conductor
2.54
[.100]
15.24
[.600]
12.7
[.500]
Locking Latch
2.54
Ref.
[.100]
Spring
Latch
2.54
Ref.
[.100]
6.23
[.245]
2.54
[.100]
1.32
[.052] Dia.
(5 Holes)
4.52
Dia.
[.178]
Ref.
A
0.36
Ref.
[.014]
Recommended
Mounting Hole Layout
B
12.7
[.500]
1.02
Dia.
[.040]
1.27
Typ.
[.050]
2.54
[.100]
17.78
[.700]
Type
Spring Latch
Spring Latch
Locking Latch
Locking Latch
PC Board
Thickness
1.57
.062
3.18
.125
3.18
.125
1.57
.062
Retention
lb.
1.25
1.25
7.25
7.25
[N]
5.56
5.56
31.16
31.16
Dimensions
A
B
9.07
3.18
.357
.125
7.49
4.75
.295
.187
7.49
4.75
.295
.187
9.07
3.18
.357
.125
Part No.
50084-1
50095-1
50105-1
50107-1
Note:
For mateable Miniature Contacts, see page 245.
Note:
Part Numbers are RoHS compliant except:
Indicates non-RoHS compliant.
246
Catalog 1307191
Revised 3-07
www.tycoelectronics.com
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
RF Coax Connectors
Subminiature PC Board Sockets
Material
Shell and Center Contact
— Brass
per MIL-C-50 and QQ-B-626
Dielectric
— Polypropylene, or
polymethylpentene, general purpose
Shell
Locking Latch
Finish
Center Contact
— 0.00076[.000030]
gold per MIL-G-45204 over copper per
MIL-C-14550
Shell
— Gold
Performance Characteristics
Dielectric Withstanding Voltage
—
600 volts, rms
Operating Temperature Range
—
-55°C to +85°C
Spring Latch
Center Conductor
22.23
Max.
[.875]
3.05
±.0.2
[.120
±.008
]
1.09
Dia.
[.043]
#57 Drill
(3 Holes)
1.47
[.058]
Locking
Latch
0.84
±0.2
[.033
±.008
]
A
4.52
[.178]
10.16
[.400]
15.24
[.600]
10.16
[.400]
15.24
[.600]
0.84
Dia.
[.033]
Recommended
Mounting Hole Layout
Type
Spring Latch
Locking Latch
PC Board
Thickness
1.57
.062
1.57
.062
Dim.
L
2.54
.100
2.54
.100
Part No.
226023-1
226060-1
Mating Subminiature
COAXICON Pins
These short Subminiature COAXICON
Pins are recommended for use with any
of the sockets listed above.
Note:
Alignment springs are not
required for this application and are not
included with the pin assemblies.
RG/U
Cable
174
316, 188, 188A
179, 179A, 179B
187, 187A
161
Ferrule
No.
1-332056-0
1-332056-0
1-332056-0
Integral
Die
Hand Tool
91911-3
91911-4
69656-5
Die Insert for Tools:
Hand Tool 69710-1
Pneu. 69365-2,
69365-3
69690-X
69690-1
—
Part No.
51563-8
51563-8
51563-8
Note:
Part Numbers are RoHS compliant except:
Indicates non-RoHS compliant.
247
Catalog 1307191
Revised 3-07
www.tycoelectronics.com
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
RF Coax Connectors
Subminiature Contacts
Material
Outer Shell
— Brass per MIL-C-50
Center Conductor
— Beryllium
copper per QQ-C-533 (Pin);
Brass per QQ-B-626 (Socket)
Inner Dielectric
— Polypropylene,
nylon, or polymethylpentene, general
purpose
Retention Spring
— Stainless steel
per QQ-S-766
Ferrule
— Copper per QQ-C-576
Ferrule
A
Ferrule
Finish
Outer Shell and Socket
Center Conductor
— 0.00076
[.000030] gold over 0.00127 [.000050]
nickel
Pin Center Conductor
— 0.00076
[.000030] gold over
0.00254 [.000100] copper
Ferrule
— Bright tin per MIL-T-10727
Pin
16.51
Max.
[.650]
Socket
A
= Multimate Pin
25.65
[1.010]
Short Pin
22.66
[.892]
Selection Chart for Coaxial Cable
RG/U Cable
178, 178A, 178B
196, 196A
196
(Double Braid)
174, 316
188, 188A
179, 179A, 179B
187, 187A
Belden 9221
RD-316
187
(Double Braid)
161
Integral
Die
Hand Tool
69656-2
69656-9
—
—
69656-7
69656-8
69656-5
91911-3
911911-4
PRO-CRIMPER
Die Insert for Tools:
Hand Tool 69710-1
Pneu. Tool 69365-2,
69365-3*
69690-2
—
69690
69690-1
—
—
—
Multimate
Pin
226537-2
226537-2
-226537-1
226537-1
226537-1
226537-1
226537-1
Contact Part Numbers
Short
Socket
Ferrule
Pin
—
—
—
—
—
—
—
51565-2
51565-2
51565-1
51565-1
51565-1
51565-1
51565-1
1-332057-0
1-225088-1
1-332056-0
1-332056-0
1-225088-3
1-225088-1
1-332056-0
Selection Chart for Twisted Pairs and Shielded Wire
Wire Size
AWG
Die Insert
for Tools:
Hand Tool
69710-1
Pneu. Tool
69365-2,
69365-3*
69690-2
69690-
69690-1
or
69690-2
69690-2
Contact Part Numbers
Multimate Short
Socket
Ferrule
Pin
Pin
[mm
2
]
Integral Die
Hand Tool
PRO-CRIMPER
30
(Twisted Pair, Solid)
28
(Twisted Pair, Solid)
28
(Twisted Pair, Stranded;
7 str., .005 [0.13] Dia.)
26
(Twisted Pair,
Solid or Stranded;
7 str., .0063 [0.16] Dia.)
26
(Shielded, 0.75 [1.91]
Max. O.D.)
0.05
0.08-0.09
0.08-0.09
69656-2
—
—
—
91911-3
91911-4
226537-3 51563-3 51565-3
1-332057-0
226537-3 51563-3 51565-3
1-332057-0
226537-3 51563-3 51565-3
1-332057-0
0.12-0.15
—
91911-3
226537-3 51563-3 51565-3
1-332057-0
0.12-0.15
69656-3
—
69690-3
226537-1
—
51565-1
1-332057-0
*Includes bench mount and foot control.
Extraction Tool 305183
Note:
A ferrule is required for each pin and socket.
Note:
Part Numbers are RoHS compliant except:
Indicates non-RoHS compliant.
248
Catalog 1307191
Revised 3-07
www.tycoelectronics.com
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
京公网安备 11010802033920号
EEWORLD
