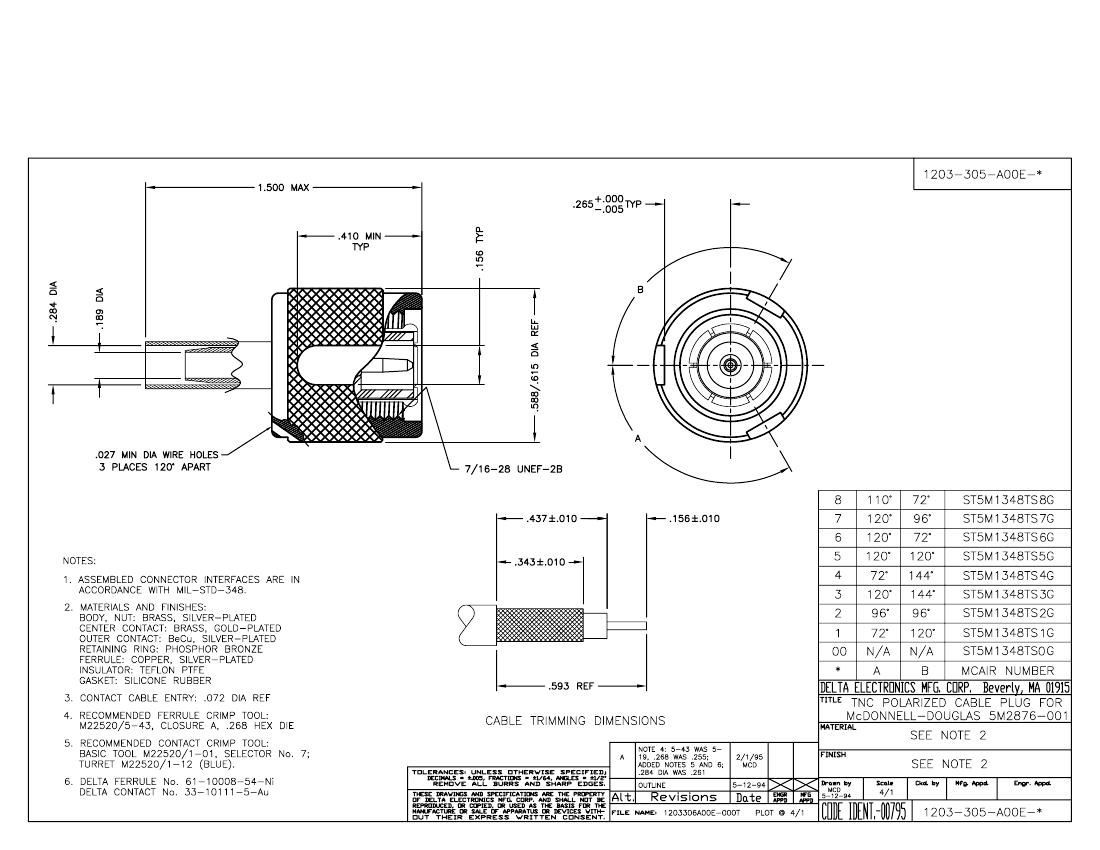

1203-305-A00E-3

Description
RF TNC Connector, 1 Contact(s), Male, Cable Mount, Crimp Terminal, Locking, Plug
CategoryThe connector    The connector
File Size75KB,1 Pages
ManufacturerDelta Electronics Manufacturing Corp.
Download Datasheet Parametric Compare View All

1203-305-A00E-3 Overview

RF TNC Connector, 1 Contact(s), Male, Cable Mount, Crimp Terminal, Locking, Plug

1203-305-A00E-3 Parametric

Parameter NameAttribute value
MakerDelta Electronics Manufacturing Corp.
Reach Compliance Codecompliant
subject depth1.5 inch
Body diameter0.615 inch
Body/casing typePLUG
Characteristic impedance50 Ω
Connector typeRF TNC CONNECTOR
Contact point genderMALE
Contact styleCOAX
Dielectric withstand voltage2100VAC V
Insulation resistance5000000000 Ω
insulator materialTEFLON
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeCABLE
Number of ports1
Maximum operating frequency11 GHz
Shell surfaceSILVER
Shell materialBRASS
Termination typeCRIMP
Total number of contacts1
Base Number Matches1

1203-305-A00E-3 Related Products

1203-305-A00E-3 1203-305-A00E-0 1203-305-A00E-6
Description RF TNC Connector, 1 Contact(s), Male, Cable Mount, Crimp Terminal, Locking, Plug RF TNC Connector, 1 Contact(s), Male, Cable Mount, Crimp Terminal, Locking, Plug RF TNC Connector, 1 Contact(s), Male, Cable Mount, Crimp Terminal, Locking, Plug
Maker Delta Electronics Manufacturing Corp. Delta Electronics Manufacturing Corp. Delta Electronics Manufacturing Corp.
Reach Compliance Code compliant compliant compliant
subject depth 1.5 inch 1.5 inch 1.5 inch
Body diameter 0.615 inch 0.615 inch 0.615 inch
Body/casing type PLUG PLUG PLUG
Characteristic impedance 50 Ω 50 Ω 50 Ω
Connector type RF TNC CONNECTOR RF TNC CONNECTOR RF TNC CONNECTOR
Contact point gender MALE MALE MALE
Contact style COAX COAX COAX
Dielectric withstand voltage 2100VAC V 2100VAC V 2100VAC V
Insulation resistance 5000000000 Ω 5000000000 Ω 5000000000 Ω
insulator material TEFLON TEFLON TEFLON
Installation option 1 LOCKING LOCKING LOCKING
Installation method STRAIGHT STRAIGHT STRAIGHT
Installation type CABLE CABLE CABLE
Number of ports 1 1 1
Maximum operating frequency 11 GHz 11 GHz 11 GHz
Shell surface SILVER SILVER SILVER
Shell material BRASS BRASS BRASS
Termination type CRIMP CRIMP CRIMP
Total number of contacts 1 1 1
Base Number Matches 1 1 1
