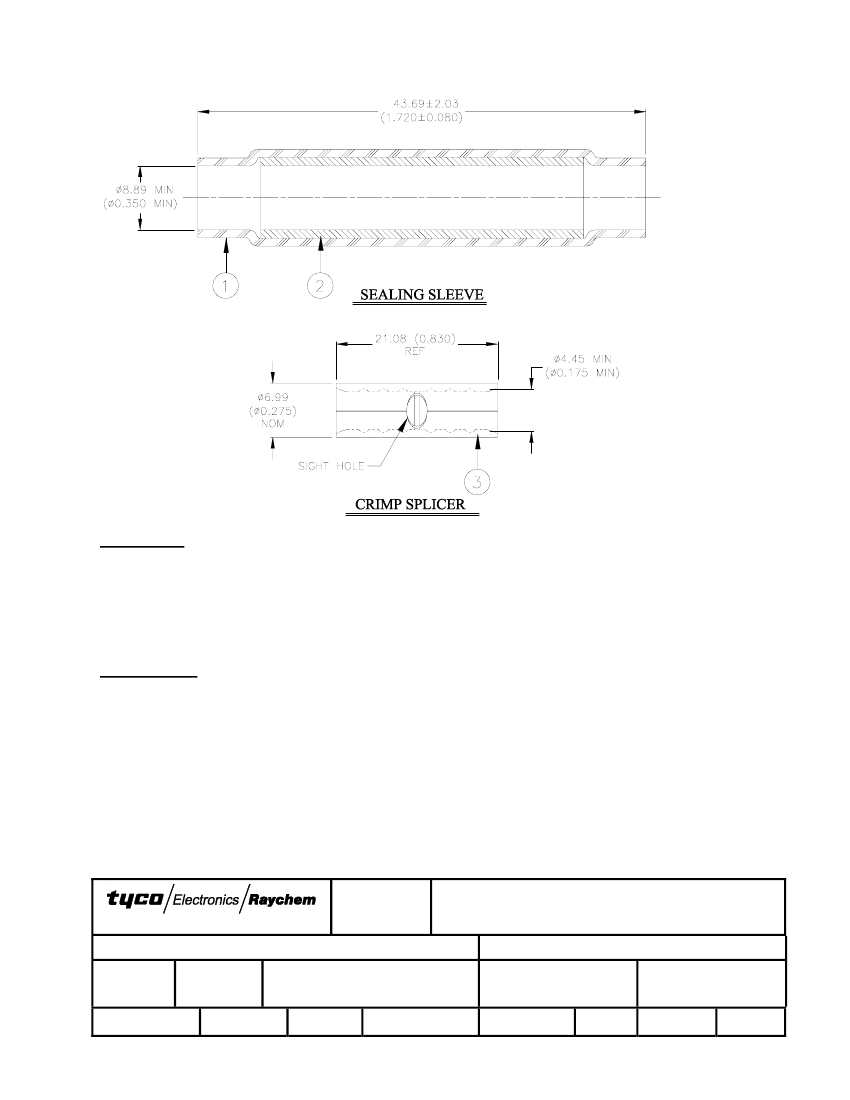

SPECIFICATION CONTROL DRAWING
MATERIALS
1. INSULATION SLEEVE: Heat-shrinkable, transparent blue, radiation cross-linked modified polyvinylidene
fluoride.
2. MELTABLE INSERT: Immersion resistant fluorocarbon-based thermoplastic, color-natural.
3. CRIMP SPLICER: Base Metal: Copper Alloy 110 per ASTM B-152.
Plating: Tin plated per MIL-T-10727
Wire Size Range: 6.64 – 10.5mm
2
(13100 – 20800 CMA, 8 AWG) Solid or Stranded.
APPLICATION
1. This device is designed to provide immersion resistant 1 to 1 splices in wires having insulation diameter between
1.91 (0.075) and 8.26 (0.325) and rated for at least 135°C and conductors falling within the wire size range as
listed above.
2. Splicer to be installed with AMP 69355 (or equivalent) tool. Sealing sleeve may be installed with convection
heaters.
3. Free recovered I.D. of Sealing sleeve is 1.91 (0.075) max. (through inserts).
307 Constitution Drive Menlo Park, CA 94025, USA
Wire and
Harnessing
Products
TITLE :
IN-LINE CRIMP SPLICE, 1 TO 1,
8 AWG , TIN PLATED
DOCUMENT NO.:
Unless otherwise specified dimensions are in millimeters.
Inches dimensions are in between brackets.
Tyco Electronics reserves the right to amend this
ANGLES: N/A
TOLERANCES:
drawing at any time. Users should evaluate the
0.00 N/A
suitability of the product for their application.
ROUGHNESS IN
0.0 N/A
MICRON
0 N/A
D-436-0081
DATE:
DOC ISSUE:
0
PROD. REV.:
B
SCALE:
None
SIZE:
A
3-Oct-01
SHEET:
1 of 1
DRAWN BY:
CAGE CODE:
REPLACES: DCR NUMBER:
M. FORONDA
06090
N/A
D010495
If this document is printed it becomes uncontrolled. Check for the latest revision.
