PGA4311
SBOS230A – MARCH 2002 – REVISED JUNE 2002
4 Channel Audio Volume Control
FEATURES
D
DIGITALLY-CONTROLLED ANALOG VOLUME
CONTROL:
Four Independent Audio Channels
Serial Control Interface
Zero Crossing Detection
Mute Function
WIDE GAIN AND ATTENUATION RANGE:
+31.5dB to –95.5dB with 0.5dB Steps
LOW NOISE AND DISTORTION:
120dB Dynamic Range
0.0004% THD+N at 1kHz (U–Grade)
0.0002% THD+N at 1kHz (A–Grade)
NOISE-FREE LEVEL TRANSITIONS
LOW INTERCHANNEL CROSSTALK:
–130dBFS
POWER SUPPLIES:
±5V
Analog, +5V Digital
AVAILABLE IN AN SOP-28 PACKAGE
D
D
APPLICATIONS
D
AUDIO AMPLIFIERS
D
MIXING CONSOLES
D
MULTI–TRACK RECORDERS
D
BROADCAST STUDIO EQUIPMENT
D
MUSICAL INSTRUMENTS
D
EFFECTS PROCESSORS
D
A/V RECEIVERS
D
CAR AUDIO SYSTEMS
DESCRIPTION
The PGA4311 is a high–performance, 4-channel audio
volume control designed for professional and high-end
consumer audio systems. Using high performance
operational amplifier stages internal to the PGA4311
yields low noise and distortion, while providing the
capability to drive 600Ω loads directly without buffering.
The 3-wire serial control interface allows for connection
to a wide variety of host controllers, in addition to
support for daisy-chaining of multiple PGA4311
devices.
D
D
D
D
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments
semiconductor products and disclaimers thereto appears at the end of this data sheet.
PRODUCTION DATA information is current as of publication date. Products
conform to specifications per the terms of Texas Instruments standard warranty.
Production processing does not necessarily include testing of all parameters.
1
www.ti.com
Copyright
2002, Texas Instruments Incorporated
PGA4311
www.ti.com
SBOS230A – MARCH 2002 – REVISED JUNE 2002
ABSOLUTE MAXIMUM RATINGS
(1)
Supply Voltage, VA+
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
+5.5V
VA–
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
–5.5V
VD+
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
+5.5V
VA+ to VD+
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
<
±
0.3V
Analog Input Voltage
. . . . . . . . . . . . . . . . . . . . . .
0V to VA+, VA–
Digital Input Voltage
. . . . . . . . . . . . . . . . . . . . . . . . .
–0.3V to VD+
Operating Temperature Range
. . . . . . . . . . . . . . . .
–40°C to +85°C
Storage Temperature Range
. . . . . . . . . . . . . . . .
–65°C to +150°C
Junction Temperature
. . . . . . . . . . . . . . . . . . . . . . . . . . .
+150°C
Lead Temperature (soldering, 10s)
. . . . . . . . . . . . . . . . . . .
+300°C
Package Temperature (IR reflow, 10s)
. . . . . . . . . . . . . . . . .
+235°C
ELECTROSTATIC
DISCHARGE SENSITIVITY
This integrated circuit can be damaged by ESD. Texas
Instruments recommends that all integrated circuits be
handled with appropriate precautions. Failure to ob-
serve proper handling and installation procedures can
cause damage.
ESD damage can range from subtle performance
degradation to complete device failure. Precision
integrated circuits may be more susceptible to damage
because very small parametric changes could cause
the device not to meet its published specifications.
(1) Stresses above these ratings may cause permanent damage.
Exposure to absolute maximum conditions for extended periods
may degrade device reliability.
PACKAGE/ORDERING INFORMATION
PRODUCT
PACKAGE–LEAD
PACKAGE
DESIGNATOR(1)
DW
OPERATING
TEMPERATURE
RANGE
40°C
–40°C to +85°C
PACKAGE
MARKING
PGA4311U
PGA4311 (U–Grade)
(U Grade)
SOP 28
SOP–28
PGA4311U
PGA4311UA
PGA4311 (A–Grade)
(A Grade)
SOP–28
SOP 28
DW
–40°C to +85°C
40°C
PGA4311UA
ORDERING
NUMBER
PGA4311U
PGA4311U/1K
PGA4311UA
PGA4311UA/1K
TRANSPORT
MEDIA, QUANTITY
Rails
Tape and Reel, 1000
Rails
Tape and Reel, 1000
(1) For the most current specifications and package information, refer to our web site at www. ti.com.
ELECTRICAL CHARACTERISTICS
At TA = +25°C, VA+ = +5V, VA– = –5V, VD+ = +5V, RL = 100kΩ, CL = 20pF, BW measure = 10Hz to 20kHz, unless otherwise noted.
PGA4311U (U–Grade)
PARAMETER
DC CHARACTERISTICS
Step Size
Gain Error
Gain Matching
Input Resistance
Input Capacitance
AC CHARACTERISTICS
THD+N
Dynamic Range
Voltage Range, Output
Voltage Range, Input (without clipping)
Output Noise
Interchannel Crosstalk
OUTPUT BUFFER
Offset Voltage
Load Capacitance Stability
Short–Circuit Current
Unity–Gain Bandwidth, Small Signal
VIN = AGND, Gain = 0dB
0.25
100
50
10
0.5
0.25
100
50
10
0.5
mV
pF
mA
MHz
VIN = AGND, Gain = 0dB
f = 1kHz
VIN = 2Vrms, f = 1kHz
VIN = AGND, Gain = 0dB
0.0004
116
(VA–) +
1.25
2.5
2.5
–130
4
120
(VA+) –
1.25
0.001
116
(VA–) +
1.25
2.5
2.5
–130
4
0.0002
120
(VA+) –
1.25
0.0004
%
dB
V
Vrms
µVrms
dBFS
Gain Setting = 31.5dB
0.5
±0.05
±0.05
10
3
0.5
±0.05
±0.05
10
3
dB
dB
dB
kΩ
pF
CONDITIONS
MIN
TYP
MAX
PGA4311UA (A–Grade)
MIN
TYP
MAX
UNITS
2
PGA4311
www.ti.com
SBOS230A – MARCH 2002 – REVISED JUNE 2002
ELECTRICAL CHARACTERISTICS
(Cont.)
At TA = +25°C, VA+ = +5V, VA– = –5V, VD+ = +5V, RL = 100kΩ, CL = 20pF, BW measure = 10Hz to 20kHz, unless otherwise noted.
PGA4311U (U–Grade)
PARAMETER
DIGITAL CHARACTERISTICS
High–Level Input Voltage, VIH
Low–Level Input Voltage, VIL
High–Level Output Voltage, VOH
Low–Level Output Voltage, VOL
Input Leakage Current
SWITCHING CHARACTERISTICS
Serial Clock (SCLK) Frequency
Serial Clock (SCLK) Pulse Width LOW
Serial Clock (SCLK) Pulse Width HIGH
MUTE Pulse Width LOW
Input Timing
SDI Setup Time
SDI Hold Time
CS Falling to SCLK Rising
SCLK Falling to CS Rising
Output Timing
CS LOW to SDO Active
SCLK Falling to SDO Data Valid
CS HIGH to SDO High Impedance
POWER SUPPLY
Operating Voltage
VA+
VA–
VD+
Quiescent Current
IA+
IA–
ID+
Power–Supply Rejection Ratio PSRR (250Hz)
TEMPERATURE RANGE
Operating Range
Storage Range
–40
–65
+85
+150
–40
–65
+85
+150
°C
°C
VA+ = +5V
VA– = –5V
VD+ = +5V
+4.75
–4.75
+4.75
+5
–5
+5
17
19
0.5
100
+5.25
–5.25
+5.25
22
24
1.0
+4.75
–4.75
+4.75
+5
–5
+5
17
19
0.5
100
+5.25
–5.25
+5.25
22
24
1.0
V
V
V
mA
mA
mA
dB
tCSO
tCFDO
tCSZ
35
60
100
35
60
100
ns
ns
ns
tSDS
tSDH
tCSCR
tCFCS
20
20
90
35
20
20
90
35
ns
ns
ns
ns
fSCLK
tPH
tPL
tMI
0
80
80
2.0
6.25
0
80
80
2.0
6.25
MHz
ns
ns
ms
IO = 200µA
IO = –3.2mA
1
+2.0
–0.3
(VA+) –
1.0
0.4
10
1
VD+
0.8
+2.0
–0.3
(VD+) –
1.0
0.4
10
VD+
0.8
V
V
V
V
µA
CONDITIONS
MIN
TYP
MAX
PGA4311UA (A–Grade)
MIN
TYP
MAX
UNITS
3
PGA4311
www.ti.com
SBOS230A – MARCH 2002 – REVISED JUNE 2002
PIN CONFIGURATION
Top View
SO
PIN ASSIGNMENTS
PIN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
NAME
MUTE
AGND_1
AIN_1
AGND_1
AOUT_1
VA–
VA+
AOUT_3
AGND_3
AIN_3
AGND_3
VD+
SDI
CS
SCLK
SDO
DGND
AGND_4
AIN_4
AGND_4
AOUT_4
VA+
VA–
AOUT_2
AGND_2
AIN_2
AGND_2
ZCEN
FUNCTION
Mute Control Input (Active LOW)
Analog Ground, Channel 1
Analog Input, Channel 1
Analog Ground, Channel 1
Analog Output, Channel 1
Analog Power Supply, –5V
Analog Power Supply, +5V
Analog Output, Channel 3
Analog Ground, Channel 3
Analog Input, Channel 3
Analog Ground, Channel 3
Digital Power Supply, +5V
Serial Data Input
Chip Select Input
Serial Clock Input
Serial Data Output
Digital Ground
Analog Ground, Channel 4
Analog Input, Channel 4
Analog Ground, Channel 4
Analog Output, Channel 4
Analog Power Supply, +5V
Analog Power Supply, –5V
Analog Output, Channel 2
Analog Ground, Channel 2
Analog Input, Channel 2
Analog Ground, Channel 2
Zero Crossing Enable (Active HIGH)
4
PGA4311
www.ti.com
SBOS230A – MARCH 2002 – REVISED JUNE 2002

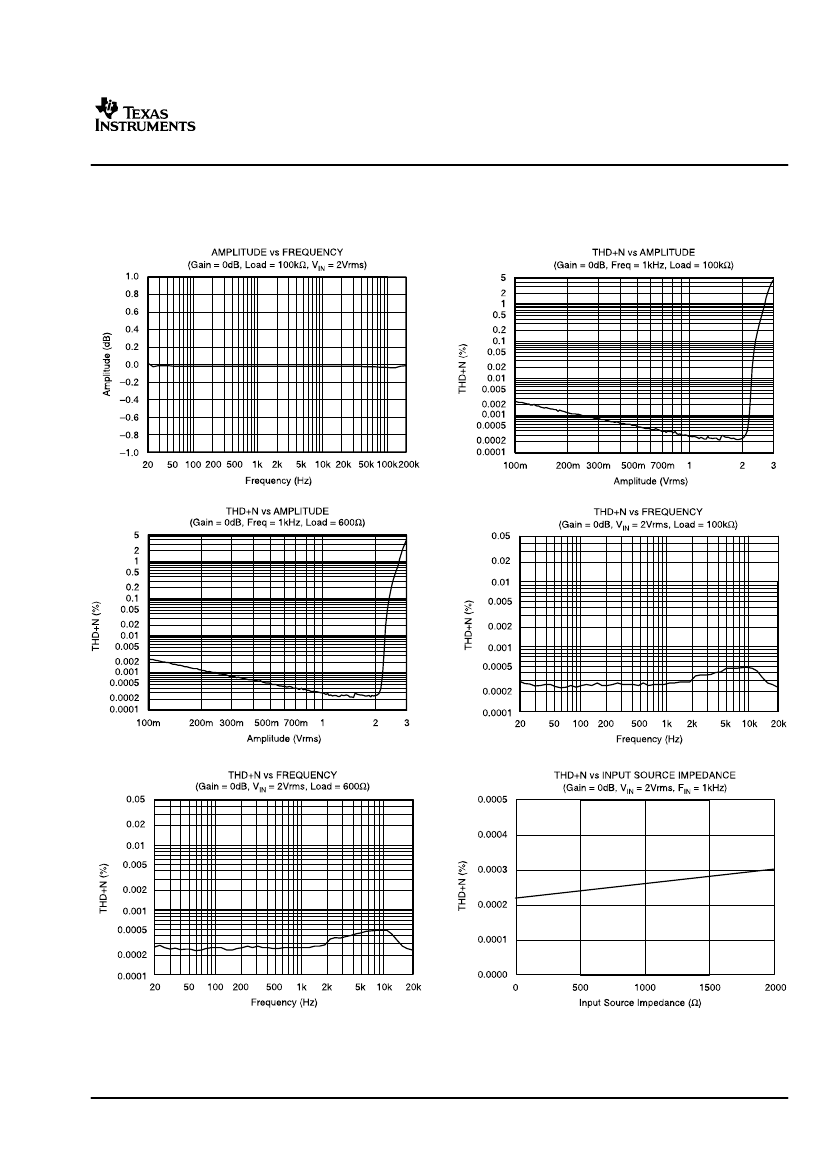

TYPICAL CHARACTERISTICS
At TA = +25°C, VA+ = +5V, VA– = –5V, VD+ = +5V, RL = 100kΩ, CL = 20pF, BW measure = 10Hz to 20kHz, unless otherwise noted.
(NOTE: All plots taken with PGA4311 A–Grade.)
5
