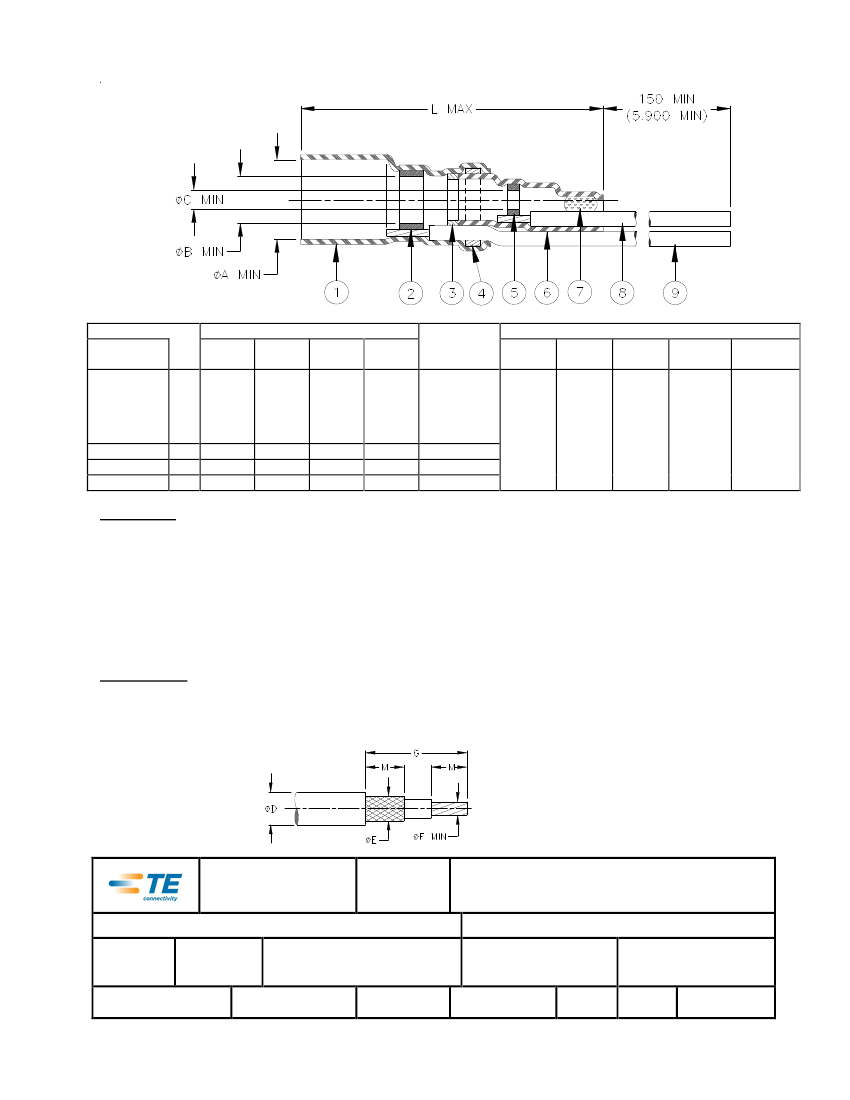

SPECIFICATION CONTROL DRAWING
Product Revision
Product
Name
B-020-20-N
D
Component Dimensions
L
øA
øB
øC
max
min
min
min
32.0
(1.260)
6.30
(0.250)
4.60
(0.180)
2.80
(0.110)
“GA”
Wire Gauge
(AWG)
20
øD
2.40
(0.095)
to
6.30
(0.250)
øE
2.30
(0.090)
to
4.60
(0.180)
Cable Dimensions
øF
G±0.5
min
(G±0.02)
0.30
(0.012)
19.0
(0.750)
M±0.5
(M±0.02)
6.0
(0.235)
B-020-22-N
B-020-24-N
B-020-26-N
D
D
D
22
24
26
MATERIALS
1. & 6. INSULATION SLEEVE: Heat-shrinkable, radiation cross-linked modified polyvinylidene fluoride. Transparent blue.
2. & 5. SOLDER PREFORMS WITH FLUX:
SOLDER: TYPE Sn63 per ANSI J-STD-006.
FLUX:
TYPE ROL1 per ANSI J-STD-004.
3., 4. & 7. MELTABLE RINGS: Thermally stabilized thermoplastic.
8. CONDUCTOR LEAD: MIL-W-22759/32-GA-9, AWG “GA” (see table). ETFE insulated, stranded tin plated copper.
Color: white.
9. GROUND LEAD: MIL-W-22759/32-GA-6, AWG “GA” (see table). ETFE insulated, stranded tin plated copper.
Color: blue.
APPLICATION
1. The parts covered by this SCD are for use in terminating the primary conductor and the braided shield of a coaxial cable
having tin or silver plated conductor and shield, rated for at least 125° C and meeting the dimensional requirements listed.
2. Parts will meet the requirements of Raychem Specification RT-1404 when installed per Raychem RPIP-500-03.
3. Temperature range: -55°C to +150°C.
For best results, prepare
the cable as shown:
TITLE:
TE Connectivity
305 Constitution Drive
Menlo Park, CA 94025, USA
Raychem
Products
COAXIAL SOLDERSLEEVE DEVICE
WITH
PRE-INSTALLED STRANDED WIRES
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN MILLIMETERS.
DOCUMENT NO.:
INCHES DIMENSIONS ARE BETWEEN BRACKETS.
DATE:
TE Connectivity reserves the right to amend
ANGLES: N/A
TOLERANCES:
this drawing at any time. Users should evaluate
0.00 N/A
15-Apr-11
the suitability of the product for their
ROUGHNESS IN
0.0 N/A
application.
MICRON
0 N/A
DRAWN BY:
REPLACES:
PROD. REV.
DCR NUMBER:
SCALE:
B-020-GA-N
DOC ISSUE:
2
SIZE:
SHEET:
M. FORONDA
B020xyn1
SEE TABLE
D000432
None
A
1 of 1
Print Date: 6-May-11
If this document is printed it becomes uncontrolled. Check for the latest revision.
