MKS8244-6-00-404 datasheet, PDF

Datasheet> All Categories > The connector> The connector> MKS8244-6-00-404

MKS8244-6-00-404: DescriptionBoard Connector, 4 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking Mech, Natural Insulator, Receptacle; CategoryThe connector The connector; File Size44KB，1 Pages; ManufacturerStocko Contact GmbH & Co Kg; Websitehttps://www.stocko-contact.com; Environmental Compliance

Download Datasheet Parametric View All

MKS8244-6-00-404 Overview

Board Connector, 4 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking Mech, Natural Insulator, Receptacle

MKS8244-6-00-404 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Stocko Contact GmbH & Co Kg
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PC BOARD THICKNESS 1.0MM
body width	0.189 inch
subject depth	0.327 inch
body length	0.394 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	POLYAMIDE
MIL compliance	NO
Manufacturer's serial number	MKS8240
Plug contact pitch	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	115 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.4892 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	2.5 A
Guideline	VDE
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	4 mm
Termination type	SOLDER
Total number of contacts	4
Base Number Matches	1

Preview

Download Datasheet

View All

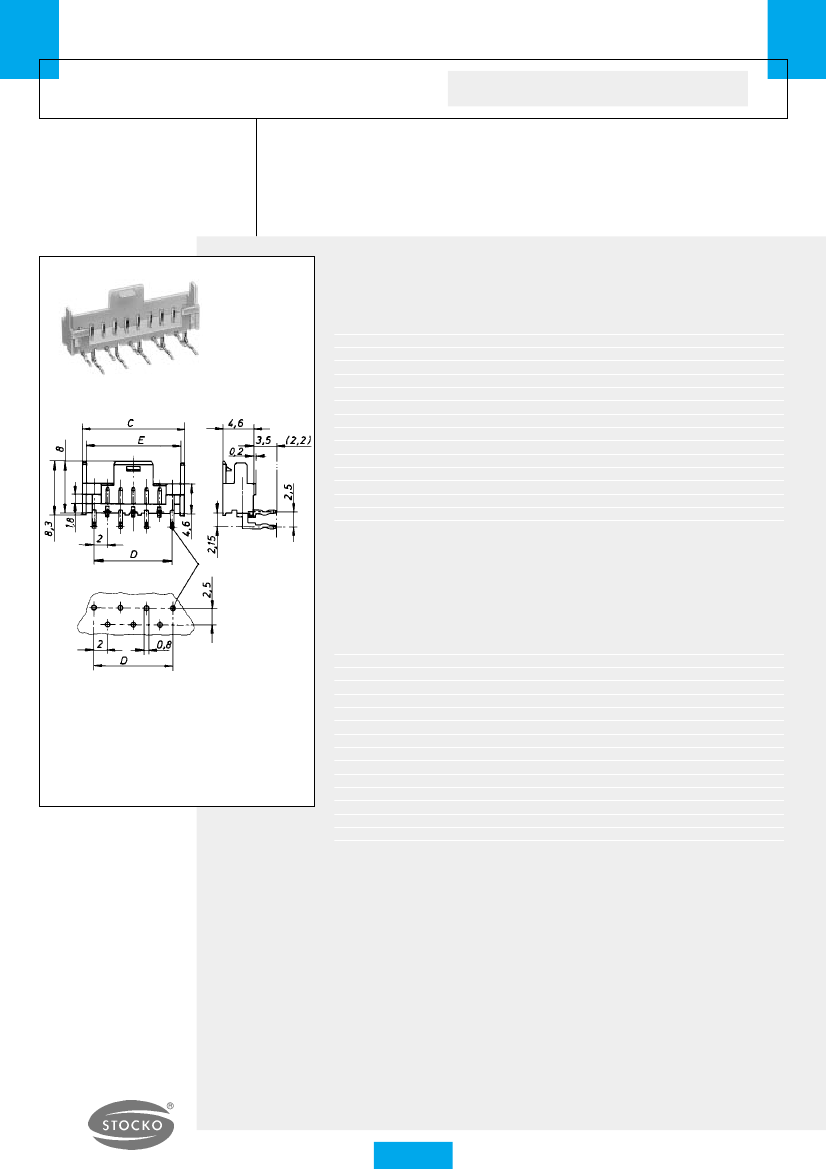

Serien / Series

Rastlasche

S tiftwannen, liegend, mit Rastlasche

MKS 8240, 8320

horizontal

Pin connectors with snap-in locking device for horiz ontal connections

Serie MKS 8240 für Leiterplattendicke 1,0 mm, Lötstifte versetzt

Series MKS 8240 for PC board thickness 1.0 mm, solder pins staggered

Polzahl

Positions

Artikel-Nummer

Part number

MKS

8242 - 6 - 00 - 202

8243 - 6 - 00 - 303

8244 - 6 - 00 - 404

8245 - 6 - 00 - 505

8246 - 6 - 00 - 606

8247 - 6 - 00 - 707

8248 - 6 - 00 - 808

8249 - 6 - 00 - 909

8250 - 6 - 00 - 1010

8251 - 6 - 00 - 1111

8252 - 6 - 00 - 1212

8253 - 6 - 00 - 1313

8254 - 6 - 00 - 1414

8255 - 6 - 00 - 1515

Abmessungen C

Dimensions C

Abmessungen D

Dimensions D

Abmessungen E

Dimensions E

4,7

6,7

8,7

10,7

12,7

14,7

16,7

18,7

20,7

22,7

24,7

26,7

28,7

30,7

1. Contact

Bauteilseite

Component side

Serie MKS 8320 für Leiterplattendicke 1,5 mm, Lötstifte versetzt

Series MKS 8320 for PC board thickness 1.5 mm, solder pins staggered

Polzahl

Positions

Artikel-Nummer

Part number

MKS

8322 - 6 - 00 - 202

8323 - 6 - 00 - 303

8324 - 6 - 00 - 404

8325 - 6 - 00 - 505

8326 - 6 - 00 - 606

8327 - 6 - 00 - 707

8328 - 6 - 00 - 808

8329 - 6 - 00 - 909

8330 - 6 - 00 - 1010

8331 - 6 - 00 - 1111

8332 - 6 - 00 - 1212

8333 - 6 - 00 - 1313

8334 - 6 - 00 - 1414

8335 - 6 - 00 - 1515

Abmessungen C

Dimensions C

Abmessungen D

Dimensions D

Abmessungen E

Dimensions E

4,7

6,7

8,7

10,7

12,7

14,7

16,7

18,7

20,7

22,7

24,7

26,7

28,7

30,7

Zweipolige Ausführung mit einer Führungslasche.

Auf Wunsch können diese Stiftwannen auch in einer

In-line-Bestückung geliefert werden.

Two-way version has one guide entry only.

These pin connectors can also be supplied with contacts

in line if required.
