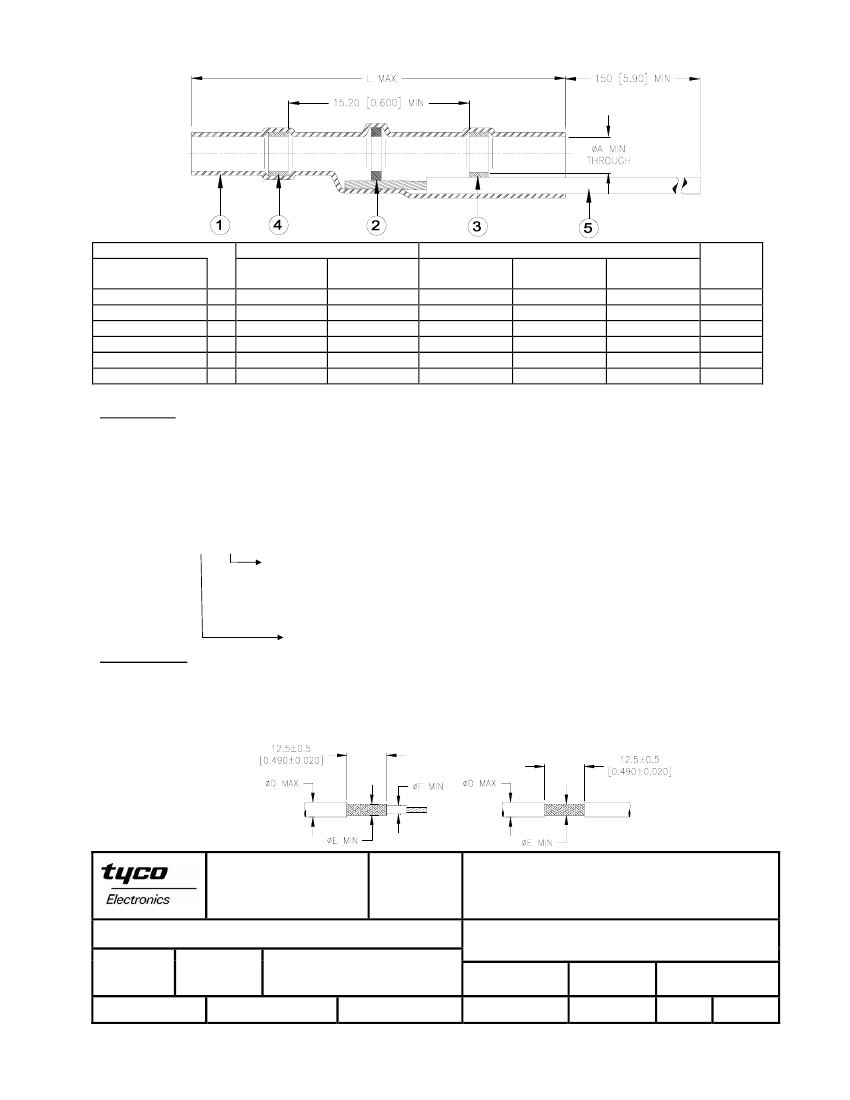

SPECIFICATION CONTROL DRAWING
*Product Revision
Product Dimensions
Cable Dimensions
øA
L
øD
øE
Product
min
max
max
min
Name
B-155-3803-WX
---
2.7 [0.105]
42.0 [1.655]
2.7 [0.105]
1.8 [0.070]
B-155-3805-WX
---
4.5 [0.180]
42.0 [1.655]
4.5 [0.180]
2.3 [0.090]
B-155-3806-WX
---
6.0 [0.235]
42.0 [1.655]
6.0 [0.235]
3.3 [0.130]
B-155-3807-WX
---
7.0 [0.275]
42.0 [1.655]
7.0 [0.275]
3.7 [0.145]
B-155-3809-WX
---
8.7 [0.340]
42.0 [1.655]
8.7 [0.340]
4.2 [0.165]
B-155-3811-WX
---
10.7 [0.420]
41.5 [1.630]
10.7 [0.420]
7.1 [0.280]
*Consult Tyco Electronics for individual product revision. Contains more than 1 part name.
øF
min
1.3 [0.050]
1.8 [0.070]
2.8 [0.110]
3.2 [0.125]
3.7 [0.145]
6.6 [0.260]
Qty:
Item 2
1
1
1
1
2
2
MATERIALS
1. INSULATION SLEEVE: Heat-shrinkable, transparent clear, radiation cross-linked modified polyolefin.
2. SOLDER PREFORM WITH FLUX. Qty: see table (one solder washer shown).
SOLDER:
TYPE Sn42Bi58 per ANSI / J-STD-006.
FLUX:
TYPE ROM1 per ANSI / J-STD-004.
3. MELTABLE RING: Thermally stabilized thermoplastic. Color: clear.
4. MELTABLE RING: Thermally stabilized thermoplastic. Color: blue.
5. GROUND LEAD: W1/W2: Raychem 35C0211 tin-plated copper; W4/W5: MIL-W-81822/13 solid silver-plated copper.
Part number:
B-155-38XX-WX
Ground lead type:
W1: AWG22, color -white.
W2: AWG22, color -green.
W4: AWG26, color -white.
W5: AWG26, color -blue.
Sizes: from 03 to 11.
APPLICATION
1. These controlled soldering devices are designed for termination of bare or tin-plated copper shield on a cable, rated for
at least +85°C and meeting the dimensional criteria listed in the table above.
2. Temperature range: -55°C to +125°C.
3. When installed properly, it will meet the performance requirements of Tyco Electronics / Raychem Specification RT-1404.
4. For installation procedure and application equipment, consult RPIP-824-00.
For best results, prepare
the cable as shown:
TITLE:
Tyco Electronics Corporation
300 Constitution Drive,
Menlo Park, CA. 94025, U.S.A.
Unless otherwise specified dimensions are in millimeters.
[Inches dimensions are shown in brackets]
TOLERANCES:
0.00 N/A
0.0 N/A
0 N/A
PREPARED BY:
Raychem
SOLDERSLEEVE ONE-STEP SHIELD
TERMINATION WITH PRE-INSTALLED
LEAD, LOW TEMPERATURE
DOCUMENT NO.:
B-155-38XX-WX
PROD. REV.:
DOC. ISSUE:
DATE:
Tyco Electronics reserves the right to amend
this drawing at any time. Users should
evaluate the suitability of the product for their
ROUGHNESS IN
application.
MICRON
DCR NUMBER:
REPLACES:
ANGLES: N/A
SEE TABLE
CAGE CODE :
1
SCALE:
SIZE:
12-Jul-05
SHEET:
mforonda
D050254
---
© 2005 Tyco Electronics Corporation. All rights reserved.
If this document is printed it becomes uncontrolled. Check for the latest revision.
06090
---
A
1 of 1
