AN5311 datasheet, PDF - EEWORLD Datasheet

AN5311: DescriptionCOLOR TV COLOR COMPENSATION CIRCUIT; CategoryOther integrated circuit (IC) Consumption circuit; File Size146KB，4 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Parametric Compare View All

AN5311 Overview

COLOR TV COLOR COMPENSATION CIRCUIT

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP, DIP28,.6
Contacts	28
Reach Compliance Code	unknow
Commercial integrated circuit types	CONSUMER CIRCUIT
JESD-30 code	R-PDIP-T28
JESD-609 code	e0
length	37 mm
Number of functions	1
Number of terminals	28
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	12 V
Certification status	Not Qualified
Maximum seat height	5.07 mm
Maximum slew rate	56 mA
surface mount	NO
technology	BIPOLAR
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
Base Number Matches	1

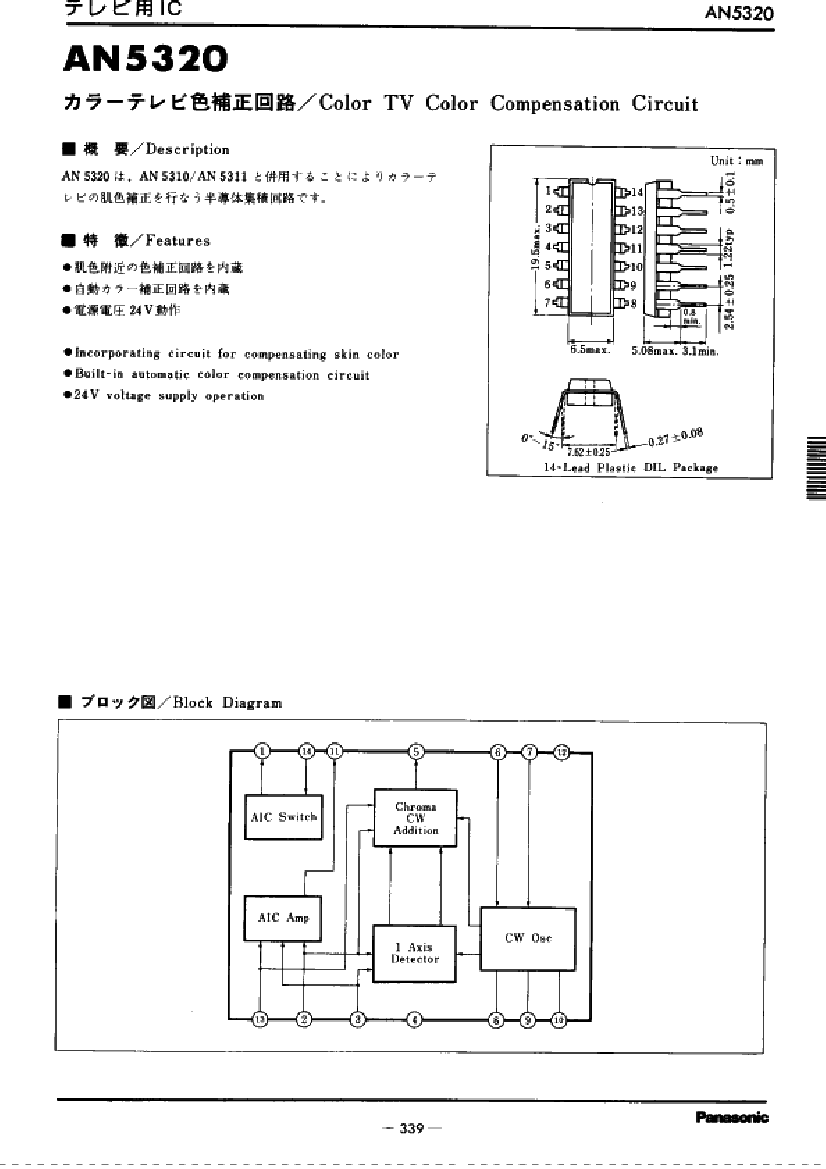

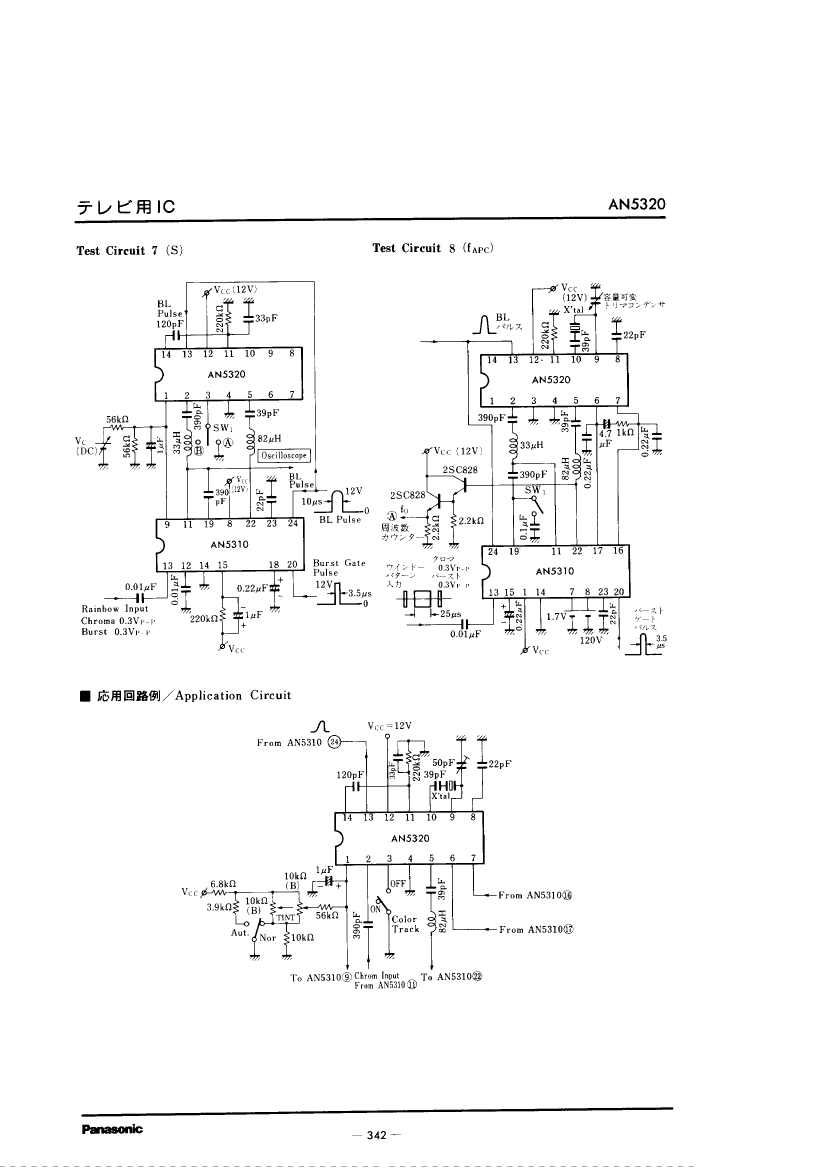

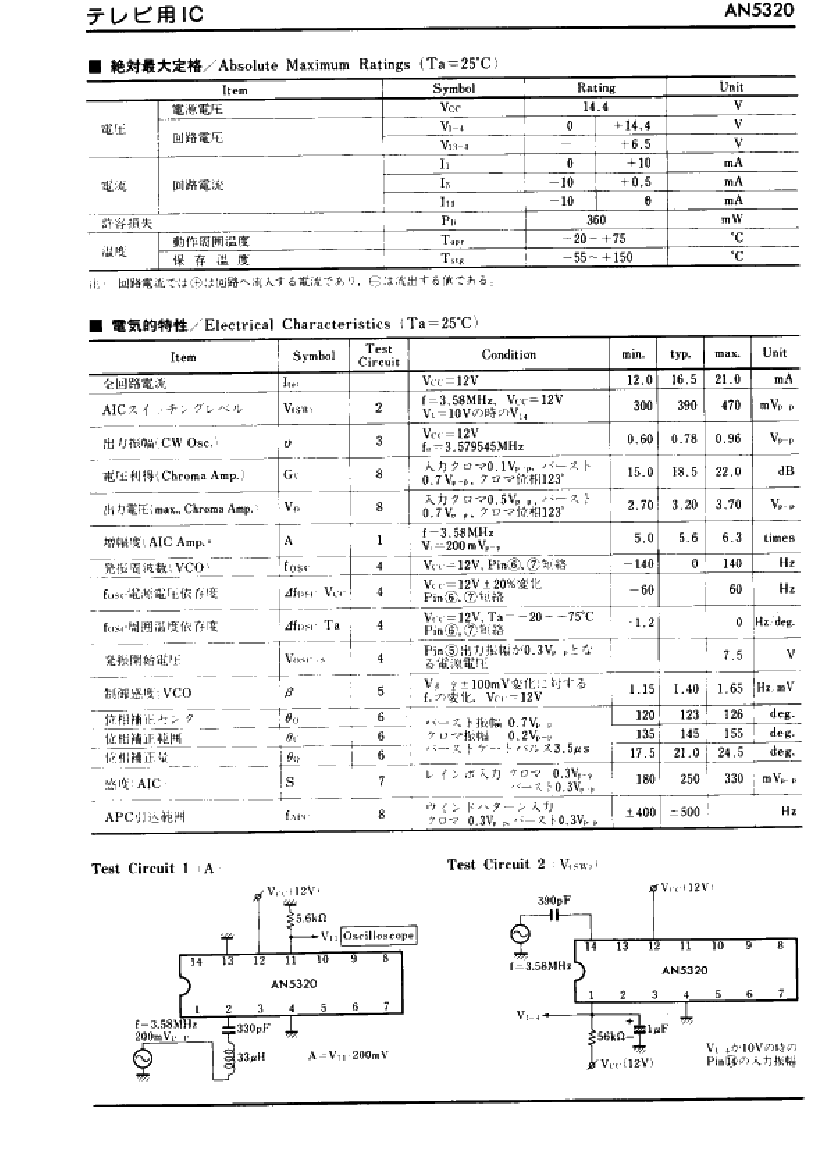

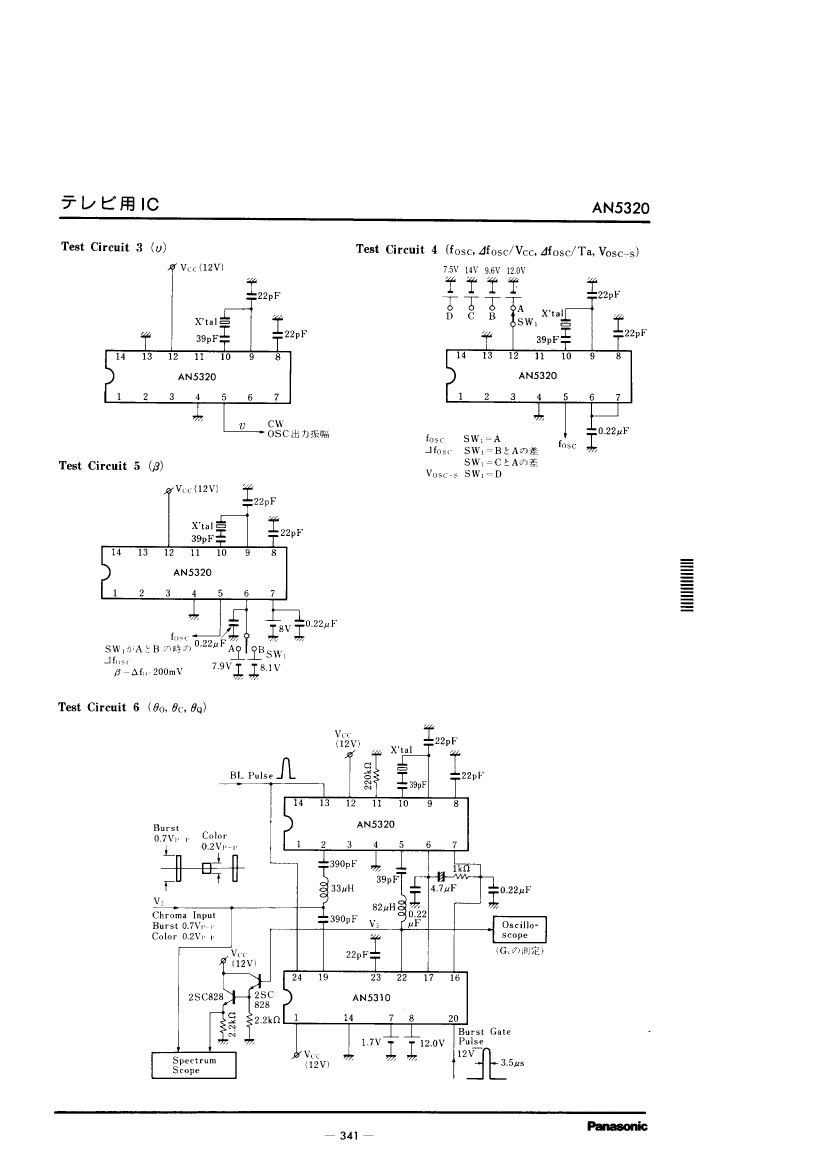

	AN5311	AN5310	AN5320
Description	COLOR TV COLOR COMPENSATION CIRCUIT	COLOR TV COLOR COMPENSATION CIRCUIT	COLOR TV COLOR COMPENSATION CIRCUIT
Is it Rohs certified?	incompatible	incompatible	incompatible
package instruction	DIP, DIP28,.6	DIP, DIP28,.6	DIP, DIP14,.3
Reach Compliance Code	unknow	unknow	unknow
Commercial integrated circuit types	CONSUMER CIRCUIT	CONSUMER CIRCUIT	CONSUMER CIRCUIT
JESD-30 code	R-PDIP-T28	R-PDIP-T28	R-PDIP-T14
JESD-609 code	e0	e0	e0
Number of terminals	28	28	14
Maximum operating temperature	70 °C	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP
Encapsulate equivalent code	DIP28,.6	DIP28,.6	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	OTHER	OTHER	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
Base Number Matches	1	1	1
Parts packaging code	DIP	DIP	-
Contacts	28	28	-
length	37 mm	37 mm	-
Number of functions	1	1	-
power supply	12 V	12 V	-
Maximum seat height	5.07 mm	5.07 mm	-
Maximum slew rate	56 mA	54 mA	-
width	15.24 mm	15.24 mm	-
