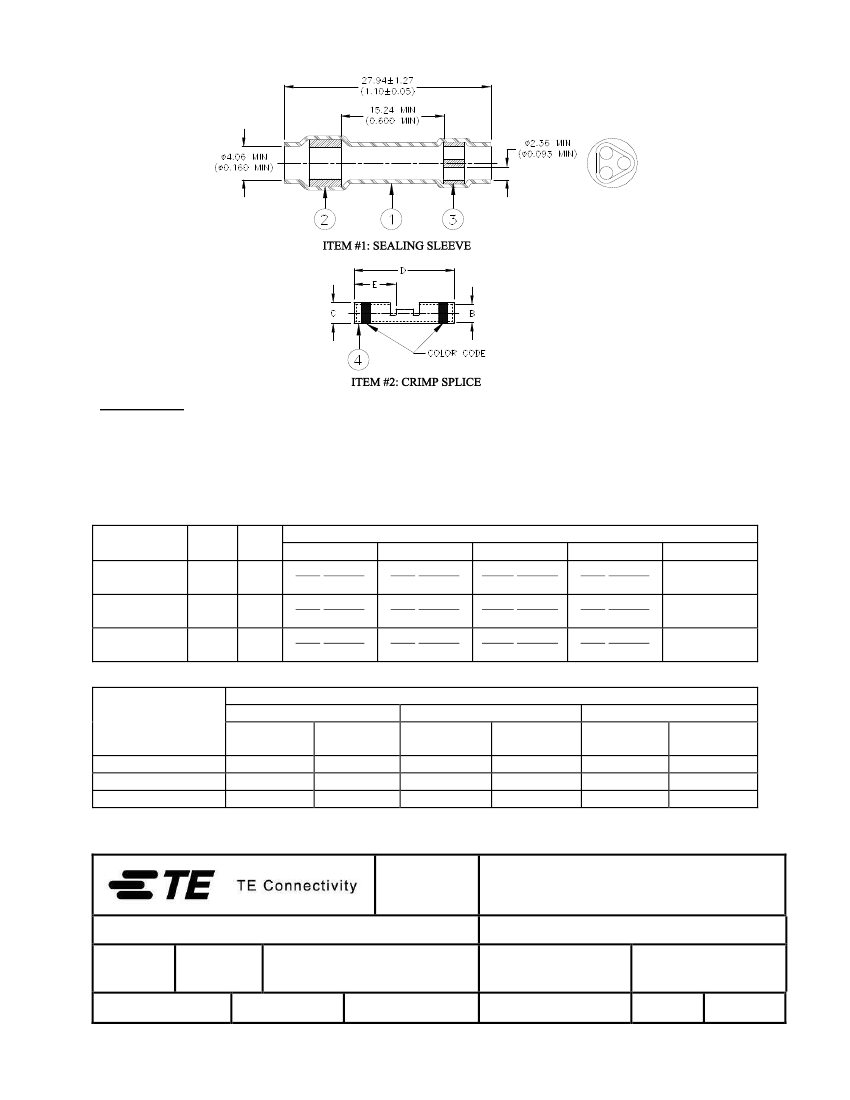

CUSTOMER DRAWING
MATERIALS
1. INSULATION SLEEVE: Heat-shrinkable, transparent blue, radiation cross-linked modified polyvinylidene
flouride.
2. SINGLE-WIRE SEAL: Low outgassing immersion resistant thermoplastic fluoroelastomer. Color: BLUE.
3. INTEGRAL-WIRE SEAL: Low outgassing immersion resistant thermoplastic fluoroelastomer. Color: BLUE.
4. CRIMP SPLICE: Base Metal: Copper Alloy 101 or 102 per ASTM B-75.
Plating: Nickel per QQ-N-290.
Dimensions:
Part
Prod.
Crimp Splice
Name
Rev.
Size
ØB
ØC
D
E
Color Code
D-436-85
A
20
1.27 (0.050)
2.03 (0.080)
12.95 (0.510)
6.22 (0.245)
Red
1.14 (0.045)
1.91 (0.075)
12.45 (0.490)
5.72 (0.225)
D-436-86
B
16
1.75 (0.069)
2.70 (0.106)
14.86 (0.585)
7.11 (0.280)
Blue
1.63 (0.064)
2.57 (0.101)
14.35 (0.565)
6.60 (0.260)
D-436-87
A
12
2.60 (0.102)
3.91 (0.154)
14.86 (0.585)
7.11 (0.280)
Yellow
2.46 (0.097)
3.73 (0.147)
14.35 (0.565)
6.60 (0.260)
Installation Data:
Splicer
Size
20
16
12
Wire Size Range of Crimp Splice
One Wire
Two wires
Three wires
Minimum
Maximum
Minimum
Maximum
Minimum
Maximum
24
20
16
20
16
12
26
24
22
24
20
16
28
24
22
24
22
18
Raychem
Devices
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN MILLIMETERS.
INCHES DIMENSIONS ARE BETWEEN BRACKETS.
TOLERANCES:
0.00 N/A
0.0 N/A
0 N/A
DRAWN BY:
ANGLES: N/A
TE CONNECTIVITY (TE) RESERVES THE RIGHT TO
CHANGE THIS DRAWING AT ANYTIME. USER
SHOULD EVALUATE THE SUITABILITY OF THE
PRODUCT FOR THEIR APPLICATION.
TITLE :
(Low Outgassing)
IN-LINE SPLICE SEALING SYSTEM,
2 OR 3 TO 1 SPLICER: Nickel Plated,
Color Coded, with Inspection Slots
DOCUMENT NO. :
D-436-85/-87
DATE:
REVISION:
ROUGHNESS IN
MICRON
ECO APPROVED:
June 16, 2017
SCALE:
SIZE:
B2
SHEET:
ECO NUMBER:
M. FORONDA
L. RODRIGUEZ
ECO-17-008496
None
A
1 of 2
©2015-2017 TE CONNECTIVITY CORPORATION. ALL RIGHTS RESERVED.
If this document is printed it becomes uncontrolled. Check for the latest revision.
CUSTOMER DRAWING
APPLICATION
1. These parts are designed to provide an immersion resistant in-line splices of 2 or 3 to 1 wires falling within
the size range listed on sheet 1, having insulations rated for at least 135C.
2. Parts are available only as an assembly of one of each Item #1 and Item #2.
3. Parts are to be installed per Thermofit Assembly Procedure, see below.
4. Inside diameter and outside diameter of splice are to be measured in crimp areas, 2.54 to 5.08 (0.100 to 0.200)
from ends of part. Slight burr permitted on parted surfaces.
5. Acceptance sampling shall be in accordance with Paragraph 4.6.1 of MIL-T-7928.
6. Packing and packaging shall be in accordance with Section 5, Level C, of MIL-T-7928.
7. This document takes precedence over documents referenced herein.
THERMOFIT ASSEMBLY PROCEDURE
1.0
SCOPE
This document outlines the procedure to be followed to obtain immersion resistant 3 or 2 to 1 in-line splices
using Thermofit In-Line Splice Sealing System D-436-85/-87.
2.0
PROCEDURE:
a)
b)
c)
d)
Strip all wires 7.92 (0.312) to 8.74 (0.344).
Attach the single lead to the appropriate size crimp splice using a Raychem AD-1377 Crimp Tool.
Pass the wires to be attached to other barrel through the sealing sleeve from the three hole insert end.
Insert wires into barrel and crimp. Care must be taken so that the wires remain untwisted between the
crimp splice and the three wire seal or the sealing sleeve cannot be positioned properly.
e) Apply heat, using a recommended heat source, first to the three-hole insert and then to the other.
Heat should be applied until insert melts and flows axially along the wire.
RECOMMENDED RAYCHEM HEATING TOOLS
HEATER
Steinel HL-2010E
Thermogun #500A
Shop Air Heater #CV-4504
Mini-Gun #CV-5300
REFLECTOR
832011-000
TG-14
991180-000
991319-000
RECOMMENDED TEMPERATURE SETTING
316ºC-371ºC (600ºF-700ºF)
316ºC-371ºC (600ºF-700ºF)
316ºC-371ºC (600ºF-700ºF)
316ºC-371ºC (600ºF-700ºF)
3.0
Raychem
Devices
UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN MILLIMETERS.
INCHES DIMENSIONS ARE BETWEEN BRACKETS.
TOLERANCES:
0.00 N/A
0.0 N/A
0 N/A
DRAWN BY:
ANGLES: N/A
TE CONNECTIVITY (TE) RESERVES THE RIGHT TO
CHANGE THIS DRAWING AT ANYTIME. USER
SHOULD EVALUATE THE SUITABILITY OF THE
PRODUCT FOR THEIR APPLICATION.
TITLE :
(Low Outgassing)
IN-LINE SPLICE SEALING SYSTEM,
2 OR 3 TO 1 SPLICER: Nickel Plated,
Color Coded, with Inspection Slots
DOCUMENT NO. :
D-436-85/-87
DATE:
REVISION:
ROUGHNESS IN
MICRON
ECO APPROVED:
June 16, 2017
SCALE:
SIZE:
B2
SHEET:
ECO NUMBER:
M. FORONDA
L. RODRIGUEZ
ECO-17-008496
None
A
2 of 2
©2015-2017 TE CONNECTIVITY CORPORATION. ALL RIGHTS RESERVED.
If this document is printed it becomes uncontrolled. Check for the latest revision.
