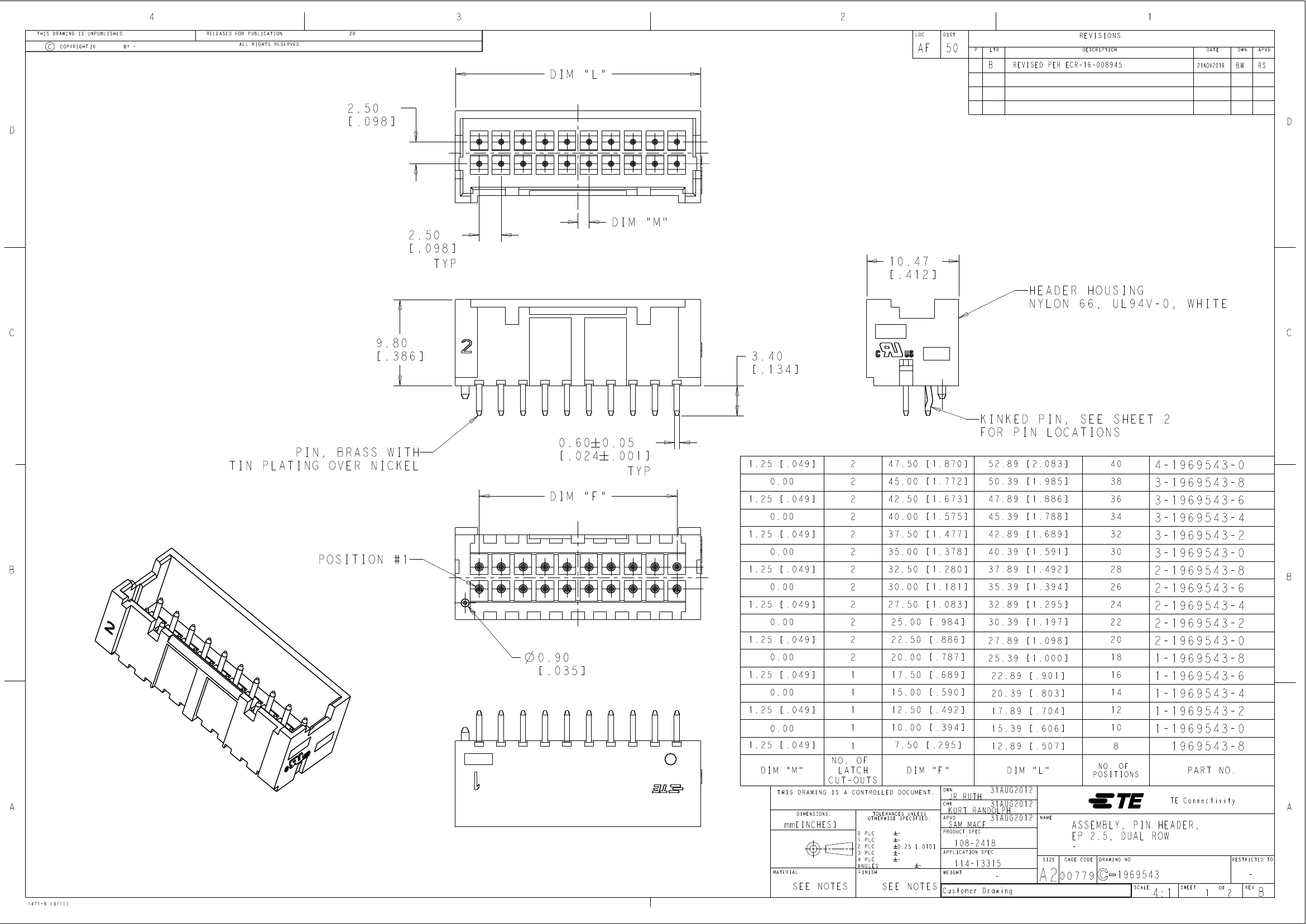

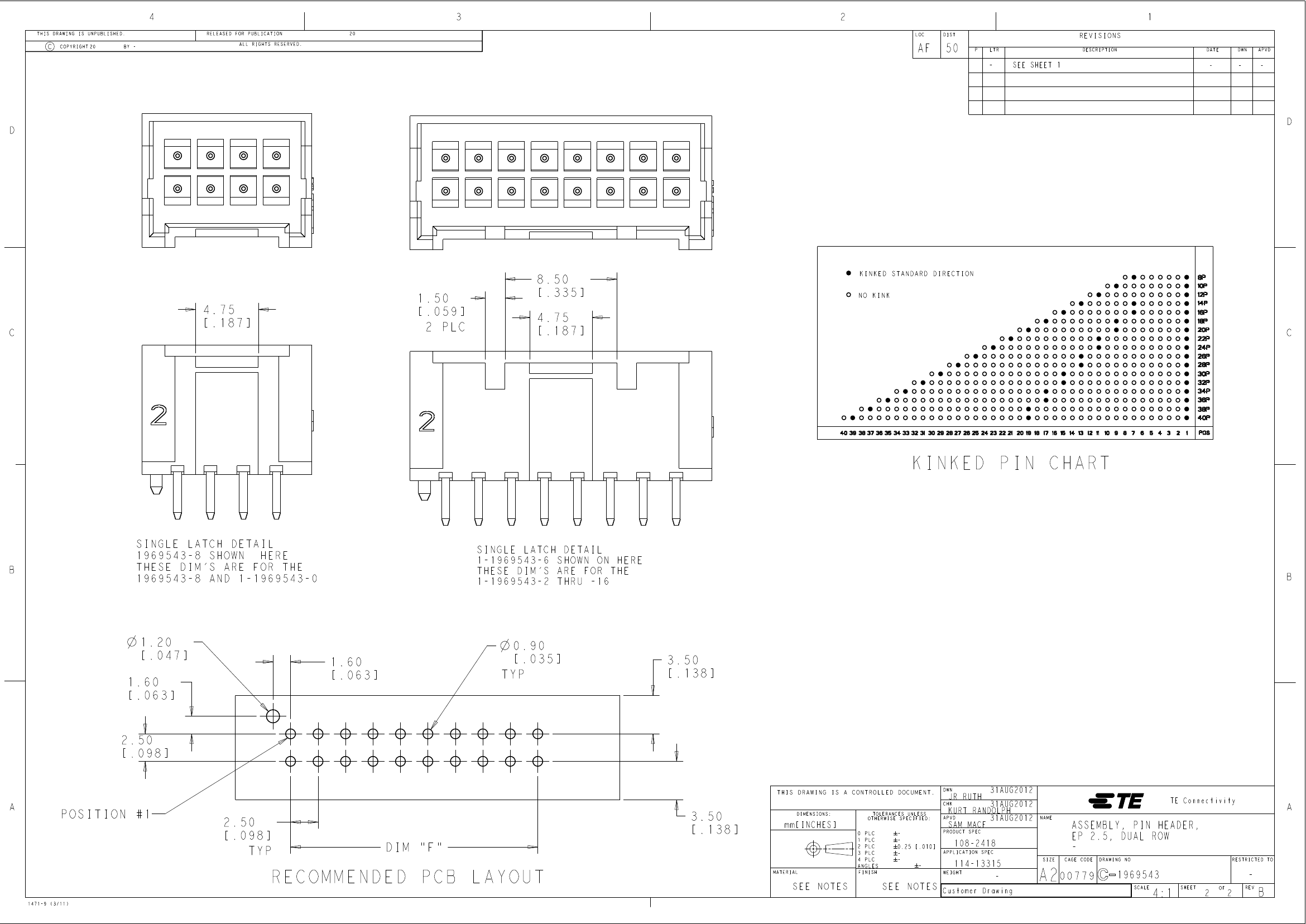

ASSY, HDR, VERT, BOSSED, DUAL ROW, EP2.5
| Parameter Name | Attribute value |
| PCB Connector Component Types | PCB mounting header |
| Connector System | wire to board |
| Connector type | with hood |
| Sealable | no |
| Connectors and terminals terminate to | A printed circuit board |
| Glow Wire Ratings | Standard Parts - Non-Glow Wire |
| Line spacing | 2.5 mm [ .098 in ] |
| stress relief | Without |
| Connector terminal load status | Fully loaded |
| PCB mounting direction | vertical |
| Number of Positions | 8 |
| Rows | 2 |
| Backwall/Post Interruptions | Without |
| Operating voltage (VAC) | 250 |
| Terminal base material | brass |
| Terminal contact plating material | tin |
| Terminal contact part plating material surface coating | bright light |
| Terminal contact plating thickness | 2.032 µm [ 80 µin ] |
| Terminal type | Pin |
| Contact Current Rating (Max) (A) | 7.5 |
| PCB terminal termination area plating materials | tin |
| Terminal conduction (typ.) | power supply |
| PCB Termination Methods | Through Hole - Solder |
| Cable termination method | welding |
| PCB mounting fixation type | kink |
| Panel mount features | Without |
| PCB installation method | Through hole |
| PCB mounting alignment | with |
| joint fixation | with |
| PCB installation and fixation | with |
| Connector mounting type | board mounting |
| PCB Mount Alignment Type | lugs |
| joint alignment | Without |
| Joint fixation type | latch |
| Terminal positioning force | Without |
| Centerline (Pitch) | 2.5 mm [ .098 in ] |
| Shell color | White |
| Shell material | nylon |
| length | 12.89 mm [ .507 in ] |
| high | 9.8 mm [ .386 in ] |
| tail length | 3.4 mm [ .134 in ] |
| width | 10.16 mm [ .4 in ] |
| Working group temperature range | -25 – 105 °C [ -13 – 221 °F ] |
| pick and place cover | Without |
| Circuit Application | Power |
| UL flammability rating | UL 94V-0 |
| Encapsulation method | box |
| Package quantity | 200 |
