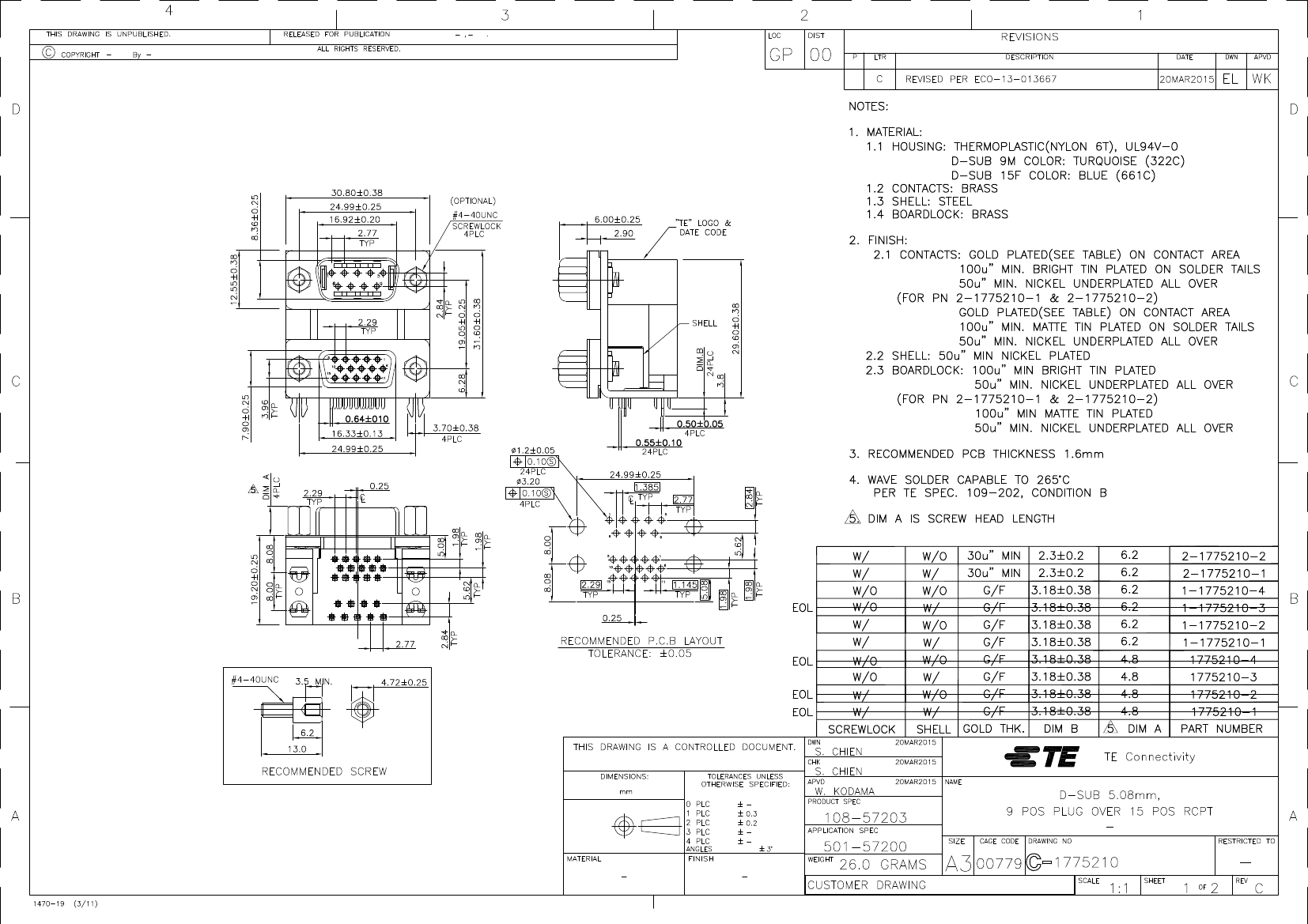

D-SUB 5.08mm,9 POS PLUG OVER 15 POS RCPT
| Parameter Name | Attribute value |
| Housing type | Front metal shell |
| Connector type | plug to female |
| Connector System | cable to board |
| Line spacing | .079 in, .112 in, 2 mm, 2.84 mm |
| Housing size | 1 to 1 |
| shape | standard |
| Sealable | no |
| Connectors and terminals terminate to | A printed circuit board |
| Connector design | stack |
| Rows | 5 |
| PCB mounting direction | right angle |
| Connector configuration (up/down) | mix |
| Shell plating material | nickel |
| Shell material | steel |
| Terminal base material | brass |
| PCB terminal termination area plating materials | tin |
| Terminal base material | nickel |
| Terminal shape | round, round |
| Terminal contact plating material | Thin gold plating |
| Termination cylinder length | 3.18 mm [ .125 in ] |
| PCB installation method | Through hole soldering |
| PCB installation and fixation | with |
| PCB mounting fixation type | plate lock |
| Engage connector latch | Without |
| Mating connector latch type | Female Screw Lock, 4-40 UNC |
| Connector mounting type | board mounting |
| joint alignment | Without |
| Plate lock plating material | Nickel base tin plating |
| plate lock material | brass |
| Centerline (Pitch) | 2.29 mm [ .09 in ] |
| Shell color | blue, turquoise |
| Shell material | thermoplastic |
| PCB thickness (recommended) (mm) | 1.6 |
| Working group temperature range | -55 – 105 °C [ -67 – 221 °F ] |
| Circuit Application | Signal |
| UL flammability rating | UL 94V-0 |

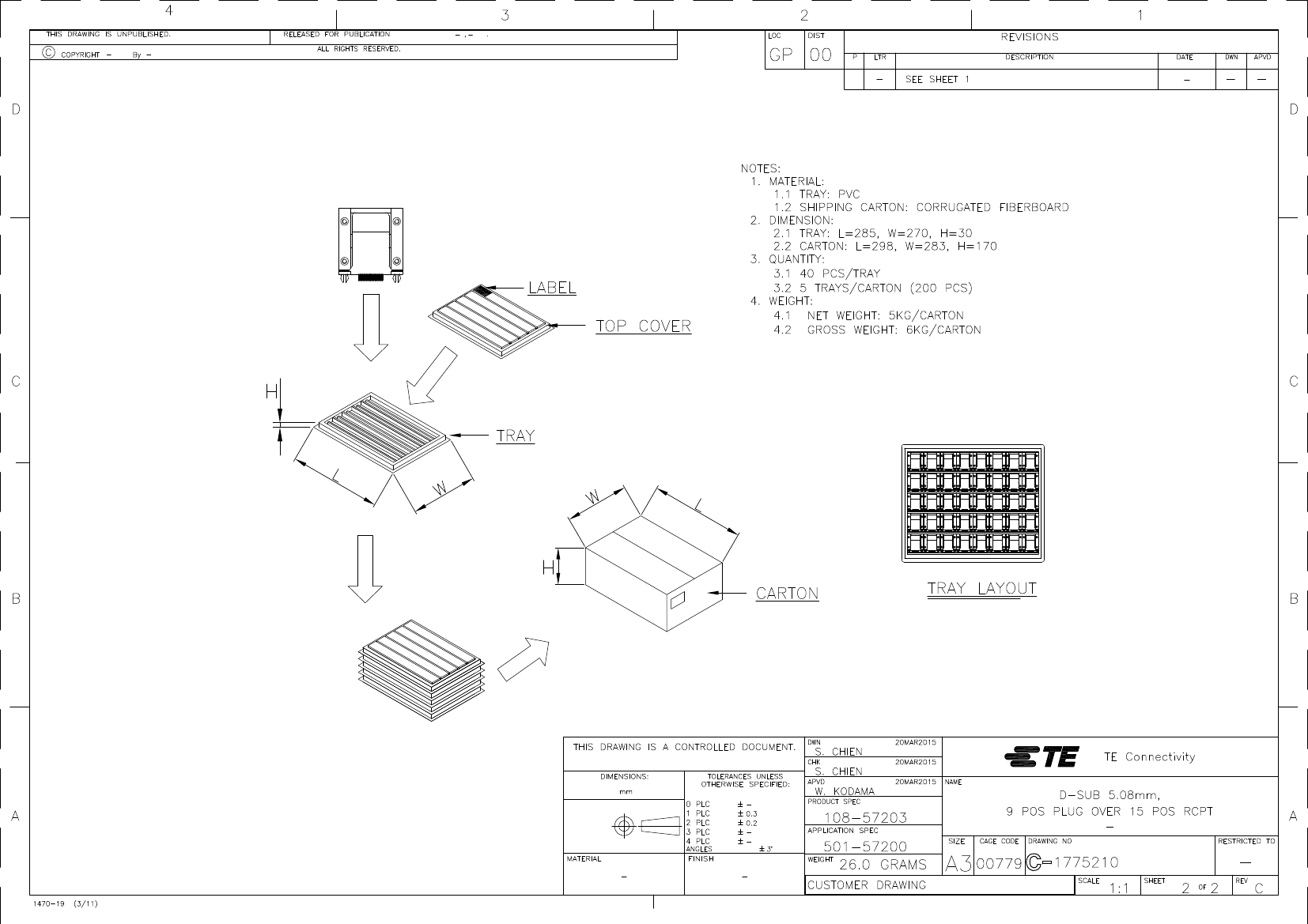

| Package quantity | 40 |
| Encapsulation method | Package |
