for SANs is leading the data rate requirements for
current 1 Gb/s and 2 Gb/s optical modules while
demanding full backward compatibility.
The

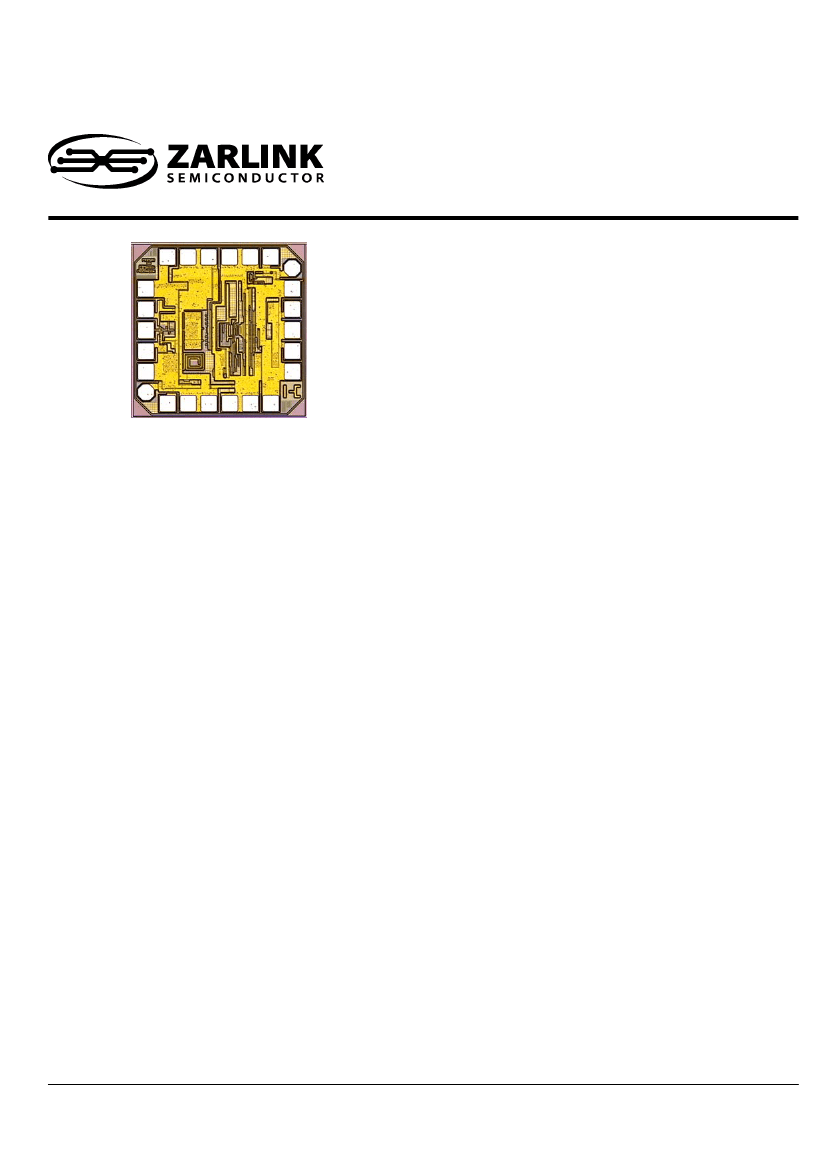

Zarlink PX5420 multi-rate TIA/LA optical receiver
provides the performance and feature set required
by competitive SFF and SFP optical modules.
The Zarlink PX5420 optical receiver is a single
channel TIA/LA optical receiver designed for
various applications to 4.25 Gb/s. It consists of a
transimpedance amplifier (TIA) and an AC-coupled
differential limiting amplifier (LA).
The transimpedance amplifier achieves a nominal
bandwidth of 3 GHz over a wide range of
photodiode input capacitance. A photodiode bias
current monitor allows for a simple alignment
procedure.
The transimpedance amplifier is AC-coupled
internally to a high-gain, high-bandwidth, limiting
amplifier.
The limiting amplifier provides a
differential back-terminated current-mode logic
(CML) output that can be used to drive a 4.25 Gb/s
intra module post amplifier or directly drive to the
edge of the module.
Full diagnostics are delivered through loss of
signal, squelch, and received signal strength
indicator circuits.
Features
•
Integrated transimpedance and limiting
amplifier for serial optical receiver
applications
Receiver sensitivity 10 µA
pp
for 10
-12
BER
at 4.25 Gb/s
Receive signal strength indicator (RSSI)
Loss of signal indicator (LOS)
Selectable squelch circuit disables output
at low input levels
Back-terminated 50-ohm CML output
Selectable 250 mV or 650 mV differential
output amplitude
No external passives required for
photodiode bias network
Single +3.3 V supply dissipating 100 mW
•
•
•
•
•
•
•
•
Applications
•
•
•
Receive optical sub-assemblies (ROSA)
4GFC, 2GFC, 1GFC, OC-48, GbE
SFP/SFF and proprietary optical modules
1
Zarlink Semiconductor Inc.
PX5420

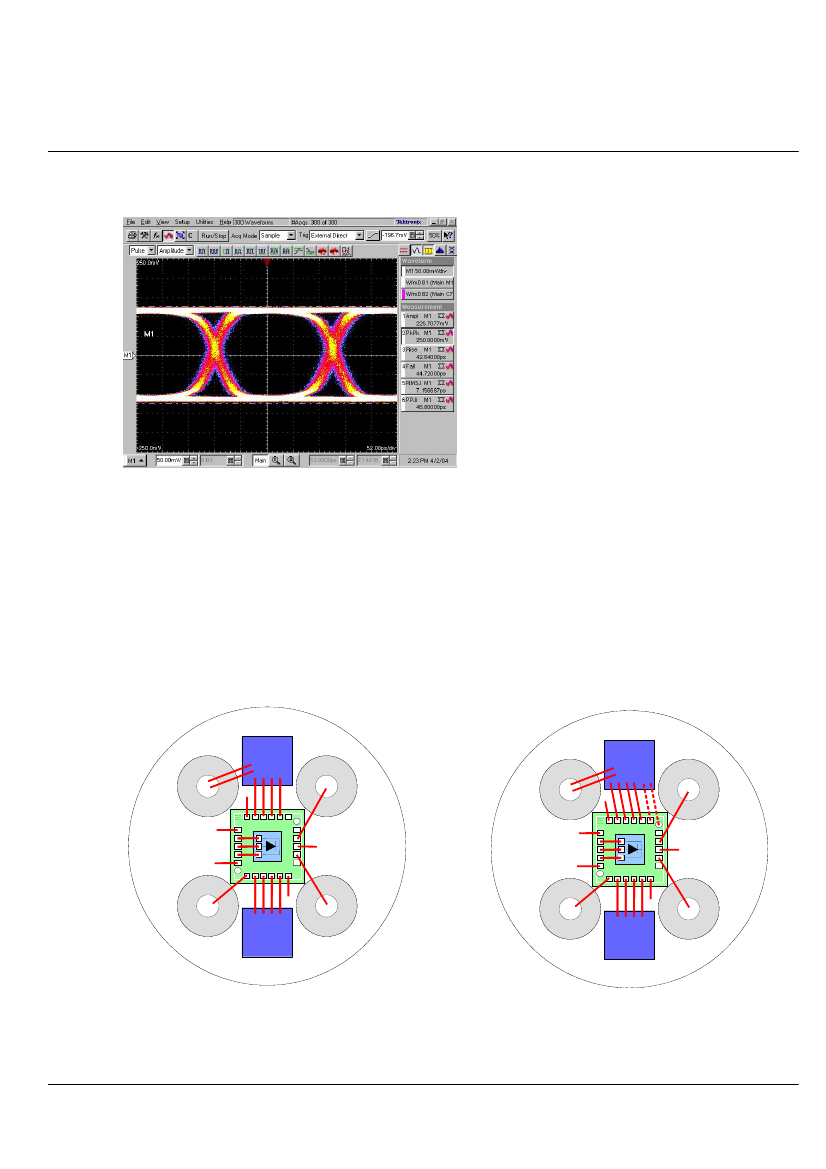

Figure 1:
4.25 Gb/s differential data output using a PRBS23 data pattern
Product Brief
Figure 2:
Diagram shows a typical bonding configuration
for the PX5420 mounted on a TO-46 header.
The figure shows a photodiode attached directly
on the PX5420 IC. Also shown are two
microwave chip capacitors. A single capacitor
connected to a 3.3 V supply is required. The
second capacitor (not connected to an external
supply) is recommended but not required.
Capacitor values of 200 fF are typical but vary
by application environment.
Figure 3:
Similar configuration as Figure 2. OAC pad
connected to VCC providing increased output
amplitude. Sq_En (also connected to VCC)
disables the limiting amplifier when LOS is
asserted.
Required
Chip-Cap
3.3 V
3.3 V
GND
DP
DP
GND
3.3 V
3.3 V
Required
Chip-Cap
DP
DP
1200
GND
Rate
RSSI
Select
Optional
Chip-Cap
DN
DN
Rate
RSSI
Select
1200
GND
DN
DN
Optional
Chip-Cap
2
