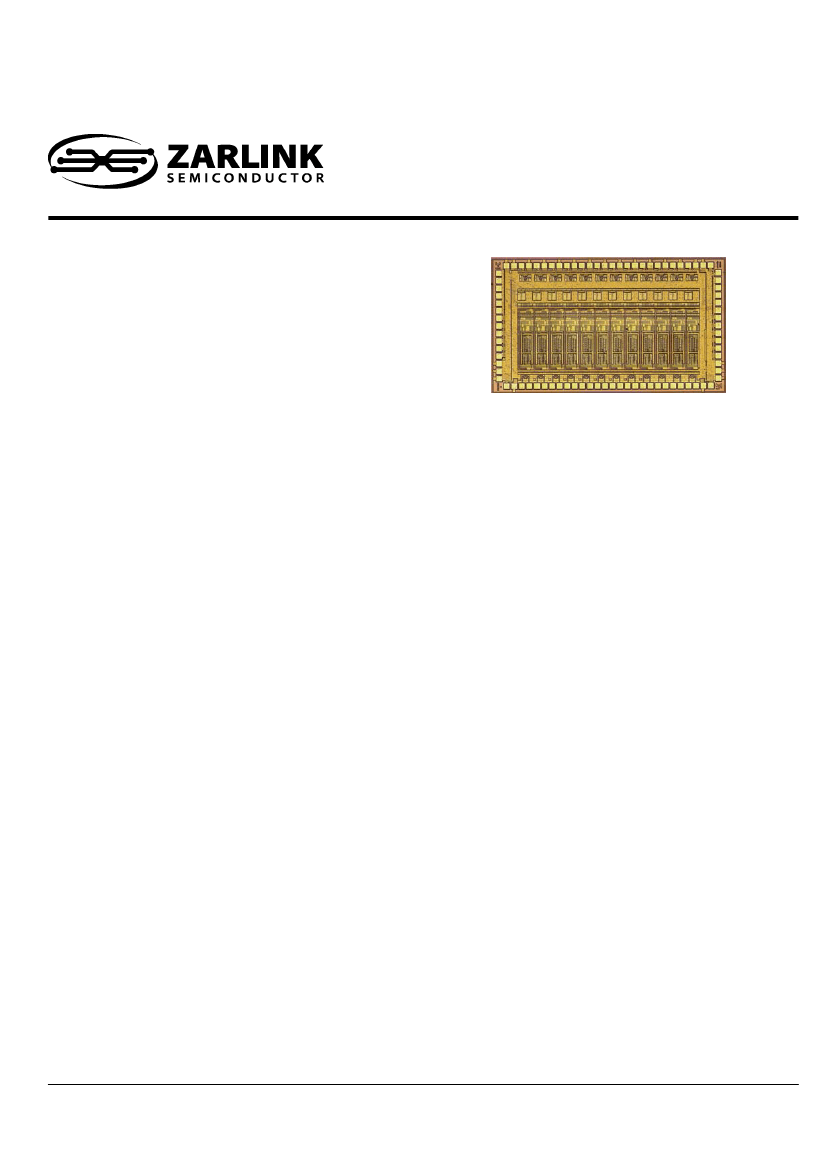

PX6429
12 x 10 Gb/s TIA/LA Optical Receiver
Product Brief
April 2005
Features
•
12x10 Gb/s Integrated Transimpedance and
Limiting Amplifier for parallel channel optical
receiver applications
Channels support data rates up to 10.7 Gb/s
enabling various 120 Gb/s parallel PMD
applications
Global signal detect senses quiescent
photocurrent with adjustable threshold and
hysteresis
Individual channel signal detect senses input
signal strength (0MA) with adjustable sensitivity
and hysteresis
20 uA
pp
receiver sensitivity for 10
-12
BER
180 mW per channel power dissipation for >500
mV differential output swing
Serial digital interface for controlling channel
power down, signal detect sensitivity, output
amplitude and global signal detect
Differential back-terminated outputs
Flip-chip or direct wire-bond attach to
photodiode
250-micron channel pitch matches optical
ribbon fiber and array photodiodes
•
•
Description
The growing use of the Internet has created
increasingly higher demand for multi-Gb/s I/O
performance. The demand for 100+ Gb/s WAN
bandwidth fuels the growth of short-reach 120
Gb/s infrastructures within high-end telco and
datacom routers, switches, servers and other
proprietary chassis-to-chassis links. The Zarlink
PX6429 120 GB/s TIA/LA Receiver is a 12-
channel TIA/LA optical receiver designed for
various 12x10 Gb/s, 10 Gb/s parallel optics and
CWDM PMD applications. It consists of a DC
coupled transimpedance amplifier and an AC
coupled differential limiting amplifier.
The transimpedance amplifier achieves a nominal
8 GHz bandwidth over a wide range of photodiode
input capacitance. Excellent channel-to-channel
isolation ensures data integrity at the receiver
sensitivity limits. A global signal detect circuit
provides the photodiode reverse bias voltage
supply and senses average photocurrent supplied
to the photodiode array.
The transimpedance amplifier is AC-coupled
internally to a high-gain, high-bandwidth
differential limiting amplifier. The limiting amplifier
provides a differential back-terminated CML
output that can be used to drive 10 Gb/s per
channel transceivers or other CML compatible
clock and data recovery circuits. The limiting
amplifier features an adjustable signal detect
circuit that senses optical modulation amplitude
(OMA) to provide a received signal indication for
each channel.
•
•
•
•
•
•
•

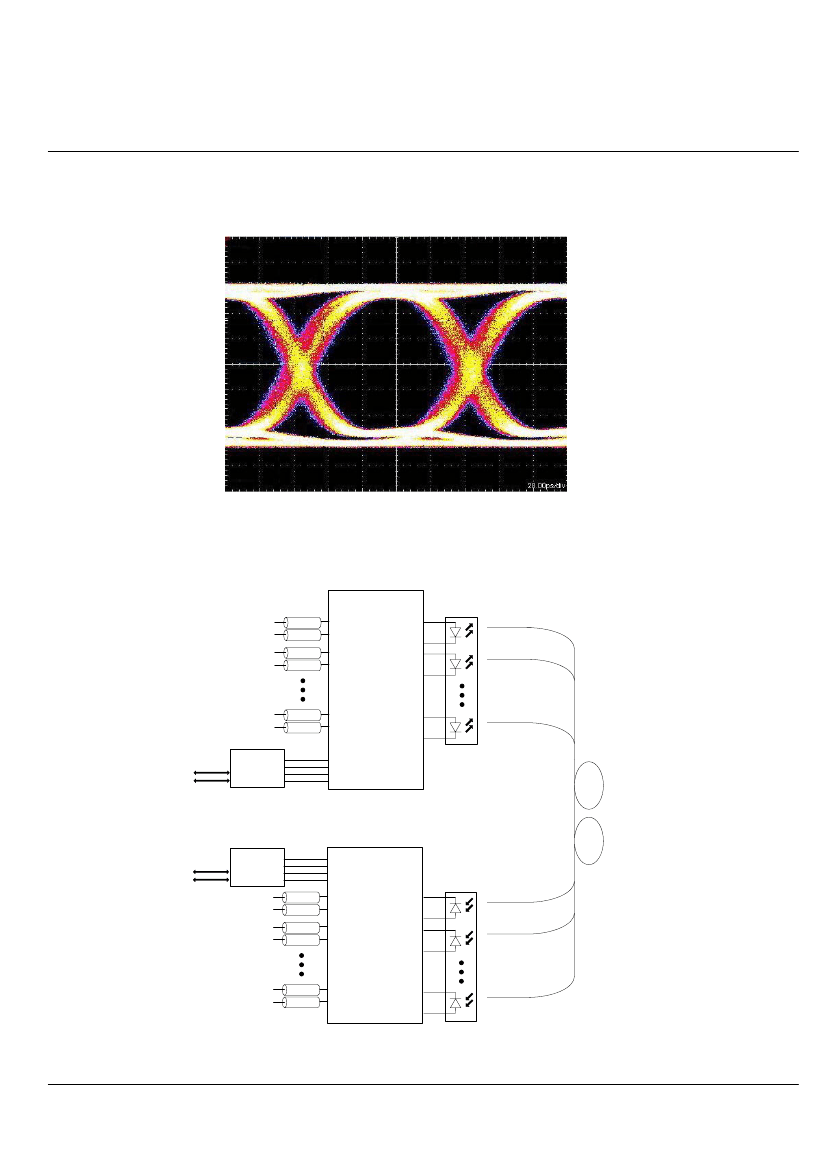

Applications
•
•
Proprietary 120Gb/s intra-system parallel optics
Multi-channel 10GbE, 10GFC, OC-192 VSR
optical links
