DB25-PS-24-30 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DB25-PS-24-30

DB25-PS-24-30: DescriptionD Type Connector, 25 Contact(s), Male, Surface Mount Terminal, Locking, Plug; CategoryThe connector The connector; File Size327KB，2 Pages; ManufacturerAdam Tech

Download Datasheet Parametric Compare View All

DB25-PS-24-30 Overview

D Type Connector, 25 Contact(s), Male, Surface Mount Terminal, Locking, Plug

DB25-PS-24-30 Parametric

Parameter Name	Attribute value
Maker	Adam Tech
Reach Compliance Code	compliant
body width	0.494 inch
body length	2.088 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
contact mode	STAGGERED
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
Manufacturer's serial number	DB25
Match contact row spacing	0.112 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell material	STEEL
Terminal pitch	1.3716 mm
Termination type	SURFACE MOUNT
Total number of contacts	25
Base Number Matches	1

Preview

Download Datasheet

View All

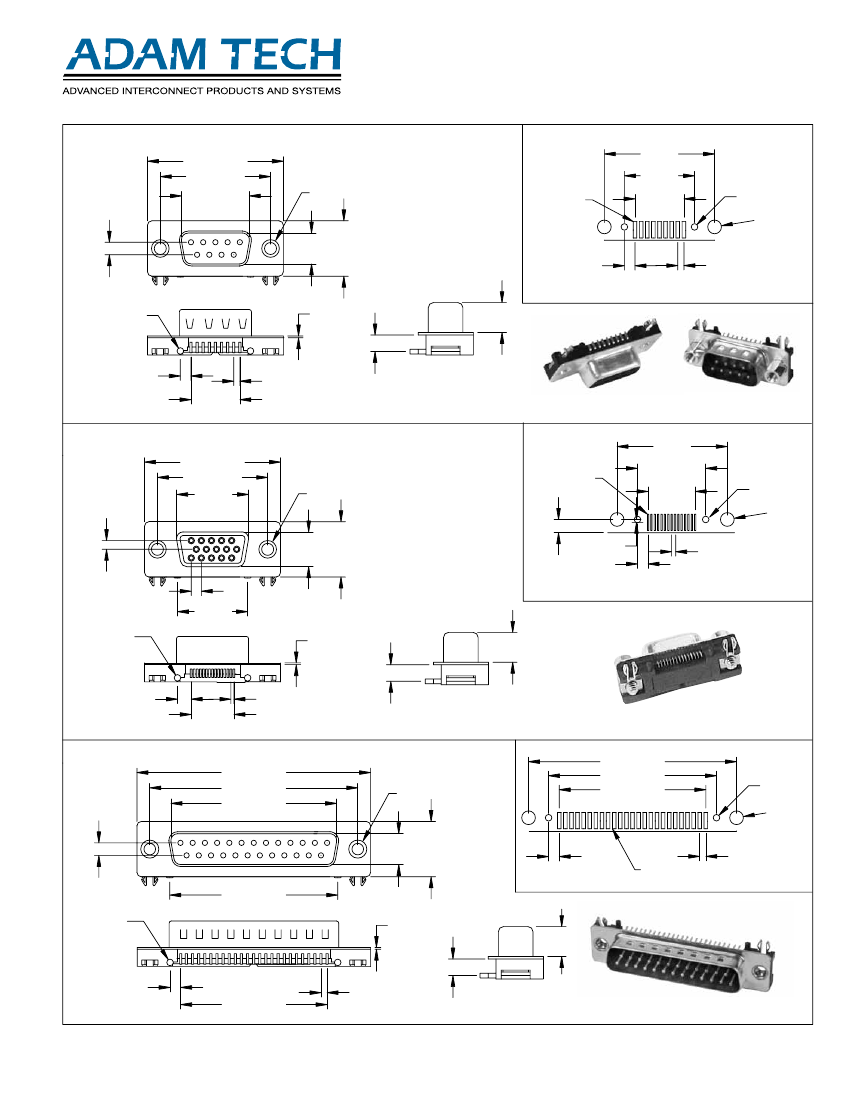

RIGHt ANGle SMt .118" [3.00] SlIMlINe

SMt SeRIeS

iNTROduCTiON:

Adam tech Right Angle SMt Slimline D-Sub connectors are a

popular interface for many I/O applications. Offered in 9, 15 and 25

positions they are an excellent choice for a low cost industry standard

connection and are ideal for low profile design requirements. Adam

tech connectors are manufactured with precision stamped contacts

offering a choice of contact plating and a wide selection of mating

and mounting options.

FEaTuRES:

Short profile space saving design

Industry standard compatibility

Durable metal shell design

Precision formed contacts

Variety of Mating and mounting options

MaTiNg CONNECTORS:

Adam tech D-Subminiatures and all industry standard

D-Subminiature connectors.

SpECiFiCaTiONS:

Material:

Insulator: Hi-temperature thermoplastic, rated Ul94V-0

Insulator Color: Black

Contacts: Phosphor Bronze or Brass

Shell: Steel, tin or Zinc plated

Hardware: Brass, Nickel plated

Contact plating:

Gold over Nickel underplate on contact area.

Electrical:

Operating voltage: 250V AC / DC max.

Current rating: 1 Amp max.

Contact resistance: 20 mΩ max. initial

Insulation resistance: 5000 MΩ min.

Dielectric withstanding voltage: 1000V AC for 1 minute

Mechanical:

Insertion force: 0.75 lbs max

extraction force: 0.44 lbs min

Temperature Rating:

Operating temperature: -55°C to +105°C

Soldering process temperature: 260°C

paCkagiNg:

Anti-eSD plastic trays

appROValS aNd CERTiFiCaTiONS:

Ul Recognized & CSA Certified, File no. e224053

d-SuBMiNiaTuRE

ORdERiNg iNFORMaTiON

dB25

SHEll SiZE/

pOSiTiONS

dE09

= 9 Positions

dB25

= 25 Positions

Hdl15

= High Density

15P

MOuNTiNg OpTiONS

= Forked Boardlocks

for PCB Retention and

#4-40 threaded inserts

in mounting holes

= Forked Boardlocks

for PCB retention and

#4-40 threaded inserts

in mounting holes with

installed jackscrews

CONTaCT / TypE

= Plug Surface Mount

= Socket Surface Mount

OpTiONS:

Add designator(s) to end of part number

= 15

µin

gold plating in contact area

= 30

µin

gold plating in contact area

= Round jackscrews

www.adam-tech.com

DB25-PS-24-30 Related Products

	DB25-PS-24-30	DB25-PS-25-30	DE09-PS-25-30
Description	D Type Connector, 25 Contact(s), Male, Surface Mount Terminal, Locking, Plug	D Type Connector, 25 Contact(s), Male, Surface Mount Terminal, Locking, Plug	D Type Connector, 9 Contact(s), Male, Surface Mount Terminal, Locking, Plug
Maker	Adam Tech	Adam Tech	Adam Tech
Reach Compliance Code	compliant	compliant	compliant
body width	0.494 inch	0.494 inch	0.494 inch
body length	2.088 inch	2.088 inch	1.213 inch
Body/casing type	PLUG	PLUG	PLUG
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE
contact mode	STAGGERED	STAGGERED	STAGGERED
Contact resistance	20 mΩ	20 mΩ	20 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	BLACK	BLACK	BLACK
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Manufacturer's serial number	DB25	DB25	DE09
Match contact row spacing	0.112 inch	0.112 inch	0.112 inch
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
PCB row number	1	1	1
Number of rows loaded	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
Rated current (signal)	1 A	1 A	1 A
Guideline	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell material	STEEL	STEEL	STEEL
Terminal pitch	1.3716 mm	1.3716 mm	1.3716 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	25	25	9
