2178710-8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2178710-8

2178710-8: Description8P, FOB , THT, MICRO-MATCH VALUE LINE; CategoryThe connector The connector; File Size295KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

2178710-8 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2178710-8	-	-	View	Buy Now

2178710-8 Overview

8P, FOB , THT, MICRO-MATCH VALUE LINE

2178710-8 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	11 weeks 2 days
Board mount options	HOLE .055-.063
body width	0.205 inch
subject depth	0.157 inch
body length	0.48 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Dielectric withstand voltage	500VAC V
Durability	8 Cycles
maximum insertion force	5.7824 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	2178710
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
reliability	COMMERCIAL
Terminal length	0.122 inch
Terminal pitch	2.54 mm
Termination type	SOLDER KINKED LEADS
Total number of contacts	8
Evacuation force-minimum value	.8896 N
Base Number Matches	2

Preview

Download Datasheet

View All

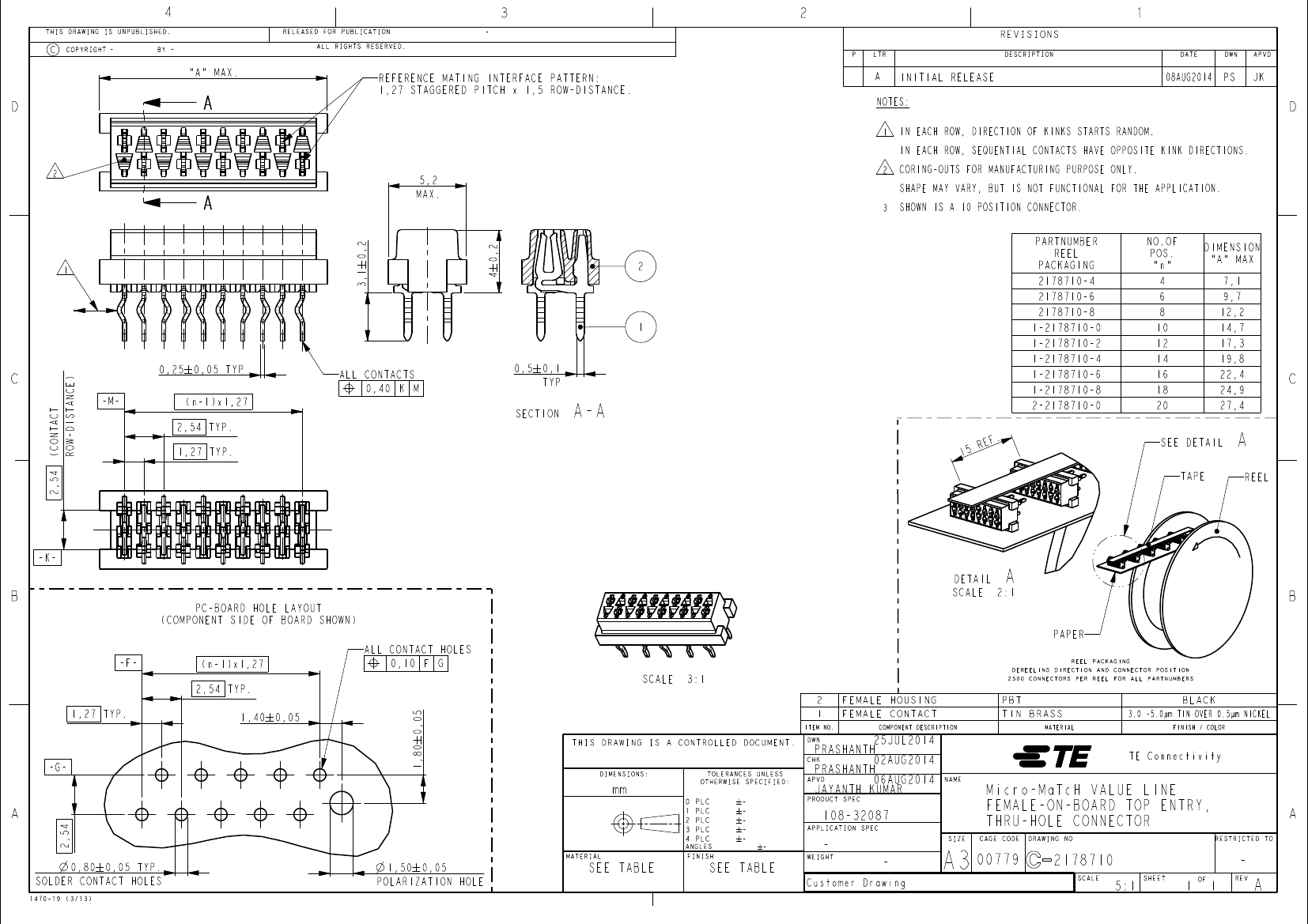

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

BY -

"A" MAX.

REFERENCE MATING INTERFACE PATTERN:

1,27 STAGGERED PITCH x 1,5 ROW-DISTANCE.

INITIAL RELEASE

08AUG2014

NOTES:

IN EACH ROW, DIRECTION OF KINKS STARTS RANDOM.

IN EACH ROW, SEQUENTIAL CONTACTS HAVE OPPOSITE KINK DIRECTIONS.

CORING-OUTS FOR MANUFACTURING PURPOSE ONLY.

SHAPE MAY VARY, BUT IS NOT FUNCTIONAL FOR THE APPLICATION.

SHOWN IS A 10 POSITION CONNECTOR.

PARTNUMBER

REEL

PACKAGING

2178710-4

2178710-6

2178710-8

NO.OF

POS.

"n"

DIMENSION

"A" MAX

7,1

12,2

14,7

17,3

19,8

22,4

24,9

27,4

9,7

5,2

MAX.

3,1 0,2

4 # 0,2

0,25 0,05 TYP

-M-

(n-1)x1,27

2,54 TYP.

1,27 TYP.

0,5 0,1

TYP

SECTION

1-2178710-0

1-2178710-2

1-2178710-4

1-2178710-6

1-2178710-8

2-2178710-0

5 R

ROW-DISTANCE)

ALL CONTACTS

0,40 K M

(CONTACT

A-A

SEE DETAIL

TAPE

REEL

-K-

2,54

PC-BOARD HOLE LAYOUT

(COMPONENT SIDE OF BOARD SHOWN)

-F-

ALL CONTACT HOLES

0,10 F G

DETAIL

SCALE 2:1

PAPER

REEL PACKAGING

DEREELING DIRECTION AND CONNECTOR PO SITION

2500 CONNECTORS PER REEL FOR ALL PAR TNUMBERS

(n-1)x1,27

2,54 TYP.

1,40 0,05

SCALE

3:1

ITEM NO.

1,80 0,05

1,27 TYP.

FEMALE HOUSING

FEMALE CONTACT

COMPONENT DESCRIPTION

PBT

TIN BRASS

MATERIAL

3.0 -5.0µm TIN OVER 0.5µm NICKEL

FINISH / COLOR

BLACK

THIS DRAWING IS A CONTROLLED DOCUMENT.

-G-

DIMENSIONS:

2,54

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

0,80 0,05 TYP.

SOLDER CONTACT HOLES

1470-19 (3/13)

1,50 0,05

POLARIZATION HOLE

MATERIAL

ANGLES

PLC

25JUL2014

PRASHANTH

CHK

02AUG2014

PRASHANTH

APVD

06AUG2014

JAYANTH KUMAR

DWN

PRODUCT SPEC

APPLICATION SPEC

TE Connectivity

NAME

108-32087

SIZE

SEE TABLE

FINISH

SEE TABLE

WEIGHT

Customer Drawing

00779

CAGE CODE

Micro-MaTcH VALUE LINE

FEMALE-ON-BOARD TOP ENTRY,

THRU-HOLE CONNECTOR

DRAWING NO

RESTRICTED TO

2178710

SCALE

5:1

SHEET

REV
