881623-2: DescriptionFAST 187 REC 0.5-1.0MM2 .032X13.97 TPBR; CategoryThe connector; File Size164KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

881623-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	881623-2	-	-	View	Buy Now

881623-2 Overview

FAST 187 REC 0.5-1.0MM2 .032X13.97 TPBR

881623-2 Parametric

Parameter Name	Attribute value
terminated to	Cable
insertion force	ordinary
Insulated	No
Cable type	Separate conductor
wire stop point	no
Completely insulated	no
Plating materials	tin
Terminal and connector types	Receptacle
Terminal direction	Straight
Terminal base material	brass
Crimp type	F type crimp
Barrel Type	Open
Terminal type	female end
with conductor insulation	with
Joint fixation type	Pits
Female terminal blank thickness	.3 mm [ .012 in ]
Wire Size (AWG)	20 – 17
Wire Size (mm²)	.51 – 1.03
Width of male end	4.75 mm [ .187 in ]
Thickness of male end	.81 mm [ .032 in ]
total length	15.1 mm [ .594 in ]
Acceptable wire insulation diameter range	2.01 – 3.3 mm [ .079 – .13 in ]
Working group temperature range	110 °C [ 230 °F ]
UL rating	Certified
Encapsulation method	roll
Package quantity	15000

Preview

Download Datasheet

View All

4

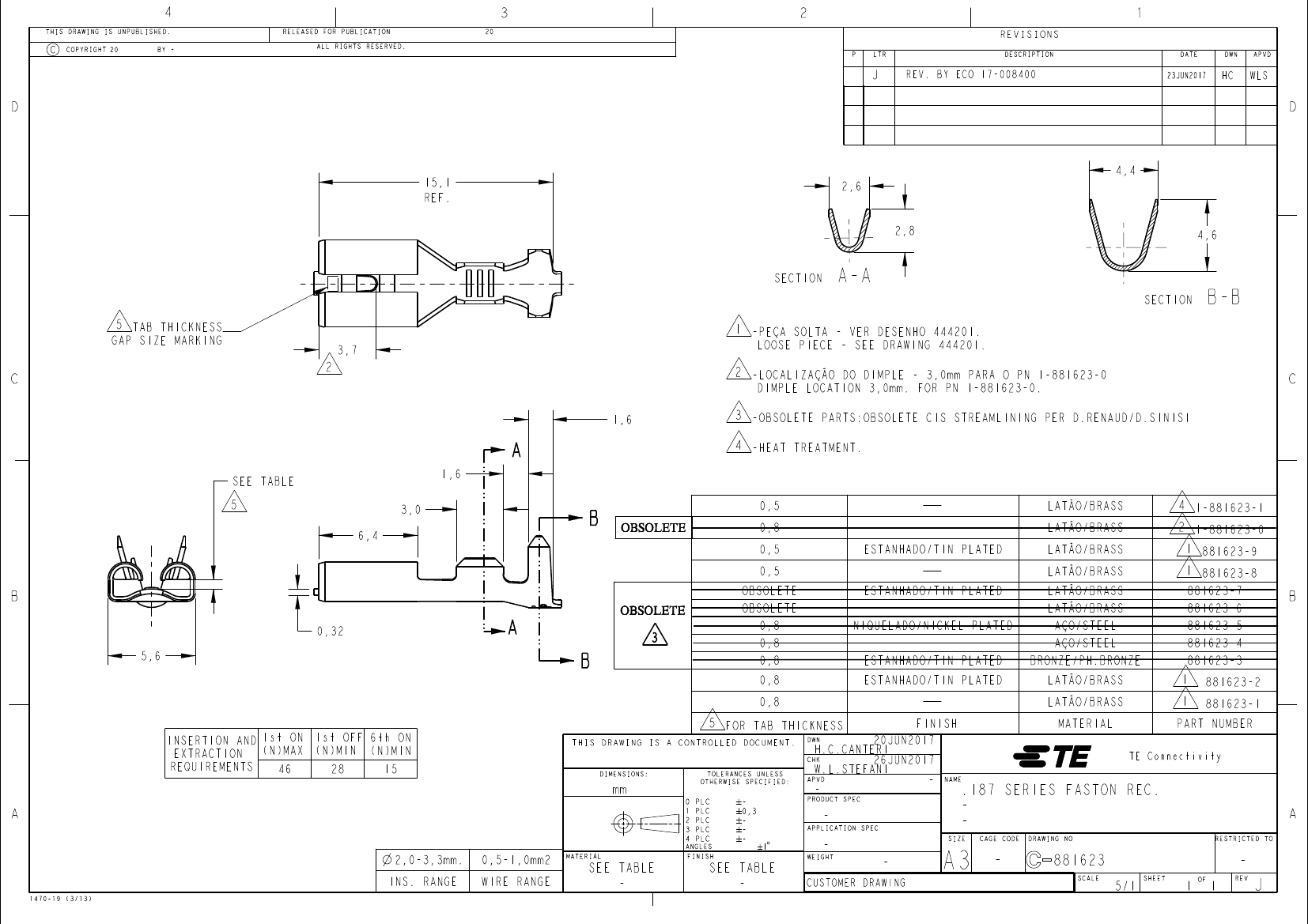

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

20

3

2

REVISIONS

P

LTR

DESCRIPTION

1

DATE

DWN

APVD

C

COPYRIGHT 20

BY -

J

REV. BY ECO 17-008400

23JUN2017

HC

WLS

D

15,1

REF.

2,6

2,8

SECTION

4,4

4,6

A-A

SECTION

GAP SIZE MARKING

5

TAB THICKNESS

2

3,7

B-B

1

-PEÇA SOLTA - VER DESENHO 444201.

LOOSE PIECE - SEE DRAWING 444201.

DIMPLE LOCATION 3,0mm. FOR PN 1-881623-0.

C

2

-LOCALIZAÇÃO DO DIMPLE - 3,0mm PARA O PN 1-881623-0

1,6

C

3

-OBSOLETE PARTS:OBSOLETE CIS STREAMLINING PER D.RENAUD/D.SINISI

4

-HEAT TREATMENT.

SEE TABLE

1,6

3,0

6,4

0,5

LATÃO/BRASS

ESTANHADO/TIN PLATED

NIQUELADO/NICKEL PLATED

ESTANHADO/TIN PLATED

FINISH

DWN

20JUN2017

H.C.CANTERI

CHK

26JUN2017

W.L.STEFANI

APVD

-

NAME

-

.187

PRODUCT SPEC

APPLICATION SPEC

5

4

1-881623-1

2

1-881623-0

1

881623-9

1

881623-8

881623-7

881623-6

OBSOLETE

0,8

0,5

OBSOLETE

LATÃO/BRASS

AÇO/STEEL

B

0,32

5,6

OBSOLETE

3

OBSOLETE

0,8

B

881623-5

881623-3

881623-4

0,8

INSERTION AND 1st ON

(N)MAX

EXTRACTION

REQUIREMENTS

46

1st OFF 6th ON

(N)MIN (N)MIN

28

15

BRONZE/PH.BRONZE

LATÃO/BRASS

MATERIAL

1

881623-2

881623-1

5

FOR TAB THICKNESS

THIS DRAWING IS A CONTROLLED DOCUMENT.

PART NUMBER

TE Connectivity

DIMENSIONS:

mm

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

A

0,5-1,0mm2

INS. RANGE

1470-19 (3/13)

MATERIAL

0

1

2

3

4

ANGLES

PLC

-

0,3

-

WIRE RANGE

SEE TABLE

-

FINISH

1 $

SEE TABLE

-

WEIGHT

-

CUSTOMER DRAWING

A3

SIZE

-

SERIES FASTON REC.

A

DRAWING NO

RESTRICTED TO

CAGE CODE

-

881623

SCALE

5/1

SHEET

1

OF

1

REV

-

J
