1367645-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 1367645-4

1367645-4: DescriptionDWDM Kit Assy, PCI (4.2); CategoryThe connector; File Size253KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

1367645-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1367645-4	-	-	View	Buy Now

1367645-4 Overview

DWDM Kit Assy, PCI (4.2)

1367645-4 Parametric

Parameter Name	Attribute value
Dimensions	SFP
cage type	one
Radiator included	yes
Connector System	cable to board
Sealable	no
Connectors and terminals terminate to	A printed circuit board
Port matrix configuration	1 x 1
Number of ports	1
Data rate (max) (Gb/s)	4
Radiator type	Pin
Radiator height category	PCI
Radiator height	4.2 mm [ .165 in ]
PCB Termination Methods	Through hole - solderless connection
PCB installation method	Through hole solderless connection
Connector mounting type	board mounting
cage material	copper alloy
PCB thickness (recommended)	2.25 mm [ .089 in ]
tail length	3 mm [ .118 in ]
Working group temperature range	-55 – 85 °C [ -67 – 185 °F ]
Suitable for pluggable I/O products	SFP SMT connector
Pluggable I/O Applications	SFP
Circuit Application	Signal
Compatible radiators	yes
Encapsulation method	boxes and trays
EMI containment feature types	external spring
Light pipe included	no

Preview

Download Datasheet

View All

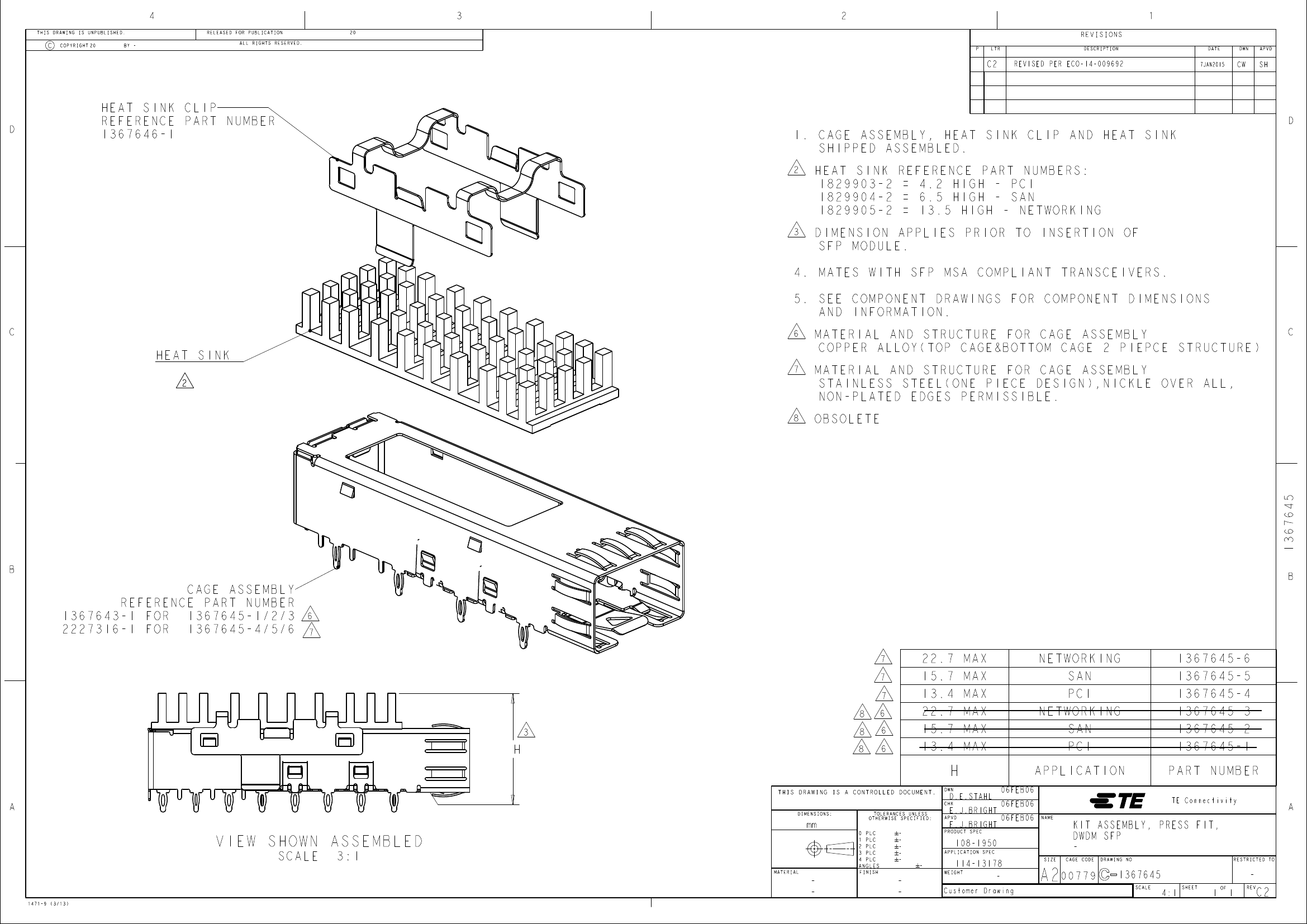

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

REVISED PER ECO-14-009692

7JAN2015

HEAT SINK CLIP

REFERENCE PART NUMBER

1367646-1

1. CAGE ASSEMBLY, HEAT SINK CLIP AND HEAT SINK

SHIPPED ASSEMBLED.

HEAT SINK

1829903-2

1829904-2

1829905-2

REFERENCE PART NUMBERS:

= 4.2 HIGH - PCI

= 6.5 HIGH - SAN

= 13.5 HIGH - NETWORKING

DIMENSION APPLIES PRIOR TO INSERTION OF

SFP MODULE.

4. MATES WITH SFP MSA COMPLIANT TRANSCEIVERS.

5. SEE COMPONENT DRAWINGS FOR COMPONENT DIMENSIONS

AND INFORMATION.

HEAT SINK

MATERIAL AND STRUCTURE FOR CAGE ASSEMBLY

COPPER ALLOY(TOP CAGE

&BOTTOM

CAGE 2 PIEPCE STRUCTURE)

MATERIAL AND STRUCTURE FOR CAGE ASSEMBLY

STAINLESS STEEL(ONE PIECE DESIGN),NICKLE OVER ALL,

NON-PLATED EDGES PERMISSIBLE.

OBSOLETE

CAGE ASSEMBLY

REFERENCE PART NUMBER

1367643-1 FOR 1367645-1/2/3

2227316-1 FOR 1367645-4/5/6

22.7 MAX

15.7 MAX

13.4 MAX

22.7 MAX

15.7 MAX

13.4 MAX

NETWORKING

SAN

PCI

SAN

PCI

APPLICATION

06FEB06

NAME

1367645-6

1367645-5

1367645-4

1367645-3

1367645-2

1367645-1

PART NUMBER

TE Connectivity

NETWORKING

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

CHK

DIMENSIONS:

D.E.STAHL

E.J.BRIGHT

VIEW SHOWN ASSEMBLED

SCALE

3:1

MATERIAL

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

APVD

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

PRODUCT SPEC

E.J.BRIGHT

APPLICATION SPEC

108-1950

114-13178

SIZE

1471-9 (3/13)

WEIGHT

Customer Drawing

00779

CAGE CODE

KIT ASSEMBLY, PRESS FIT,

DWDM SFP

DRAWING NO

RESTRICTED TO

1367645

SCALE

4:1

SHEET

REV

1367645
