2103245-5: DescriptionInner Housing, Split Hdr, Key E, HVA280; CategoryThe connector; File Size147KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

2103245-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2103245-5	-	-	View	Buy Now

2103245-5 Overview

Inner Housing, Split Hdr, Key E, HVA280

2103245-5 Parametric

Parameter Name	Attribute value
Connector type	Female terminal housing
Connector System	Wire to board, wire to wire, wire to device
Sealable	yes
Hybrid connector	no
Main locking features	on the terminal
strain relief	no
Number of Positions	2
Rows	1
Nominal Voltage Structure (V)	12, 24, 42, 48, 80, 90, 125, 240, 500, 550, 600
Operating voltage (VDC)	600
color	orange color
Cable exit angle	180°
Main material	PA GF
Width of docking male end	2.8 mm [ .11 in ]
Installation features	Without
Terminal position guarantee	no
polarization	yes
Centerline (Pitch)	10.4 mm [ .409 in ]
width	32.4 mm [ 1.2756 in ]
high	12.6 mm [ 0.496 in ]
length	22.4 mm [ .8819 in ]
Working group temperature range	-40 – 125 °C [ -40 – 257 °F ]
Circuit Application	Signal
protection level	IP6K9K
UL flammability rating	UL 94-HB
Able to ensure connector position	no
Repairable	no

Preview

Download Datasheet

View All

8

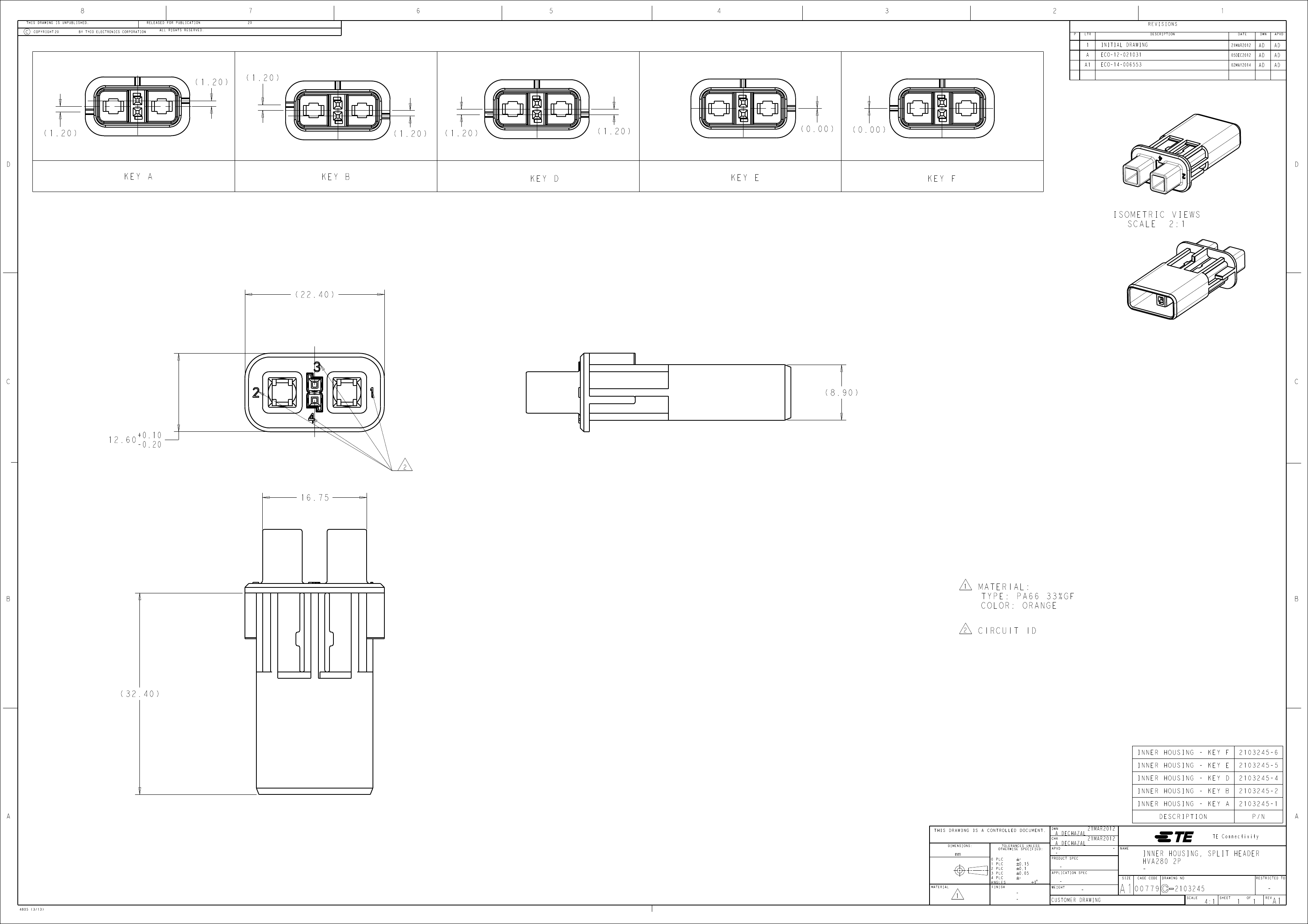

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY TYCO ELECTRONICS CORPORATION

7

20

6

5

4

3

2

REVISIONS

P

LTR

DESCRIPTION

1

DATE

DWN

APVD

C

COPYRIGHT

20

1

A

A1

INITIAL DRAWING

ECO-12-021031

ECO-14-006553

21MAR2012

05DEC2012

02MAY2014

AD

( 1.20 )

D

( 1.20 )

( 0.00 )

D

KEY A

KEY B

KEY D

KEY E

KEY F

ISOMETRIC VIEWS

SCALE

2:1

( 22.40 )

C

( 8.90 )

C

12.60

+0.10

-0.20

2

16.75

1

B

MATERIAL:

TYPE: PA66 33%GF

COLOR: ORANGE

CIRCUIT ID

B

2

( 32.40 )

INNER HOUSING - KEY F

INNER HOUSING - KEY E

INNER HOUSING - KEY D

INNER HOUSING - KEY B

INNER HOUSING - KEY A

2103245-6

2103245-5

2103245-4

2103245-2

2103245-1

P/N

A

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

DESCRIPTION

A DECHAZAL

-

21MAR2012

-

NAME

A

TE Connectivity

mm

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

0.15

0.1

0.05

-

PRODUCT SPEC

APPLICATION SPEC

-

1 $

1

-

4805 (3/13)

-

WEIGHT

-

CUSTOMER DRAWING

A1

00779

SIZE

CAGE CODE

INNER HOUSING, SPLIT HEADER

HVA280 2P

-

DRAWING NO

RESTRICTED TO

2103245

SCALE

4:1

SHEET

1

OF

1

REV

-

A1
