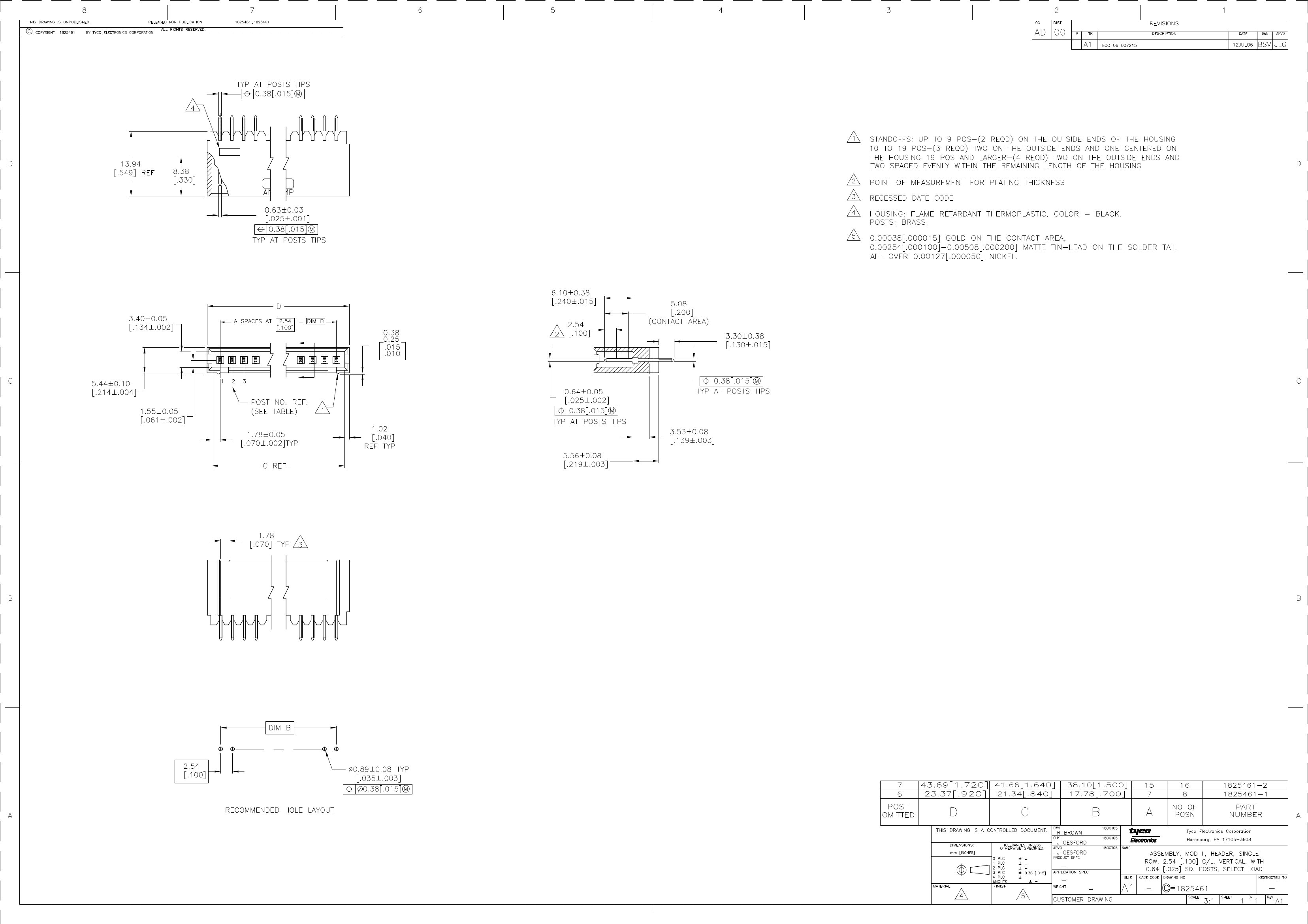

MOD II Shr S/R Vert, Sel Load, Lead-Free
| Parameter Name | Attribute value |
| PCB Connector Component Types | PCB mounting header |
| Sealable | no |
| Connectors and terminals terminate to | A printed circuit board |
| Connector type | with hood |
| sealing ring | Without |
| stabilizing device | Without |
| plate support | Without |
| stress relief | Without |
| Connector terminal load status | selective loading |
| PCB mounting direction | vertical |
| Number of Positions | 8 |
| Rows | 1 |
| keying | no |
| Medium pressure resistance | 750 V |
| Insulation resistance (MΩ) | 5000 |
| Cylinder size | .64 mm [ .025 in ] |
| Terminal base material | brass |
| PCB terminal termination area plating materials | tin lead |
| Solder tail terminal plating material surface coating | matte |
| Terminal base material | nickel |
| Terminal protection | with |
| Terminal shape | square |
| Terminal type | Pin |
| Contact Current Rating (Max) (A) | 3 |
| Terminal contact plating material | gold |
| Terminal protection type | with hood |
| PCB Termination Methods | Through Hole - Solder |
| Termination cylinder length | 3.3 mm [ .13 in ] |
| Terminal plating thickness | 2.54 – 5.08 µm [ 100 – 200 µin ] |
| Terminal plating materials | matte tin lead |
| PCB installation and fixation | Without |
| Panel mount features | Without |
| Engage connector latch | Without |
| PCB installation method | Through hole soldering |
| Joint alignment type | polarization |
| joint alignment | with |
| Centerline (Pitch) | 2.54 mm [ .1 in ] |
| Shell material | thermoplastic |
| Shell color | black |
| Hooded end dimensions | 1.78 mm [ .07 in ] |
| high | 17.24 mm [ .548 in ] |
| PCB thickness (recommended) | 1.4 mm [ .055 in ] |
| Joint post length | 6.1 mm [ .2 in ] |
| Working group temperature range (°C) | -65 – 105 |
| High temperature compatible | no |
| High temperature shell | no |
| Applicable to | Match female end |
| High speed serial data connector | no |
| approved standards | CSA, UL |
| UL flammability rating | UL 94V-0 |
| Package quantity | 23 |
| Encapsulation method | box and tube, tube |
| Ignored load location | 6 |
