Features
■
Rugged 3-electrode BUG-less GDT
■
Balanced TRIGARD
®
■
Meets test requirements of GR 974,
■
■
■
■
■
Self-resetting low resistance sneak current
■
■
■
■
protection with Bourns PPTC resistors
Patented Switch-Grade Fail-Short device
Quick response and high energy handling
UL
UL Listing per UL497
Sealed option for harsh environments
®
®
GR 1361, SBC SR 5165 and RUS PE-80
Telcordia Analysis report DA-1547
Test point access option
Ideal for high-speed networks in high-
exposure environments
Solid brass, gold-plated pins

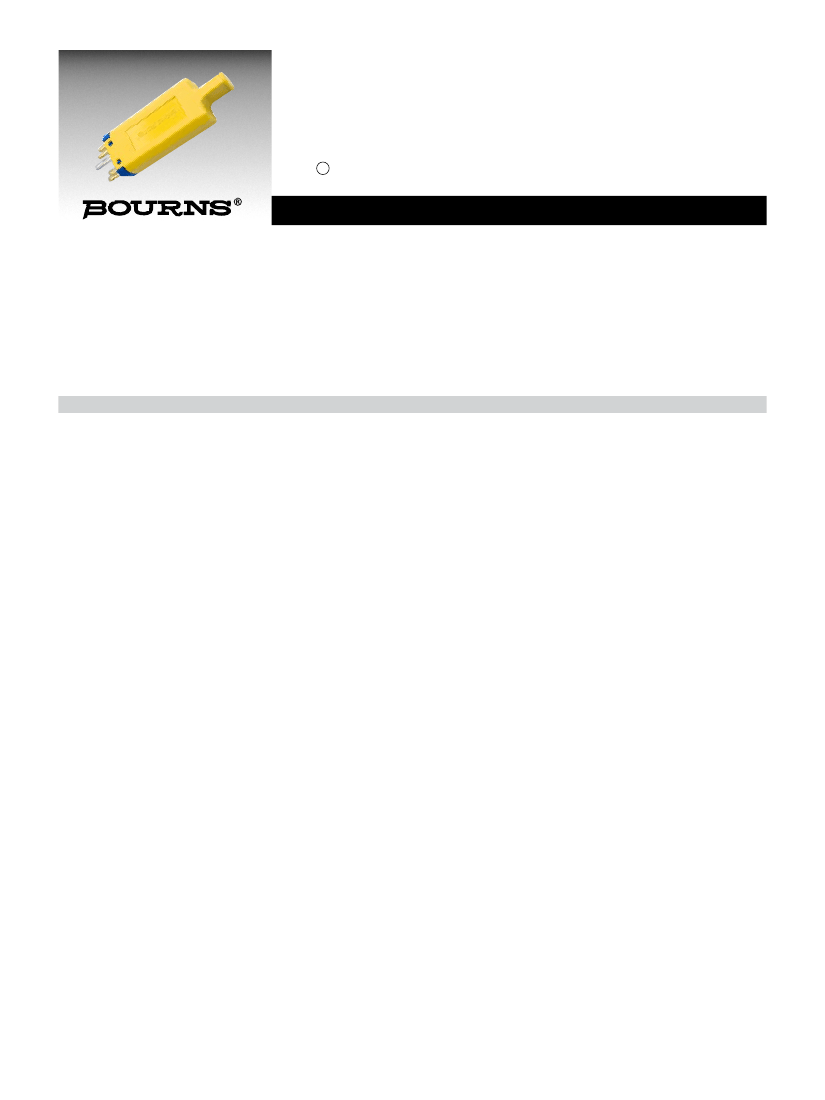

2440 Series 5-Pin Surge Protector
Bourns
®
5-Pin Model 2440 series is a new generation of Bourns
®
telecommunications protectors for superior performance and long life.
The 2440 Series protector provides highly reliable overvoltage and self-resetting sneak current protection for copper pair voice-band
and high speed data circuits. Bourns’ high-efficiency balanced Gas Discharge Tube (GDT) is UL approved for use without a Back-Up
Gap (BUG). Its Switch-Grade Fail-Short mechanism ensures superior thermal protection with fast acting, highly reliable response to
thermal overload conditions. This combined technology provides lower capacitance, higher reliability and long life. Bourns
®
PPTC
Resistors are used for sneak current protection, providing reliable and self-resetting performance with less than four ohms of resistance.
Bourns
®
2440 protectors can be used universally for broadband voice and data circuits including ADSL, ADSL2+, VDSL, VDSL2 and
high-speed ethernet. The 2440 Series is an innovative, reliable and effective choice for 5-pin protection of copper pair circuits.
Characteristics
Tested per UL 497, CSA C22.2, Telcordia GR 974, 1361 and SBC SR 5165.
DC Breakdown ...................................................................................................................................... 280-420 V
AC Breakdown @ 60 Hz ....................................................................................................................... 280-420 V
Impulse Breakdown
100 V/μs ........................................................................................................................................... 625 V
1000 V/μs ......................................................................................................................................... 875 V
Insulation Resistance @ 100 Vdc ......................................................................................................... > 1 GΩ
Insertion Loss @ 100 MHz .................................................................................................................... Exceeds CAT5
1
Return Loss @ 100 MHz ....................................................................................................................... Exceeds CAT5
1
Capacitance Tip to Ring @ 1 MHz ........................................................................................................ < 1.25 pF typical
Capacitance Tip or Ring to Ground @ 1 MHz ....................................................................................... < 2.50 pF typical
Impulse Reset
2
52 V, 260 mA ................................................................................................................................... < 10 ms
135 V, 200 mA.................................................................................................................................. < 10 ms
150 V, 200 mA.................................................................................................................................. < 150 ms
Impulse Life Characteristics (Tip and Ring to Ground Simultaneously)
10 A, 10/1000
μs
.............................................................................................................................. > 3000 operations
100 A, 10/1000
μs
............................................................................................................................ > 300 operations
300 A, 10/1000
μs
............................................................................................................................ > 100 operations
500 A, 10/1000
μs
............................................................................................................................ > 400 operations
3
2,000 A, 10/250
μs
.......................................................................................................................... > 25 operations
5,000 A, 20/100
μs
........................................................................................................................... > 2 operations
20,000 A, 8/20
μs
............................................................................................................................ > 1 operation
AC Life Characteristics (Tip and Ring to Ground Simultaneously)
0.5 A rms continuous........................................................................................................................ > 30 seconds
1 A rms, 1 second, 600 ft. cable ....................................................................................................... > 60 operations
1 A rms, 1 second, 1 mile cable ....................................................................................................... > 60 operations
10 A rms, 1 second .......................................................................................................................... > 5 operations
65 A rms, 11 cycles .......................................................................................................................... > 1 operation
3
120 A rms, 0.1 second ..................................................................................................................... 1 operation
High Current Capability and Thermal Operation (T/R to Ground) ......................................................... > 30 Arms, simultaneously
Storage and Operating Temperature .................................................................................................... -55 to +85 °C
Sneak Current Characteristics
Resistance (No Heat Coil Inductance) ............................................................................................. < 4 ohms
Transition Current @ -40 °C (800 mA), +20 ° C (540 mA), +65 °C (300 mA) ....................................... < 210 seconds
Rated Current @ -40 °C (100 mA), +20 ° C (100 mA), +65 °C (100 mA) ............................................. > 3 hours
Impulse Life 10 x 1000
μs
@ -40 °C, +20 ° C, +65 °C .......................................................................... 25 A ELTGS
Telcordia analyzed for controlled (non-sealed) and uncontrolled high exposure (sealed) environments per GR 974 and SBC SR 5165.
Please refer to Telcordia Analysis Report DA-1547 Volumes 1 and 2.
Notes:
1
Tested according to Category 5 requirements.
2
Network applied.
3
Per Rus PE 80.
Line to Line voltage is approximately 1.8 to 2 times the stated Line to Ground breakdown voltage.
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
