LCD MODULE
PRODUCT
MODEL NO.
SUPPLIER
DATE
:
LCD MODULE
:
TFT240320-260-E
TFT240320-260-E
Version : 1.3
May 10, 2010
:
TRULY SEMICONDUCTORS LTD.
:
May 10, 2010
abcdef
abcdef
CERT. No.
QAC0946535
(ISO9001)
CERT. No.
HKG002005
(ISO14001)
SPECIFICATION
Revision: 1.3
TFT240320-260-E
This module uses ROHS material
If there is no special request from the customer, TRULY SEMICONDUCTORS LTD. will not reserve the tooling
of the product under the following conditions:
1.There is no response from the customer in two years after TRULY SEMICONDUCTORS LTD. submit the samples.
2.There is no order in two years after the latest mass production.
And correlated data (including quality records) will be reserved for one year more after tooling is discarded.
TRULY SEMICONDUCTORS LTD:
Quality Assurance Department:
Approved by:
Technical Department:
CUSTOMER:
Approved by:
TRULY SEMICONDUCTORS LTD.
TRULY CONFIDENTIAL
P.1
LCD MODULE
TFT240320-260-E
Version : 1.3
May 10, 2010
n

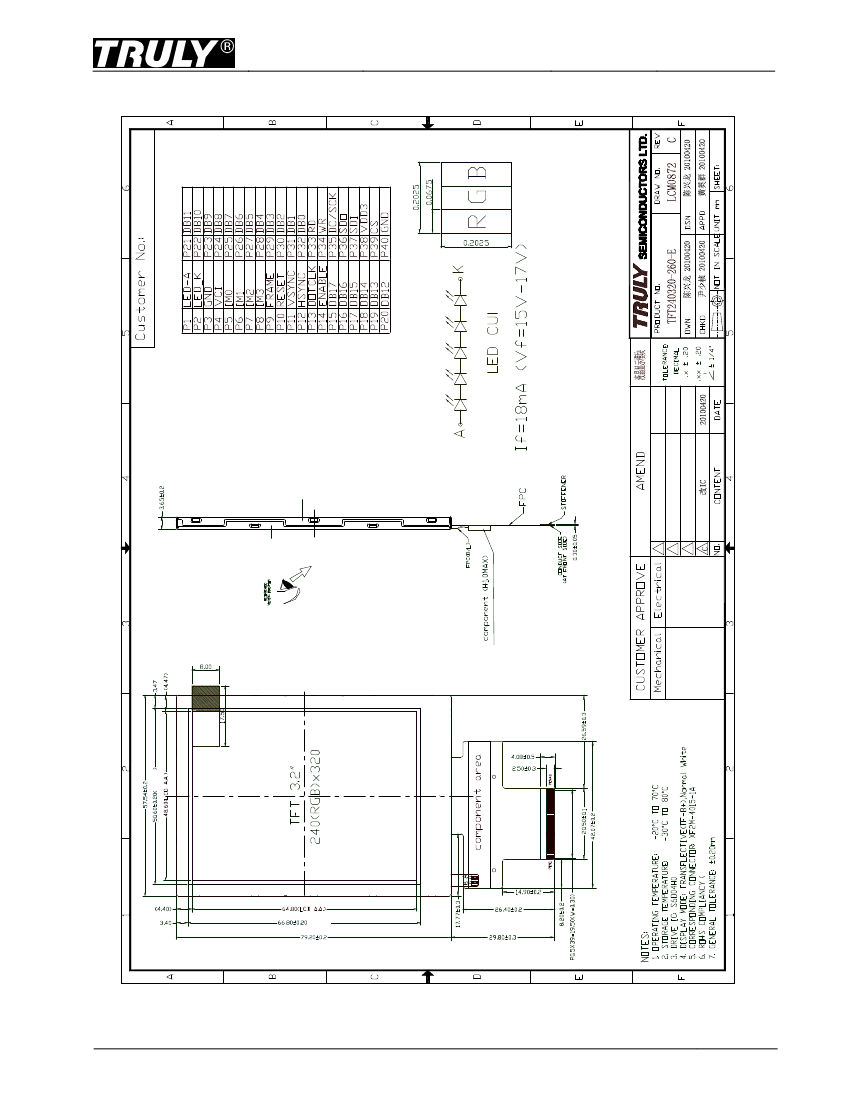

GENERAL INFORMATION
Item
LCD type
Recommended Viewing Direction
Module area (W
´
H
´T)
Viewing area (W´H)
Active area (W´H)
Number of Dots
Pixel pitch (W
´
H)
Driver IC
Interface Type
Input voltage
Module Power consumption
Backlight Type
Contents
TFT/TRANSFLECTIVE
12:00
57.54×79.20×3.65
50.60×66.80
48.60×64.80
240(RGB)×320
0.2025×0.2025
S6D04H0
System parallel interface/RGB interface
2.8
351
LED
Unit
/
O’Clock
mm
3
mm
2
mm
2
/
mm
2
/
/
V
mw
/
TRULY SEMICONDUCTORS LTD.
TRULY CONFIDENTIAL
P.4
