Body Features: Connector Profile Standard | Cable Exit Angle 180° | Configuration Features: Number of Rows 2 | Number of Positions 6 | Contact Features: Contact Retention Within Housing With | Contact Type Socket | Dimensions: Row-to-Row Spacing 21 MM | Connector Height 1.654 INCH | Connector Height 42 MM | Product Width 38.75 MM | Product Length 84 MM | Product Length 3.307 INCH | Product Width 1.526 INCH | Row-to-Row Spacing .827 INCH | Panel Thickness (Recommended) 1.5 – 1.78 MM | Panel Thickness (Rec
TE Connectivity’s (TE) new FORGE drawer connectors are modular
power interconnects for designers of power systems and electrical
hardware, including data communications applications.
Engineers often have difficulty finding exactly the right housing and
contact type for power connect applications. The FORGE drawer
line’s modular tooling platform provides a wide variety of different
configuration possibilities. A single housing can have up to 10 modules
with the flexibility to use one of five different contact types in each
module. This flexibility enables customers to get a perfect fit for
their application every time, without having to compromise by using
housings that are not a match, and without the cost and lead-times
associated with tooling new housings every time a new configuration is
needed.
Applications:
•
•
•
•
Data centers
Industrial
Energy
Medical
te.com/products/FORGEdrawer
DATA AND DEVICES
/// FORGE DRAWER CONNECTORS
FORGE DRAWER CONNECTORS
Modular Power Interconnects
Mechanical
•
•
•
•
Insertion force (max): 16.8N
Extraction force (max): 10.6N
Operating temperature: -40°C to 105°C
Durability: 250 cycles minimum
Electrical
•
•
•
•
•
•
Current rating: refer to Figure 1 of Product Specification
Temperature rise vs current: 30°C and 50°C maximum T-rise at specified
current
Voltage rating, size #22 signal contacts: 50V AC
Voltage rating, power contacts: 250V AC
Higher voltage configurations available - contact TE for details
Insulation Resistance: 5000 MΩ minimum
Specifications
Application Specification # 114-13299
Product Specification # 108-2323
Key Features

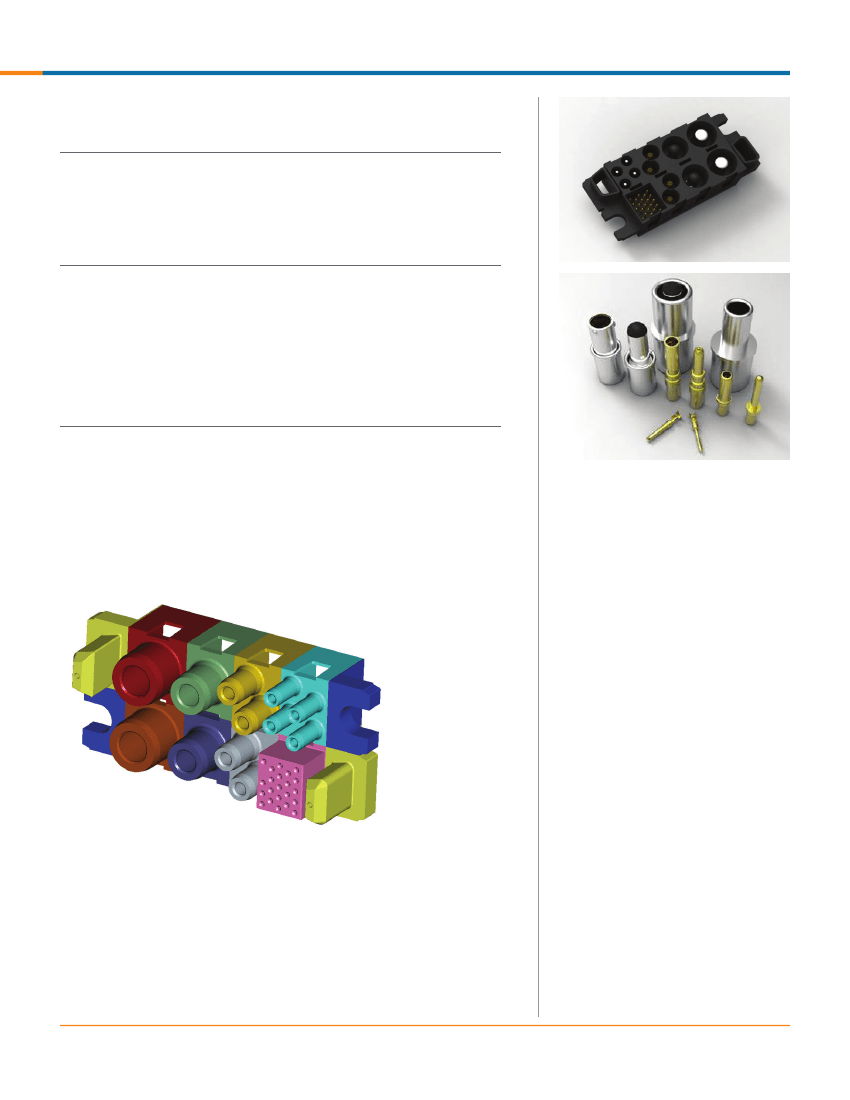

Product example with all five module types
Greater modularity supports evolving
design trends
• TE o ers the broadest portfolio
• Available configurations include
2x2 through 2x5, as well as a 1x5
configuration
• In each module, any one of the five
di erent contact types can be used,
ranging from very high power (size #0)
to signal contacts (size #22)
Cost e
money
• New size #0 and size #4 touch-proof
pin contact designs
• No need to waste time and money on
new tooling or lead time for new parts
Ability to use existing tooling and
contacts makes it easy to use
• Leverage existing infrastructure of
application tooling that is widely
deployed throughout the market
• Compatible -- used with existing and
commonly used contacts
cient design saves time and
DATA AND DEVICES
/// FORGE DRAWER CONNECTORS
PAGE 2
FORGE DRAWER CONNECTORS
Modular Power Interconnects
FORGE Drawer Assembly Configurations
CONFIGURATION
MODULAR
ASSIGNMENT
single row = 0,0,0,0,0
Socket Housing
lower row = 4,4
upper row = 4,4
Pin Housing
Socket Housing
Pin Housing
Socket Housing
Pin Housing
Socket Housing
Pin Housing
Socket Housing
Pin Housing
Socket Housing
Pin Housing
Socket Housing
Pin Housing
Socket Housing
Pin Housing
Socket Housing
Pin Housing
Socket Housing
Pin Housing
Socket Housing
Pin Housing
Socket Housing
Pin Housing
Socket Housing
Pin Housing
Socket Housing
Pin Housing
Socket Housing
Pin Housing
Socket Housing
2212284-1
2212243-1
2212245-1
2212254-1
2212256-1
2212174-1
2212173-1
2212305-1
2212307-1
2212309-1
2212311-1
2212320-1
2212327-1
2212290-1
2212292-1
2212367-1
2212369-1
2212172-1
2212171-1
2212329-1
2212331-1
2212250-1
2212252-1
2212339-1
2212341-1
2212170-1
2212169-1
2212293-1
2212295-1
2212301-1
2212303-1
TYPE
Pin Housing
1x5
PART
NUMBER
2212282-1
Contacts
SIZE
Size 0
TYPE
Pin
DESCRIPTION
Standard, Crimp
Termination
Probe-proof, Crimp
Termination
Standard, Crimp
Termination
Standard, Crimp
Termination
Post-Mate, Crimp
Termination
Probe-proof, Crimp
Termination
Standard, Crimp
Termination
.125 POWERBAND
Pin, Standard
.125 POWERBAND
Pin, Pre-Mate
.125 POWERBAND
Socket
Crimp, Standard
PART
NUMBER
1766811-1
Size 0
Pin
2212374-1
2x2
Size 0
Socket
6648405-1
2x3
lower row = 0,0,0
upper row = 0,0,0
Size 4
Pin
1766232-1
2x3
lower row = 4,12,22
upper row = 4,12,12
Size 4
Pin
2212216-1
Size 4
Pin
2212372-1
2x3
lower row = 0,0,22
upper row = 0,0,22
Size 4
Socket
6648434-1
2x3
lower row = 4,4,4
upper row = 4,4,4
Size 8
Pin
213840-8
2x4
lower row = 0,4,4,22
upper row = 0,4,4,12
Size 8
Pin
1-213840-0
Size 8
Socket
213843-7
2x4
lower row = 4,22,4,4
upper row = 4,22,4,4
Size 12
Pin
1766193-1
2x4
lower row = 4,4,4,12
upper row = 4,4,4,12
Size 12
Pin
Crimp, Pre-Mate
1766195-1
2x5
lower row = 0,0,0,4,8
upper row = 0,0,0,4,4
Size 12
Pin
Crimp, Post-Mate
1766196-1
Size 12
Socket
Crimp
6648318-1
2x5
lower row = 0,0,0,4,12
upper row = 0,0,0,4,4
Size 12
Socket
Hot-Plug Crimp
HDP-22 crimp-snap
pin
HDP-22 crimp-snap
socket
1648384-1
2x5
lower row = 0,4,4,8,12
upper row = 0,4,4,8,12
Size 22
Pin
1658670-2
2x5
lower row = 0,4,8,12,22
upper row = 0,4,8,12,22
Size 22
Socket
1658686-2
2x5
lower row = 0,0,0,4,4
upper row = 0,0,0,4,4
Contact TE with requests for other housing configurations.
2x5
lower row = 0,0,22,4,4
upper row = 0,0,22,4,4
2x5
lower row = 0,0,8,8,22
upper row = 0,0,8,8,22
DATA AND DEVICES
/// FORGE DRAWER CONNECTORS
PAGE 3
Associated Content
2-Piece Power Connectors Quick Reference Guide
(Doc
# 4-17773458-1)
Bus Bar Connectivity Quick Reference Guide
(Doc
# 1-1773701-9)
For More Information
TE Technical Support Center
USA:
1.800.522.6752
Canada:
1 .905.475.6222
Mexico:
52.0.55.1106.0800
Latin/S. America: 54.0.11.4733.2200
Germany:
49.0.6251.133.1999
UK:
44.0.800.267666
France:
33.0.1.3420.8686
Netherlands:
31.0.73.6246.999
China:
86.0.400.820.6015
te.com/products/FORGEdrawer
FORGE, POWERBAND, TE Connectivity, TE, TE Connectivity (logo) and Every Connection Counts are trademarks.
All other logos, products and/or company names referred to herein might be trademarks of their respective owners.
The information given herein, including drawings, illustrations and schematics which are intended for illustration purposes only, is believed to be reliable.
However, TE Connectivity makes no warranties as to its accuracy or completeness and disclaims any liability in connection with its use. TE Connectivity‘s
obligations shall only be as set forth in TE Connectivity‘s Standard Terms and Conditions of Sale for this product and in no case will TE Connectivity be liable
for any incidental, indirect or consequential damages arising out of the sale, resale, use or misuse of the product. Users of TE Connectivity products should
make their own evaluation to determine the suitability of each such product for the specific application.
