84614-3: Description(84614-3) 0.8FH,P05H.5,080,30/SP,TU; CategoryThe connector The connector; File Size421KB，4 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

84614-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	84614-3	-	-	View	Buy Now

84614-3 Overview

(84614-3) 0.8FH,P05H.5,080,30/SP,TU

84614-3 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it Rohs certified?	incompatible
Objectid	2097092837
Reach Compliance Code	compliant
YTEOL	8.7
Board mount options	PEG
body width	0.236 inch
subject depth	0.181 inch
body length	1.488 inch
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	CENTRONIC
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.8896 N
Insulation resistance	500000000 Ω
Insulator color	NATURAL
JESD-609 code	e0
MIL compliance	NO
Plug contact pitch	0.031 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.3942 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	80
Evacuation force-minimum value	.0973 N

Preview

Download Datasheet

View All

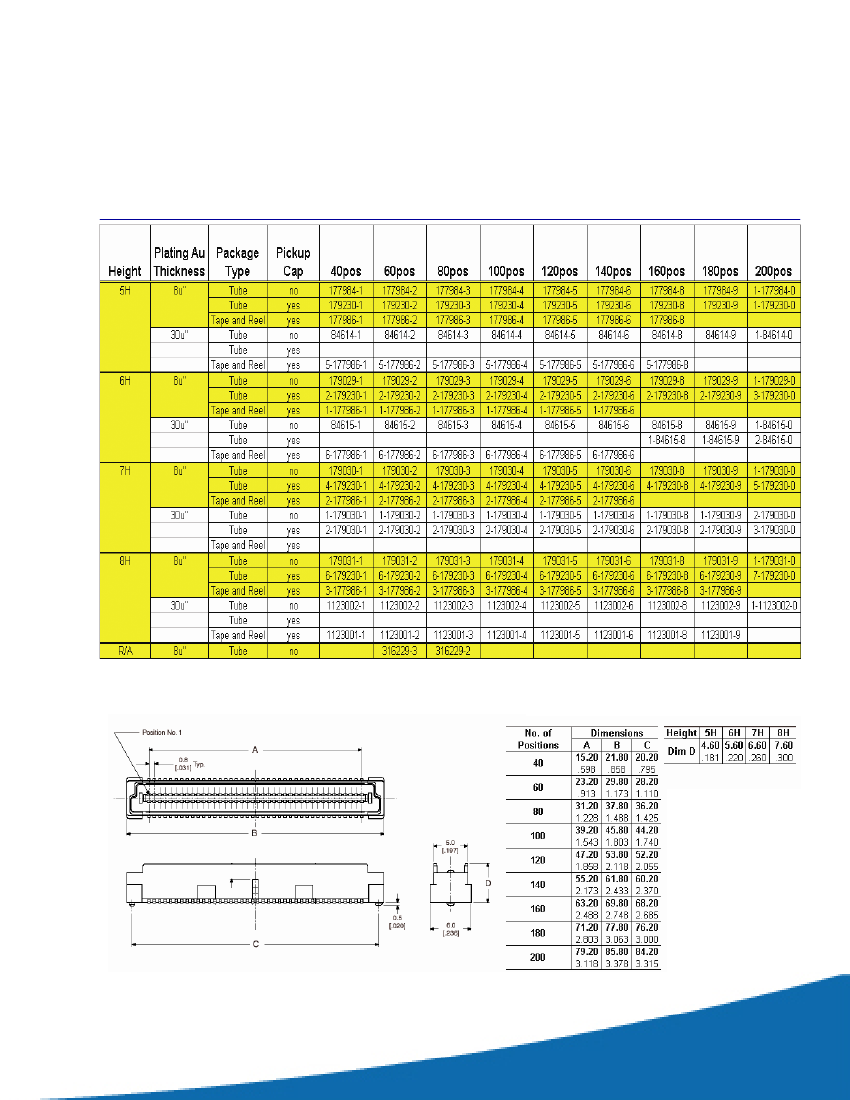

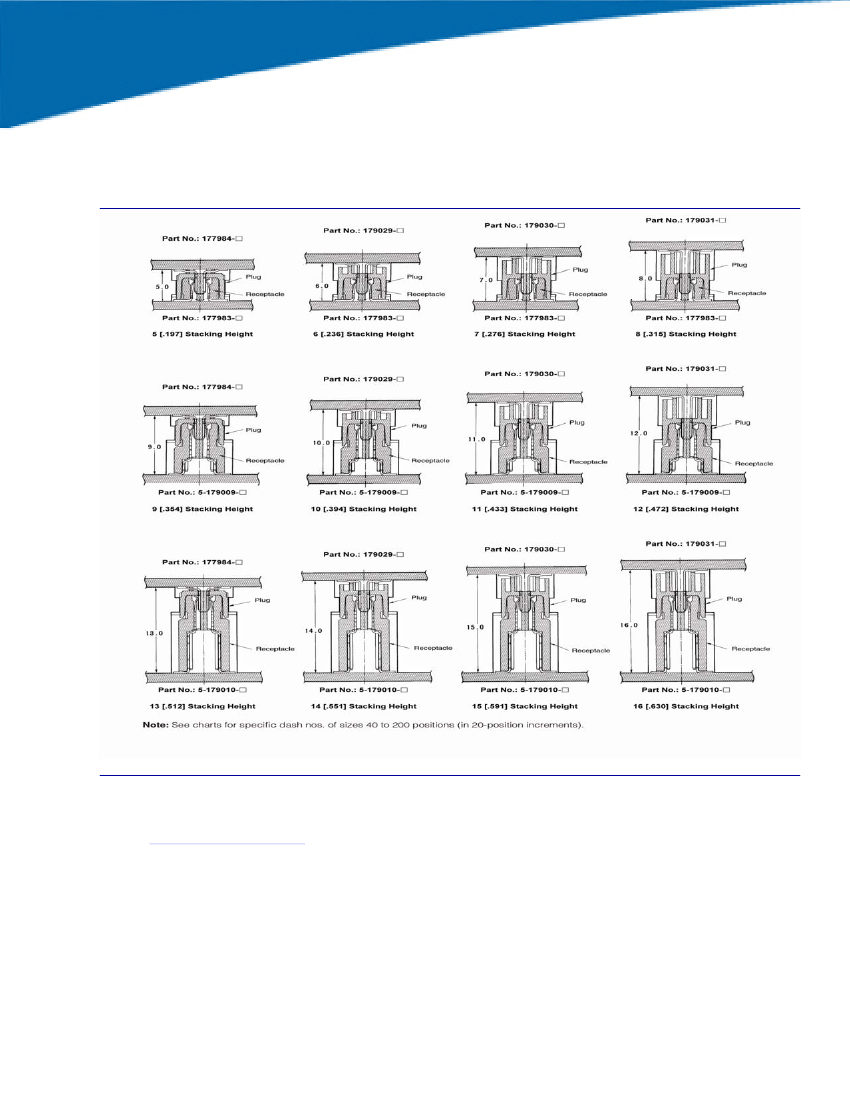

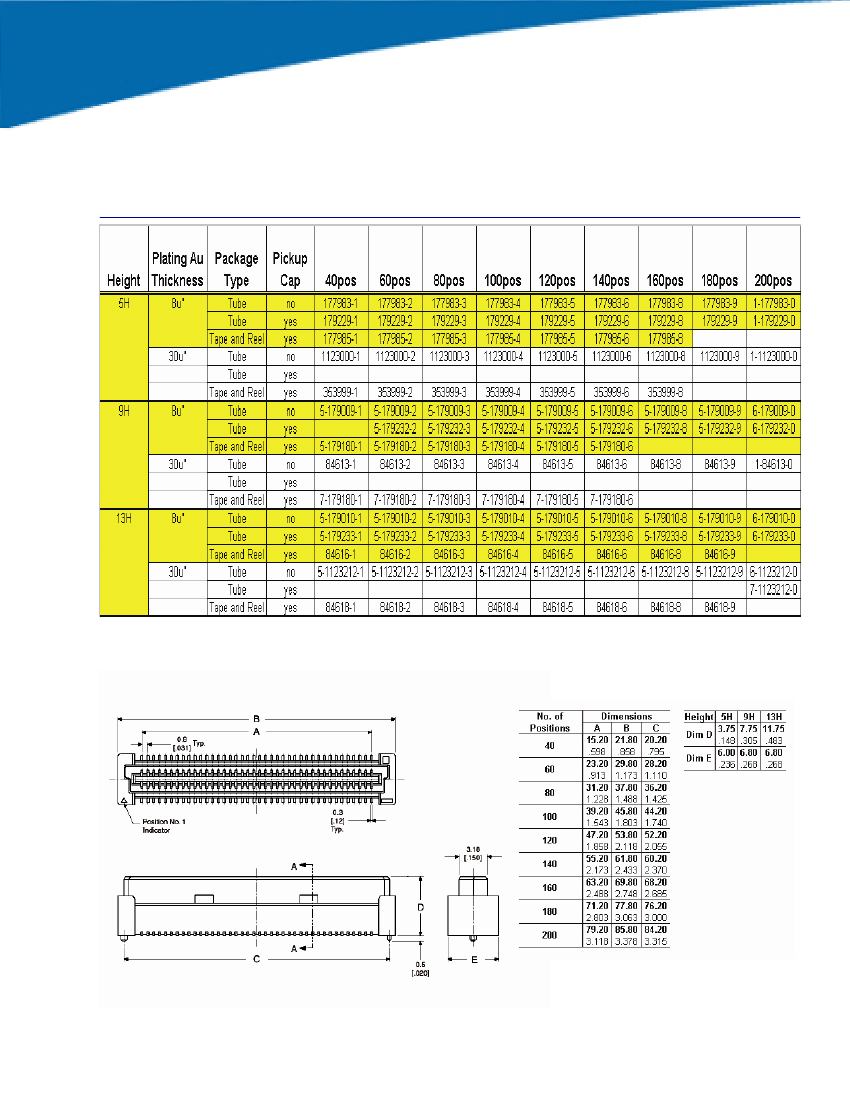

.8mm Free Height (FH)

Connector System

Now offering 30u” Gold Plating Options

and Right Angle Plugs

DESCRIPTION

The popular .8mm FH connector system is

now available with 30u” Gold Plating. In

addition, a right angle plug in 60 and 80

positions is also available. The right angle

plug product is a thru-hole, while the balance

of the product line remains surface mount.

APPLICATION

The 30u” Gold product is intended for stacking

applications in high end Computer,

Telecommunications, Industrial, and Mil/Aero

applications. The right angle plug is ideal for

test cards and card extenders, and mates to

standard vertical receptacles.

KEY FEATURES

• Available Position Sizes: 40 thru 200

positions in increments of 20 positions

• Stack Height Options: 5mm thru 16mm

in increments of 1mm

• Tube, Tube with Pickup Cap, and Tape

and Reel Packaging Options

• Polarized locating posts

• 8u” Gold, and 30u” Gold plating options

• RoHS Compliant numbers available now

• Optional Solder Peg (holddown)

• Right Angle Plugs in 60 and 80 positions
