MEAN WELL

SWITCHING POWER SUPPLY

ISO-9001 CERTIFIED MANUFACTURER

.LOW

COST, HIGH RELIABILITY

.105

C OUTPUT CAPACITOR

.INTERNATIONAL

AC INPUT RANGE

.HIGH

EFFICIENCY, LOW WORKING TEMPERATURE

.SOFT-START

CIRCUIT, LIMITING AC SURGE CURRENT

.SHORT

CIRCUIT, OVERLOAD, OVER VOLTAGE PROTECTED

MODEL

SPECIFICATION

DC OUTPUT VOLTAGE

OUTPUT V. TOLERANCE

OUTPUT RATED CURRENT

OUTPUT MIN. CURRENT

OUTPUT MAX. CURRENT

RIPPLE & NOISE p-p

LINE REGULATION

LOAD REGULATION

RATED OUTPUT POWER

MAXIMUM OUTPUT POWER

EFFICIENCY

DC VOLTAGE ADJ.

INPUT VOLTAGE RANGE

AC CURRENT

INRUSH CURRENT

LEAKAGE CURRENT

OVERLOAD PROTECTION

OVER VOLTAGE PROTECTION

TEMP. COEFFICIENT

SETUP, RISE, HOLD UP TIME

VIBRATION

WITHSTAND VOLTAGE

ISOLATION RESISTANCE

WORKING TEMP., HUMIDITY

STORAGE TEMP., HUMIDITY

DIMENSION

WEIGHT

SAFETY STANDARDS

EMC STANDARDS

NOTE

PS-65-3.3

3.3V

±3%

12A

15.2A

80mV

±1%

±3%

39.6W

PS-65-5

±3%

12A

13.8A

100mV

±1%

±3%

60W

PS-65-7.5 PS-65-12

7.5V

±3%

9.6A

100mV

±1%

±3%

60W

12V

±2%

5.2A

100mV

±1%

±2%

62.4W

PS-65-

13.5

13.5V

±2%

4.7A

5.4A

100mV

±1%

±2%

63.5W

.COMPACT

SIZE, LIGHT WEIGHT

.100%

FULL LOAD BURN-IN TEST

.BUILT

IN EMI FILTER, LOW RIPPLE NOISE

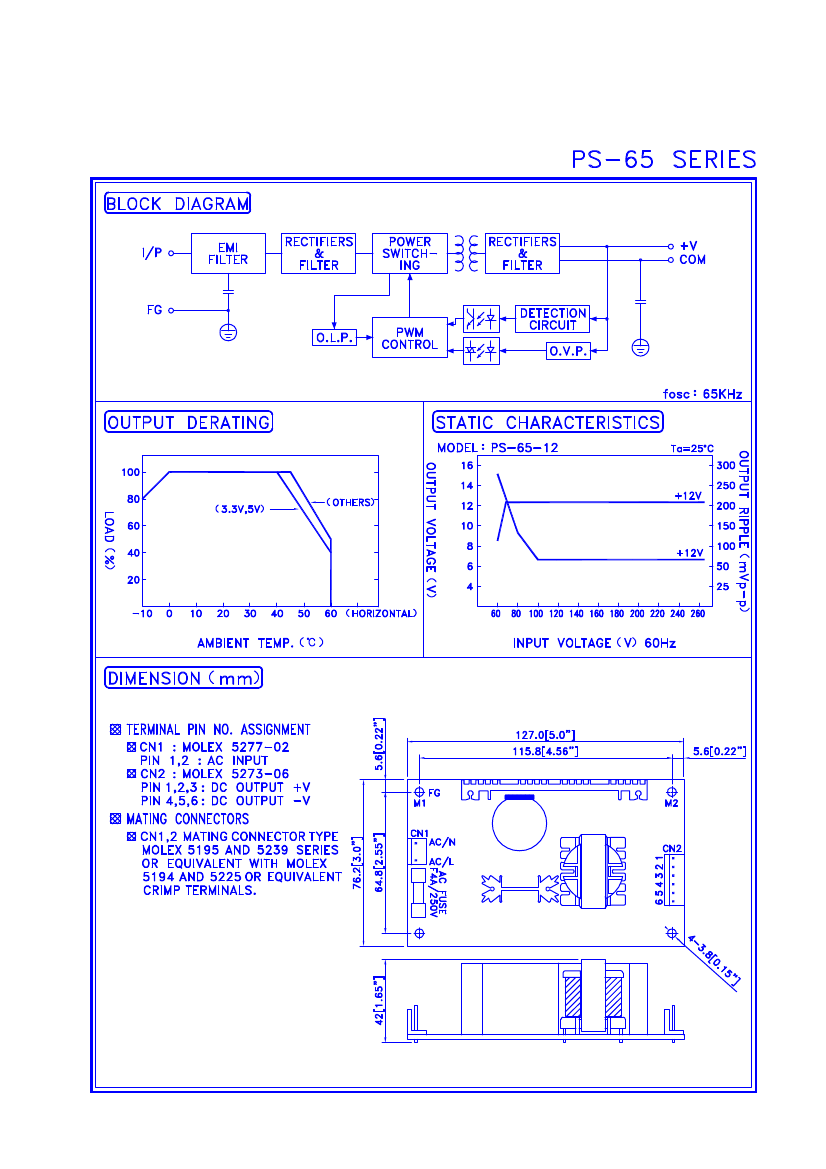

PS-65

SERIES

PS-65-15 PS-65-24 PS-65-27 PS-65-48

15V

±2%

4.2A

4.8A

100mV

±1%

±2%

63W

24V

±2%

2.7A

100mV

±1%

±2%

64.8W

27V

±2%

2.4A

2.7A

100mV

±1%

±2%

64.8W

48V

±2%

1.35A

1.5A

100mV

±1%

±2%

64.8W

RATED OUTPUT POWER FOR CONVECTION; 72W (+3.3V:50W;+5V:69W) WITH 18 CFM MIN. FORCED

AIR

69%

+10,-5%

90~264VAC 47~440Hz ; 120~370VDC

1.5A/115V 0.9A/230V

COLD START 20A/115V 40A/230V

<0.5mA/240VAC

73~105W (3.3V:51~75W)(5V:70~105W) TYPE:PULSING HICCUP SHUTDOWN RESET:AUTO

RECOVERY

115%~135%

±0.04% /

C (0~50

800ms, 20ms, 20ms

10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES

I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms

-10

C~+60

C(REFER TO OUTPUT DERATING CURVE), 20%~90% RH

-20

C~+85

C, 10%~95% RH

127*76.2*42mm (L*W*H) PCB ONLY

0.28Kgs

UL1950, TUV EN60950 APPROVED

CISPR22 (EN55022), IEC1000-4-2,3,4,5 IEC1000-3-2,3 VERIFICATION

76%

79%

80%

1.ALL PARAMETERS ARE SPECIFIED AT 230VAC INPUT, RATED LOAD, 25º

70% RH. AMBIENT.

2.TOLERANCE

GINCLUDE

SET UP TOLERANCE, LINE REGULATION, LOAD REGULATION.

3.RIPPLE & NOISE ARE MEASURED AT 20MHz BY USING A 12" TWISTED PAIR TERMINATED WITH A 0.1uF & 47uF CAPACITOR.

4.LINE REGULATION IS MEASURED FROM LOW LINE TO HIGH LINE AT RATED LOAD.

5.OUTPUT PROVIDE UP TO MAXIMUM CURRENT, BUT RELATED TO MAXIMUM OUTPUT POWER.

6.MOUNTING HOLES M1 AND M2 SHOULD BE GROUNDED FOR EMI PURPOSES.

2002-04-29
