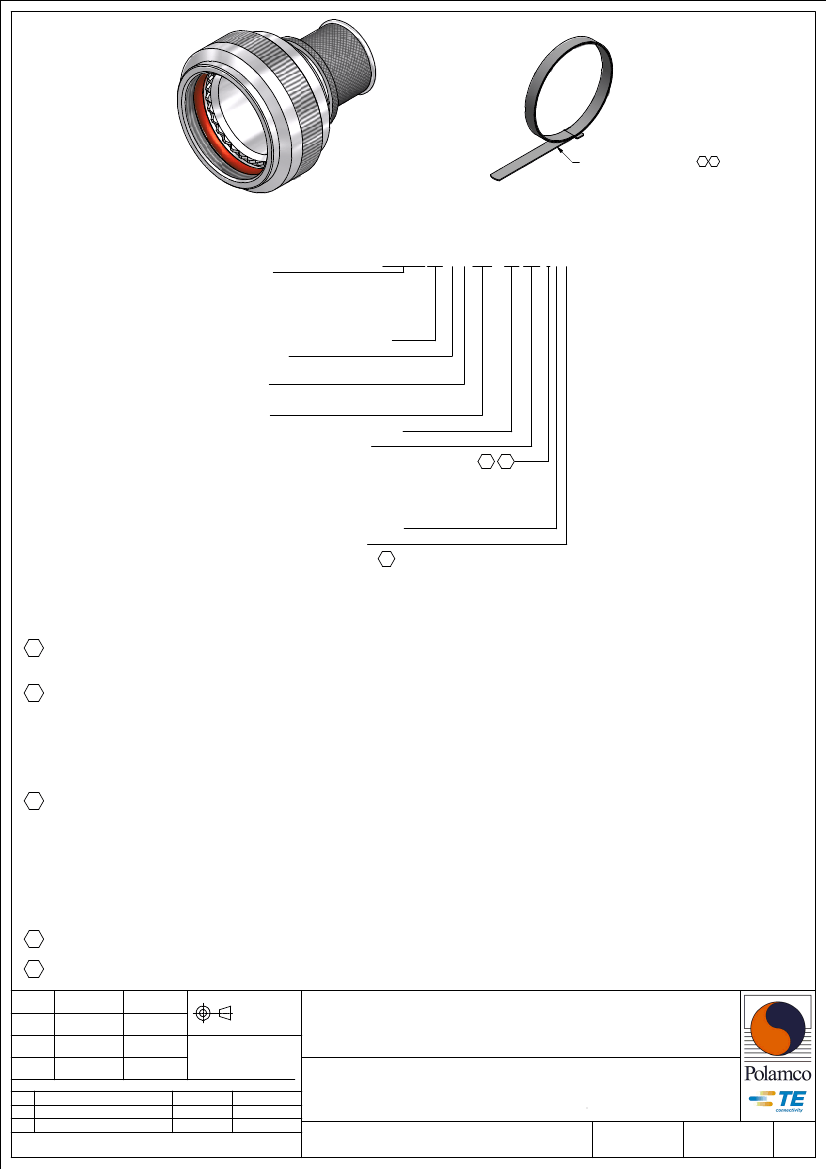

BAND (SUPPLIED FLAT) 3 8
(SEE PART NUMBER BREAKDOWN
FOR OPTIONS)
CODE 40 - BANDING BACKSHELL
SERIES
BNX40AB00-1608 -S
BNX - BAND STRAP NOT INCLUDED
BND - BAND STRAP INCLUDED
(SEE BAND TERMINATION
CONFIGURATION)
CONNECTOR INTERFACE
MATERIAL
REFER TO CH00-0250-016
FINISH
REFER TO CH00-0250-016
ANGLE
ORDER NUMBER (TABLE 1)
ENTRY SIZE (TABLE 2)
BAND TERMINATION CONFIGURATION 3 8
V - ONE STEP STANDARD BAND
W - ONE STEP MICROBAND
U - TWO STEP STANDARD BAND
FOR BNX, LEAVE BLANK
OPTION FIELD SEPARATOR
MODIFICATION CODE
NOTES:
REFER TO CH00-0250-016 2
1. THIS PRODUCT IS DESIGNED TO TERMINATE A BRAIDED CABLE SHIELD BY MEANS
OF A BAND STRAP AND A HEAT SHRINKABLE LIPPED BOOT TO A CONNECTOR.
2. FOR ADDITIONAL DIMENSIONS, ORDERING INFORMATION AND MODIFICATIONS,
SEE CH00-0250-016.
3. SEE DRAWING BND-XXXXX FOR MORE INFORMATION.
4. BACKSHELL TO BE PERMANENTLY MARKED WITH CODE IDENTIFICATION NUMBER AND FULL BASIC
PART NUMBER (e.g. 06090-BND40AB00-1814). BACKSHELL TO BE MARKED WITH "BND" EVEN IF
NO BAND IS ORDERED. THE BAND TERMINATION CONFIGURATION CODE IS FOR ORDERING INFORMATION ONLY
AND IS NOT A PART MARKING REQUIREMENT.
5. ALL ENTRY SIZES ARE SHOWN IN TABLE 2. MAXIMUM ENTRY SIZES ARE SHOWN IN TABLE 1.
IF MAX ENTRY IS EXCEEDED, A 2 PIECE BACKSHELL ASSEMBLY (TYPE 2) IS SUPPLIED.
SEE CH00-0250-016 FOR FURTHER DETAILS.
6. BACKSHELL MATES TO MIL-DTL-38999, SERIES III AND IV, CLASS C, F, K, AND W,
D38999/20, /24, /26, /40, /46 AND /47 CONNECTORS, AND WHEN SO
MATED SHALL PROVIDE A WATER-TIGHT SEAL MEETING THE REQUIREMENTS OF
MIL-C-85049, PARA. 3. 5. 7.
7. THESE DIMENSIONS APPLY IF A SELF-LOCKING COUPLING NUT IS USED
8. V AND U BANDS ARE SUITABLE FOR ENTRY SIZES 03-24, W IS SUITABLE FOR ENTRY SIZES 03-12 ONLY.
CONTACT FACTORY FOR BAND OPTIONS ON LARGER ENTRY SIZES.
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
DATE
15/09/2015
15/09/2015
15/09/2015
15/09/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
BANDING BACKSHELL
ASSY USED ON:
H.SMITH
REVISIONS
LTR
DESCRIPTION
F
REVISED PER ECO-15-010973
G
REVISED PER ECO-15-016545
DATE
15/09/2015
17/11/2015
APPROVED
H.SMITH
H.SMITH
MIL-DTL-38999 SERIES III & IV
TE CONNECTIVITY - POLAMCO LTD RESERVES THE RIGHT TO AMEND THIS DRAWING
AND THE INFORMATION SET FORTH HEREON AT ANY TIME. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
DRAWING NO:
DRAWING REV:
SHT
BND40A
G
1

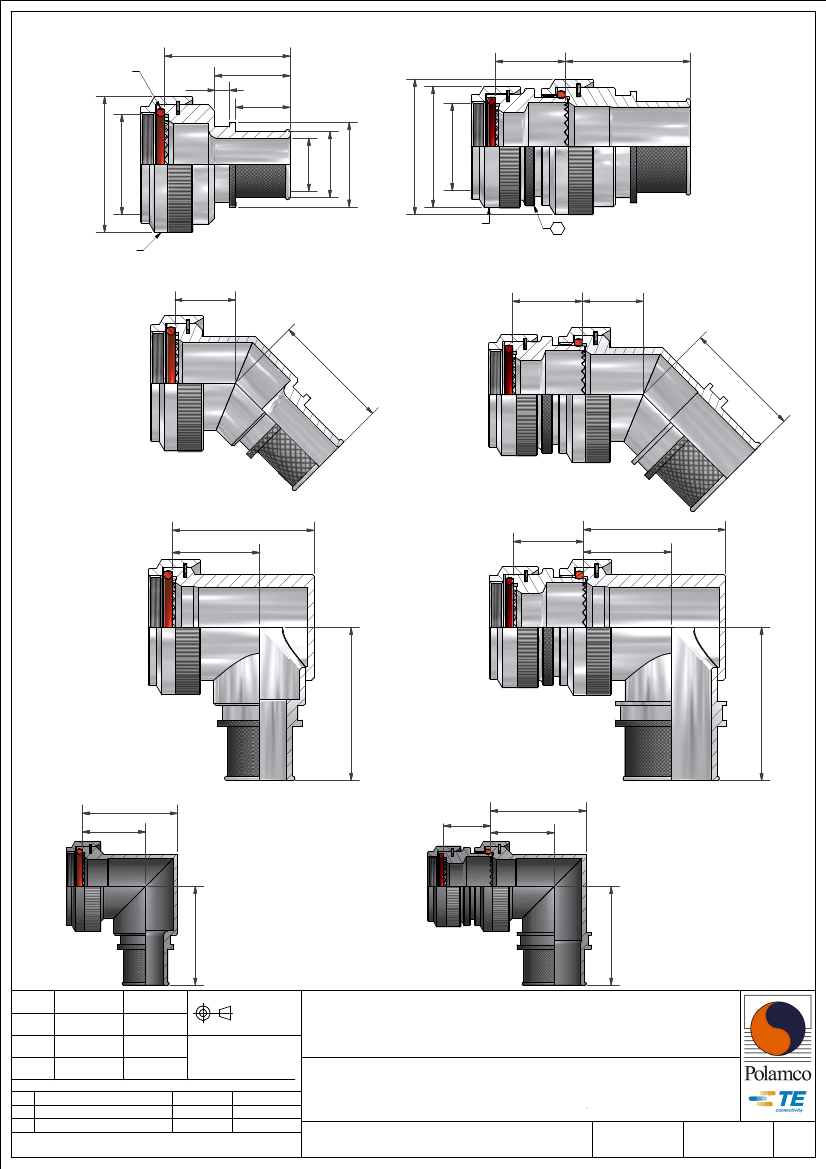

IF MAX ENTRY IS EXCEEDED BACKSHELL
WILL BE SUPPLIED AS TYPE 2
30,00
SILICONE
O-RING
18,00
3,50
13,00
A THREAD
16,80
`
0,50
30,00
ØK
ØS
ØZ
ØY
A THREAD
ØB
ØB
XXXX
PART MARK
HERE
XXXX
5
PART MARK
HERE
STRAIGHT BACKSHELL - TYPE 1
C
STRAIGHT BACKSHELL - TYPE 2
16,80
`
0,50
F
D
G
45° BACKSHELL - TYPE 1
45° BACKSHELL - TYPE 2
W
T
16,80
`
0,50
M
H
E
90° BACKSHELL - TYPE 1
W
T
H
16,80
`
0,50
M
90° BACKSHELL - TYPE 2
E
90° BACKSHELL - TYPE 1
STAINLESS STEEL AND
NICKEL ALUMINIUM BRONZE
3RD ANGLE
PROJECTION
NOT TO
SCALE
J
90° BACKSHELL - TYPE 2
STAINLESS STEEL AND
NICKEL ALUMINIUM BRONZE
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
DATE
15/09/2015
15/09/2015
15/09/2015
15/09/2015
TITLE:
H.SMITH
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
BANDING BACKSHELL
ASSY USED ON:
LTR
F
REVISED PER ECO-15-010973
G
REVISED PER ECO-15-016545
REVISIONS
DESCRIPTION
DATE
15/09/2015
17/11/2015
APPROVED
H.SMITH
H.SMITH
MIL-DTL-38999 SERIES III & IV
TE CONNECTIVITY - POLAMCO LTD RESERVES THE RIGHT TO AMEND THIS DRAWING
AND THE INFORMATION SET FORTH HEREON AT ANY TIME. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
DRAWING NO:
DRAWING REV:
J
SHT
BND40A
G
2

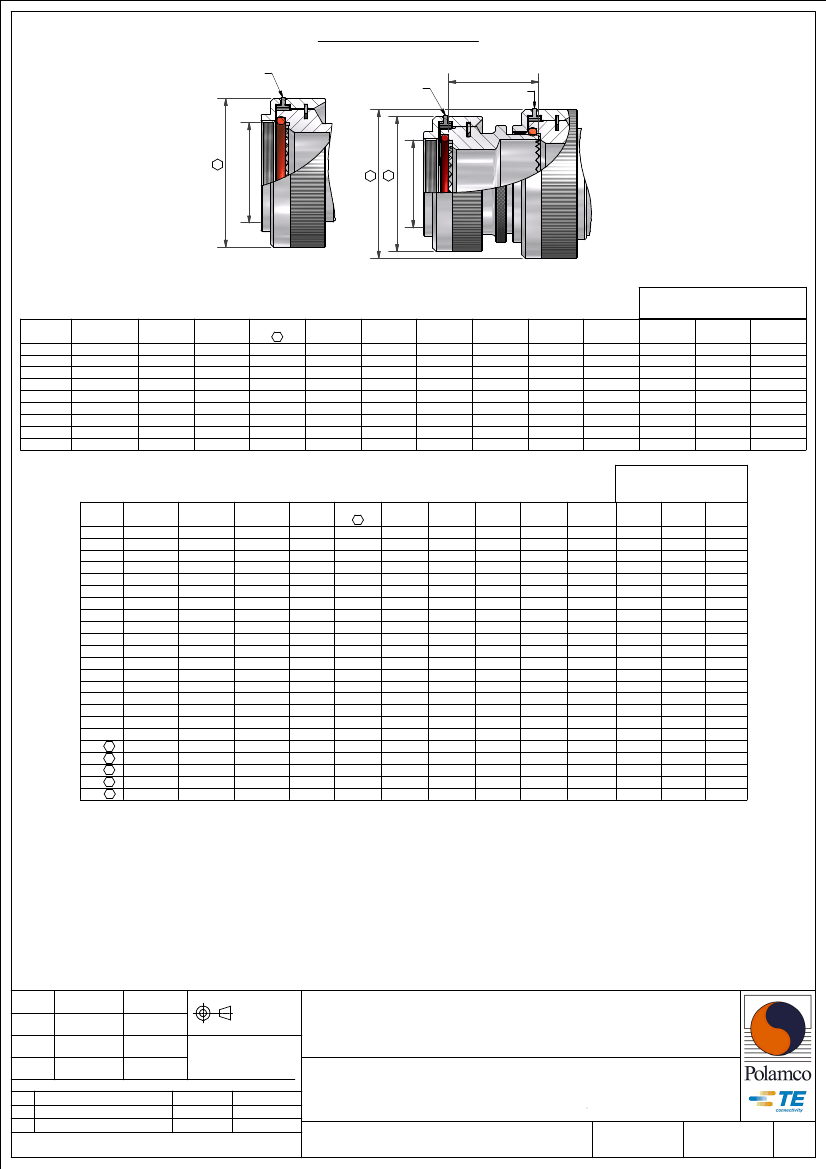

MODIFICATION S
(SELF-LOCKING COUPLING NUT)
SELF-LOCKING
MECHANISM
21,60
`
0,50
SELF-LOCKING
MECHANISM
SELF-LOCKING
MECHANISM
A THREAD
BACKSHELL - TYPE 1
A THREAD
ØB 7
ØK 7
ØB 7
BACKSHELL - TYPE 2
THESE DIMENSIONS APPLY IF
BACKSHELL IS STAINLESS STEEL
OR NICKEL ALUMINIUM BRONZE
TABLE 1
ORDER
NUMBER
08
10
12
14
16
18
20
22
24
SHELL SIZE
A THREAD
COM'L / MIL
9/A
M12 × 1.0
M15 × 1.0
11 / B
M18 × 1.0
13 / C
15 / D
M22 × 1.0
M25 × 1.0
17 / E
19 / F
M28 × 1.0
21 / G
M31 × 1.0
23 / H
M34 × 1.0
25 / J
M37 × 1.0
ØB
MAX
18,0
21,0
24,5
29,0
32,5
35,5
37,0
40,0
43,5
ØB MAX
7
21,5
24,6
28,3
32,4
35,6
38,5
41,7
43,9
47,0
MAX
ENTRY
04
07
09
10
12
14
16
18
20
C
±0,5
12,0
12,5
13,1
13,5
14,5
15,5
16,1
16,5
17,0
D
±0,5
25,1
26,2
26,6
27,5
28,3
28,8
29,7
30,0
30,9
W
±0,5
21,0
24,0
27,0
31,0
34,0
35,0
38,0
42,0
45,0
T
±0,5
14,0
15,5
17,0
19,5
21,0
20,0
21,5
24,0
25,5
E
±0,5
30,0
32,0
33,5
35,4
36,7
38,3
40,0
41,6
43,0
W
±0,5
21,2
24,3
28,3
31,1
34,2
38,5
40,7
43,7
46,4
T
±0,5
16,3
17,2
19,4
21,0
22,8
25,3
26,1
27,6
29,1
E
±0,5
29,0
31,2
33,0
34,9
35,5
37,2
38,7
40,2
44,9
TABLE 2
ENTRY
SIZE
03
04
05
06
07
08
09
10
11
12
13
14
15
16
18
20
22
24
26 8
28 8
30 8
32 8
34 8
THESE DIMENSIONS APPLY IF
BACKSHELL IS STAINLESS STEEL
OR NICKEL ALUMINIUM BRONZE
ØZ
MIN
4,7
6,3
7,9
9,5
11,1
12,7
14,2
15,8
17,4
19,0
20,6
22,2
23,8
25,4
28,6
31,8
35,0
38,1
41,3
44,5
47,6
50,8
54,0
ØS
MAX
7,8
9,4
11,0
12,5
14,1
15,7
17,3
18,8
20,5
22,0
23,6
25,2
26,8
28,4
30,0
34,8
38,0
41,1
44,3
47,5
50,7
53,8
57,0
ØY
MAX
14,0
14,0
15,5
17,2
18,7
20,3
21,9
23,5
25,1
26,7
28,3
29,9
31,5
33,1
36,3
39,5
42,7
45,9
49,1
52,3
55,6
58,5
61,8
ØK
MAX
NA
NA
21,0
21,0
21,0
24,5
24,5
29,0
32,5
32,5
35,5
35,5
37,0
37,0
40,0
43,5
48,5
52,1
56,6
63,0
75,5
75,5
75,5
ØK MAX
7
NA
NA
24,6
24,6
24,6
28,3
28,3
32,4
35,6
35,6
38,5
38,5
41,7
41,7
43,9
47,0
50,0
56,0
61,3
64,5
80,2
80,2
80,2
F
±0,5
NA
NA
12,5
12,5
12,5
13,1
13,1
13,5
14,5
14,5
15,5
15,5
16,1
16,1
16,5
17,0
18,5
21,9
25,7
26,9
29,2
29,2
29,2
G
±0,5
NA
NA
26,2
26,2
26,2
26,6
26,6
27,5
28,3
28,3
28,8
28,8
29,7
29,7
30,0
30,9
31,3
32,8
32,8
33,8
34,4
34,4
34,4
H
±0,5
NA
NA
24,0
24,0
24,0
27,0
27,0
31,0
34,0
34,0
35,0
35,0
38,0
38,0
42,0
45,0
54,5
58,0
62,5
65,5
69,0
72,0
75,5
M
±0,5
NA
NA
15,5
15,5
15,5
17,0
17,0
19,5
21,0
21,0
20,0
20,0
21,5
21,5
24,0
25,5
31,0
33,0
35,0
34,5
36,0
37,5
39,0
J
±0,5
NA
NA
32,0
32,0
32,0
33,5
33,5
35,4
36,7
36,7
38,3
38,3
40,0
40,0
41,6
43,0
45,1
51,1
51,1
54,1
57,4
57,4
57,4
H
±0,5
NA
NA
24,3
24,3
24,3
28,3
28,3
31,1
34,2
34,2
38,5
38,5
40,7
40,7
43,7
46,4
50,0
53,5
58,0
61,0
64,5
67,5
71,0
M
±0,5
NA
NA
17,2
17,2
17,2
19,4
19,4
21,0
22,8
22,8
25,3
25,3
26,1
26,1
27,6
29,1
31,0
33,0
35,0
34,5
36,0
37,5
39,0
J
±0,5
NA
NA
31,2
31,2
31,2
33,0
33,0
34,9
35,5
35,5
37,2
37,2
38,7
38,7
40,2
44,9
45,1
51,1
51,1
54,1
57,4
57,4
57,4
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
DATE
15/09/2015
15/09/2015
15/09/2015
15/09/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
BANDING BACKSHELL
ASSY USED ON:
H.SMITH
LTR
F
REVISED PER ECO-15-010973
G
REVISED PER ECO-15-016545
REVISIONS
DESCRIPTION
DATE
15/09/2015
17/11/2015
APPROVED
H.SMITH
H.SMITH
MIL-DTL-38999 SERIES III & IV
TE CONNECTIVITY - POLAMCO LTD RESERVES THE RIGHT TO AMEND THIS DRAWING
AND THE INFORMATION SET FORTH HEREON AT ANY TIME. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
DRAWING NO:
DRAWING REV:
SHT
BND40A
G
3
