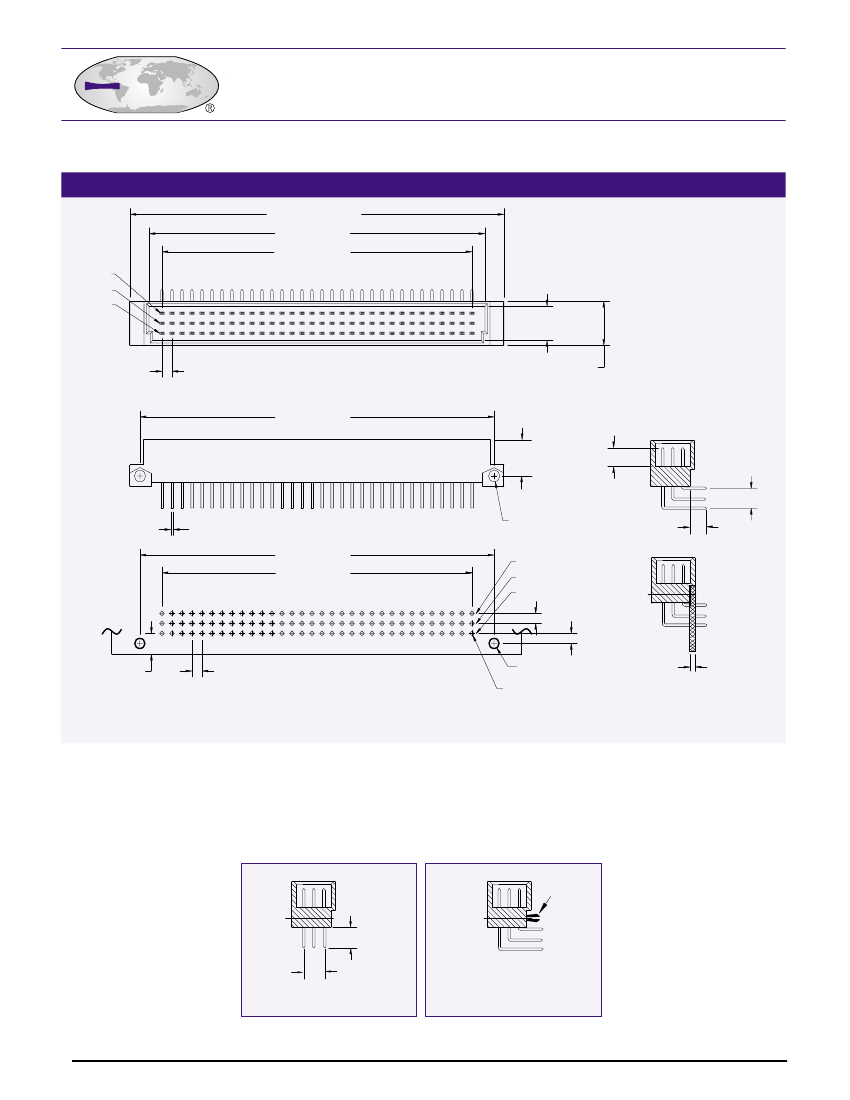

Type C, 96 Positions
Type C, C/2 Male Connectors
DIN 41612
94.00 [3.700] max.
85.2 [3.354]
78.74 [3.100]
1a
1b
1c
8.70 [.343]
2.54 [.100] TYP.
11.10 [.437]
88.90 [3.500]
10.20
[.402]
4.80 [.189]
5.08 [.200]
.64 [.025] sq.
88.90 [3.500]
78.74 [3.100]
Ø 2.50 [.098]
3.00 [.118]
1c
1b
1a
2.54 [.100]
2.54 [.100]
5.30 [.209]
2.54 [.100] TYP.
Ø 2.80 [.110]
Ø1.02 [.040]
1.58 ±.18 [.062]
SIDE VIEW
WITH CARD
Recommended P. C. Board Layout
Dimensions are in mm [inches]
3.5 [.138]
5.08 [.200]
Straight Tail:
-500 Option
Mounting Clips:
-MC Option
WWW.ECSCONN.COM

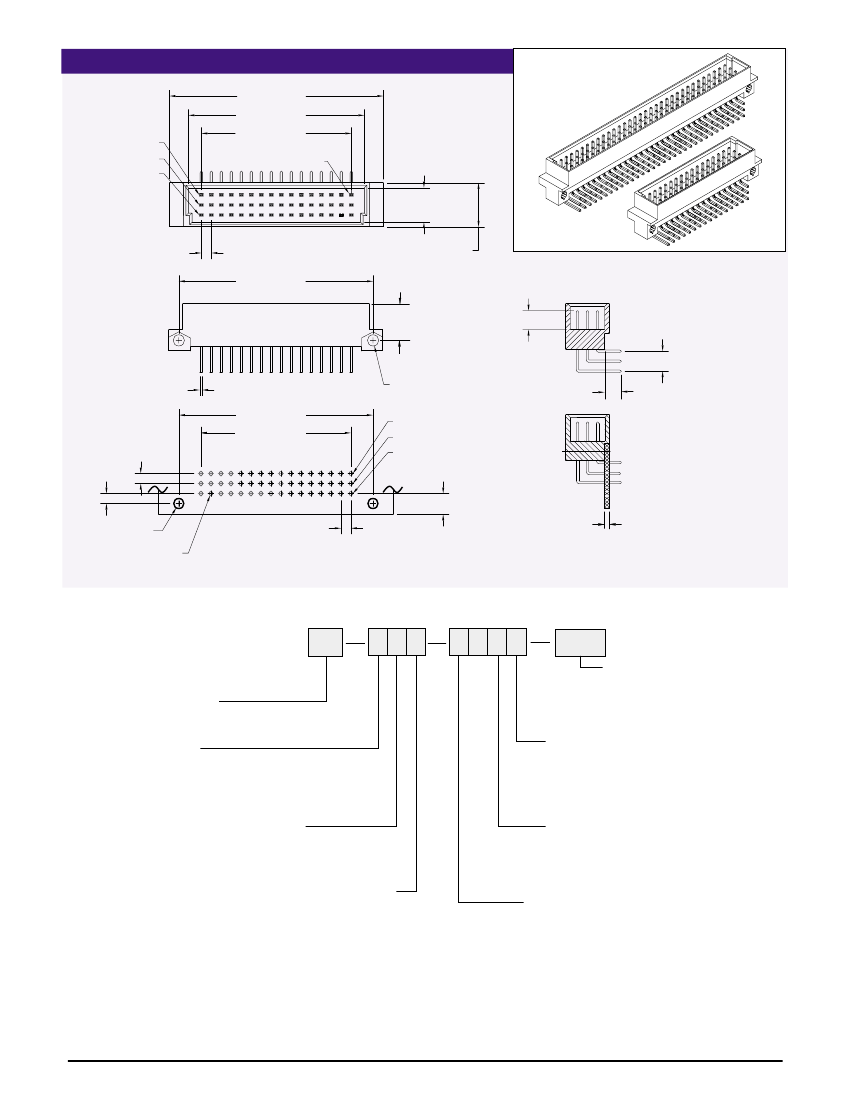

Type C/2, 48 Positions
54.00 [2.126]
44.60 [1.756]
1a
1b
1c
38.10 [1.500]
16a
8.70 [.343]
2.54 [.100] TYP.
48.26 [1.900]
10.20
[.402]
11.10 [.437]
4.80 [.189]
5.08 [.200]
.64 [.025] sq.
48.26 [1.900]
38.10 [1.500 ]
Ø 2.80 [.110]
1c
1b
1a
3.00 [.118]
2.54 [.100]
2.54 [.100 ]
Ø 2.80 [.110]
Ø 1.02 [.040]
2.54 [.100 ]
5.30 [.209]
1.58 ±.18 [.062]
SIDE VIEW
WITH CARD
Recommended P. C. Board Layout
Dimensions are in mm [inches]
PART NUMBERING
61
XXX
X8 XX
SERIES CODE
BODY STYLE
1
= C/2 (48 positions)
2
= C (96 positions)
XXX
Blank
= No Mounting Clip
MC
= Mounting Clip
500
= Straight Tail
DIN 41612 Type C, C/2 Male
TAIL PLATING
1
= Tin Lead
NUMBER OF CONTACTS
1
= 16
2
= 32
3
= 48
4
= 64
5
= 96
MATING AREA PLATING
1
= Class 1
2
= Class 2
3
= Class 3
CONTACT ARRANGEMENT
1
= Row A, B, and C fully populated
2
= Row A and B fully populated, Row C not populated
3
= Row A and C fully populated, Row B not populated
4
= Row B and C fully populated, Row A not populated
Consult Factory for other Loading Options
EMLB/LMEB CONTACTS
2
= Standard Pin Loading
1
= EMLB / LMEB Contacts Required
(Consult Factory for EMLB / LMEB Contact Locations)
CONSULT FACTORY FOR CONNECTORS BUILT TO YOUR DESIGN
