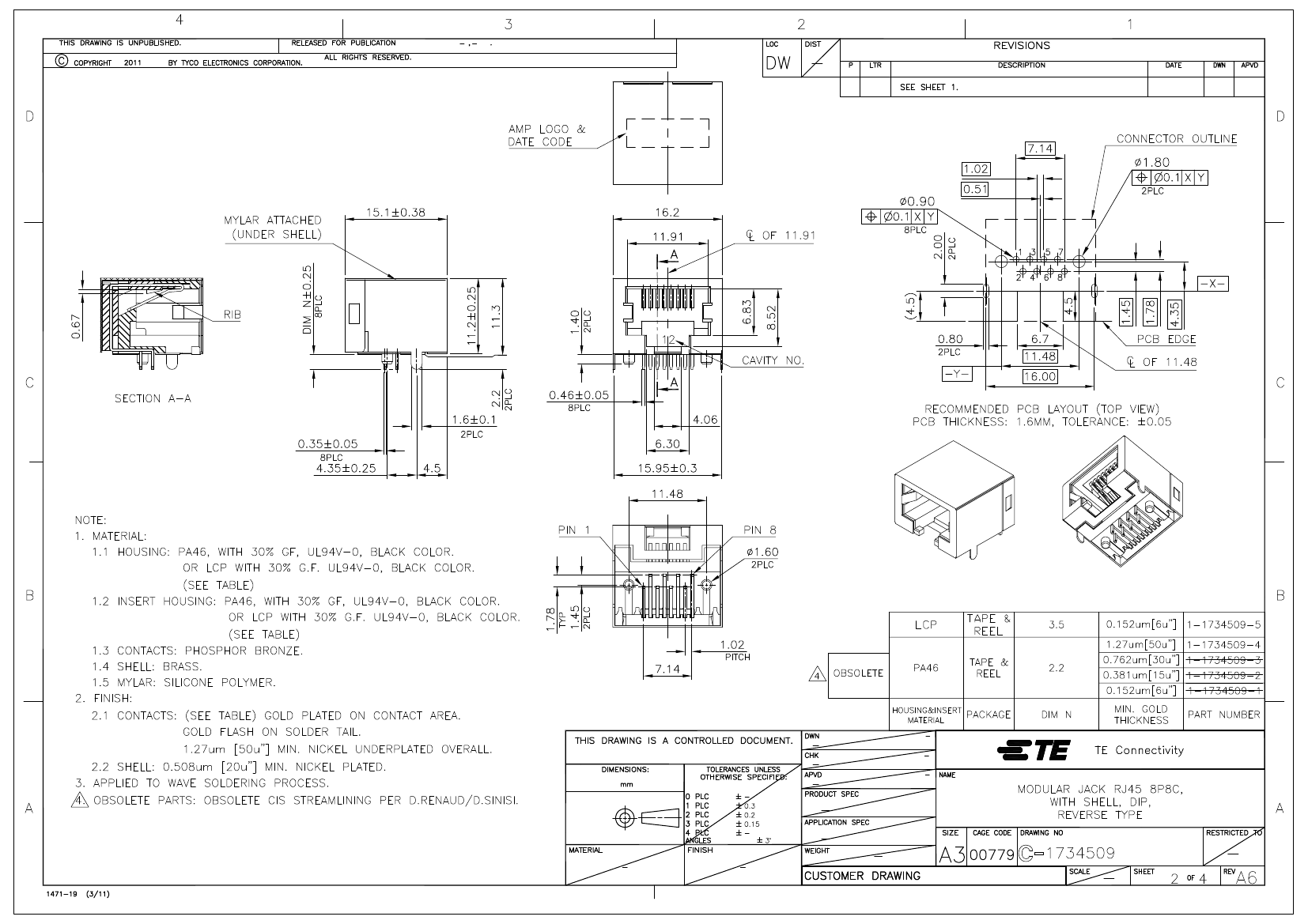

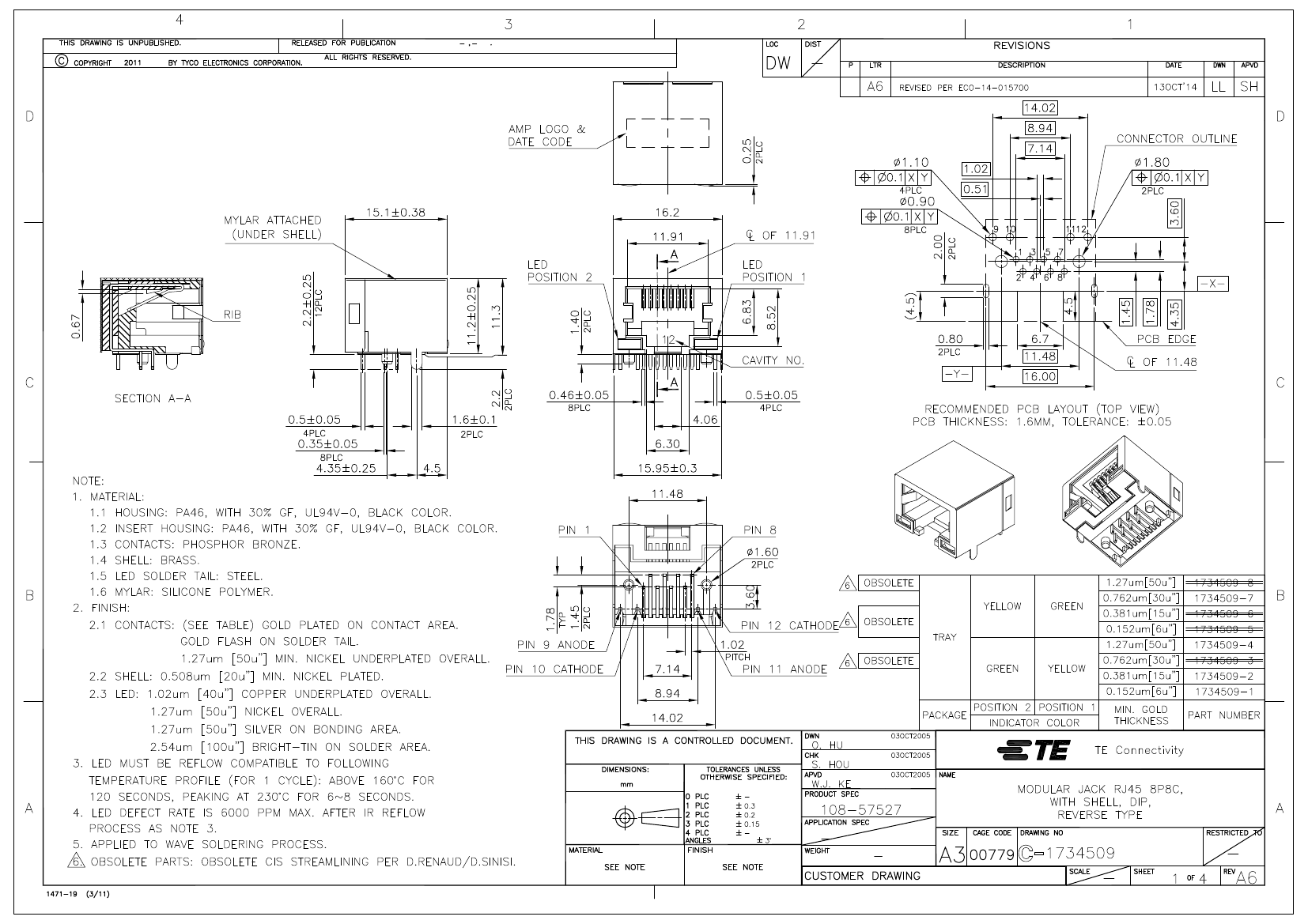

RJ45,8P8C,Reverse,T&R,50u"
| Parameter Name | Attribute value |
| Modular socket and plug interface types | RJ45 |
| Modular socket and plug products | RJ type sockets and plugs |
| Connector type | socket |
| Grounding options | PCB ground |
| Connectors and terminals terminate to | A printed circuit board |
| Connector and connector component types | Connector |
| keying | no |
| Port configuration | single port |
| Port matrix configuration | 1 x 1 |
| Connector terminal density | standard |
| Status Indicator | LED |
| Number of Positions | 8 |
| Number of loading locations | 8 |
| PCB mounting direction | right angle |
| PCB ground lug quantity | 2 |
| Shield plating materials | tin |
| Modular socket pin orientation | Standard - Lower Latch |
| shape | Low |
| LED color (lower left corner) | green |
| LED color (lower right corner) | yellow |
| PCB ground lug location | 4.35 mm [ .171 in ] |
| LED light pipe material | copper alloy |
| PCB terminal termination area plating materials | tin |
| Contact Current Rating (Max) (A) | 1 |
| Terminal contact plating material | gold |
| Terminal base material | Phosphor bronze |
| Thickness of plating material in terminal bonding area | 1.27 µm [ 50 µin ] |
| Connector product type | Connector components |
| PCB Termination Methods | Through Hole - Solder |
| Panel mount features | Without |
| Connector mounting type | board mounting |
| access location | side |
| Centerline (Pitch) | 1.02 mm [ .04 in ] |
| Shell color | black |
| Shell material | PA 46 GF30 |
| PCB thickness (recommended) | 1.6 mm [ .063 in ] |
| PCB tail length | 2.2 mm [ .087 in ] |
| Connector height | 11.3 mm [ .445 in ] |
| Working group temperature range | -40 – 85 °C [ -40 – 185 °F ] |
| shield | yes |
| Circuit Application | Signal |
| UL flame retardant rating | UL 94V-0 |
| performance category | Category 3 |
| Package quantity | 1400 |

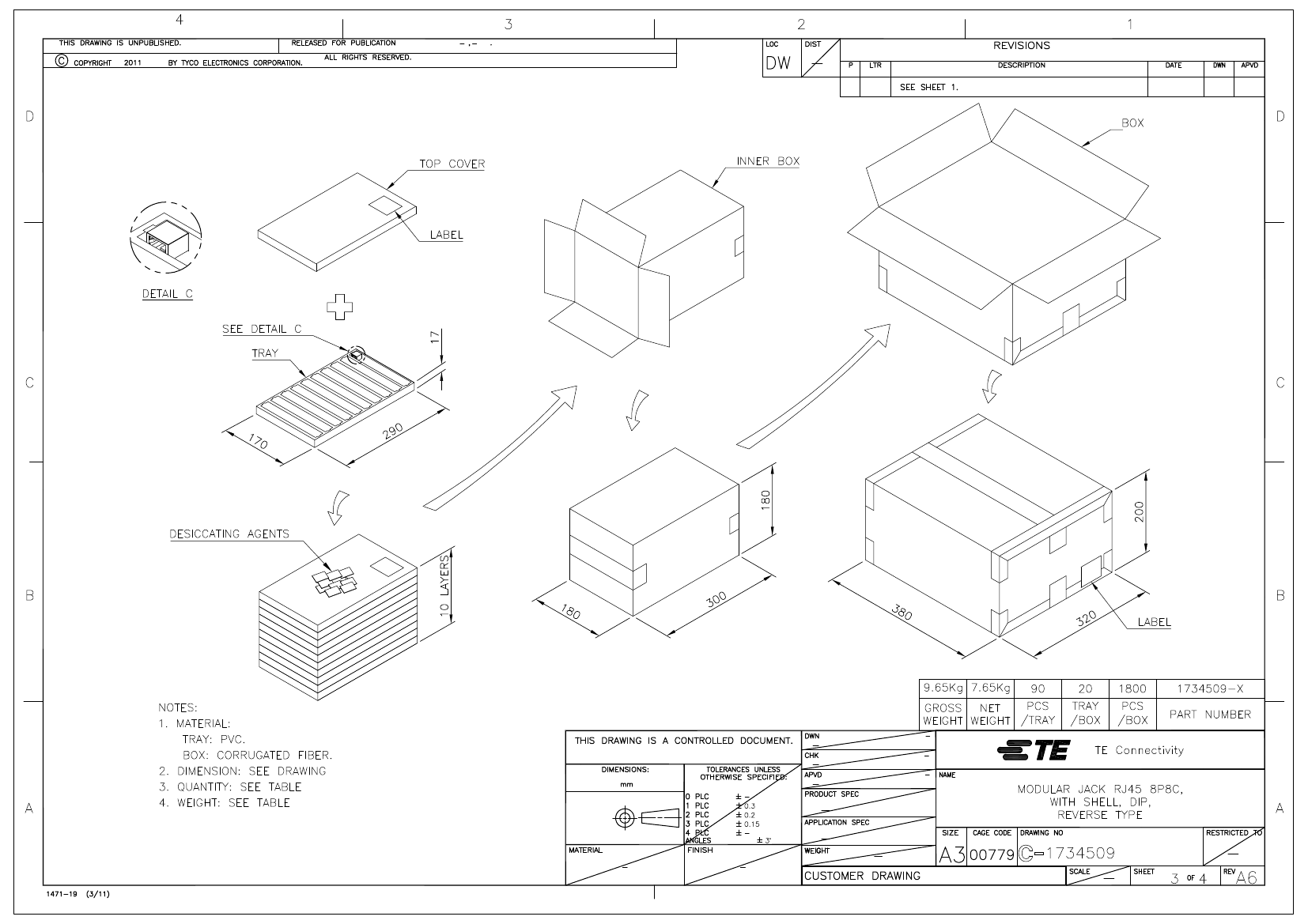

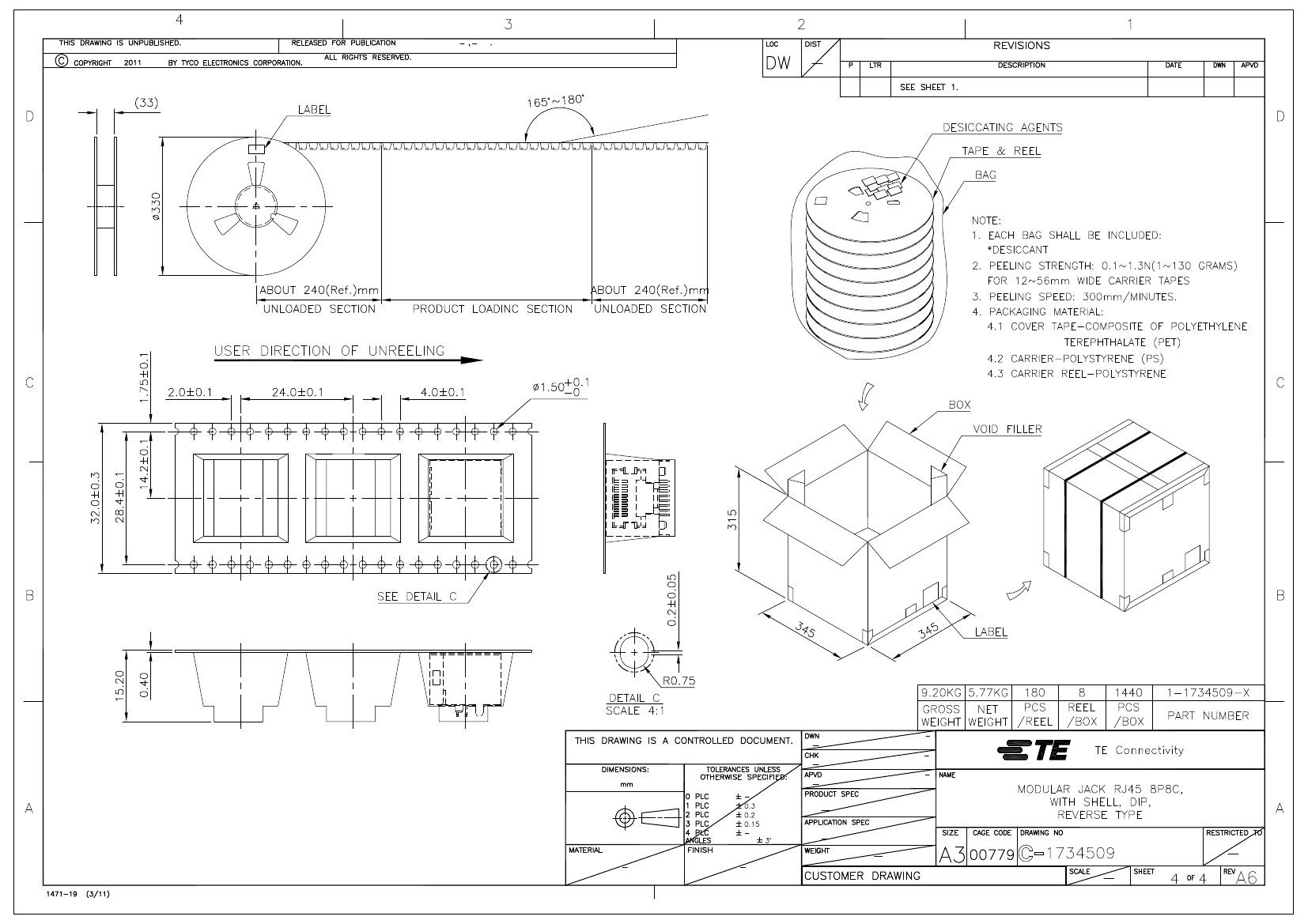

| Encapsulation method | Tape & Reel |
