SPECIFICATIONS
Current rating:
Contact material:
Contact resistance:
Housing material:
Insulation resistance:
Withstanding:
Operating temperature:
2 amps
Brass
30 milliohms max. at 100 milliamps DC
PBT, 30% glass filled, UL94V-0
1,000 megohms min. at 500VDC
1,000VAC for 1 min.
-55°C to +105°C
• All mounting types available with boardlocks (BL)
• Straight (A mount) type available in press fit (PF)
• All types available with first mate last break (FMLB)
D
PC Board Layout
(Tolerance: ±0.05
Pitch
Position
20
10
E
RoHS compliant
Series
Gender Mounting Contacts
Pin Length (PF)
CED
X
X
XX
XX
DIN41612 1-B=Male right angle 10, 20
A1=4.0mm (PF=4.6mm)
2-A=Female straight (see chart) A2=2.5mm (PF=6.3mm)
A3=13mm (PF=13mm) (str only)
A4=17mm (PF=17mm) (str only)
Rev.
Description
Date
Approved
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
1
2
3
4
2.54mm
Rows with
contacts
a b -
a - -
E
F
Pitch
Loaded Rows
Plating
XX
X
SGX
B1=2.54mm 1=A
SG=Selective gold
2=B
1=30µ” (Level 1)
4=A & B
2=10-20µ” (Level 2)
3=Flash (Level 3)
Date
08/10/99
08/10/99
08/10/99 Part No.:
Type
Options
B3
XX
B3 type [Blank]=None
(See also PF=Press fit
B, C, Q & BL=Boardlocks
R)
HT=High temp. material
F
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
G
CED-2-A-XX-XX-B1-X-SGX-B3-XX
7
8
9
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6

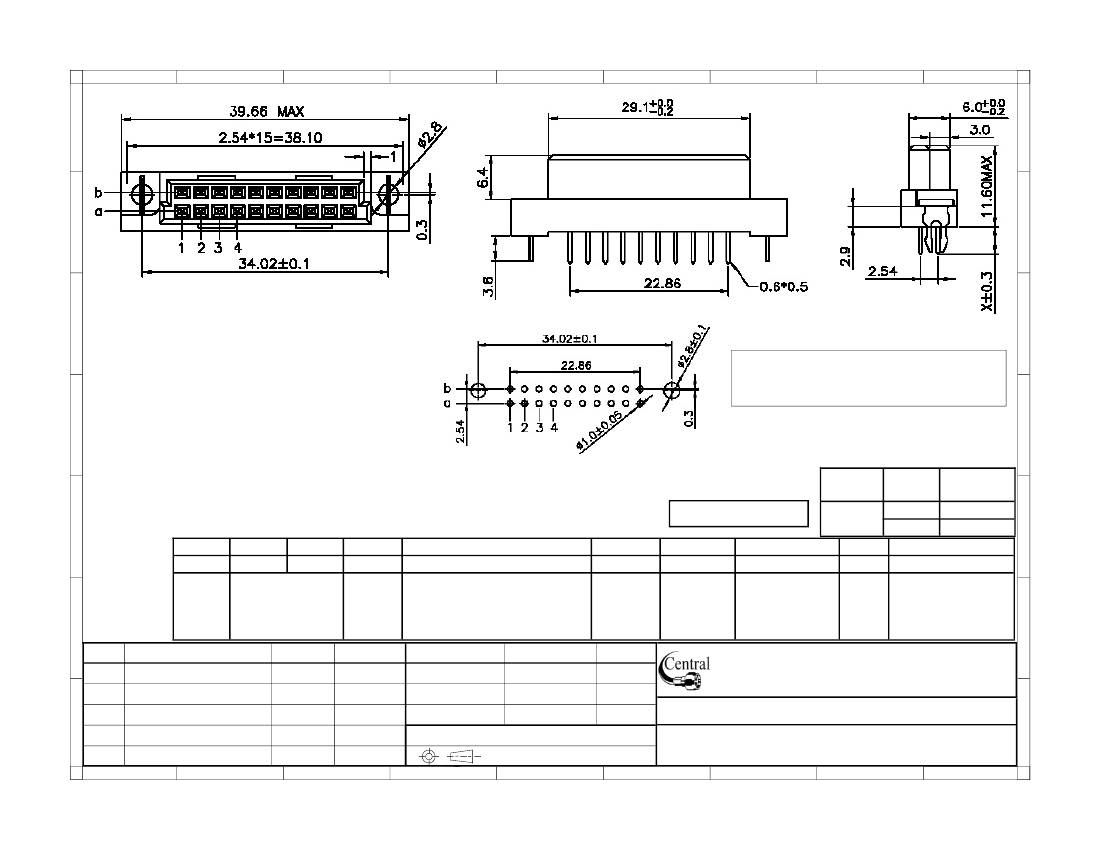

Description: DIN 41612, B3 type, female
