5-2232266-5: DescriptionPTL 2X5 PLUG HSG GLW WIRE KEY A DGR; CategoryThe connector The connector; File Size552KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

5-2232266-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-2232266-5	-	-	View	Buy Now

5-2232266-5 Overview

PTL 2X5 PLUG HSG GLW WIRE KEY A DGR

5-2232266-5 Parametric

Parameter Name	Attribute value
Brand Name	TE Connectivity
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
body width	0.965 inch
subject depth	0.902 inch
body length	1.327 inch
Body/casing type	PLUG
Connector type	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
empty shell	NO
Filter function	NO
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	140 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Guideline	UL,VDE
Shell material	GLASS FILLED NYLON
Termination type	CRIMP
Total number of contacts	10
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

8

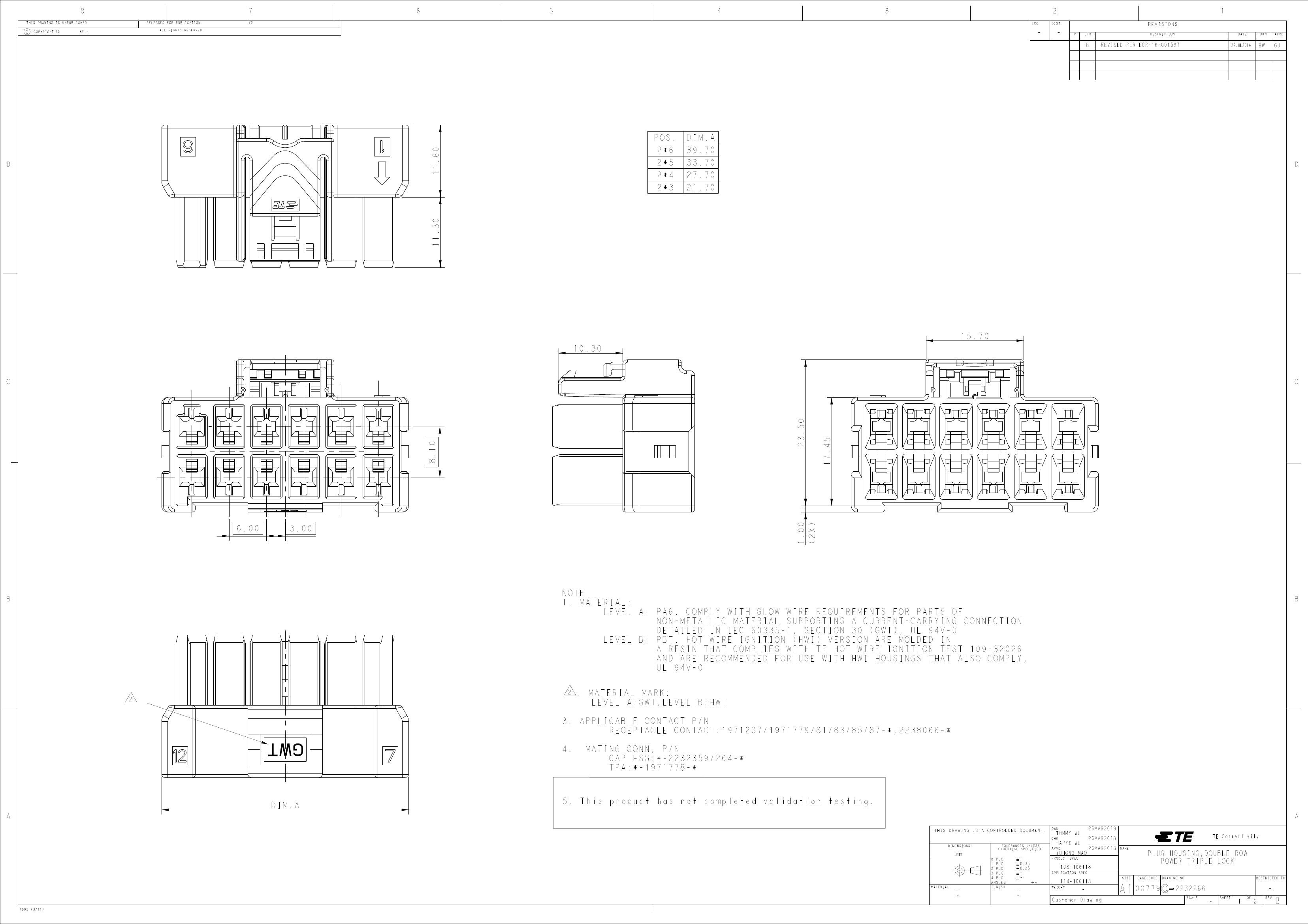

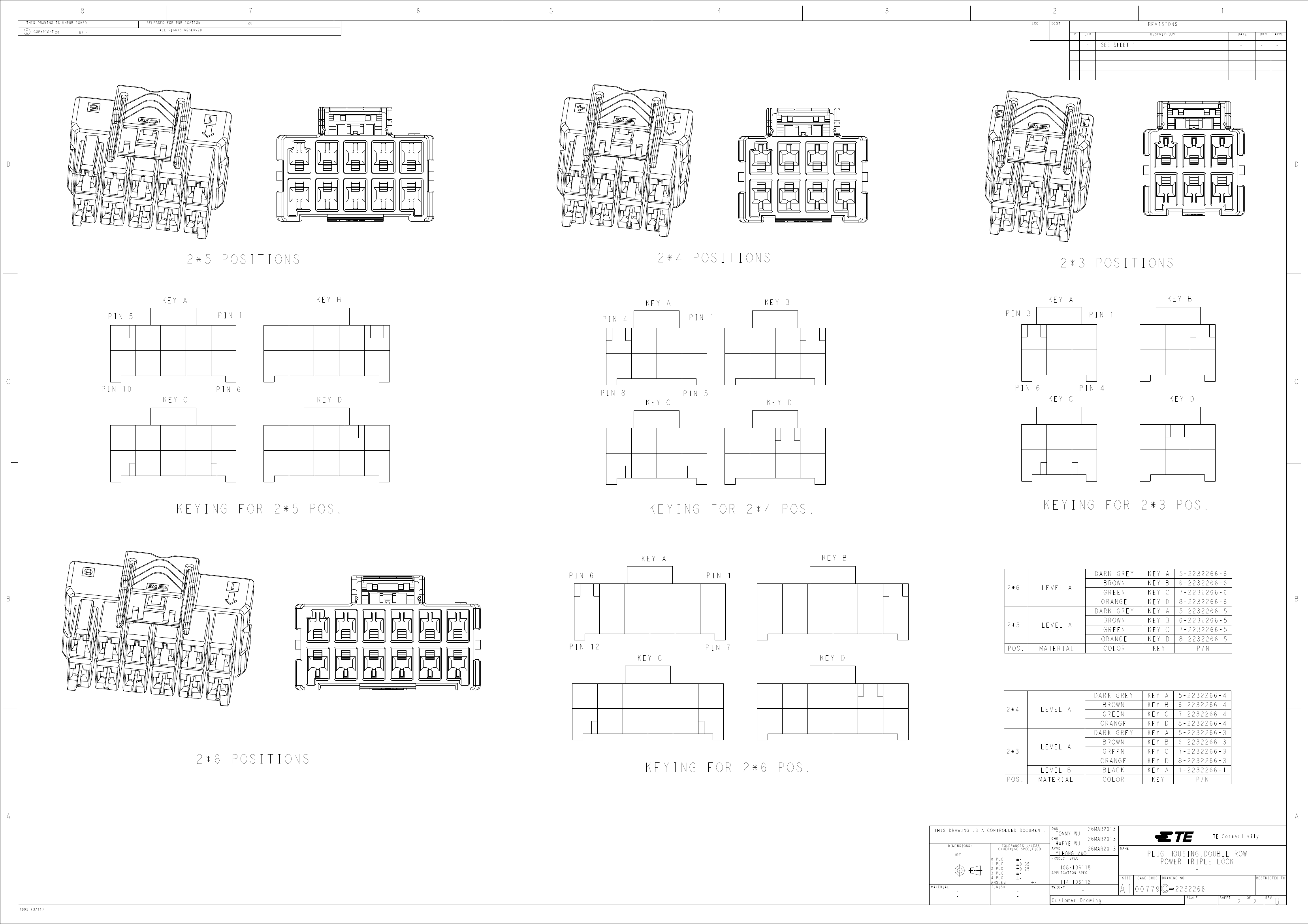

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

7

20

6

5

4

3

LOC

2

DIST

1

C

COPYRIGHT

20

-

REVISIONS

P

LTR

DESCRIPTION

DATE

DWN

APVD

B

REVISED PER ECR-16-001597

22JUL2016

BW

GJ

POS.

11.60

2*6

2*5

2*4

2*3

D

DIM.A

39.70

33.70

27.70

21.70

D

11.30

10.30

15.70

C

23.50

1.00

(2X)

6.00

3.00

B

NOTE

1. MATERIAL:

LEVEL A: PA6, COMPLY WITH GLOW WIRE REQUIREMENTS FOR PARTS OF

NON-METALLIC MATERIAL SUPPORTING A CURRENT-CARRYING CONNECTION

DETAILED IN IEC 60335-1, SECTION 30 (GWT), UL 94V-0

LEVEL B: PBT, HOT WIRE IGNITION (HWI) VERSION ARE MOLDED IN

A RESIN THAT COMPLIES WITH TE HOT WIRE IGNITION TEST 109-32026

AND ARE RECOMMENDED FOR USE WITH HWI HOUSINGS THAT ALSO COMPLY,

UL 94V-0

2

17.45

8.10

B

. MATERIAL MARK:

LEVEL A:GWT,LEVEL B:HWT

3. APPLICABLE CONTACT P/N

RECEPTACLE CONTACT:1971237/1971779/81/83/85/87-*,2238066-*

4.

MATING CONN, P/N

CAP HSG:*-2232359/264-*

TPA:*-1971778-*

A

DIM.A

4805 (3/11)

GWT

5. This product has not completed validation testing.

A

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

TOMMY WU

HAPYE WU

YUHONG MAO

108-106118

114-106118

26MAR2013

NAME

TE Connectivity

mm

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

0.35

0.25

-

PRODUCT SPEC

APPLICATION SPEC

-

WEIGHT

-

Customer Drawing

A1

SIZE

CAGE CODE

PLUG HOUSING,DOUBLE ROW

POWER TRIPLE LOCK

-

DRAWING NO

RESTRICTED TO

00779

2232266

SCALE

-

SHEET

1

OF

2

REV

-

B
