BJ246-22 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> BJ246-22

BJ246-22: DescriptionPANEL MOUNT, CABLE TERMINATED, FEMALE, TNC CONNECTOR, CRIMP, JACK; CategoryThe connector The connector; File Size69KB，1 Pages; ManufacturerVertiv

Download Datasheet Parametric Compare View All

BJ246-22 Overview

PANEL MOUNT, CABLE TERMINATED, FEMALE, TNC CONNECTOR, CRIMP, JACK

BJ246-22 Parametric

Parameter Name	Attribute value
Maker	Vertiv
Reach Compliance Code	unknown
ECCN code	EAR99
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF TNC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Manufacturer's serial number	240
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	11 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	CRIMP
voltage standing wave ratio	1.3
Base Number Matches	1

Preview

Download Datasheet

View All

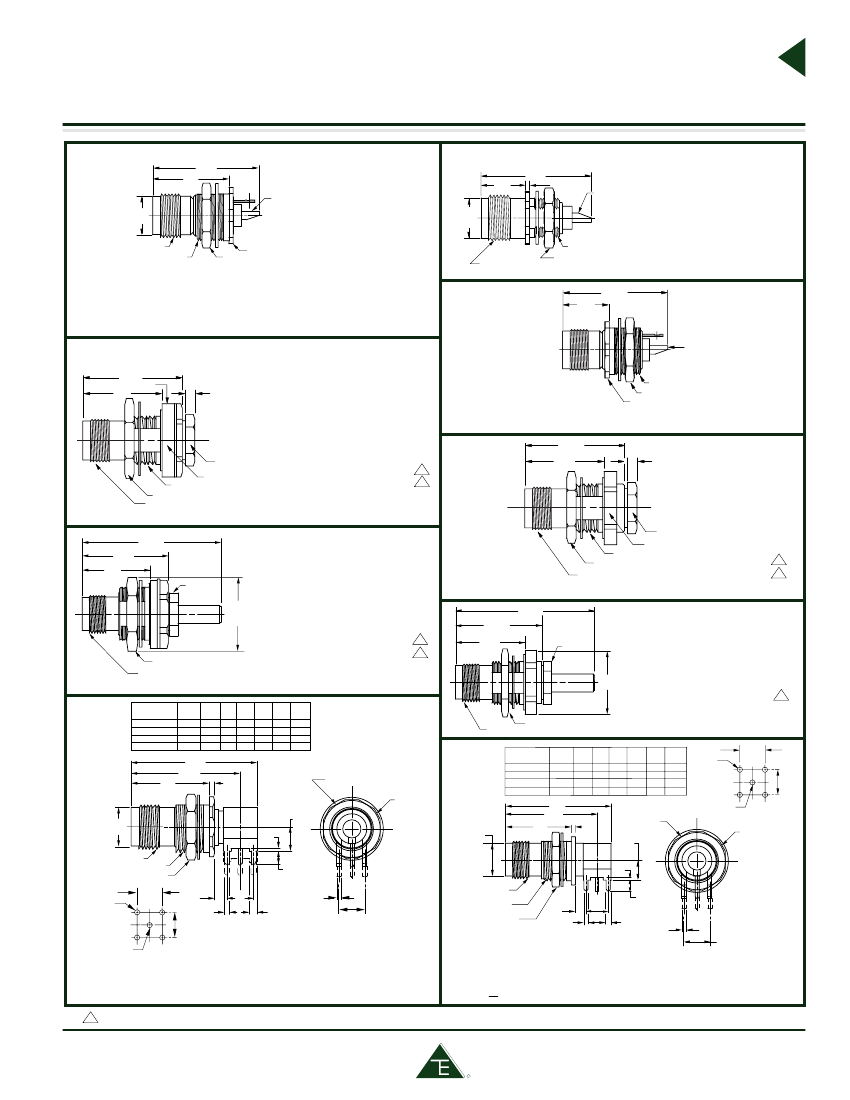

Miniature coax threaded

40/240 series, tnc bulkhead jacks

BJ41 Shown

BJ40 Shown

1.060

.757

SOLDER POT ACCEPTS

.060 DIA CONDUCTOR

.380

DIA

.382

.378

DIA

.375-32UNEF-2A

1.058

.425

.046

Bulkhead Jack

SOLDER POT ACCEPTS

.060 DIA CONDUCTOR

Solder Pot

.4375-28UNEF-2A

.500-28UNEF-2A

.562 HEX NUT

Insulated

Bulkhead Jack

.4375-28UNEF-2A

.500 HEX NUT

BJ40

50Ω

75Ω

UBJ40

w/ Solder Lug

BJ40SL

50Ω

75Ω

UBJ40SL

Mounting Hole:

D5.125

Rear Mount, Solder Pot

BJ41

50Ω

75Ω

UBJ41

Mounting Hole:

D3.147

BJ47 Shown

1.060

.471

BJ46-1 Shown

1.000

.830

.790

.096

SOLDER POT

ACCEPTS

.060 DIA

CONDUCTOR

Insulated

Bulkhead Jack

Insulated

Bulkhead Jack

Front Mount, Solder pot

Mounting Hole:

D3.147

BJ49-1 Shown

1.000

.806

.500-28UNEF-2A

.562 HEX NUT

50Ω

.562 HEX NUT

75Ω

BJ47

UBJ47

.437 HEX

.687 HEX

.625-24UNEF-2A

.750 HEX NUT

.4375-28UNEF-2A

Rear Mount, Wrench Crimp

50Ω

BJ46-

75Ω

UBJ46-

Mounting Hole:

D2.187

-Ground filter version page 31.

.096

.437 HEX

1.626

1.000

.790

.437 HEX

.830

DIA

MAX

BJ246-001 Shown

Bulkhead

Cable Jack

.687 HEX

.500-28UNEF-2A

50Ω

.625 HEX

.4375-28UNEF-2A

Wrench Crimp

75Ω

Mounting Hole:

D3.218 / D2.218 (Cable Groups 6, 6E,51,52)

BJ49-

UBJ49-

Insulated

Bulkhead Jack

Rear Mount, Tool Crimp

BJ246-

50Ω

75Ω

UBJ246-

Mounting Hole:

D2.187

-Ground filter version pg 31.

1.000

.806

1.625

.437 HEX

.750 HEX NUT

.4375-28UNEF-2A

.750

DIA

Bulkhead

Cable Jack

Tool Crimp

MODEL

LTR

NO.

CODE

CBBJR46

UCBBJR46

CBBJR46A

UCBBJR46A

OHM

DIM

.046

.029

.046

.029

DIM

.24

.34

DIM

.090

DIM

.050

.058

DIM

.0625

.070

CBBJR46 Shown

.625 HEX NUT

.4375-28UNEF-2A

BJ249-

50Ω

Mounting Hole:

D3.218

D2.218 (Cable Groups 6,6E,51,52)

E DIA

TYP

.258

TYP

1.237

1.074

.773

.046

.593 DIA

.649

ACROSS

POINTS

MODEL

LTR OHM A

NO.

CODE

DIM DIM DIM DIM DIM

CBBJR49

50 .046 .24 .090 .050 .0625

UCBBJR49

75 .029 .24 .090 .050 .0625

CBBJR49A

50 .046 .34 .090 .058 .070

UCBBJR49A

75 .029 .34 .090 .058 .070

1.237

1.074

.380

DIA

.773

.046

.593 DIA

.258

.380

DIA

.030

TYP

.4375-28UNEF-2A

.500-28UNEF-2A

.562 HEX NUT

.258

TYP

.124

TYP

.258

TYP

A DIA

.649

ACROSS

POINTS

.13 TYP

.030

TYP

.4375-28UNEF-2A

E DIA TYP

.040

TYP

.258

TYP

.500-28UNEF-2A

.124

.562 HEX NUT

.258

TYP

.13 TYP

.258

A DIA

Insulated Circuit Board Jack

Right Angle

"A" refers to tall versions

50Ω

CBBJR46

75Ω

UCBBJR46

50Ω

CBBJR46A

75Ω

UCBBJR46A

Mounting Hole:

D3.156

CBBJR49 SHOWN

.040

TYP

.258

TYP

Circuit Board Jack

Bulkhead mount

Right Angle

Add "A" for tall versions

50Ω

CBBJR49

75Ω

UCBBJR49

Mounting Hole:

D3.230

- Refers to Cable Group Table, see pages 68-88. "D" mounting holes are on page 45.

Trompeter Products Catalog

ISO 9001

Registered

(800) 982-2629

Fax: (818) 706-1040
