3-284932-3 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 3-284932-3

Preview

3-284932-3: DescriptionDUOPLUG MKI STD, KEYED 2/3, 3 POS., RED; CategoryThe connector; File Size219KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

3-284932-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-284932-3	-	-	View	Buy Now

3-284932-3 Overview

DUOPLUG MKI STD, KEYED 2/3, 3 POS., RED

3-284932-3 Parametric

Parameter Name	Attribute value
Connector System	wire to board
Connector type	female end
Connectors and terminals terminate to	A printed circuit board
Connector type	card edge
Connector type	Connector components
shape	standard
Cable type	Stranded wire
Number of power supply locations	3
Number of Positions	3
Rows	1
Connector terminal load status	Fully loaded
PCB mounting direction	right angle
Pre-installed	yes
Number of slots for insulation displacement	3
Card entry method	side
Support	Without
pre-assembled	yes
hot swap	no
Operating Voltage	63 V
Keying between cavity number	3-Feb
color	red
Cable exit angle	90°
Terminal base material	Phosphor bronze
Contact Current Rating (Max) (A)	2
Terminal contact plating material	tin
Terminal termination area plating material	tin
Terminal termination area plating thickness (µm)	4 – 10
Terminal type	socket
Cable termination method	Piercing crimping (IDC)
PCB installation and fixation	Without
Panel mount features	Without
PCB mounting alignment	Without
Lock clip position	none
Connector mounting type	board mounting
Terminal positioning force	Without
joint fixation	Without
Joint alignment type	keying
joint alignment	with
Centerline (Pitch)	2.5 mm [ .098 in ]
Shell color	red
Shell material	PBT GF
end cap	Without
Shell type	closed end
Accepts Wire Insulation Diameter Range	1.3 mm [ .05 in ]
PCB thickness (recommended)	1.5 mm [ .059 in ]
Cable size	24 – 22 AWG [ .22 – .35 mm² ]
Acceptable wire insulation diameter range	1.3 mm [ .051 in ]
Card slot depth (mm)	5
Height (mm)	7.35
Working group temperature range	-40 – 110 °C [ -40 – 230 °F ]
Circuit Application	Signal
Applicable to	PCB frame, male header
Package quantity	280
Encapsulation method	tray

Preview

Download Datasheet

View All

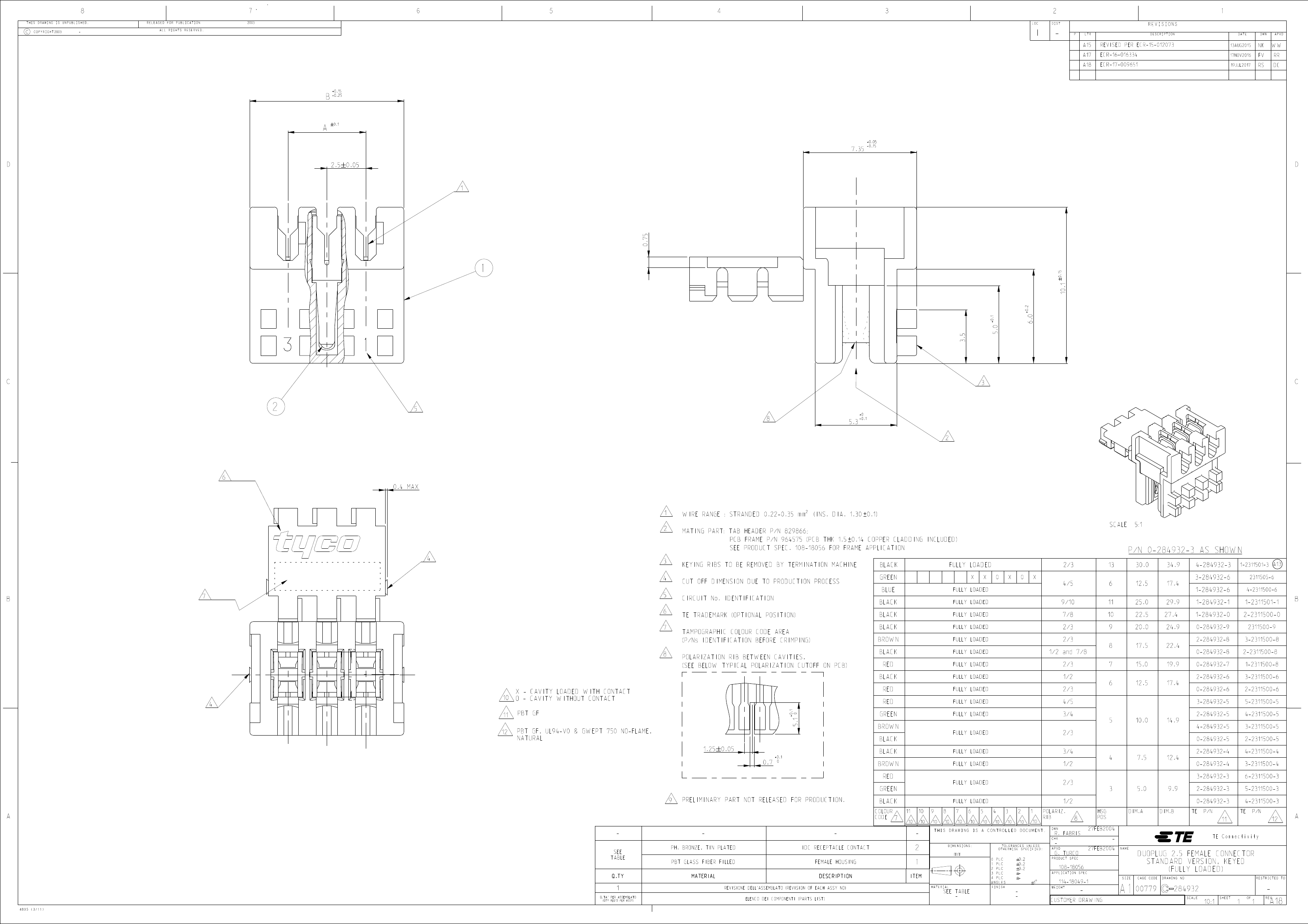

SECTION

A2-A2

8

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

-

7

2003

SECTION

X1-X1

6

5

4

3

LOC

2

DIST

1

REVISIONS

P

LTR

DESCRIPTION

DATE

DWN

APVD

C

COPYRIGHT

2003

I

-

A15

A17

A18

REVISED PER ECR-15-012073

ECR-16-016334

ECR-17-009651

13AUG2015

17NOV2016

19JUL2017

NK

FV

RS

WW

RR

DC

B

A

+0.15

-0.25

7.35

+0.05

-0.15

D

2.5 # 0.05

1

D

1

10.1

0.75

3

C

1

3.5

5.0

6.0

+0.1

+0.2

3

C

2

5

8

5.3

+0

-0.1

2

6

0.4 MAX

1

2

WIRE RANGE : STRANDED 0.22-0.35 mm

2

(INS. DIA. 1.30±0.1)

SCALE

5:1

MATING PART: TAB HEADER P/N 829866;

PCB FRAME P/N 964575 (PCB THK 1.5±0.14 COPPER CLADDING INCLUDED)

SEE PRODUCT SPEC. 108-18056 FOR FRAME APPLICATION

KEYING RIBS TO BE REMOVED BY TERMINATION MACHINE

CUT OFF DIMENSION DUE TO PRODUCTION PROCESS

CIRCUIT No. IDENTIFICATION

TE TRADEMARK (OPTIONAL POSITION)

TAMPOGRAPHIC COLOUR CODE AREA

(P/Ns IDENTIFICATION BEFORE CRIMPING)

POLARIZATION RIB BETWEEN CAVITIES,

(SEE BELOW TYPICAL POLARIZATION CUTOFF ON PCB)

BLACK

GREEN

BLUE

BLACK

BROWN

BLACK

RED

BLACK

RED

+0.1

4

3

4

P/N 0-284932-3 AS SHOWN

2/3

O

X

O

X

FULLY LOADED

X

13

6

11

10

9

8

7

6

30.0

12.5

25.0

22.5

20.0

17.5

15.0

12.5

34.9

17.4

29.9

27.4

24.9

22.4

19.9

17.4

4-284932-3

3-284932-6

1-284932-6

1-284932-1

1-284932-0

0-284932-9

2-284932-8

0-284932-8

0-284932-7

2-284932-6

0-284932-6

3-284932-5

1-2311501-3A13

2311505-6

4-2311500-6

B

7

5

6

7

FULLY LOADED

11

10

4/5

9/10

7/8

2/3

1/2 and 7/8

2/3

1/2

2/3

4/5

3/4

2/3

3/4

1/2

2/3

1/2

1-2311501-1

2-2311500-0

2311500-9

3-2311500-8

2-2311500-8

1-2311500-8

3-2311500-6

2-2311500-6

5-2311500-5

4-2311500-5

3-2311500-5

2-2311500-5

4-2311500-4

3-2311500-4

6-2311500-3

5-2311500-3

4-2311500-3

TE

P/N

B

8

4

X - CAVITY LOADED WITH CONTACT

10

O - CAVITY WITHOUT CONTACT

5.1

0

11

12

RED

GREEN

BROWN

BLACK

BROWN

RED

GREEN

PBT GF

PBT GF, UL94-V0 & GWEPT 750 NO-FLAME,

NATURAL

1.25 # 0.05

0.7

+0.1

0

5

10.0

14.9

2-284932-5

4-284932-5

0-284932-5

4

7.5

12.4

2-284932-4

0-284932-4

3-284932-3

3

HSG

POS

27FEB2004

-

27FEB2004

NAME

5.0

DIM.A

9.9

DIM.B

2-284932-3

0-284932-3

TE

P/N

9

PRELIMINARY PART NOT RELEASED FOR PRODUCTION.

BLACK

COLOUR

CODE

7

10

A

-

SEE

TABLE

Q.TY

9

10

8

10

7

10

6

10

5

10

4

10

3

10

2

10

1

10

POLARIZ.

RIB

DWN

CHK

8

11

12

A

-

PH. BRONZE, TIN PLATED

PBT GLASS FIBER FILLED

MATERIAL

-

IDC RECEPTACLE CONTACT

FEMALE HOUSING

DESCRIPTION

REVISIONE DELL'ASSEMBLATO (REVISION OF EACH ASSY NO)

ELENCO DEI COMPONENTI (PARTS LIST)

-

2

1

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

R. FABRIS

-

G. TURCO

108-18056

TE Connectivity

mm

APVD

ITEM

MATERIAL

1

Q.TA' PER ASSEMBLATO

(QTY REQ'D PER ASSY)

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.2

-

PRODUCT SPEC

APPLICATION SPEC

1 $

SEE TABLE

-

WEIGHT

114-18049-1

-

CUSTOMER DRAWING

A1

SIZE

CAGE CODE

DUOPLUG 2.5 FEMALE CONNECTOR

STANDARD VERSION, KEYED

(FULLY LOADED)

DRAWING NO

RESTRICTED TO

00779

284932

SCALE

4805 (3/11)

10:1

SHEET

1

OF

1

REV

-

A18
