1379030-1

Description
12W MQS RIGHT ANGLE HDR
CategoryThe connector
File Size167KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

1379030-1 Online Shopping

Suppliers Part Number Price MOQ In stock
1379030-1 - - View Buy Now

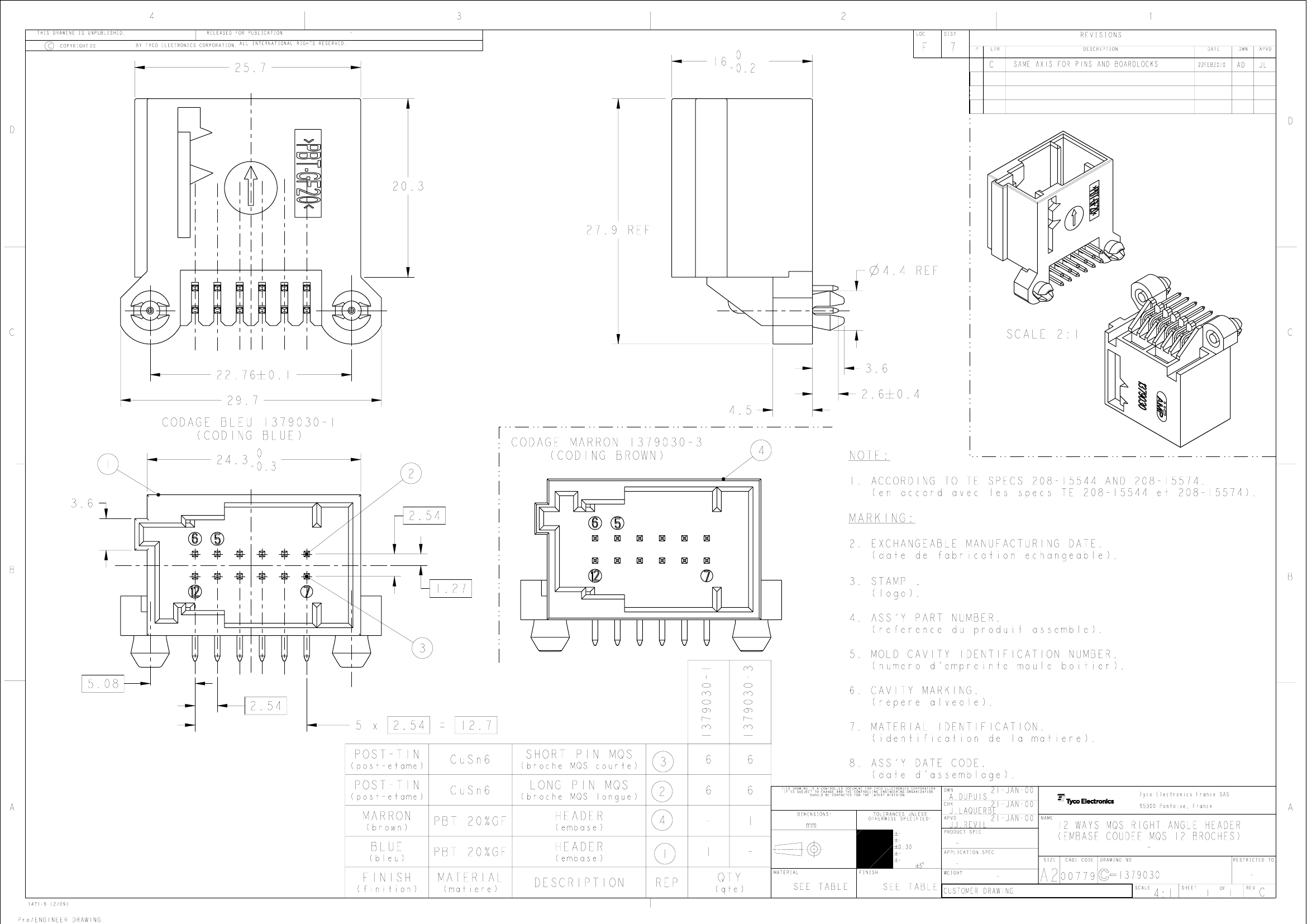

1379030-1 Overview

12W MQS RIGHT ANGLE HDR

1379030-1 Parametric

Parameter NameAttribute value
Sealableno
Connectors and terminals terminate toA printed circuit board
shieldno
mixing headno
Number of signal positions12
Number of Positions12
Rows2
Section number1
Nominal Voltage Structure (V)12
Operating voltage (VDC)12
colorblue
Width of male end.63 mm [ .025 in ]
Thickness of male end.63 mm [ .025 in ]
Contact surface platingTin (Sn)
Termination methodThrough Hole - Solder
PCB mounting fixation typeplate lock
PCB installation and fixationwith
Panel mount featuresWithout
Mounting holesWithout
PCB mounting alignmentWithout
Installation directionHorizontal/90°
lock interfacewith
Centerline (Pitch)2.54 mm [ .1 in ]
width27.9 mm [ 1.098 in ]
PCB profile height16 mm [ .63 in ]
PCB thickness (recommended)1.6 mm [ 0.063 in ]
length29.7 mm [ 1.169 in ]
Working group temperature range-40 – 85 °C [ -40 – 185 °F ]
Operating temperature (max) (°C)65, 70, 75, 80, 85
Operating Temperature (Max) (°F)149, 158, 167, 176, 185
Circuit ApplicationSignal
UL flammability ratingUL 94-HB
Package quantity1472
Package typetray
