TECHNICAL CHARACTERISTICS
MATERIAL
INSULATOR: PBT
FLAMMABILITY RATING: UL94-V0
COLOR: BLACK
CONTACT MATERIAL: COPPER ALLOY
CONTACT TYPE: STAMPED
CONTACT PLATING: GOLD
QUALITY CLASS: 3 AS PER CECC 75 301-802
PITCH: 2.54 MM
ENVIRONMENTAL
OPERATING TEMPERATURE: -40 UP TO 125°C
COMPLIANCE: LEAD FREE AND ROHS
ELECTRICAL
CURRENT RATING: 3 A
WORKING VOLTAGE: 250 VAC
INSULATOR RESISTANCE: >1000 MOHM
DIELECTRIC WITHSTANDING VOLTAGE: 500 VAC/MN
CONTACT RESISTANCE: 20 mOHM MAX
STANDARD
CERTIFIED: E323964
SOLDERING
JEDEC LEAD FREE WAVE PROCESS SOLDERING
PACKAGING
TRAY
DIMENSION
A = 2.54 x ((NB. PIN /2) - 1)
B = 2.54 x (NB. PIN /2) + 0.5
A
B
C
RoHS Compliant
G
F
E
D
C
B
A
REV
05-OCT-16
17-DEC-15
25-NOV-09
06-NOV-08
DATE
PIECE HEIGHT
DIMENSION
STANDARD
PDF
FILE
AK
AK
JP
JP
BY
APPROVAL: GMo
SCALE:
SHEET: 1/2
DRAW: MIKE WU
WERI PART NO: 613 0xx 243 121
PROJECTION:
GENERAL TOLERANCE
.X = +/- 0.2
.XX = +/- 0.15
UNIT: MM

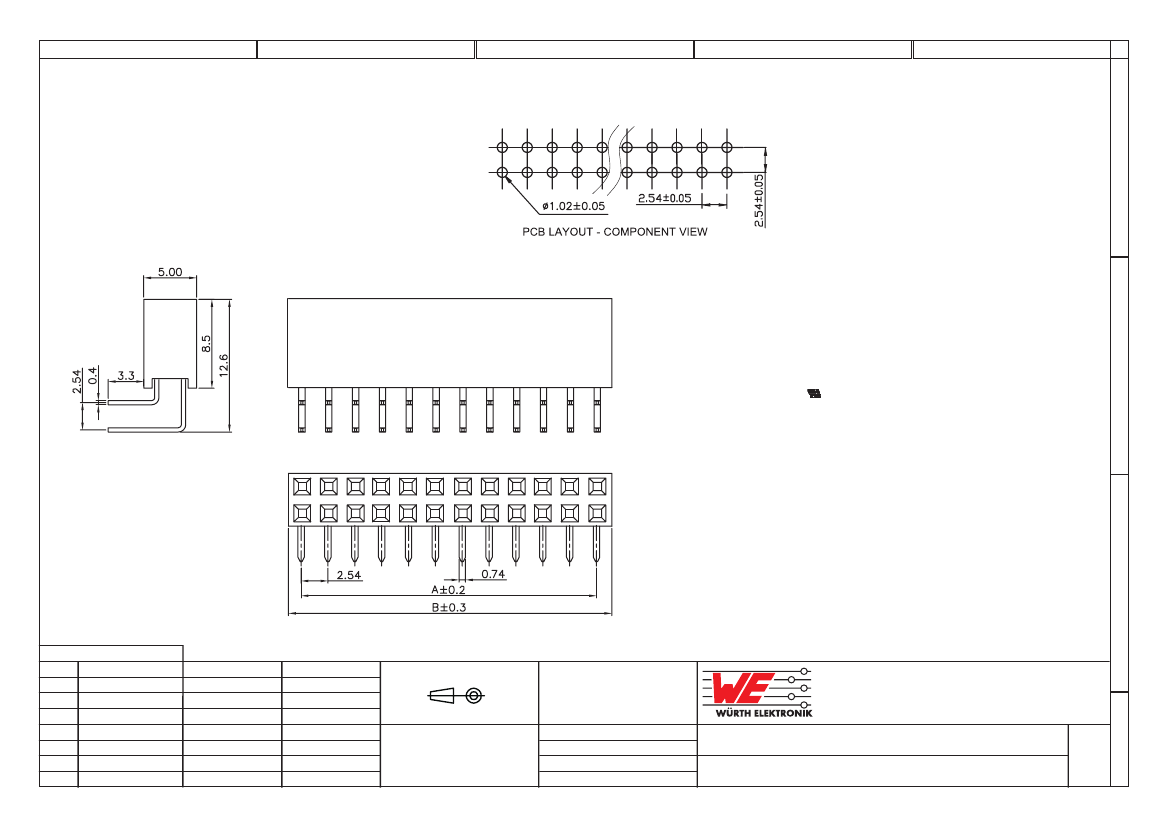

DESCRIPTION: 2.54MM ANGLED DUAL SOCKET HEADER
SIZE
A4
D
1
2
